The main function of the orthodox tea leaf rolling machine is to roll the softened tea into strips, reduce the volume of the tea leaf, increase the aesthetics of the tea, destroy the cell wall of the fresh tea leaves, let the tea juice overflow, make the dry tea more conducive to brewing, and more resistant to brewing, improve the quality of the tea, and increase the price of the tea.
1. The tray, the tooth bar, the barrel and the lid are made of stainless steel.
2. Single-arm pressure lifting, easy to use and compact
3. The professional design of the shovel and the bucket angle makes the forming speed of the tea faster;
4. The height design of the purlins is formed by a one-time mold, so that the height and angle of the strips are uniform, so that the tea strips are more compact and beautiful.

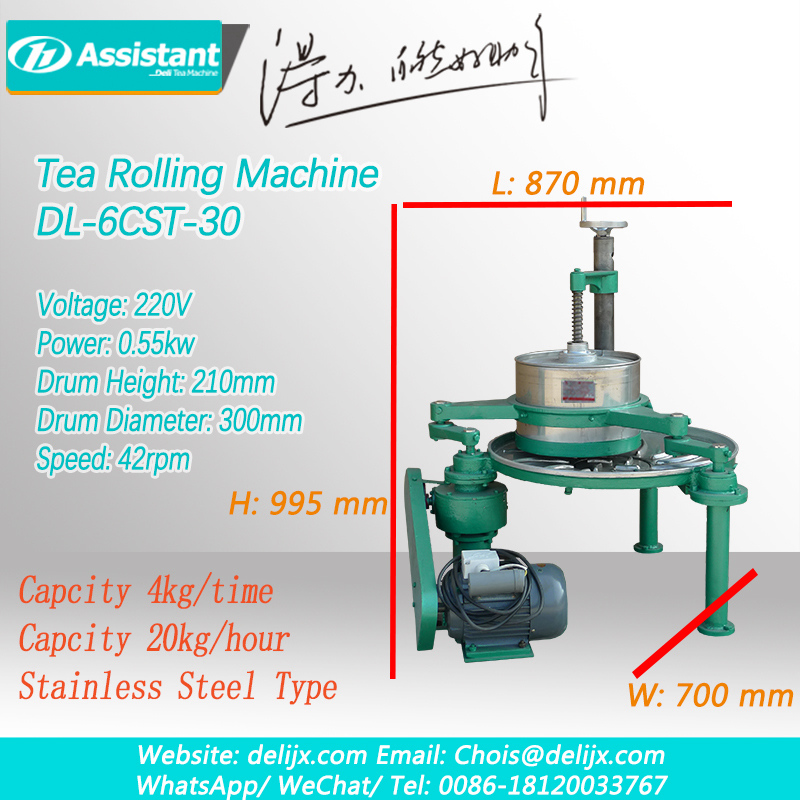

DL-6CRT-30 orthodox tea leaf rolling machine specification:
|
Model
|
DL-6CRT-30
|
|
Dimension
|
870*70*995 mm
|
|
Input voltage
|
220V / 50Hz
|
|
Tea disc diameter
|
585 mm
|
|
Barrel diameter
|
300 mm
|
|
Barrel height
|
210 mm
|
|
Matching motor
|
Power
|
0.55 kW
|
|
Speed
|
1400 RPM
|
|
Rated voltage
|
220 V
|
|
Barrel speed
|
42 RPM
|
|
Productivity
|
20 Kg/h
|
|
Maximum capacity per time
|
4 kg
|
The above data is based on fresh tea leaf water content of 75-80%.

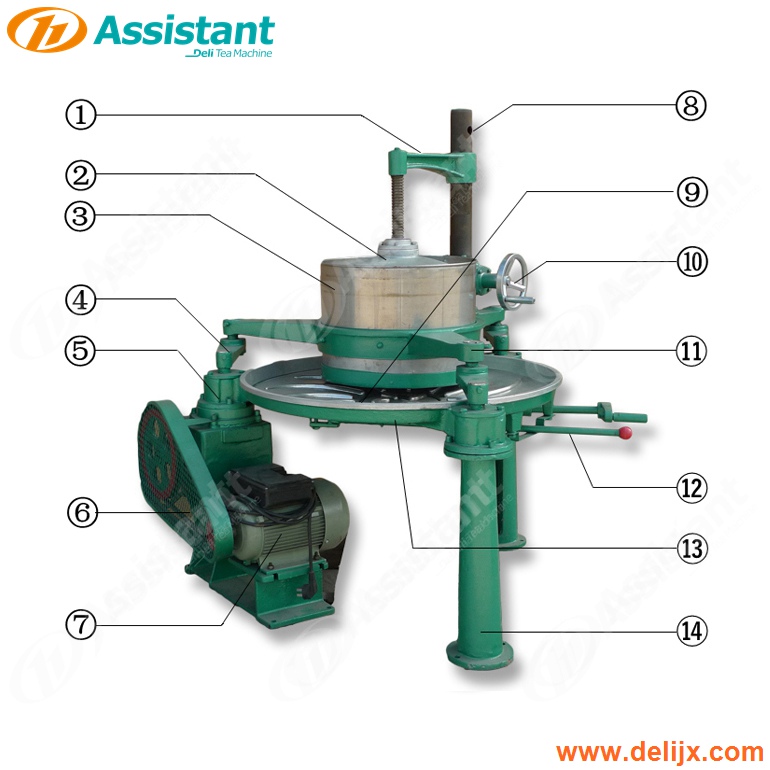

DL-6CRT-30 orthodox tea leaves processing machine decomposition diagram:
|
①
|
Transverse arm
|
⑧
|
Support column
|
②
|
Barrel cover
|
⑨
|
Rolling disc
|
③
|
Stainless steel Drum
|
⑩
|
Handwheel
|
④
|
Crank
|
⑪
|
Support frame
|
⑤
|
Transmission case
|
⑫
|
Tea discharge handle
|
⑥
|
Transmission belt
|
⑬
|
Tea outlet
|
⑦
|
Drive motor
|
⑭
|
Support leg
|
|
|
|
|

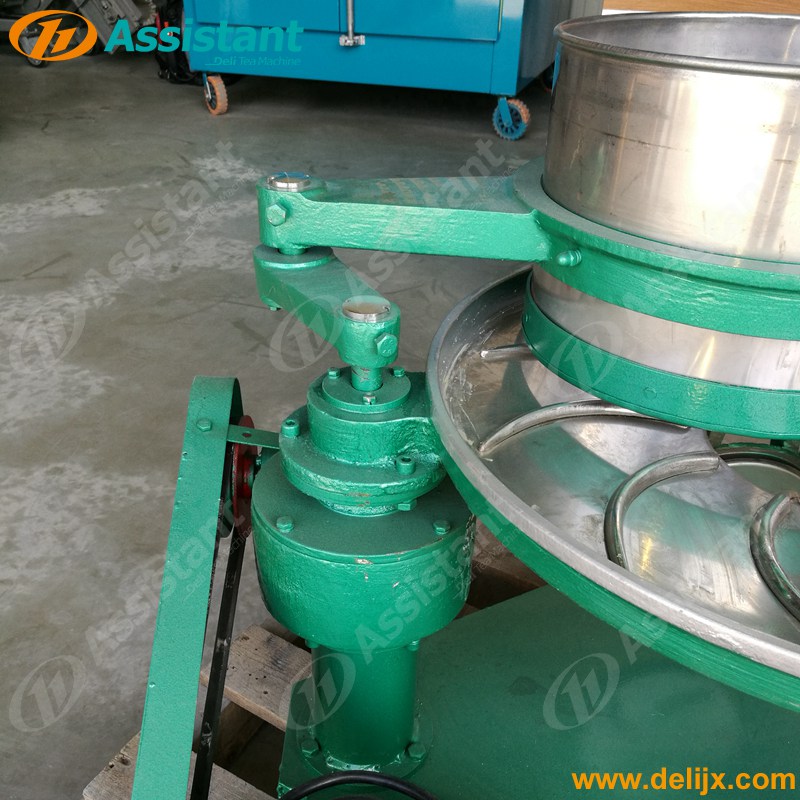

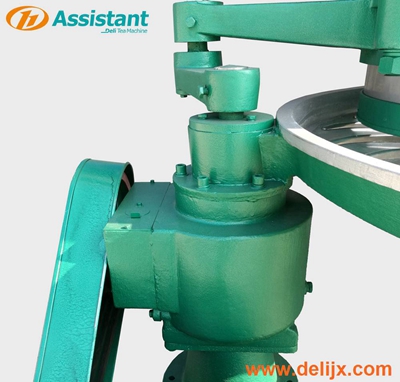

Gear box
Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines
|

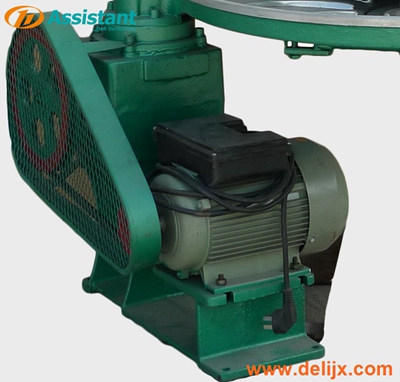

Copper core motor
Powerful copper core drive motor, provide a steady source of power for orthodox tea kneading machines.
|

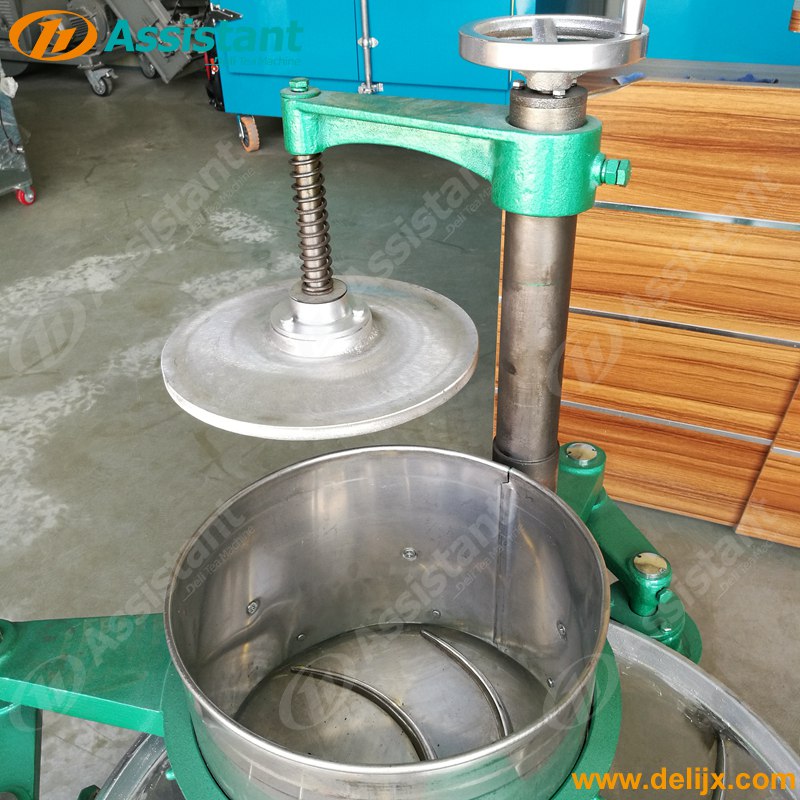

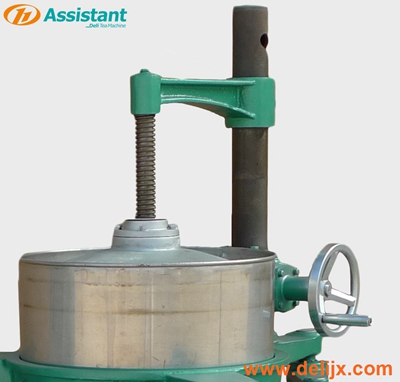

Double support arm
Double support arm, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
|
|

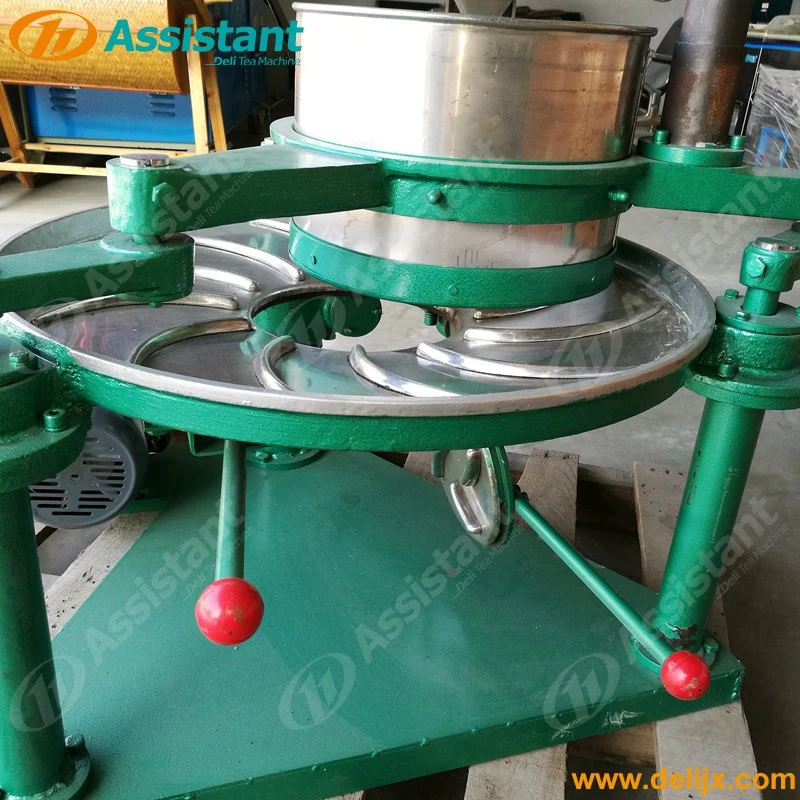

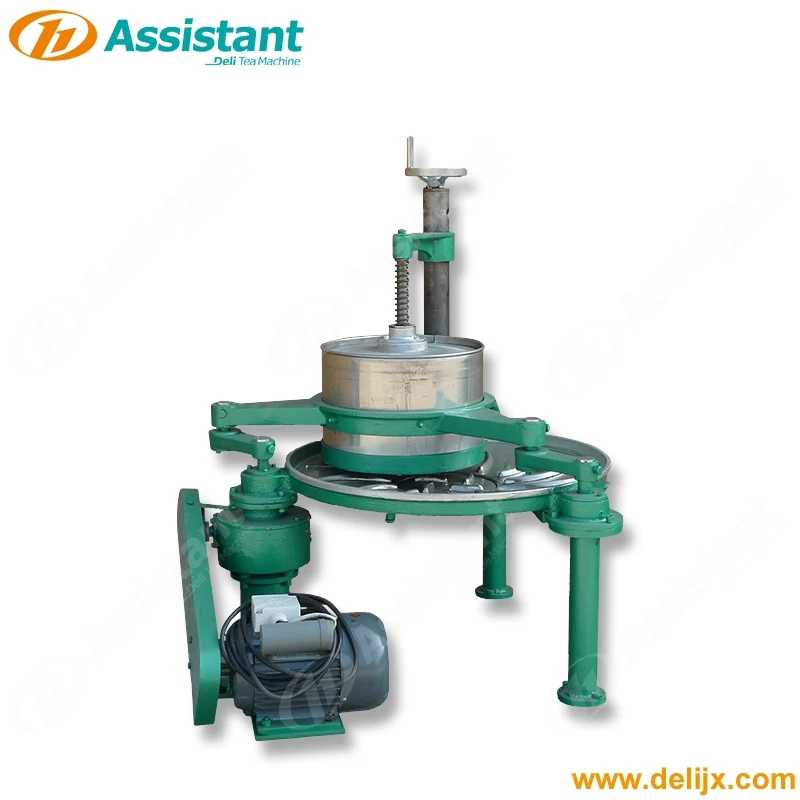

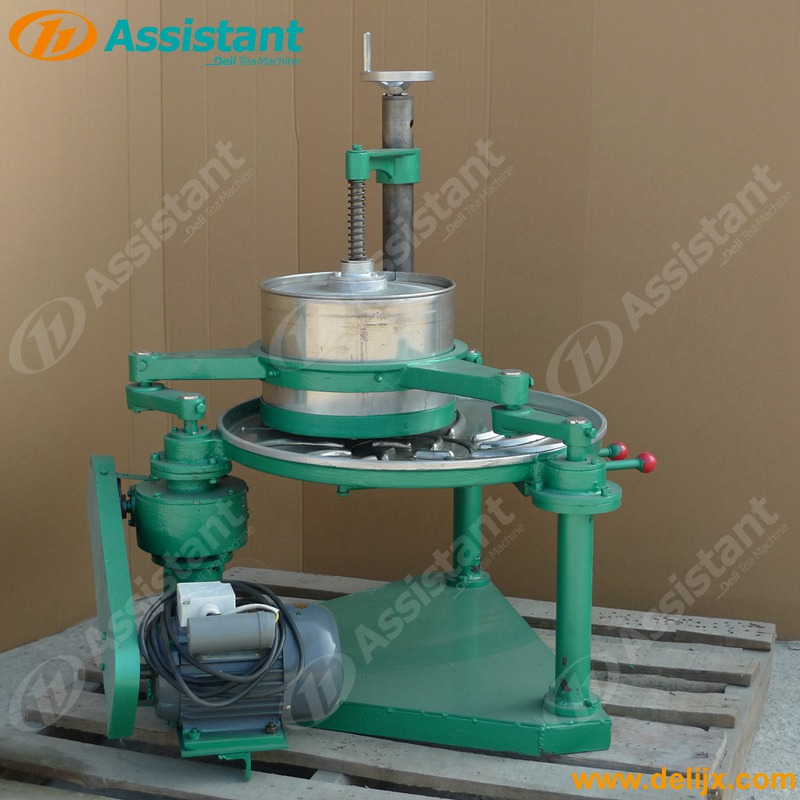

DL-6CRT-30 green tea black tea roller machine photos:
|
