Product Name:
Outdoor 100W 415-430MHz 5dBi panel antenna with high quality,as per its high gain character which usually used for IBS projects,
Product Feature:
◆Widely Frequency Band
◆Low VSWR &Low insertion Loss
◆High Gain
◆Widely used in IBS projects
◆Guaranteed one year Standard
Technical &Mechanical Specifications:
|
Model No.
|
MNA-415-430-NF
|
|
Frequency(MHz)
|
415-430MHz
|
Polarization
|
Vertical
|
Gain(dBi)
|
5
|
Vertical Beamwidth(°）
|
120
|
Horizontal Beamwidth(°）
|
85
|
VSWR
|
≤1.50
|
Front-to-back ration(dB)
|
≥25
|
Input Impedance
|
50Ω
|
Relative Humidity
|
5-95%
|
RF Connectors
|
N-Female
|
Radome Material
|
ABS
|
Services:
1. Professional skills support forOutdoor 100W 415-430MHz 5dBi single-polarized wcdma dcs GSM panel antenna
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

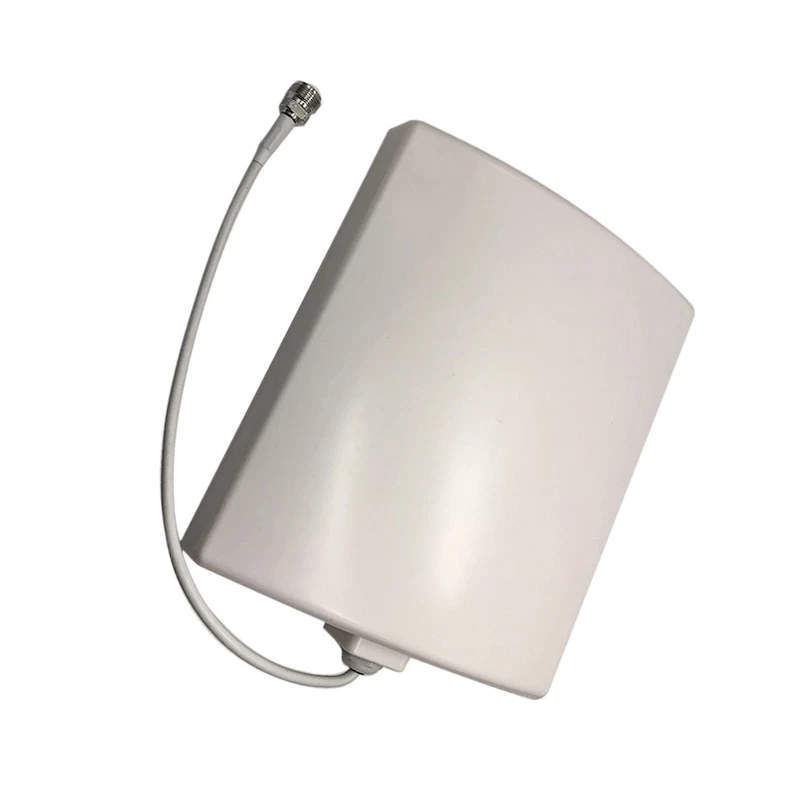

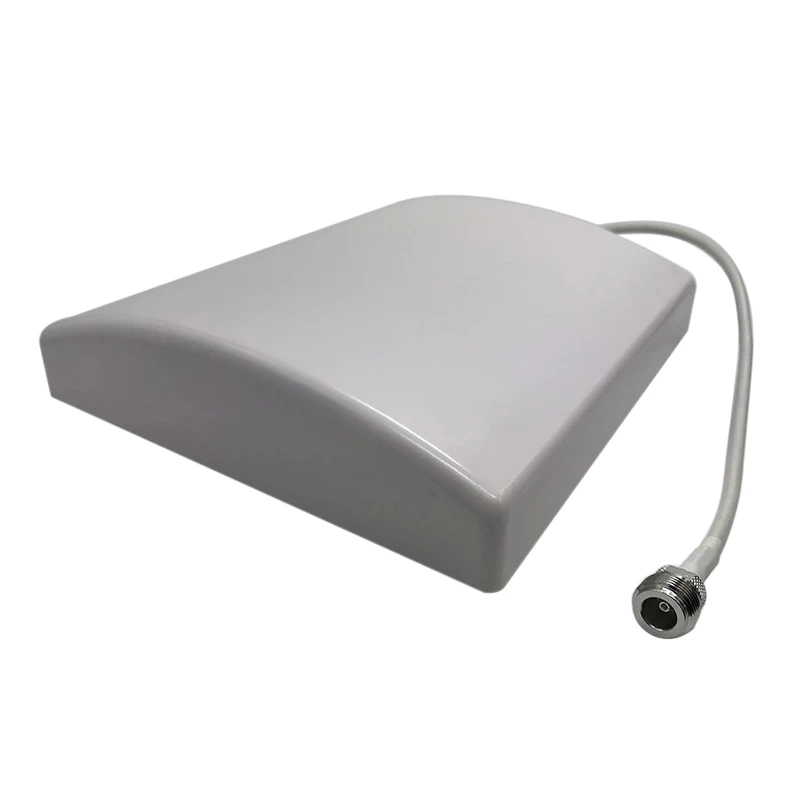

Detailed Image:
