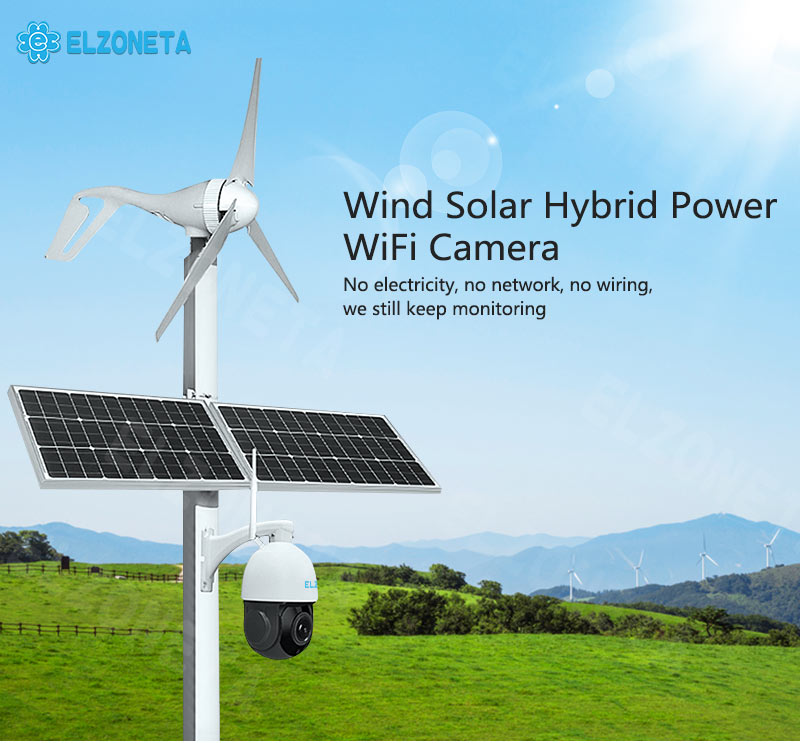

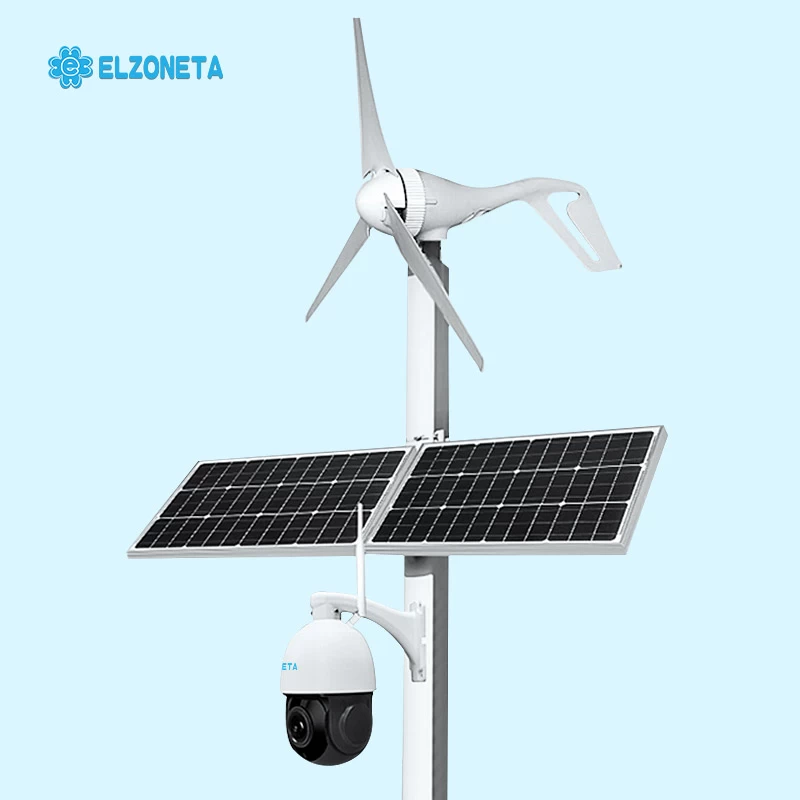

EC-SP01S-4 4G/Wifi 4X 1080P Solar Panel High Speed Dome Camera

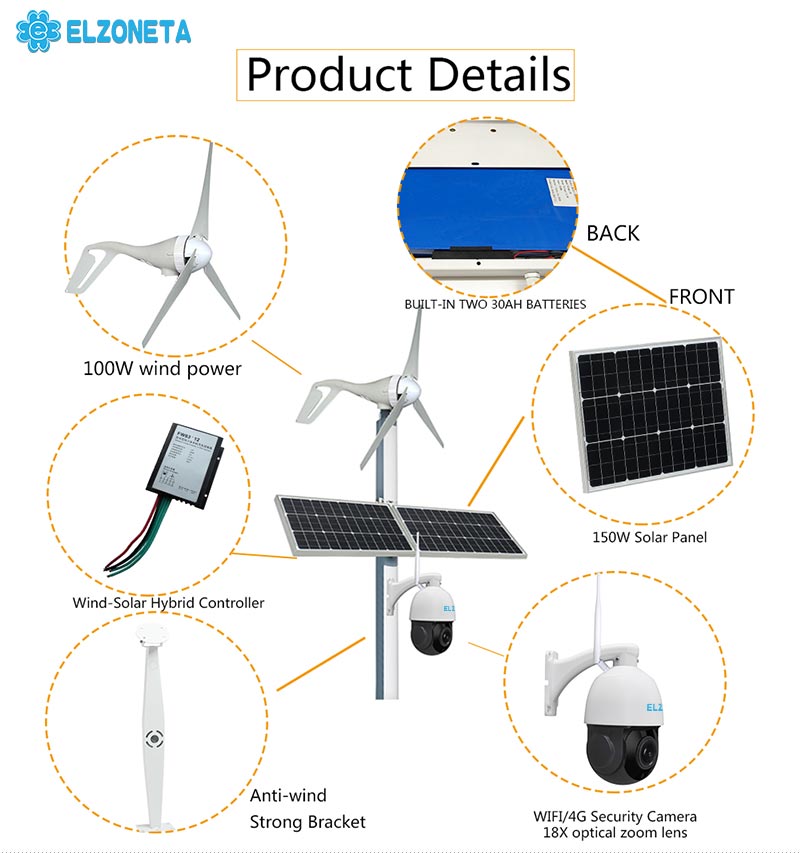

Features:

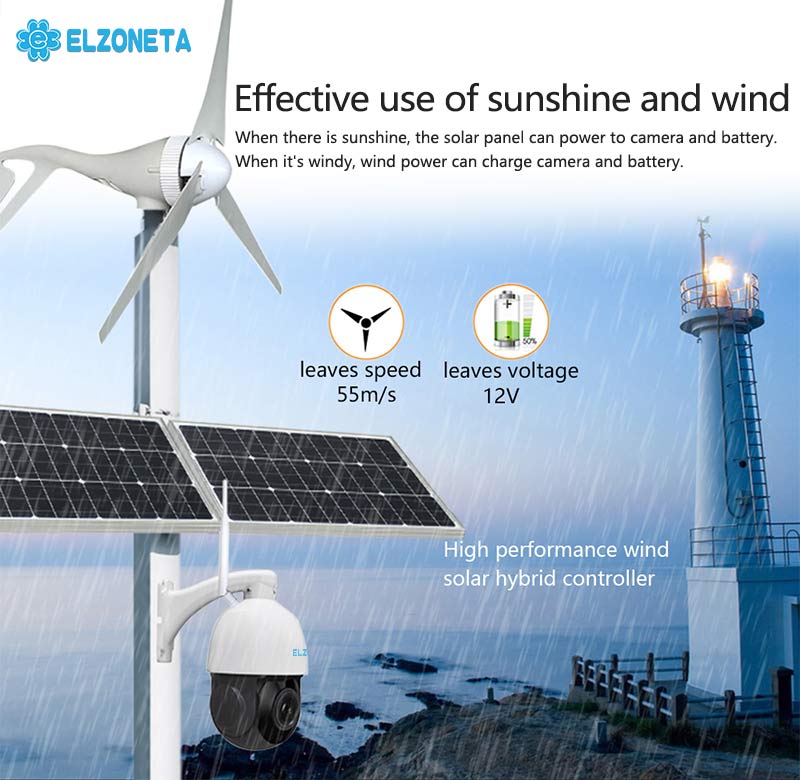

Wind Power：
1. Low starting wind speed, small size, good looks, low vibration operation;
2. User-friendly flange installation design, easy installation, easy maintenance;
3.Use nylon fiber wind turbine blades, optimized aerodynamic shape design and mechanical design, make the starting wind speed lower, utilization factor of wind energy higher and which increases annual power generating capacity;
4. Use patented permanent magnet rotor alternator with a special rotor design, effectively reduces the generator torque resistance, which is only 1/3 of a normal motor, and makes rotor and generator more favorable matching, unit operation more reliable.
5.Use maximum power intelligent tracking microprocessor, effectively regulating the current and voltage.
Solar Power:
1. 160W high efficient solar panels

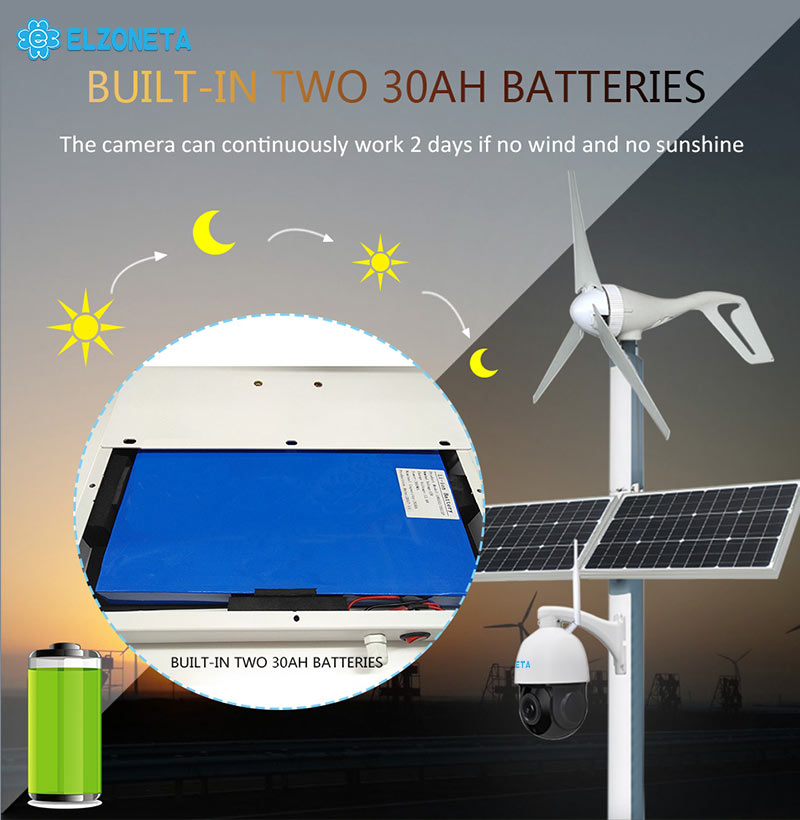

2. 60AH built-in Battery (The battery Capacity can be increased or decreased according to local situation)
3. The system can make full use of new energy,environment-friendly. If no wind and no sunshine, the camera can continuously work 2 days.
Specifications:
|
Model No.
|
EC-SP01SW-4
|
EC-SP01SG-4
|
|
Network
|
Wireless wifi， support onvif
|
4G
|
|
Battery
|
Lithium battery
|
|
Solar Power
|
|
Material
|
Efficient thin-film mono crystalline solar panels
|
|
Power
|
160W
|
|
Battery
|
60Ah lithium battery , No Sunshine, No Wind
Charging,the full battery can last 2days
|
|
Wind Power
|
|
Material
|
Aluminum Covering, life time 25 years
|
|
Power
|
100W
|
|
Voltage
|
12V/24V
|
|
Number of leaves
|
3
|
|
Operating temperature
|
-40℃ — 80℃
|
|
Safe wind speed
|
55m/s（Strong typhoon class）
|
|
Camera
|
|
SIM Card
|
TD-SCDMA: Support 4G(B38/B39/B40/B41), 3G(B34/B39),2G(900/1800MHZ);
WCDMA: Support 4G(B1/B3/B5),3G(B1),2G(900/1800MHZ)
CDMA2000: Support 4G(B1/B3/B5)
|
NO
|
|
Rotating speed
|
average speed
|
|
Image Sensor
|
High performance 2.0MP 1/2.8''CMOS sensor
|
|
Resoultion
|
2.0MP 1920x1080P
|
|
Lens
|
4X optical zoom lens
|
|
IR distance
|
90m
|
|
Frame rate
|
25 fps
|
|
Mininum illumination
|
Color:0.1Lux；B/W:0.01Lux；IR on:0 Lux
|
|
Horizontal rotation
|
360°
|
355°
|
|
Vertical rotation
|
90°
|
|
Auto flip
|
180°
|
|
View angle
|
68°（Distance）/ 6.7°（Proximal）
|
|
Guard Tours
|
3 groups(Each group of 16 independent editible stay
positions, stay time and speed)
|
|
Preset Points
|
220
|
|
Video compression
|
H.264 Main Profile；MJPEG/JPEG Baseline
|
|
D/N Mode
|
IR Cut
|
|
Video output
|
1920*1080/1280*960,25fps
|
|
Power
|
DC 12V
|
|
Other feature
|
Could add micro sd slot,support max 64G
|
