DIP P10 /P16 Outdoor High Brightness 8000 cd/m2 Large LED Display Specification:
|

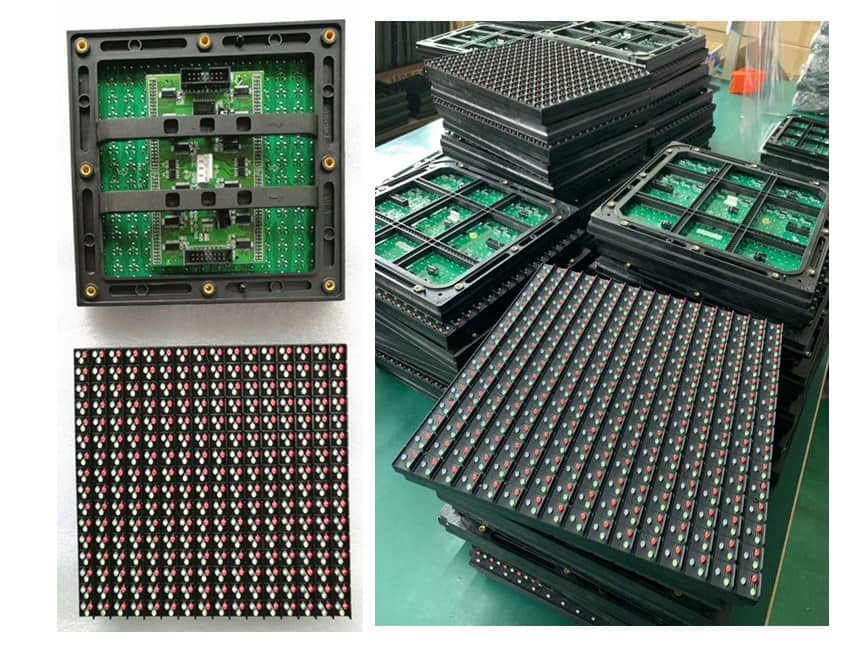

LED Module
|
Pixel Pitch
|
P10 / P16 mm
|
|
Pixel Configuration
|
DIP346
|
|
LED Chip
|
Epistar
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|

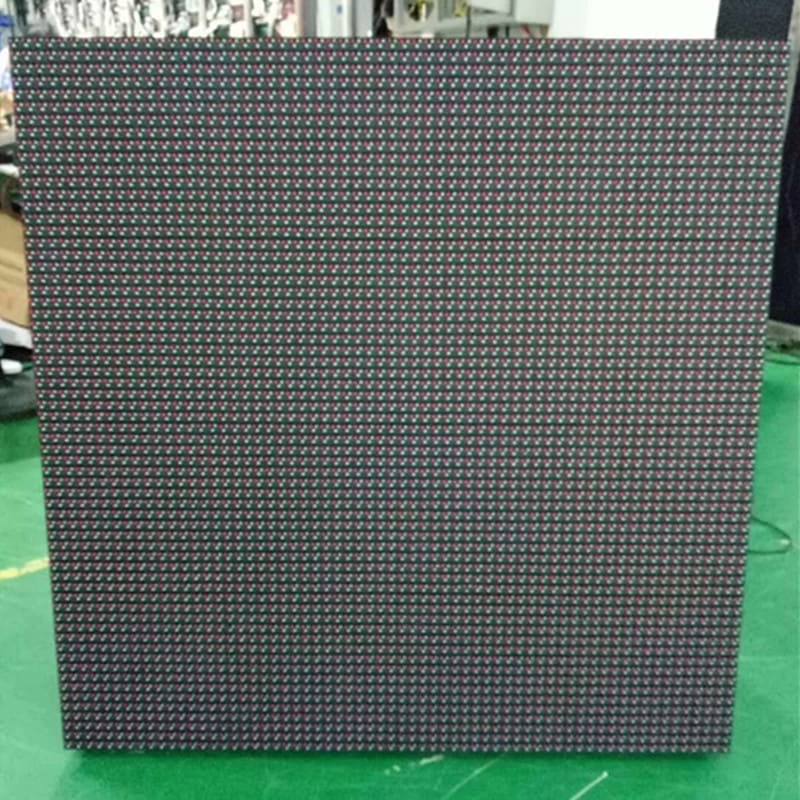

Cabinet size (W*H)
|
960MM*960MM/1024*1024mm
|
|

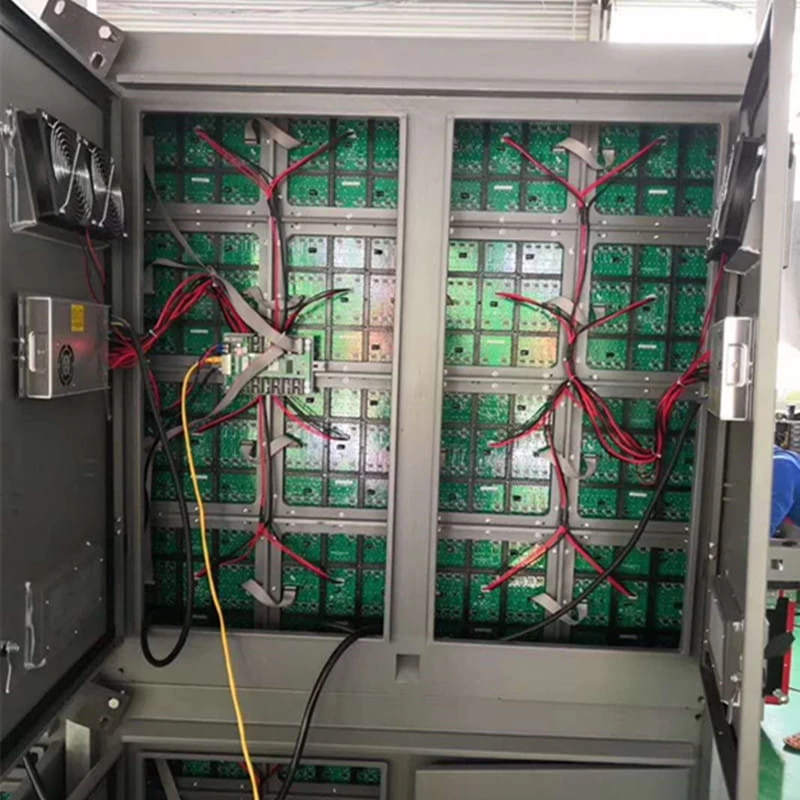

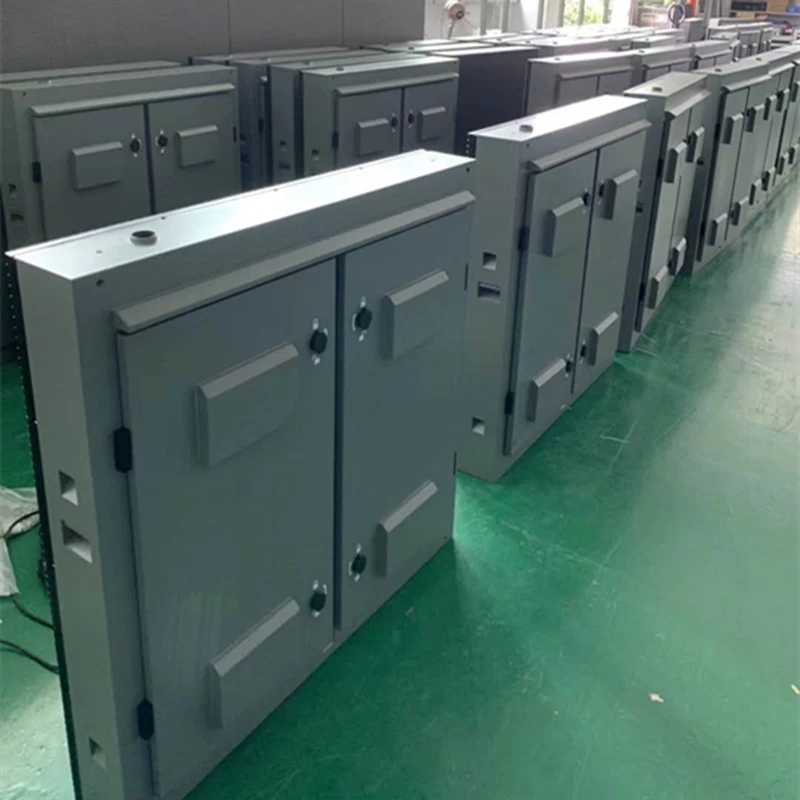

Cabinet material
|
Waterproof Iron
|
|
Cabinet weight (KG)
|
45 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
8,000-11,000 cd/m²
|
|
Best viewing distance
|
8-100 m
|
|
Viewing angle
|
Horizontal : 120 ° Vertical: 120 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Front side /Back side
|
|
Maximum Power
|
1000w/m²
|
|
Average Power
|
500w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Features:
1.Vivid LED display performance and low death rate of LED lamp
2.Independent manufacturer of PCB board circuit
3.Self encapsulation
4.High brightness.p10 Outdoor dip LED module 1Rgb>8600CD
5.IP67 high standard waterproof function
6.High performance and low power consumption
Application:

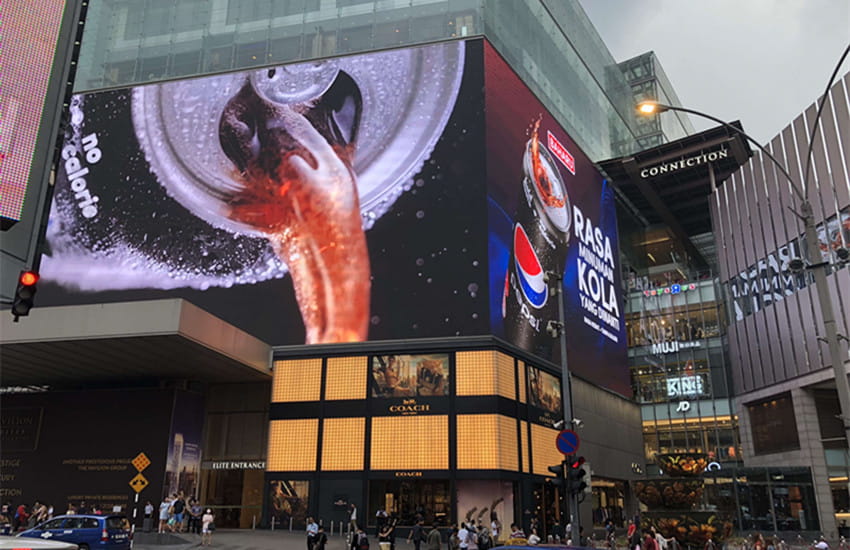

1.Commercial screen: exhibition halls, advertising, stage backdrop, meeting, events, concerts, live show, high-end shopping malls, entertainment video screen, automobile 4S shops,brand chains,window design,etc. More outdoor large led display for your needs.
2.Led media facade decoration on glass wall, space design,in urban landmark buildings, municipal buildings,bridge, or in humanities landscape, airports,tourist attractions, bars, KTV etc.,
3.Urban lighting: building lighting, residential lighting, curtain wall, etc.
