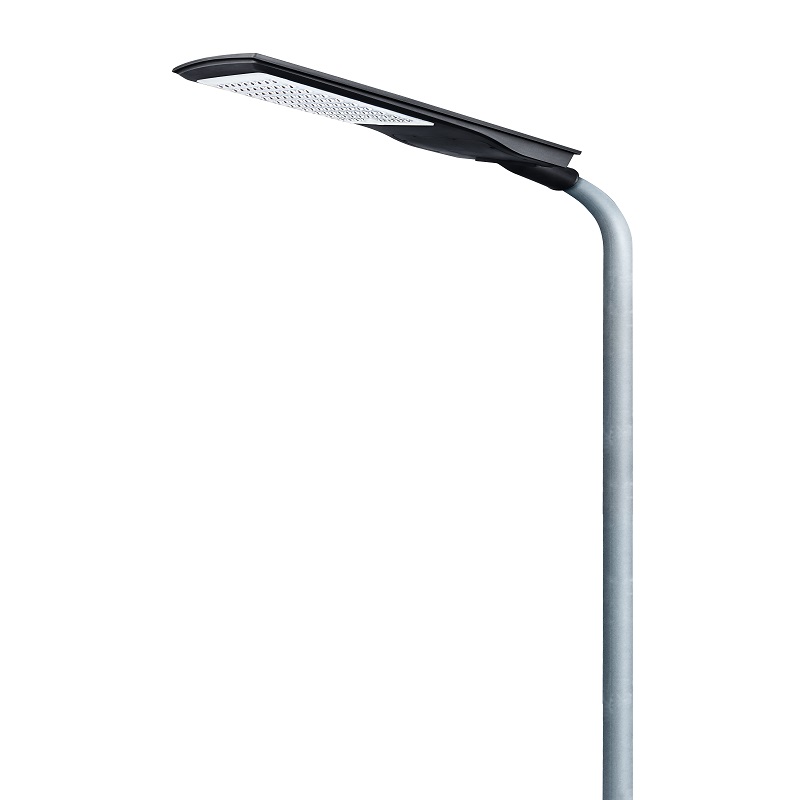

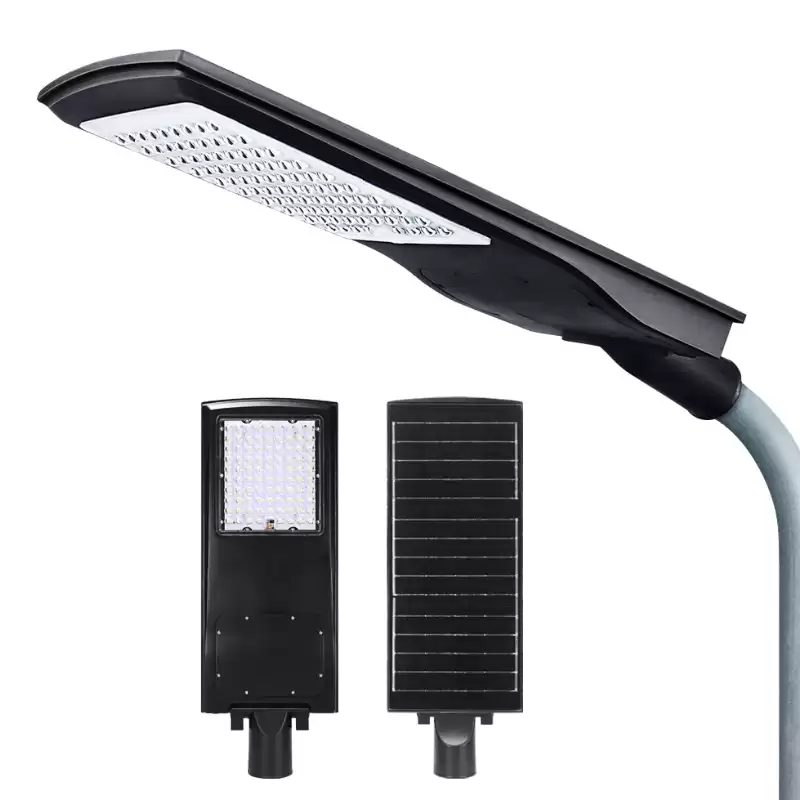

Outdoor All In One LED Solar Street Light
The ESST500E series of high-quality outdoor all In one solar street lights are easy install and
angle adjustable. The main body of the lamp is made of ABS anti-UV plastic, IP65 waterproof lightning protection, and dust proof device, which can adapt to
all outdoor weather conditions. The built-in motion sensor and sunlight control can achieve brightness control throughout the day. It uses Philips high-brightness LED energy-saving chips and a built-in IC waterproof driver,
equipped with high conversion rate Mono crystal Silicon solar panels and
large-capacity Panasonic lithium batteries, which can be charged on rainy days
to achieve continuous lighting. Maximum savings in electricity and maintenance
costs.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.
FEATURES:
• Grade A+ solar cell, each cell has a complete IV curve. Conversion efficiency is more than 21.3%
• Lithium iron phosphate battery, Under teh discharge ratio of less than 0.5C, service life is up to 15 years, with high safety factor
• High lumen LED SMD, with 50,000 hrs life span
• PC outdoor optical lens, high light transmittance
• High quality aluminum magnesium alloy, anti-corrsion, substantial, durable, artistic, practical
• Designed diamound face feflection process, super high efficiency reflection light source, effectively enhance the brightness of the illumination.
|
SPECIFICATION
|
ESST501E-50W
|
ESST502E-100W
|
|
Power Consumption
|
50W
|
100W
|
|
Battery
|
3.7V 2PCS
|
3.7V 3PCS
|
|
Capacity Battery
|
10,000mAh
|
15,000mAh
|
|
Model Battery
|
Panasonic 21700
|
|
Voltage Solar Panel
|
5V/13W
|
5V/18W
|
|
Solar Panel Type
|
Monocrystal Silicon
|
|
Led Chips
|
LUMILEDS 2835
|
|
Lumen (Lm/W)
|
170 lm/W
|
|
CRI
|
Ra>75
|
|
Color Temperature
|
3000K/4000K/6500K
|
|
Beam Angle
|
75*135°
|
|
IP
|
IP65
|
|
Life Hours
|
50,000H
|
CONSTRUCTION:
• ABS+PC and Aluminum material, anti-UV
• 3 optional installation: wall mounted,straight pole installation and curved pole installation.
RECOMMENDED USE:
• Garden, Square, parking lot, playground
• Rural road,farms, barns, doorways, and courtyards
• Homestay, resort, and hotel outdoor.
WARRANTY:
3-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.

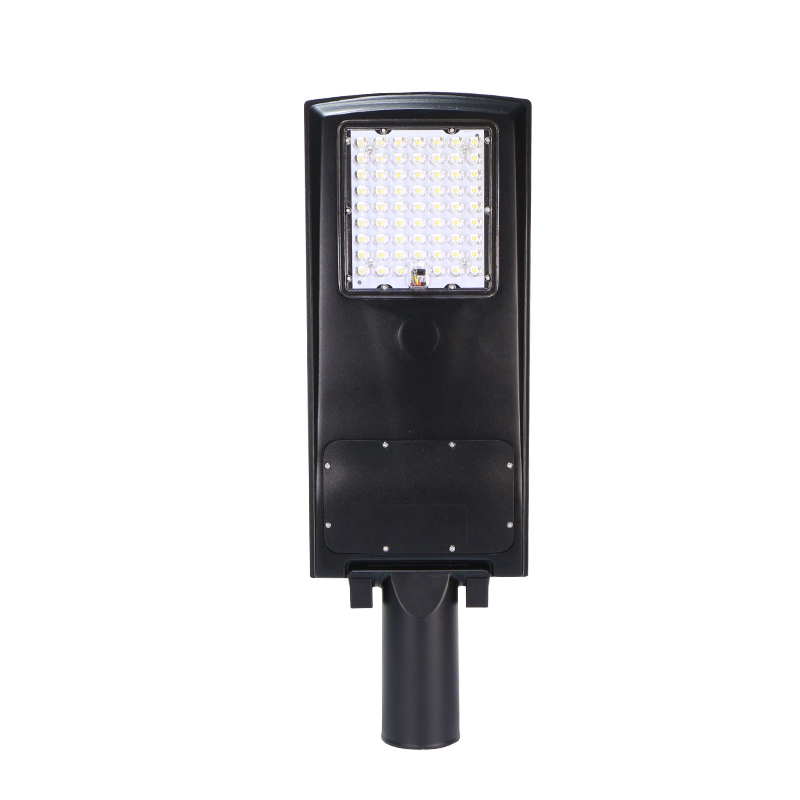

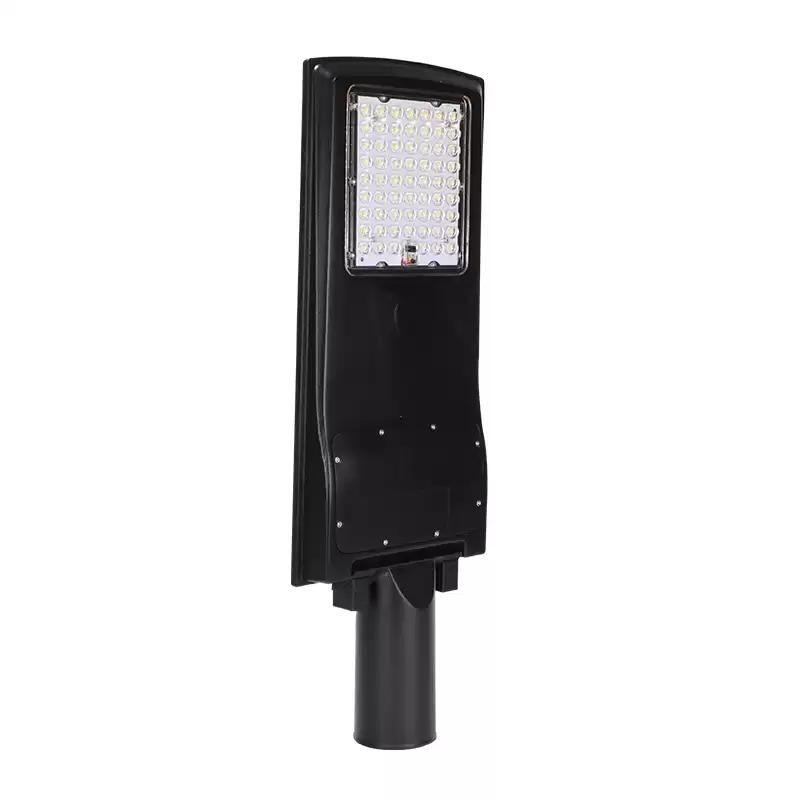

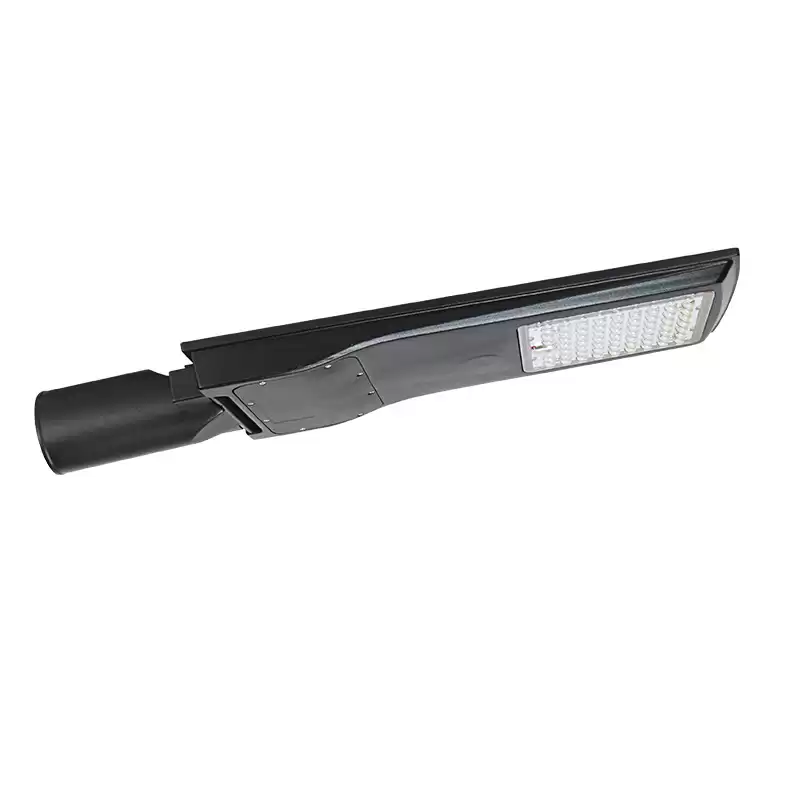

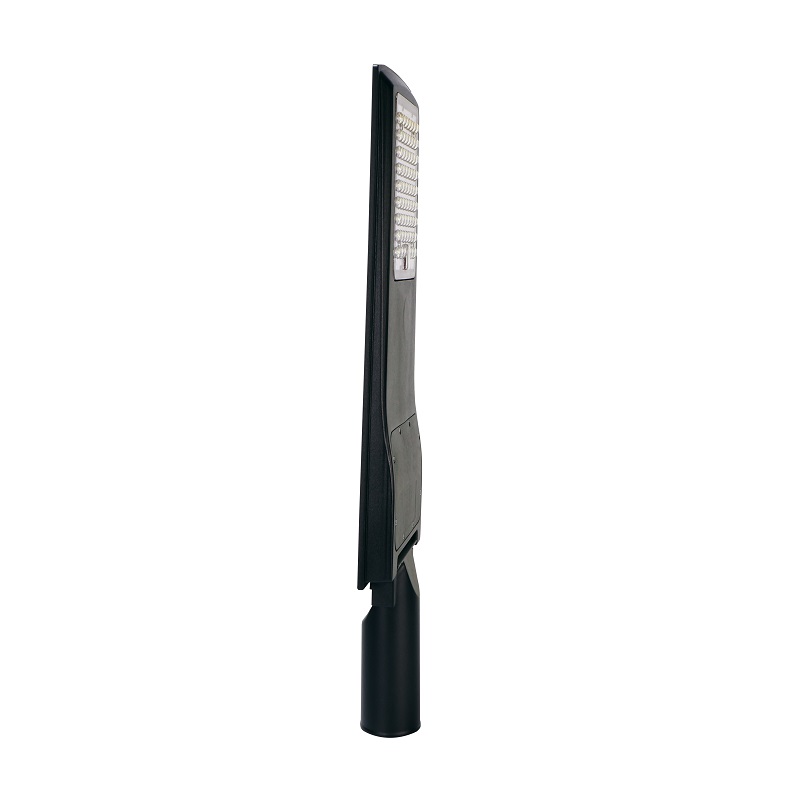

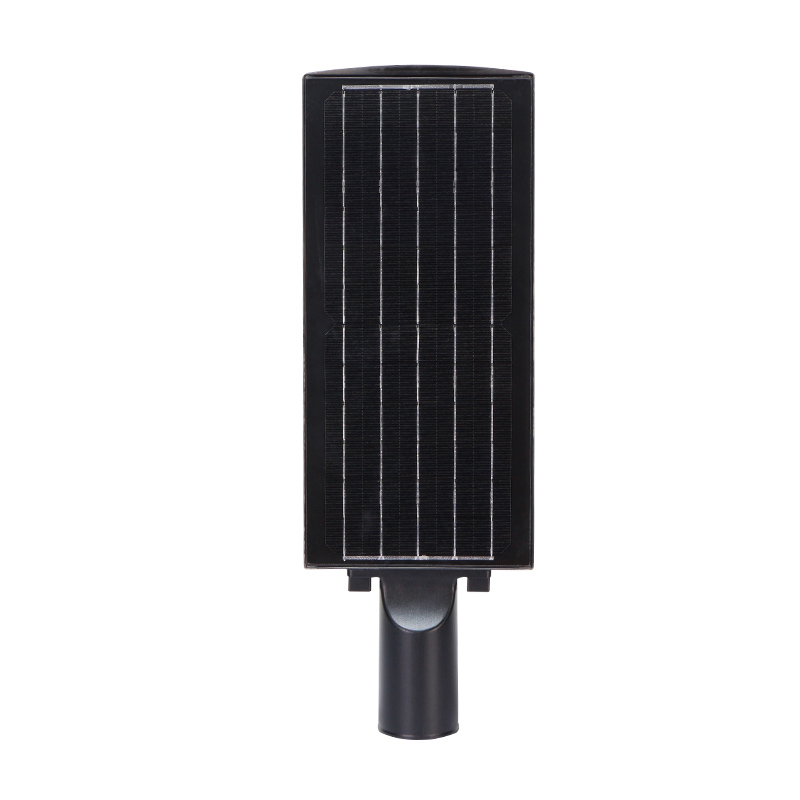

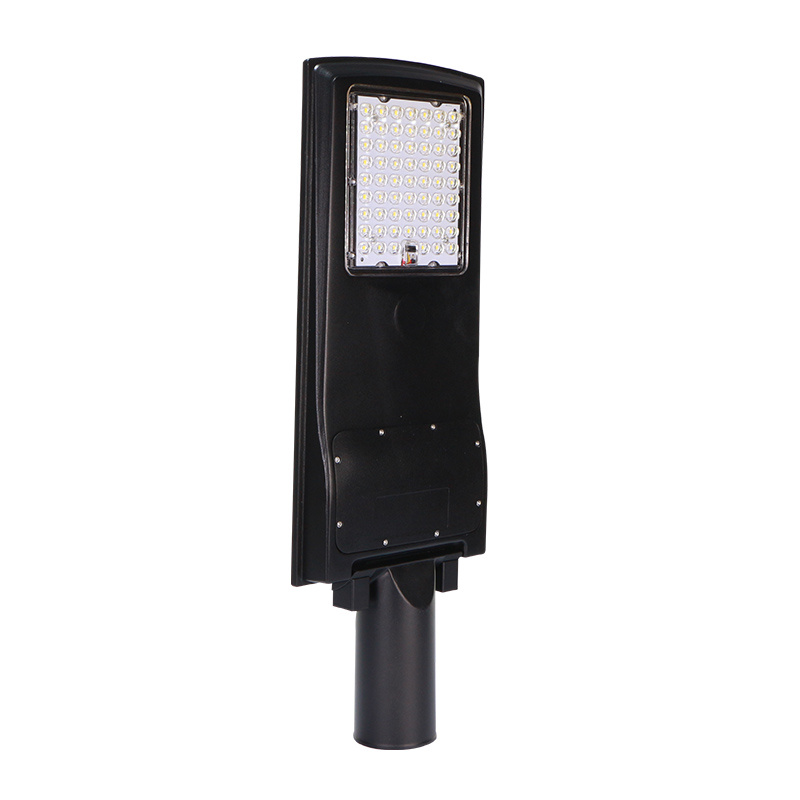

PRODUCT:

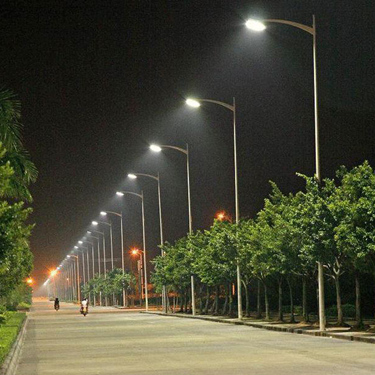

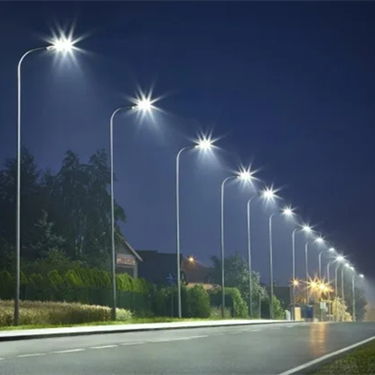

APPLICATION:
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
