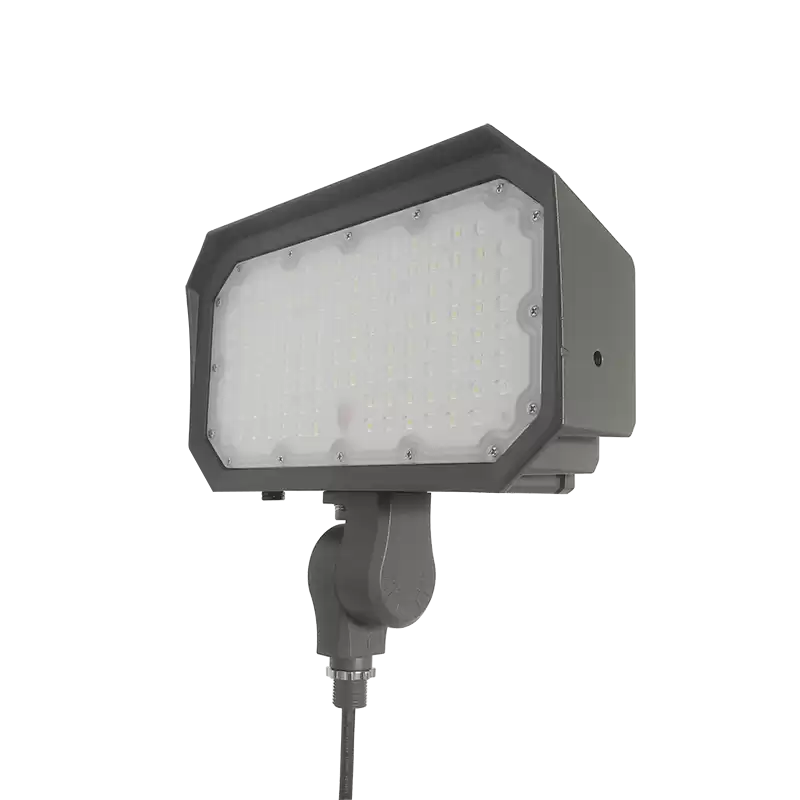

Outdoor Aluminum Housing IP65 LED Flood Light
The 300A series LED floodlight provides the ideal outdoor illumination for both accent and visibility, in residential or commercial spaces. Precision-molded polycarbonate lens directs a broad, energy efficient light that’s utility rebate eligible at 130 lumens per watt. Durable aluminum housing is powder-coated to resist corrosion. Replace metal halide equivalents with a longer-lasting, more compact design.
FEATURES:
• Delicate appearance design
• Good heating dissipation
• Low light attenuation
• Simple, strong and waterproof structure, IP65, IK09
• High consistency on lamp direction
• Each LEDs is with a lens, easy to change the beam angle (30 degree,60 degree,90 degree interchangeable)
• High installation efficiency
• The brackets of models above 70w are interchangeable
|
SPECIFICATION
|
EFL301A
|
EFL302A
|
EFL303A
|
EFL304A
|
EFL305A
|
EFL306A
|
|
Power Consumption
|
15W
|
30W
|
50W
|
70W
|
90W
|
100W
|
|
Equivalent Wattage
|
70W HID
|
100W HID
|
150W HID
|
200W HID
|
250W HID
|
250W HID
|
|
Lumens Delivered
|
1,800 lm
|
3,600 lm
|
6,000 lm
|
9,100 lm
|
11,700 lm
|
13,000 lm
|
|
Efficacy
|
120 lm/W
|
130 lm/W
|
|
CRI
|
>70
|
|
Color Temperature
|
4000K / 5000K /5700K
|
|
Input Voltage
|
AC100-277 / AC277-480V
|
CONSTRUCTION:
• Black and bronze housing
• Radiator adopts ADC12 aluminum integrated die-casting
• Multiple installations- Bracket, Knuckle, Slip-fitter installa.

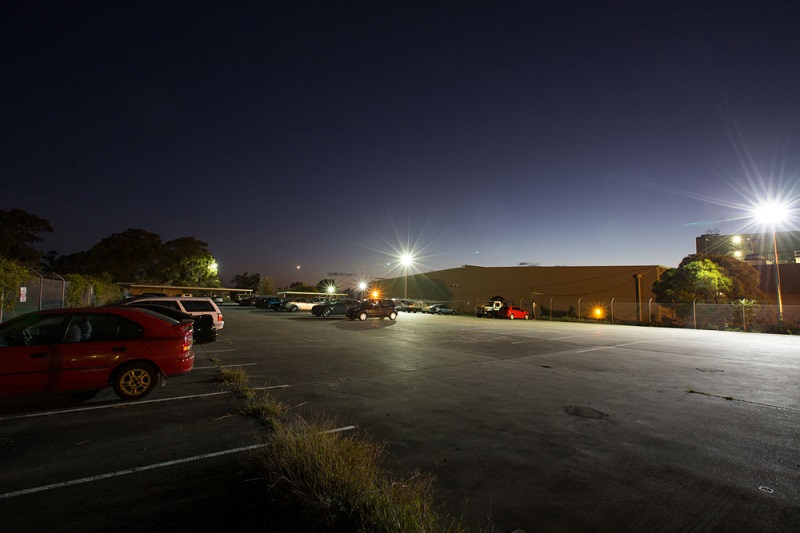

RECOMMENDED USE:
• Garden, squares
• Factories, dockst
• Stadiums
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.
APPLICATION:
