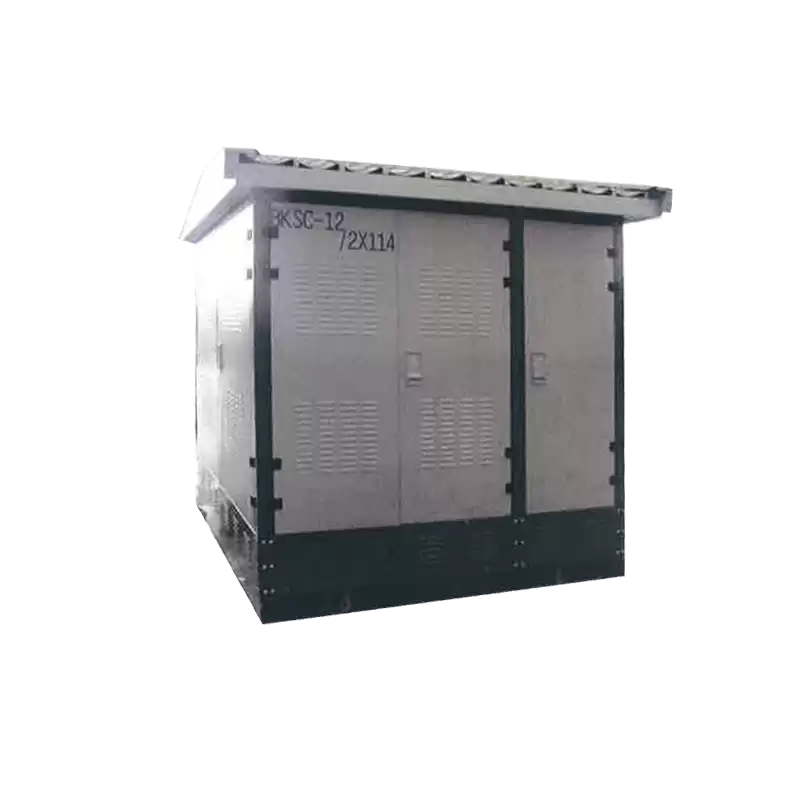

Outdoor Box-Type Parallel Reactor BKSC

The BKSC Outdoor Box-Type Parallel Reactor is designed for parallel connection with high-voltage cables in substations. It compensates reactive power, improves power factor, reduces voltage distortion, and enhances system stability and reliability. Additionally, it manages the "capacitive rise effect," helping to save energy, increase transmission capacity, and improve the overall efficiency of power systems in outdoor substations.

Facebook Twitter Pinterest LinkedIn 分享







  • BKSC Outdoor Box-Type Parallel Reactor Features
  • # Compact and Efficient

    Energy-efficient design with a small footprint, perfect for space-constrained installations.
  • # High Insulation and Low Leakage

    Excellent dielectric strength with minimal partial discharge, reduced magnetic leakage, and minimized electromagnetic interference.
  • # Robust and Reliable Performance

    Strong mechanical strength, high overload capacity, low noise, moisture-proof, flame-retardant, low-maintenance, and adaptable to harsh environmental conditions for long-term, reliable operation.















  • Specifications



Rated Voltage 12kV
Rated Frequency 50Hz
Rated Capacity 114kVar (or custom configuration)
Rated Terminal Voltage 6.062V
Rated Current 6.27A
Rated Reactance 966.8Ω
Rated Inductance 3079mH
Insulation Type Resin-insulated Dry-type
Insulation Class F
Peak Lightning Impulse Withstand Voltage 75kV
Power Frequency Withstand Voltage 35kV/min
Temperature Rise Limit (2 hours at 1.732x rated current) ≤50K(110K)
Normal Partial Discharge Level(Grounded) <10(50)pC
Noise Level ≤55dB
Operation Overvoltage Occurrence Times ≤3.5 times phase voltage
Allowable Deviation in Reactance at Rated Frequency 0 to +10%
Allowable Deviation of Individual Phase Reactance and the Average Reactance from the Three Phases ±5%
Ambient Temperature -25°C to +45°C
Altitude Not exceeding 2000m
Ingress Protection Rating IP33D
