Outdoor Catering Tent For Event
Available sizes:
3x3m,4x4m,5x5m,6x6m,8x8m,10x10m.
Features:
High peak design, elegant appearance.
Can be connected to each other by adding rain gutters to get a tents world; which then absolutely will be an eye-catching scene.
Can be connected to any other large tents behaving as the reception area before entering the tent halls.
No exterior guy ropes or staking required.
No poles inside, 100% interior space can be used.
Relocatable, easy to install, dismantle and transport.
Accessories available: Transparent PVC roof covers and walls, clear windows sidewalls, glass walls, ABS hard walls, sandwich walls, lining decoration, glass door, sliding door, flooring system, weight plates, anchors.

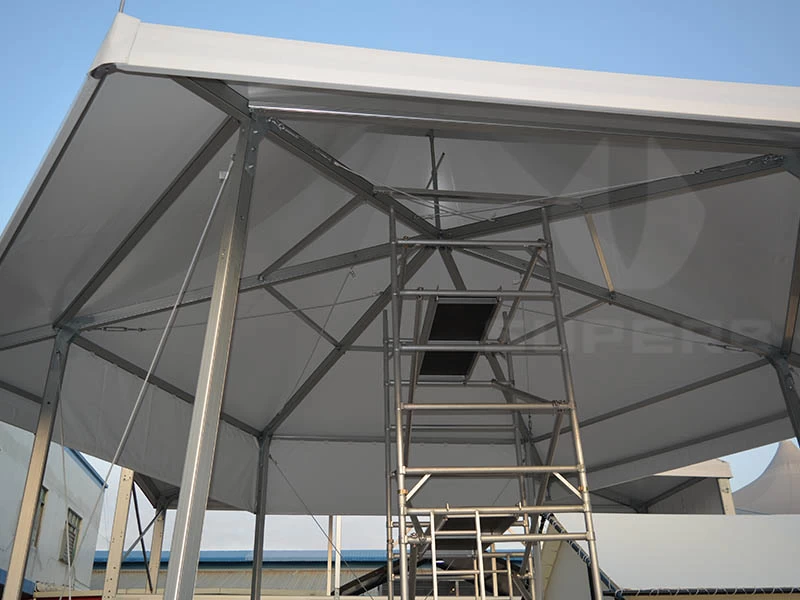

Frame:
No maintenance required.
Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
All steel connectors including small parts have galvanized finishing above 60um.
Cover:
Kedered roof fabric and sidewalls provide weather-proof tight coverings.
Bar tensioning sidewalls system.
Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Application:
Widely used for outdoor exhibitions, parties, festival celebrations, sports events, outdoor shops, walkways, garages, arenas, hajjs and so on.
The Specification of Outdoor Event Tent:
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Peak height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
MS10/3.3-5HP
|
10
|
3.3
|
4.9
|
7.9
|
5
|
18°
|
5.7
|
100
|
MS12/3.3-5HP
|
12
|
3.3
|
5.2
|
8.2
|
5
|
18°
|
6.5
|
100
|
MS15/3.3-5HP
|
15
|
3.3
|
5.6
|
8.9
|
5
|
18°
|
5.7
|
100
|
Main frame Profile
|
152x120x4mm(4-channel)
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
Roof Fixing
|
Bar Tension
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of Outdoor Event Tent:
