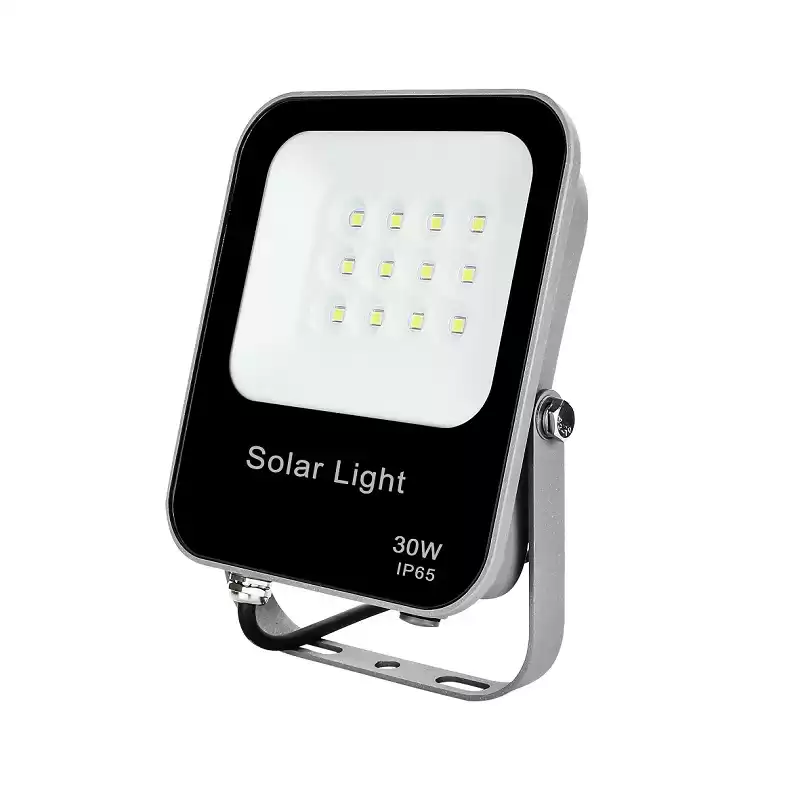

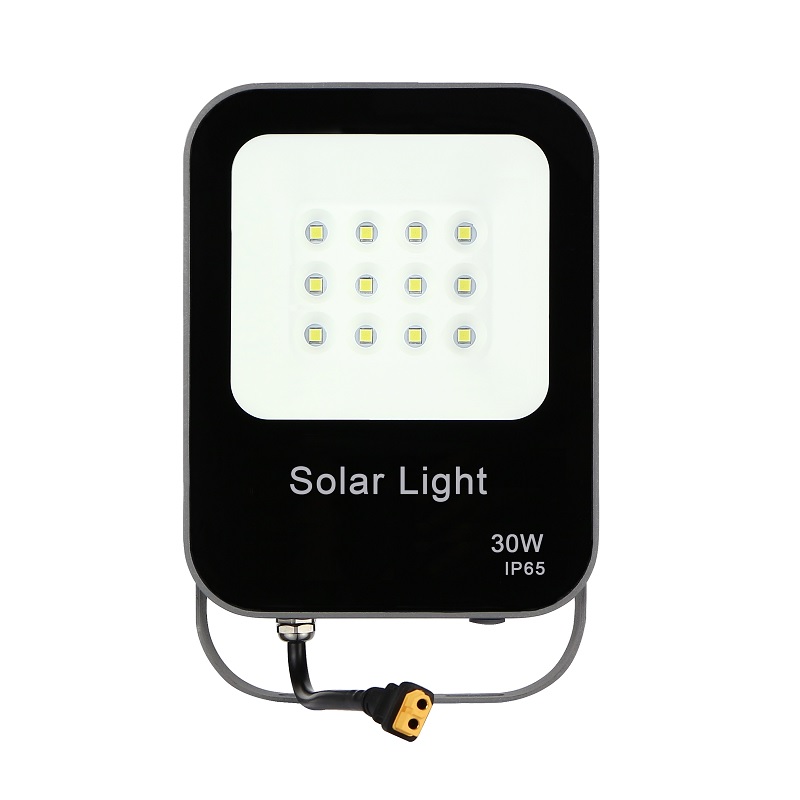

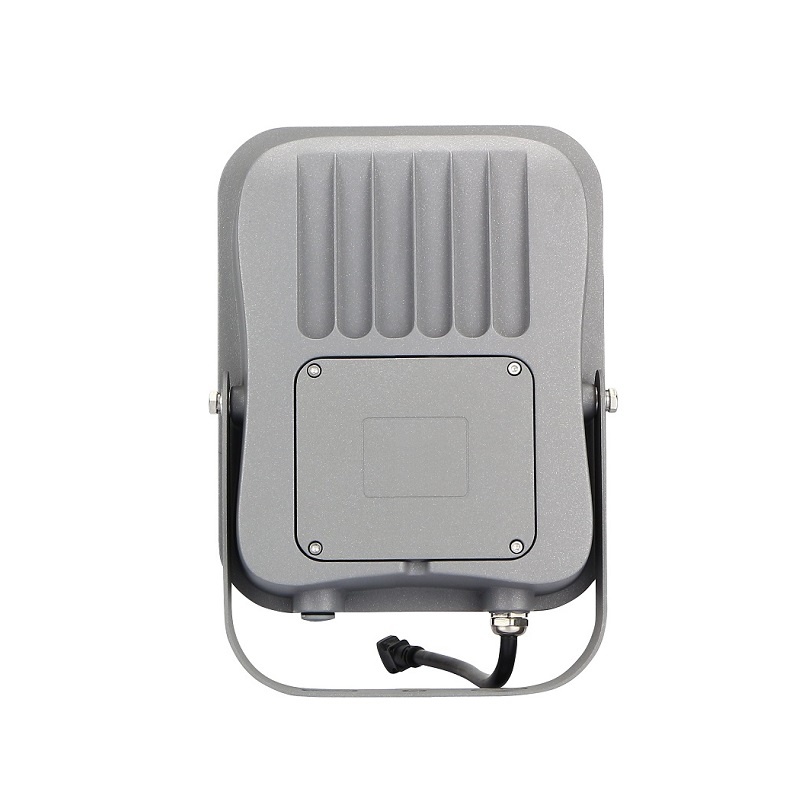

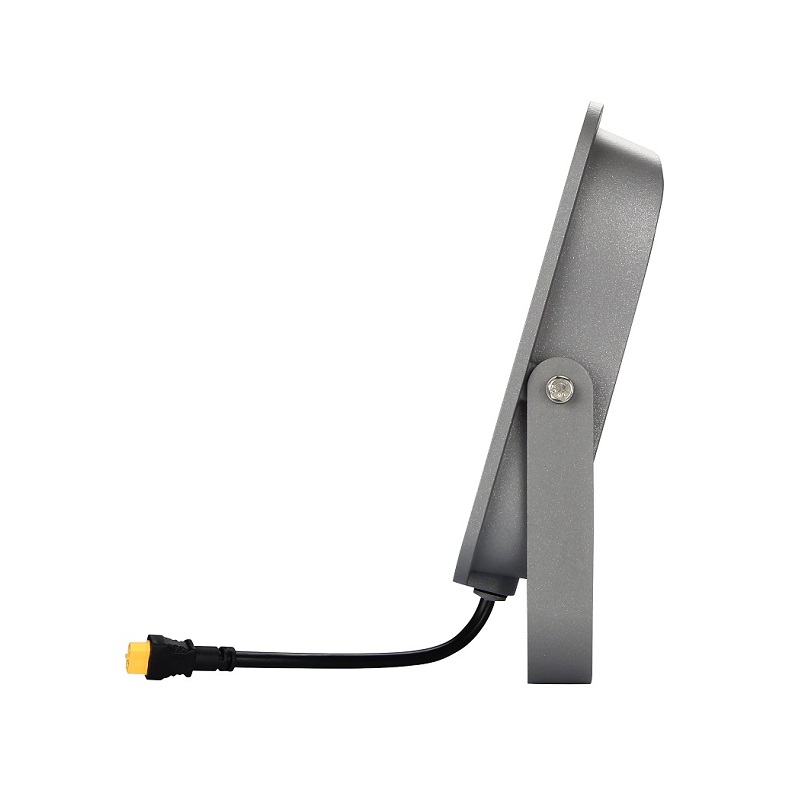

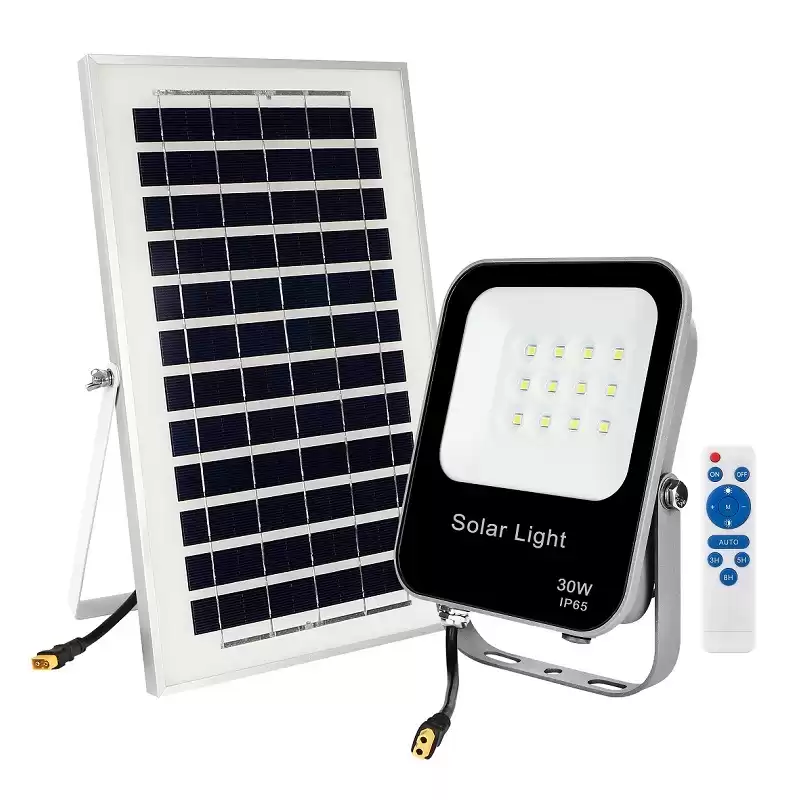

Outdoor Energy Saving Powered Waterproof LED Solar Flood Light

This Tk01 series solar flood light is breakthrough in floodlight illumination technology combined with LiFePO4 battery performance, which a perfect choice for illuminating large areas. Compared with the conventional design, the solar powered lighting option is extremely energy efficient and low maintenance. A completely “green” option with no gases or other harmful emissions.



Outdoor Energy Saving Powered Waterproof LED Solar Flood Light

The Tk01 series solar floodlights are novel and fashionable in design. It uses full cast aluminum and tempered glass structure, built-in 170lm/W Nichia low-voltage lamp beads, and large-capacity high-density LiFePO4 battery to ensure that the fixture can continue to work under low-voltage conditions. The gold-plated charging interface and 2X1.5mm² charging cable design increase the charging speed by 15% compared with the conventional design. The unique replaceable battery structure design provides a longer service life for the fixture.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.




FEATURES:
• Grade A+ solar ell, each cell has a complete IV curve.Conversion efficiency is more than 21 3%
• Lithium iron phosphate battery, the discharge depth reaches 95%. Under the discharge ratio of less than 0.5C,
service life is up to 15 years, with a high safety factor
• High lumen LUMILEDS LED chips, with 50,000 hrs life span
• High-quality aluminum-magnesium alloy, anti-corrosion, substantial, durable, artistic, practical
• High craft manifesting production value of a famous brand
• Designed diamond face reflection process, super high-efficiency reflection light source, effectively enhance the brightness of the illumination
• The appearance design is simple and stylish, using a solid aluminum-magnesium alloy shell and IK07 high-strength tempered glass


SPECIFICATION

ESFL201A-30W

ESFL201A-60W

ESFL201A-100W

ESFL201A-200W

ESFL201A-300W

Power Consumption

30W

60W

100W

200W

300W

Battery

3.7V 1PCS

3.2V 2PCS

3.2V 4PCS

3.2V 6PCS

3.2V 7PCS

Capacity Battery

5,000mAh

10,000mAh

20,000mAh

30,000mAh

35,000mAh

Model Battery

Panasonic 21700

LiFePO4 32650

Voltage Solar Panel

5V/8W

5V/15W

5V/20W

5V/30W

5V/40W

Solar Panel Type

Polysilicon

Led Chips

Bridgelux 5050

Lumen (Lm/W)

170 lm/W

CRI

Ra>70

Color Temperature

3000K/4000K/6500K

Beam Angle

90°

IP

IP65

Life Hours

50,000H


CONSTRUCTION:
• High-quality aluminum-magnesium alloy, anti-corrosion, substantial, durable
• High intensity IK07 tempered glass, its luminous efficiency up to 95%
• Diamond surface reflection process design, ultra-efficient reflective light source, effectively enhance the brightness of lighting


RECOMMENDED USE:
• Garden, squares
• Courtyard Villa, Building facade
• Warehouse, Road, and street


WARRANTY:

3-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.


PRODUCT:



30W Outdoor LED Flood Light

LED Flood Light high value

High Lumen LED Flood Light



FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
