Outdoor Flexible LED Mesh Screen Display

Flexible soft LED mesh screen for outdoor, waterproof IP66. It’s unique structure enable panel can be curved, rolled up,hung up or folded to form versatile shapes. Size and pixel pitch can be customized, widely used for stage design, nightclub, building facade etc.


  • CertificationUL CE ROHS FCC EMC ISO TUV ETL SGS SAA BIS SASO UV PVOC KC BQB FCC-ID FDA LVD MON C-TICK
  • Warranty TimeGuarantee Period 5 Years


Outdoor Flexible LED Mesh Screen Display P31.25 P40 P50 P55


Highly transparent, full color soft mesh LED display system. It’s featured with flexible installation, lightweight body, high transparency, which are convenient for various installation ways. Thus they can be curved, folded, scrolled, and hanged freely as you like. Total clear body gets very delicate outlook and high transparency, perfectly suiting for any artistic design, or other creative ideas.


Super easy and fast installation design–Enables super easy and fast installation/breakdown with minimal manpower.

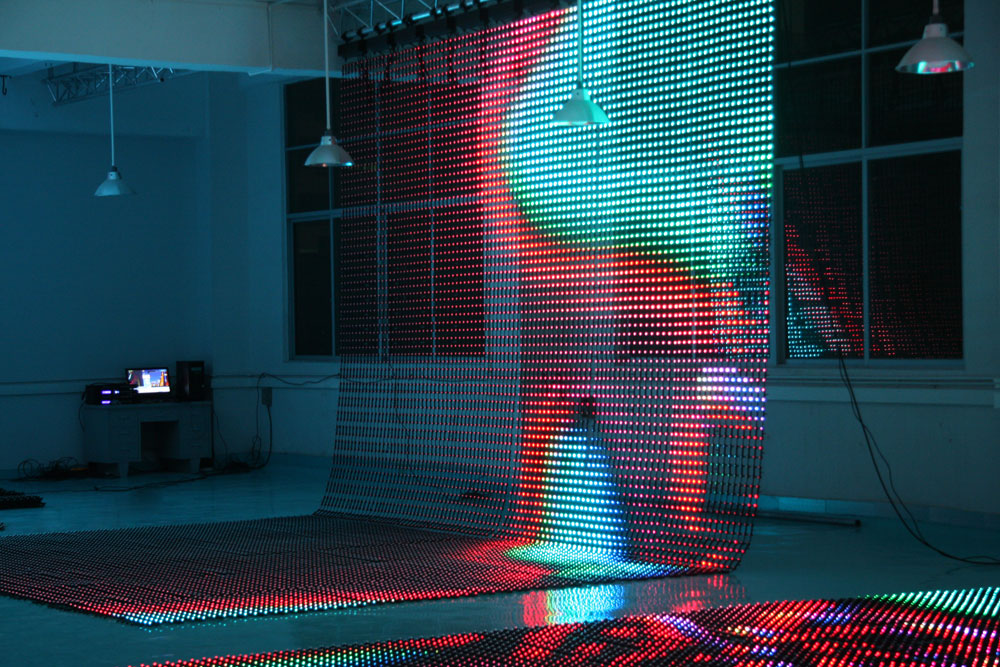

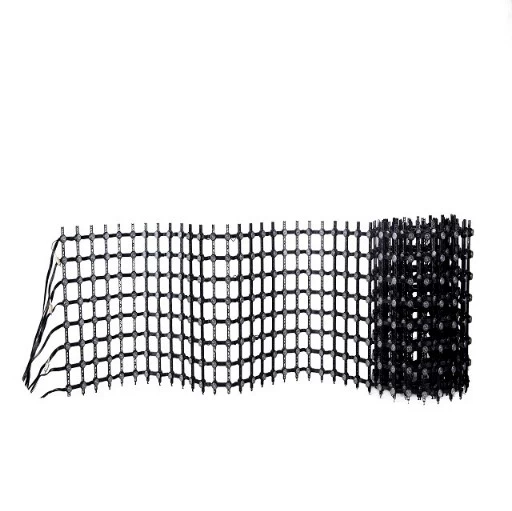

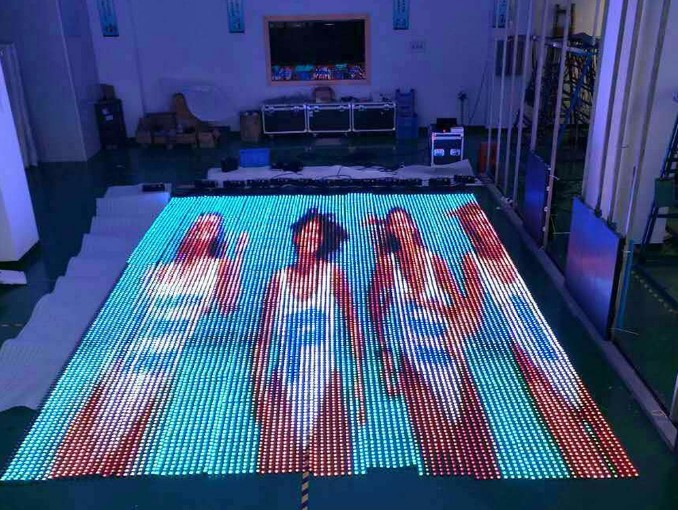

Super flexible mode- Can bend, wrap, drape, and fold to conform to even the most unusual shape and size.


Easy and fast maintenance- enable site emergency solution and quick reaction.Creativity makes our products unique and it will satisfy all your needs for stage lighting area.


Flexible LED display/soft LED display for stage lighting Easy installation: Just hung on the truss or supported structure. Easy transportation: Fold like clothes. Pack inside the flight case. Easy to operate: Ready to use, just need to plug with power source, ready to work as a TV.


Easy to repair, do professional skill required and especially suit for rental business.Light weight and small volume, portable and movable.Several units can join together from horizontally and vertically.

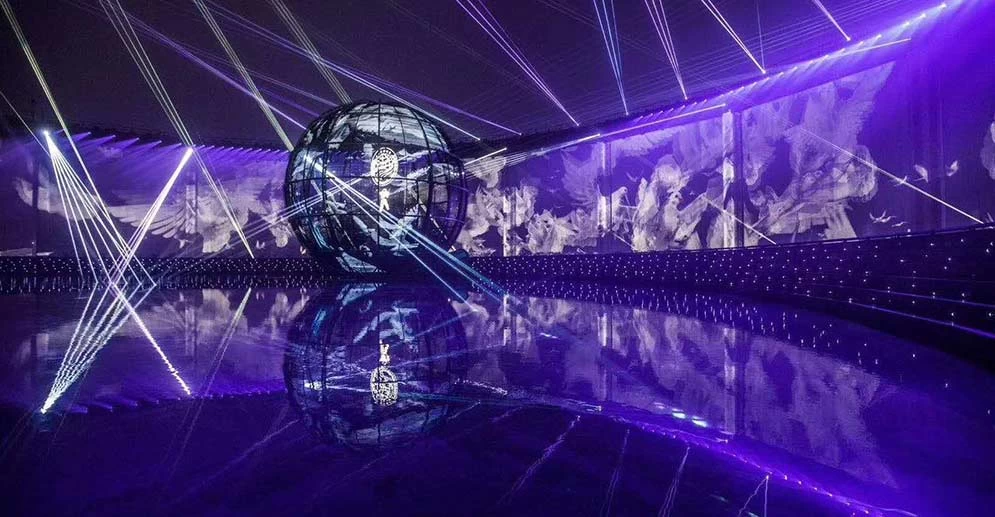

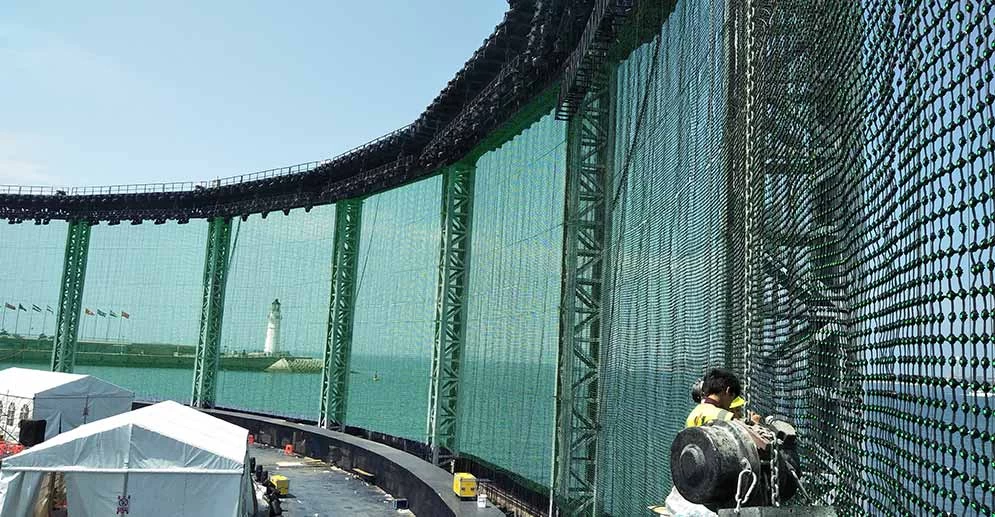

With the advantages of good flexibility, high transparency, high brightness and waterproof etc., flexible mesh screen can be customized into many different shapes to display various video programs conveniently, and applied to some special application, such as the sea.

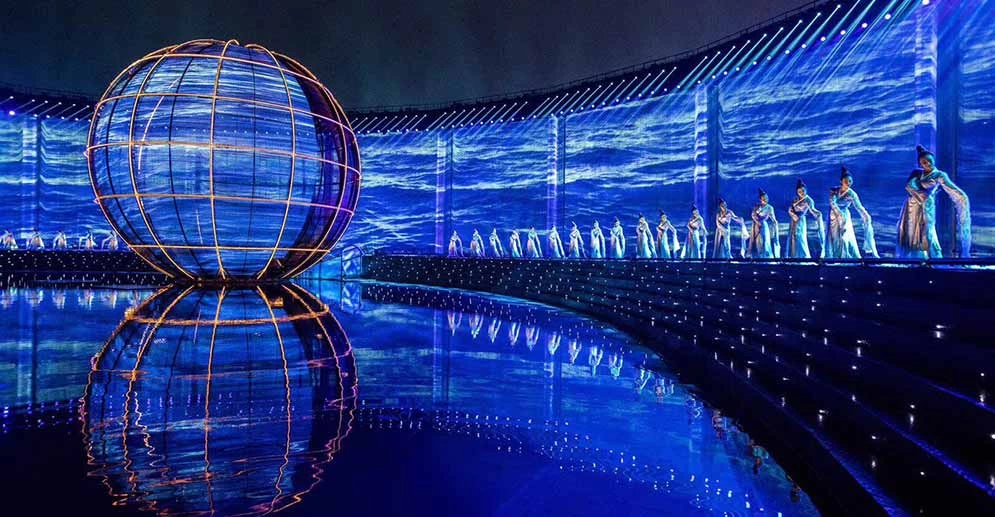

In the meanwhile, led mesh screen can show various lighting changing effects designed by professional designers to show the infinite artistic charm.


Flexible Mesh Screen Specifications:

Item Number

BARCO-P31.25

BARCO-P40

BARCO-P50

BARCO-P55

Pixel Pitch

31.25mm

40mm

50mm

55mm

Pixel Density

1024dot/m²

625dot/m²

400dot/m²

330dot/m²

Brightness

10000CD/m²

6250CD/m²

4000CD/m²

3300CD/m²

Max.Power Consumption

922W/m²

562W/m²

360W/m²

297W/m²

Ave.Power Consumption

308W/m²

187W/m²

120W/m²

99W/m²

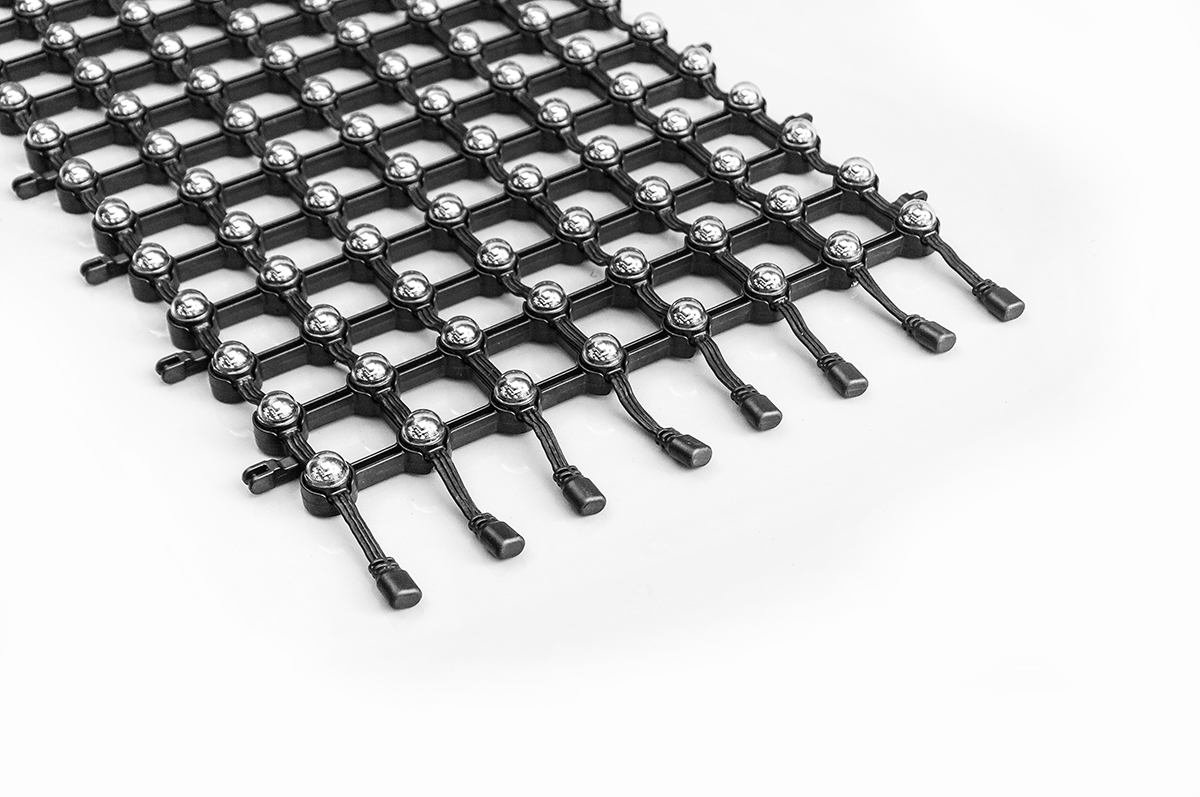

DOT Size

L20XW18XH15.2(mm)

DOT Weight

<6g /Pixel

LED Type

RGB 3IN1 SMD2727*4

Viewing Angle

120°(H)/120°(V)

Gray Scale

12bit

Display Scale

68.7 Bilion

Refresh Rate

≥1920Hz

Control System

PC based dynamic capture&mapping

Operation Power

AC110~ 240V, 50/60Hz (DC15V)

Working Environment

Temperature -20~+45℃,Humidity10~90% RH

IP Rating

IP66

Operating Life

≥100,000hours

Certificate

CE ,ROHS, UL, EMC



Video Controller card system software

Video Controller Card

Novastar Sending Card

Novastar Receiving Card

Control Card System

Linsn Sending Card

Linsn Receiving Card

Video Card Software

Colorlight Sending Card

Colorlight Receiving Card

VDWALL Video Processor

VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI

UL CE ROHS EMC PSU

Meanwell Power Supply source

OMRON Siemens ABB Power Switch

Software System

BARCOLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED

SMD LED Lamp

SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808

DIP LED Lamp

RGB546 RGB346 RGB570 3in1

Gold Wire LED Chips

BARCOLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT

Driving IC

MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153

BarcoLED PCB

4 Layer PCB Board

BarcoLED PCB Board

1.6mm Thickness

Packaging Materials

Flight Case Wooden Box Carton Box
