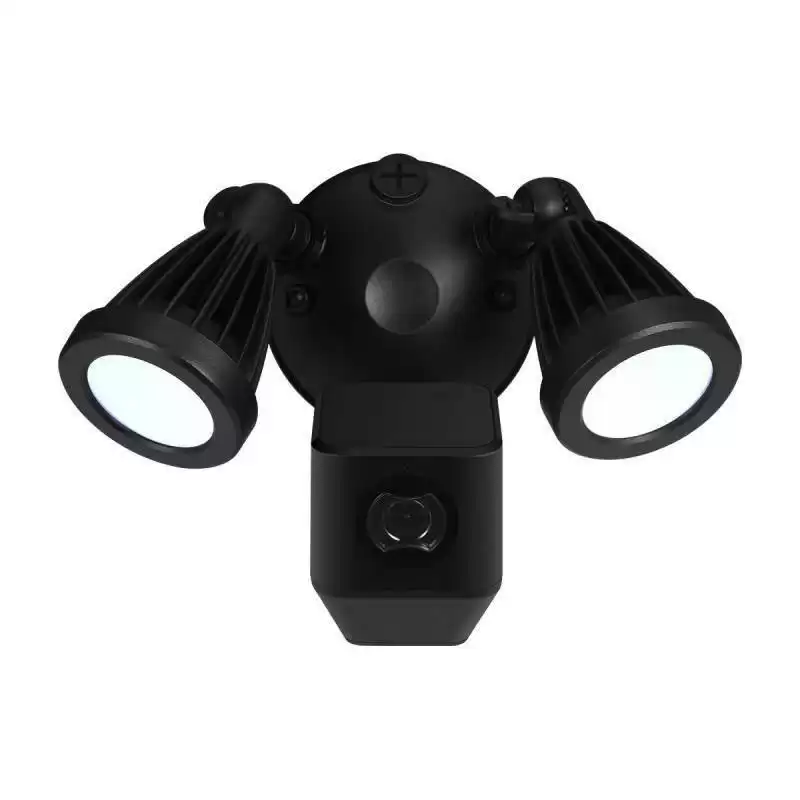

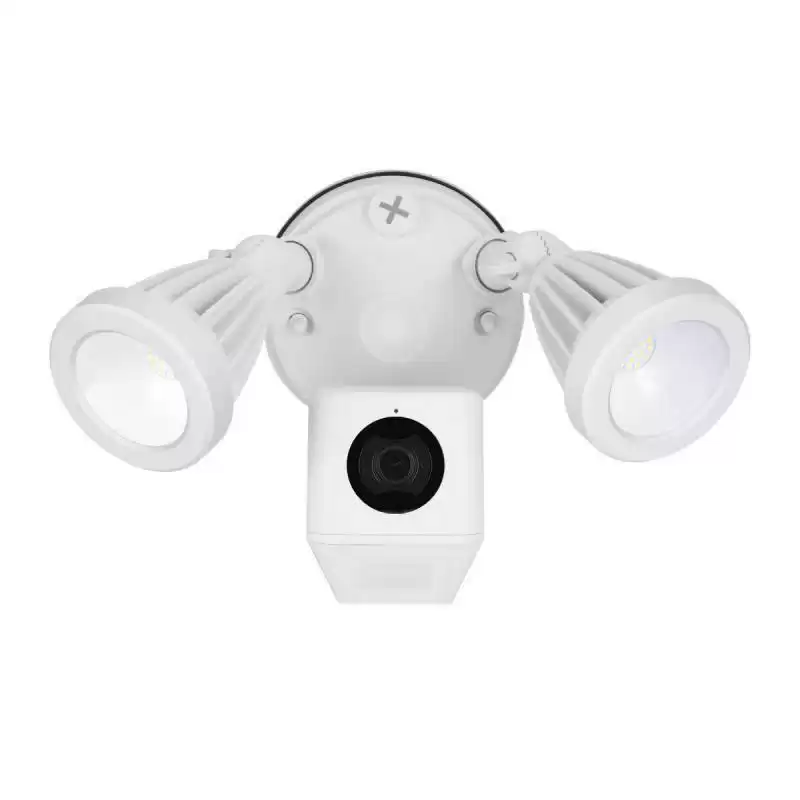

Product Name:HD 1080P Floodlight PIR Alarm Two Way Talk Remote Siren ONVIF WiFi IP Smart Camera
Feature
●HD 1080P Wi-Fi Floodlight IP Camera.
●Through the newest algorithm,270 PIR Detection angle,the equipment push accurate alarm,reduce mistake report.
●Remote-Activated,siren Activate 110DB siren alarm from your phone and tablet,to scare away any suspicious people caught on camera.

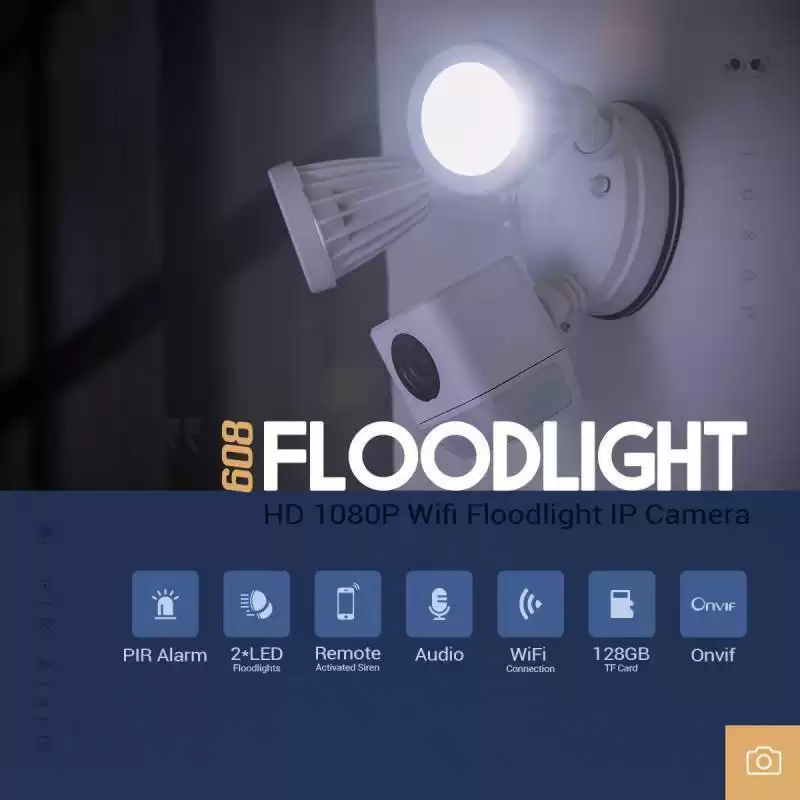

●LED Floodlights With two 24W floodlights,shine a light on suspicious activity with two motion-activated ultra-bright floodlights.
●HD 1080P 1920*1080,high definition image quality,resolution up to 2.0 megapixel.
●128GB TF card Storage Build in TF Card Slot,support max up to 128GB.
●IP65 Waterproof Suitable for indoor and outdoor use,all weather environment applications.
●High Wi-Fi module built into the equipment,more powerful to receive Wi-Fi signal stability,do not drop the line.
●Night Vision 2 PCS IR LED designed,it can capture ultra clear night time image,max up to 15m IR range.
●Compliance with standard ONVIF Protocol,compatible with various brands NVR.
Specification
|
Model
|
ANSDEN YAC-QF018
|
|
Led Specification
|
|
Wattage
|
24W
|
|
Beam angle
|
160°
|
|
CCT
|
3000k
|
|
Lumen s
|
4-Dec-04
|
|
Lifetime(hours)
|
3-Oct-54
|
|
Camera Specification
|
|
Pixels
|
2 Megapixels
|
|
Sensor Type
|
1/2.8” Progressive Scan CMOS
|
|
Minimum illumination
|
0.3Lux
|
|
Lens
|
f=2.3mm, F=2.0, Horizontal angle of view:140°
|
|
Day and night switch
|
ICR infrared filter functional within 15 meters distance
|
|
Digital noise
|
3D noise
|
|
PIR Detection angle
|
270°
|
|
Video compression standard
|
|
Video compression
|
H.264
|
|
Output bit rate
|
64kbps-4Mbps
|
|
Audio compression
|
G.711/G.726
|
|
Video
|
|
Video size
|
1920x1080，1280x720
|
|
Frame rate
|
25fps(MAX)
|
|
Audio
|
|
Input
|
Built-in Microphone
|
|
Output
|
Built-in Speaker
|
|
Network
|
|
Wireless
|
WiFi802.11 b/g/n Wi-Fi connection @ 2.4GHz only
|
|
Transmission distance
|
Outdoor: 20 meters, indoor: 10 meters (sensitive to environmental change)
|
|
IP type
|
Dynamic IP
|
|
Network agreement
|
TCP/IP，HTTP，TCP，ICMP，UDP，ARP，IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc
|
|
Port Protocol
|
Support ONVIF
|
|
Interface
|
|
TF card
|
Micro SD，Max support 128G(*AVI video file format)
|
|
Other requirements
|
|
Power supply
|
110-260V
|
|
Smart phone system requirement
|
Need system version above android 4.2 and IOS 8.0
|
|
PC system requirement
|
Microsoft WINXP、Win7/8/10, IE.
|
|
Operating Conditions
|
-28°C to 65°C/Weather-resistant
|
|
Consumption
|
1.5-3W (Camera running all functions)
|
|
Siren
|
Remote-activated 110-decibel alarm
|
|
Mounting Base
|
4¾-inch (12.065-cm) diameter
|
|
Package
|
|
Device Size
|
250*190*150 mm
|
|
Weight
|
1.3 KG
|
|
Package Size
|
275*195*178 mm
|
|
Package Weight
|
1.7 KG (Note：Refer to real product)
|

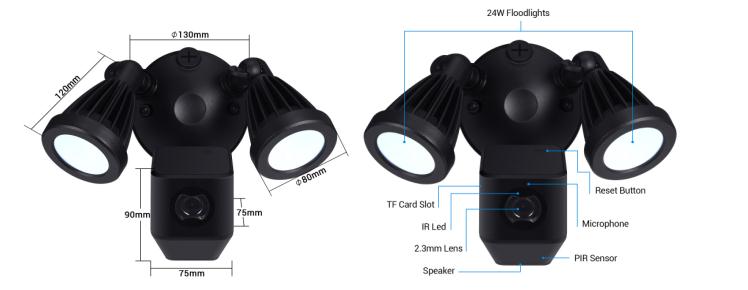

Dimension
LED Floodlights With two 24W floodlights,Shine a light on suspicious activity with two motion-activated ultra-bright floodlights.
Application
Through the newest algorithm,270 PIR Detection angle,The equipment push accurate alarm,Reduce mistake report.
