Best video led panels' outstanding Features
1. SMD3535 big LED lamp, led display signs for sale has good waterproof IP65, long life span>100000hours.
2. SMD led encapsulation confirm even small outdoor led displalys have wide 140 degree viewing angle and high brightness>6000nits.

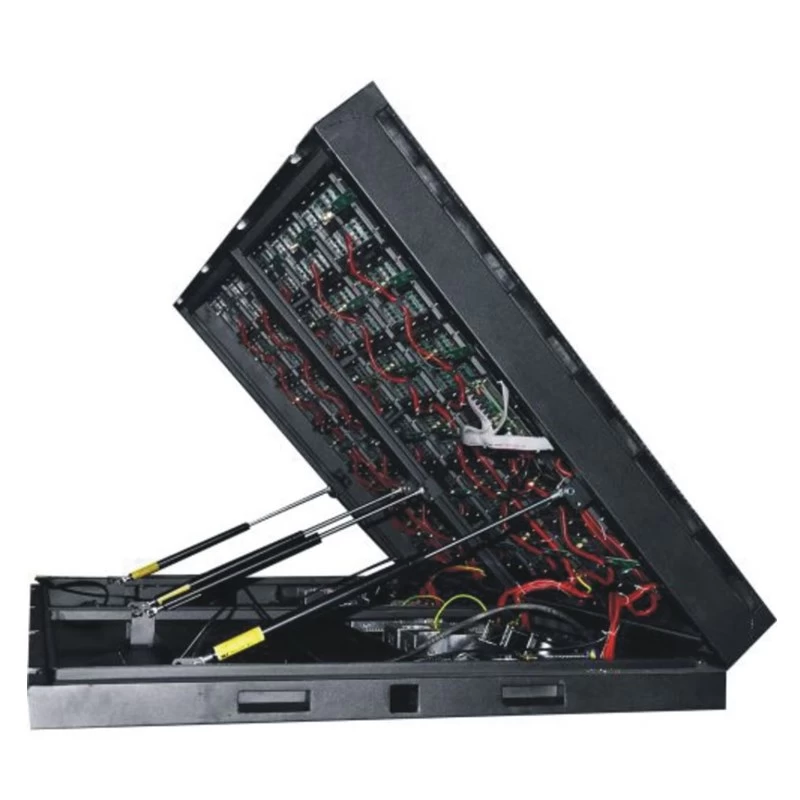

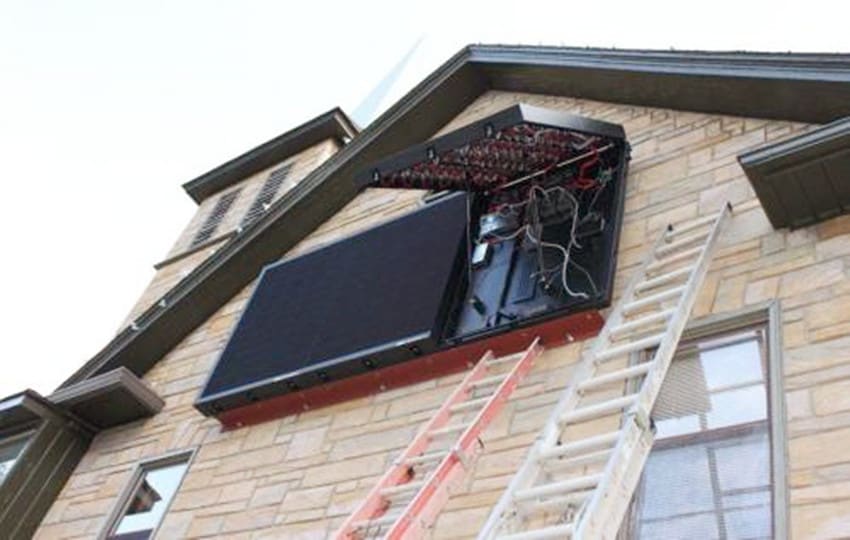

3. Dot-to-Dot maintenance, electronic advertising board own easy and quick repair, giant led screen advertising also save working time and cost.
4. Low power consumption, low noise created, led publicity screens have good environment protection.
5. Large outdoor advertising screens are used for fixed installation to meet the request of live broadcast, live meeting, banquet, party, etc, led display sales can display the content what you want.
6. Large digital screen all can connect with PC/ computer or network, exterior led displays and led screen advertisement also can achieve remote control with asynchronous system.
Product parameters
|

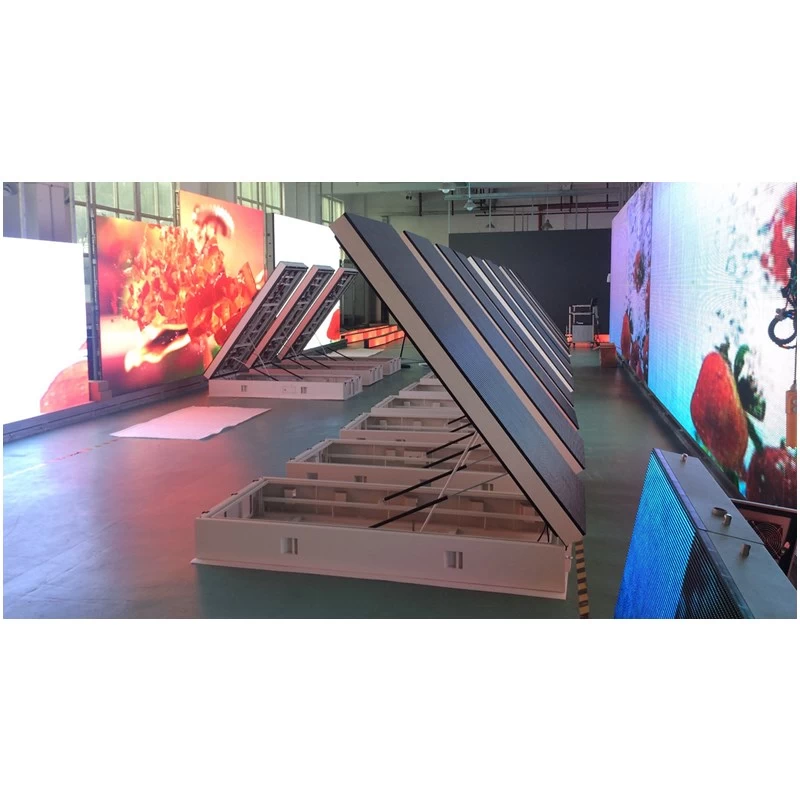

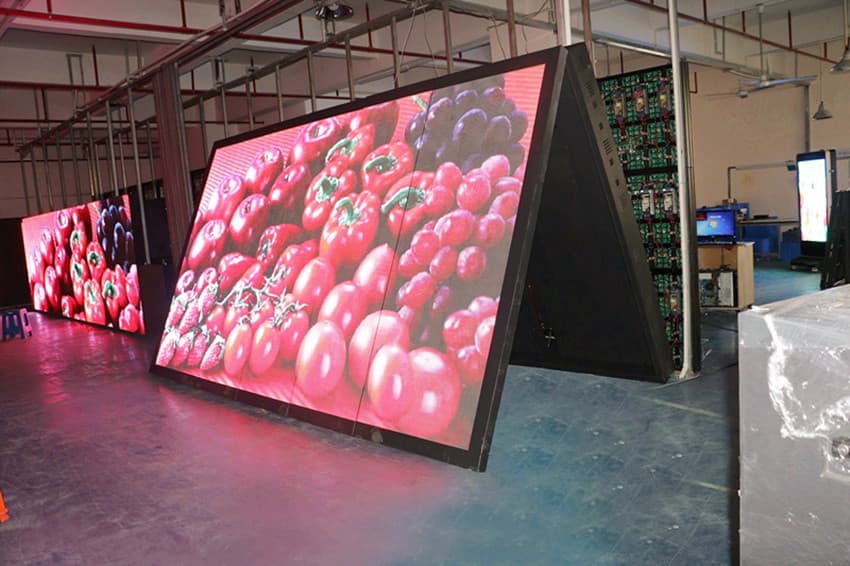

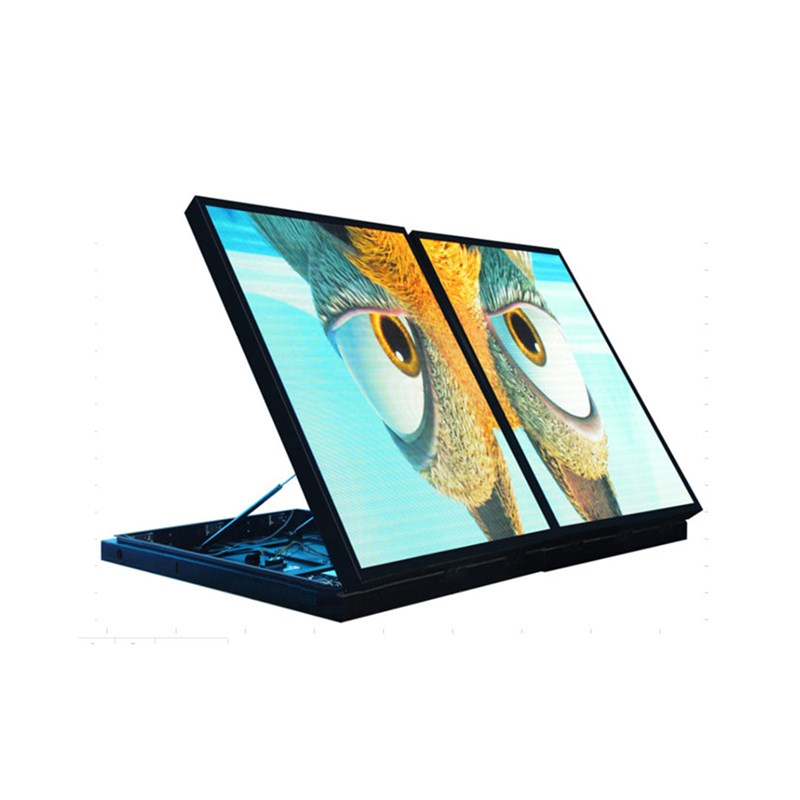

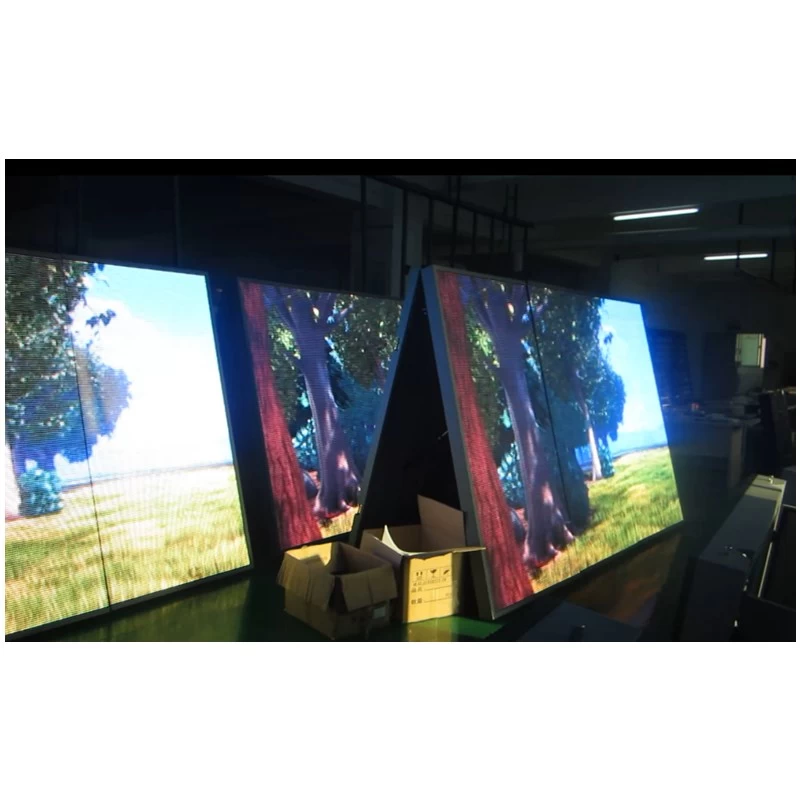

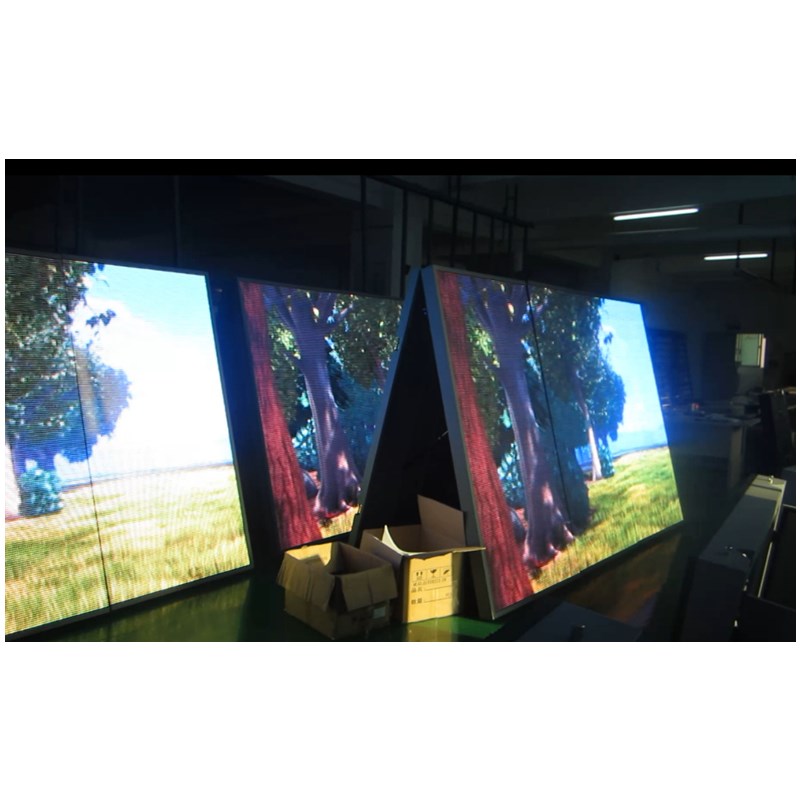

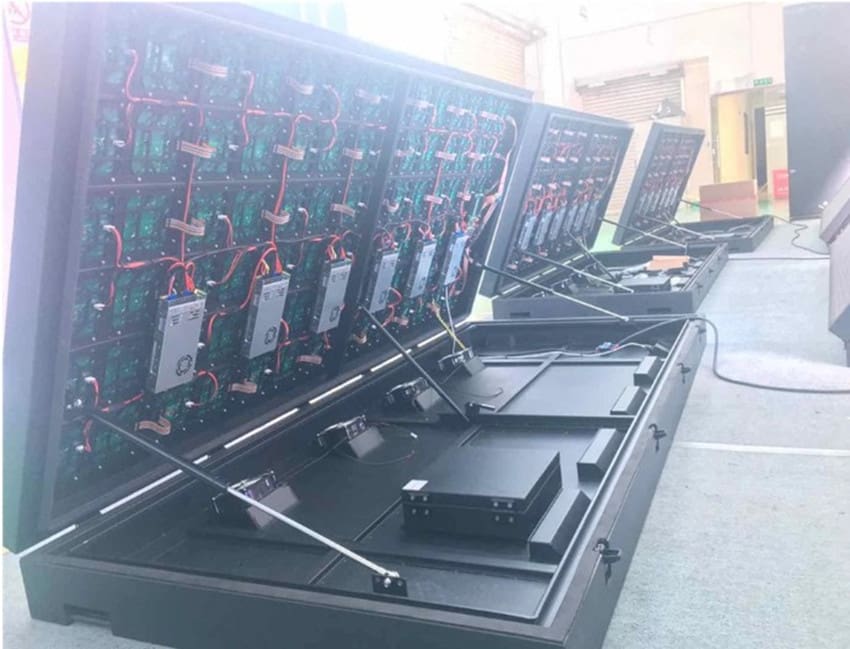

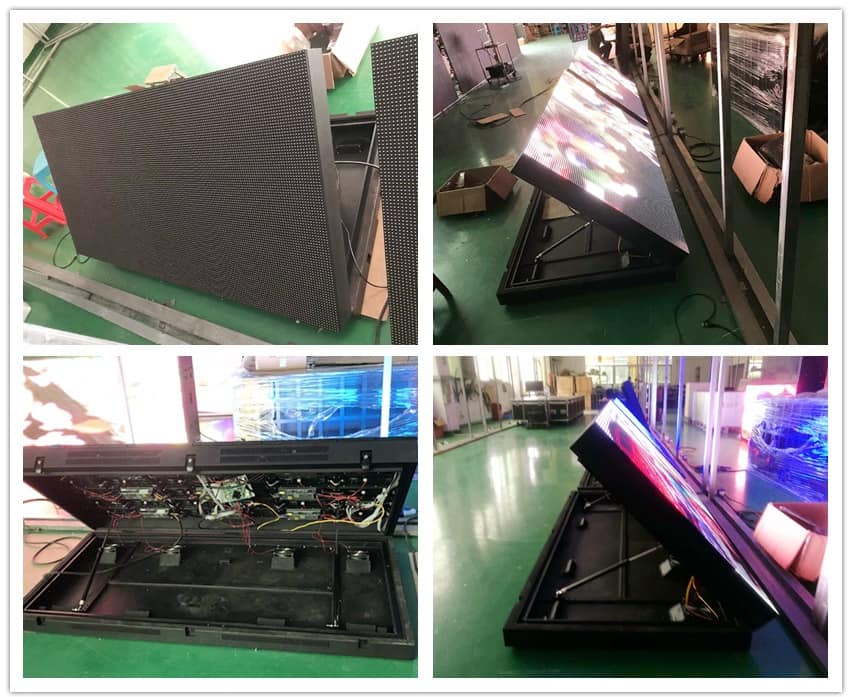

Outdoor Front Open LED Display Screen
|
|
LED Module
|
Pixel Pitch (mm)
|
P4
|
P5
|
P6
|
P8
|
|
Pixel configuration
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD3535
|
|
LED lamp
|
Nation Star / King light
|
|
IC
|
5020 /5124 /5153 /2037 /2038 /2038S /2053
|
|
Scan
|
1/8 S
|
1/8 S
|
1/8 S
|
1/4 S
|
|
Module size
|
256*128mm
|
160*160mm
|
192*192mm
|
256*128mm
|
|
Module resolution (pixel）
|
64*32 pixel
|
32*32 pixel
|
32*32 pixel
|
32*16 pixel
|
|
Pixel density (dots/m2)
|
62,500
|
40,000
|
27,777
|
15,625
|
|
LED Cabinet
|
Cabinet size (W*H)
|
768*768mm /800*800mm /960*800m /960*960mm /1024*768mm/
1024*1024mm
|
|
Cabinet material
|
Iron
|
|
Cabinet weight (KG)
|
40kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight
|
|
Control Method
|
Synchronization /Asynchronous control
|
|
LED Screen
|
Normal Display Area (W*H)
|
6*5 m
|
|
Normal Display Pixel (W*H)
|
1536*1152
|
1152*960
|
960*800
|
768*640
|
|
Parameter
|
Brightness(cd/m2)
|
5500-6500cd/m2
|
|
Best viewing distance
|
4-50m
|
5-50m
|
6-50m
|
8-100m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
front
|
|
Average power consumption
|
400 W / m2
|
|
Max power consumption
|
800 W / m2
|
|
Operating Temperature
|
–30℃~+60℃10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m-
10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Our Full Led Screen Advantages :
1) Price: No matter led screen for advertisement, led display for stage, or color led signs, we can give you the most satisfying
price, led screen price in india is also competitive. Because we are led display modules manufacturer and signed long time VIP Cooperation Contract with raw
material suppliers since we step into led industry. Once the market
change, we will flexibly adjust the price and timely notify everyone of
you about our update price. For our led video screen manufacturers, YOU WANT = WE DO. First time trial order
will let you strongly shake hands with us. We warmly welcome any kind
quality inspection process from your team.

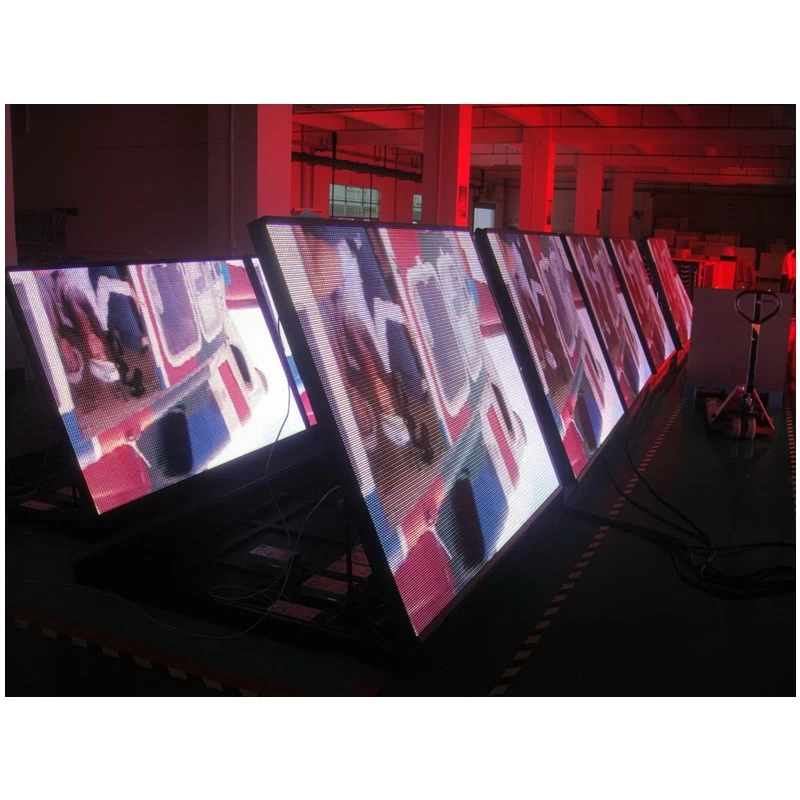

2) Quality: As led sign manufacturers and direct advertising displays supplier, we seriously obey 24 hours led module testing time and 72 hours led display
aging time to age modular led screen. Before shipping and within the warranty time, our team will
track the goods situation to satisfy all your request.
3)
Production: Led screen mesh support any kind special customized design. YOU NEED =WE
DESIGN. We design exactly the same material you mentioned with our team
in the sales contract and business negotiation process. We are direct
factory and led signs wholesale, if your led project time is definitely fixed, with no any
change, we will arrange your order firstly to catch up with your time .
MEET YOUR TIME = SUPPORT OUR TEAM .
