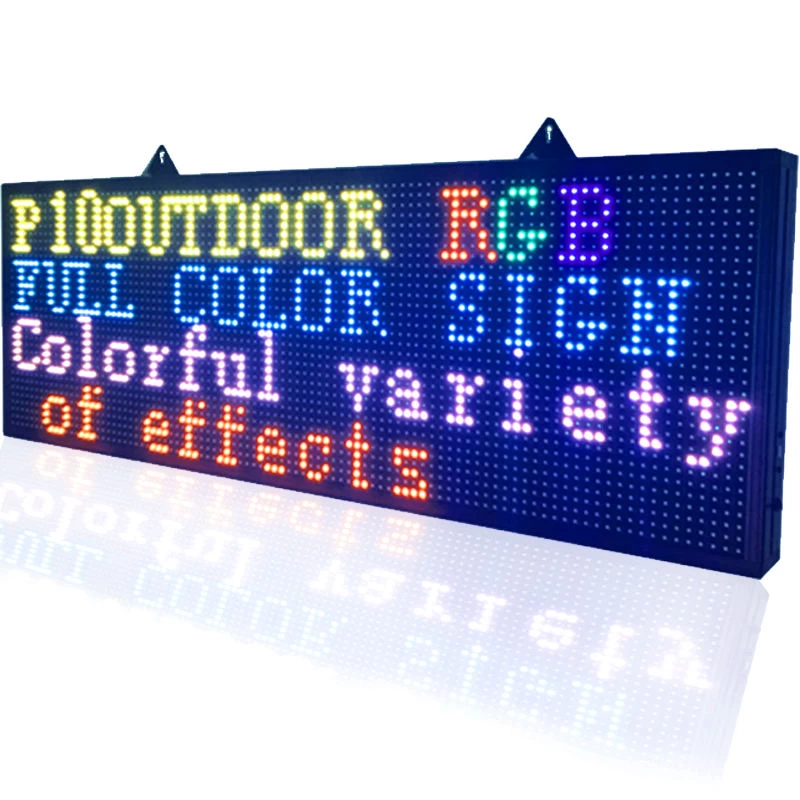

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
*Product size can be customized
*Brightness is adjustable，Display speed is adjustable
*Letter font and letter size are adjustable
*Housing material is Aluminium alloy and housing color is black
*Default function is text letter, time and date;temperature function is for option.
Package including
*LED sign 1 PCS (size 100x68cm / 27x 39 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P10 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W32 X H16
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/4 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
|
Cabinet Size (mm)
|
W1000 x H680 MM (39x27 Inch)
|
|
Power Consumption Max (w/set)
|
100 Watt
|
|
Brightness(CD/㎡)
|
≥5500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,WIFI ,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
