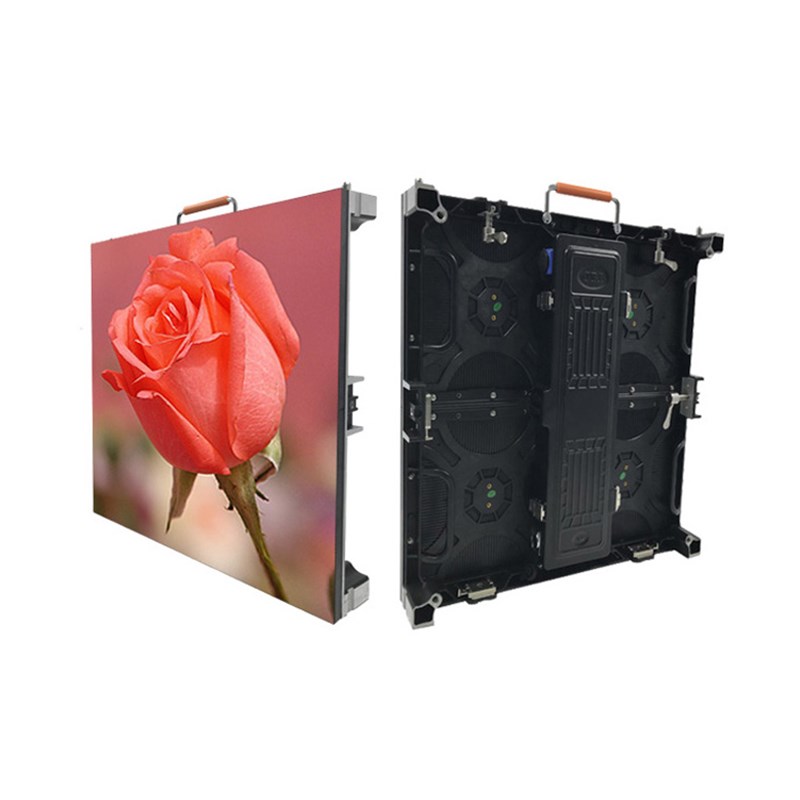

500mm*500mm/ 500*1000mm Outdoor Video Wall Screen LED Cabinet Specification:
1.Outdoor led display board with Ultra-light weight and slim design:12.5 KG/panel
2.Support custom made led displays, small pixel:P3.91 & P4.81& P2.976
3.The side locks of led sign rental is spring lock,which is made led display unique among all die-casting aluminum cabinets, especially popular in Europe

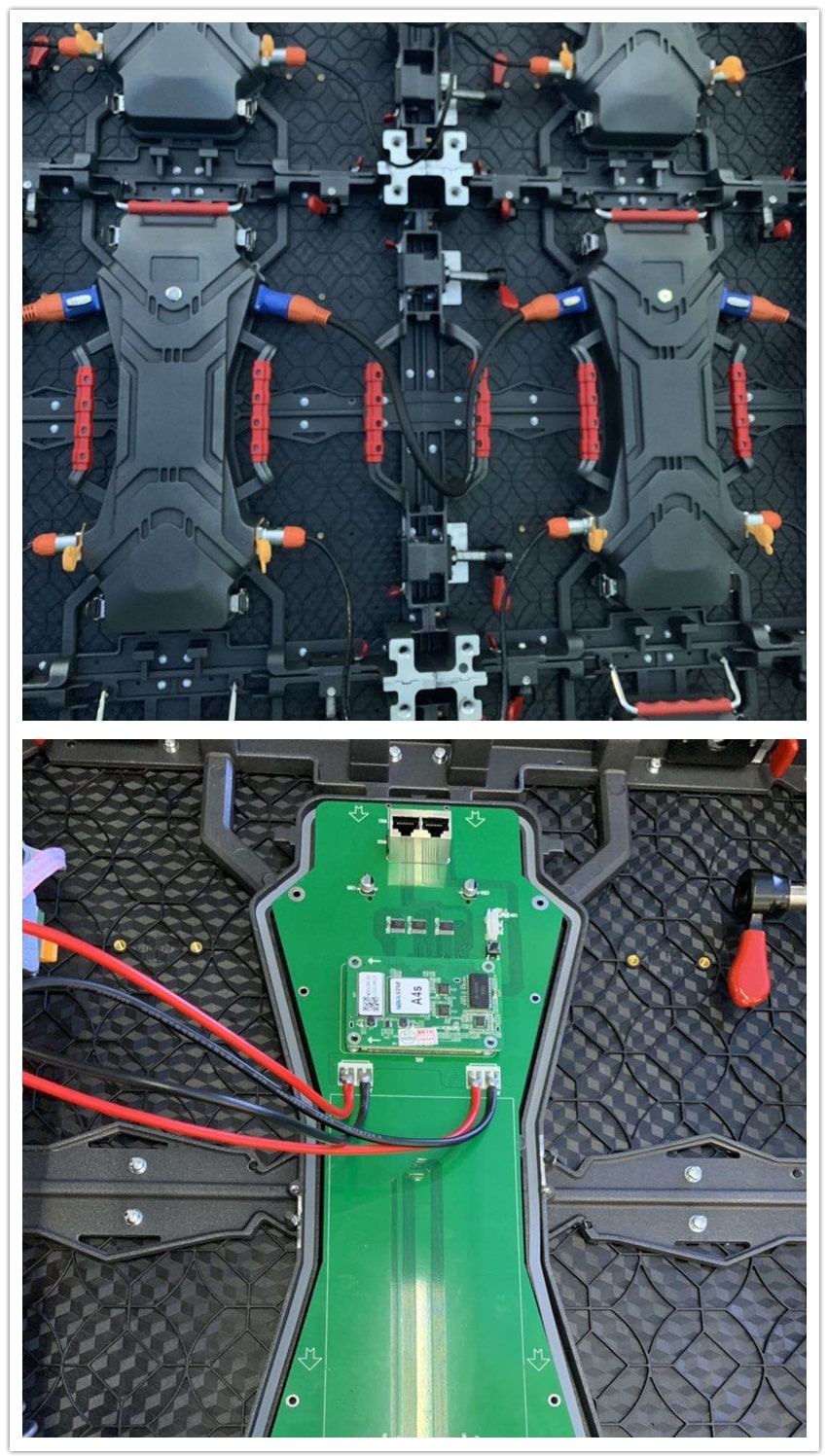

4.Electronic led display board with power and signal connectors, Neutrik or Seetronic brand, large led wall is very easy to install and dismantle

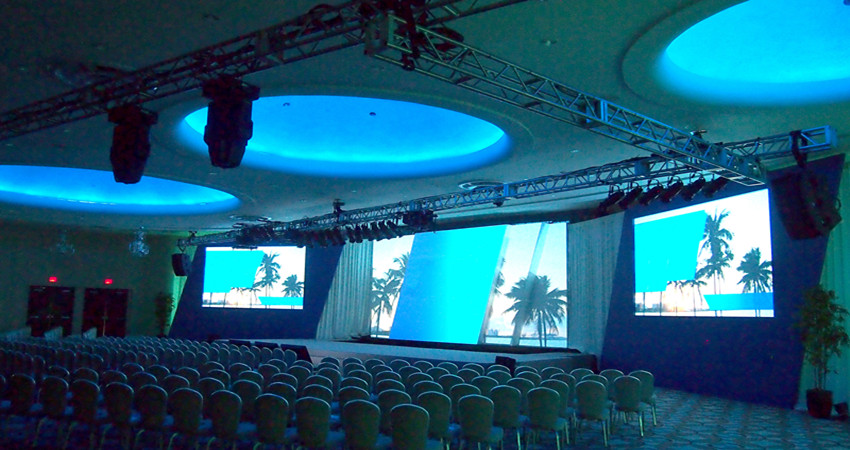

5.It is low noise, Custom make led displays can be installed in office and meeting room
6.Led moving message sign appearance is very elegant, Quality is very stable
|
LED Module
|
Pixel Pitch
|
P3.91 / P4.81 mm
|
|
Pixel Configuration
|
SMD 1921 / SMD 2727
|
|
LED Lamp
|
King light /Nation Star
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|
Cabinet size (W*H)
|

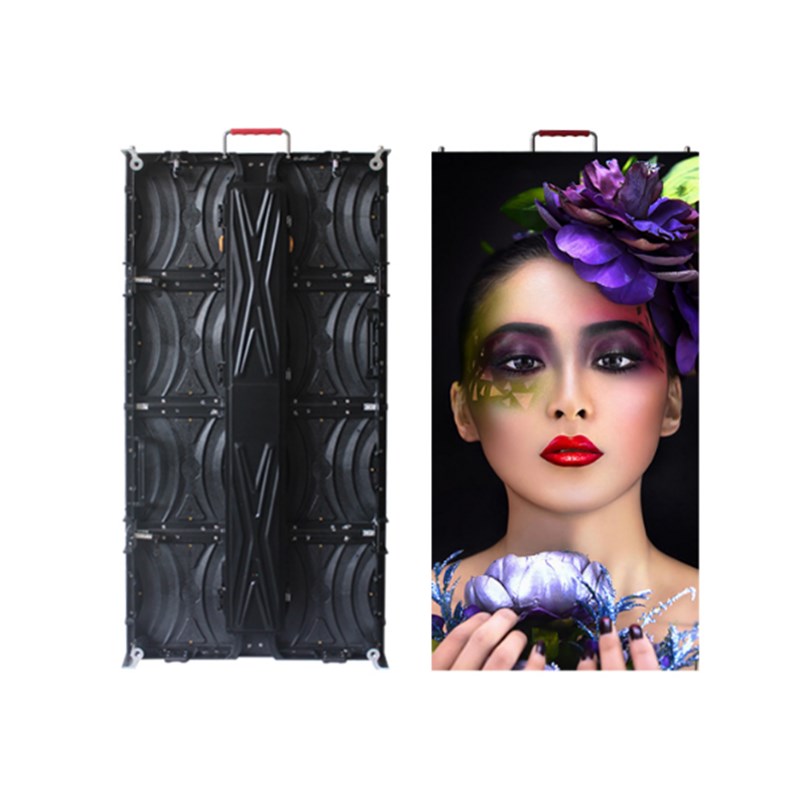

500MM*500MM / 500MM*1000MM
|
|
Cabinet material
|
Die-casting Aluminum
|
|
Cabinet weight (KG)
|
35 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
5500-6500 cd/m² (P3.91 ) 4000-4500 cd/m2 (P4.81 )
|
|
Best viewing distance
|
3-100 m
|
|
Viewing angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Front side / Back side
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Main Features :
1. High precision , ultra slim and light die cast aluminum big led panel
2.Led electronic display screen with fast lock for quick assemble and dismantle
3. Flexible installation of programmable led display , Led wall for sale can either be suspended to truss, stacked up on floor ,or mounted against wall
4. Adjustable curves within 10 degrees concave to 10 degrees convex
5. Front access small led display led modules are optional .The LED numeric display can be serviceable from front
6. Advanced ICN2053 driver IC with high greyscale, high contrast and ultra high refresh rate over 4500 hz for led presentation screen
7. Mini LED display screen mointor for displaying the working time , temperature and voltage
8. The same led screen signage panel is compatible with P2.6, P2.8,P2.97, P3.91,P5.95 and P6.25 indoor and outdoor LED display
