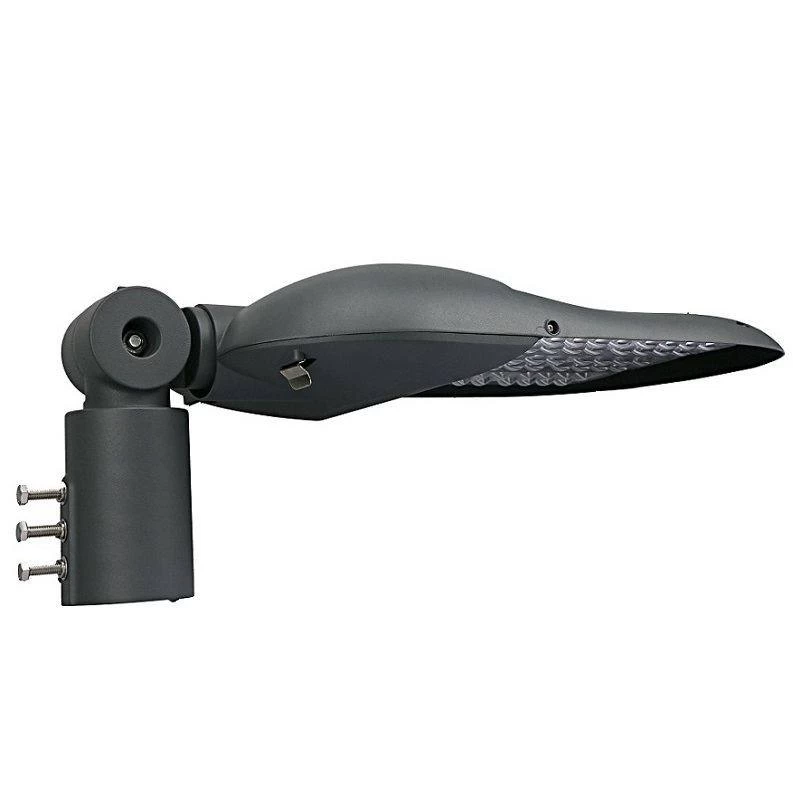

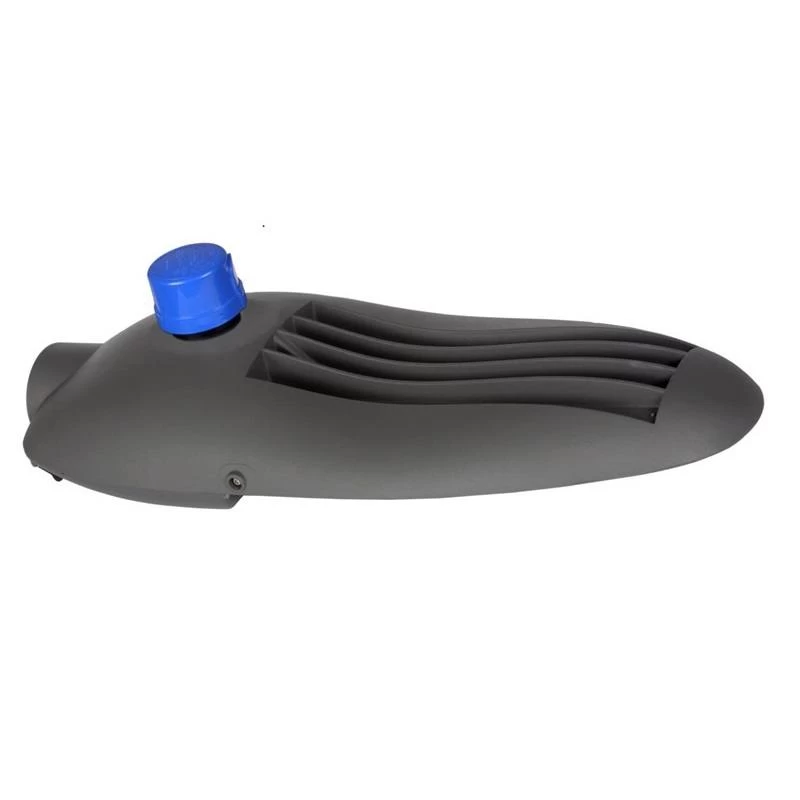

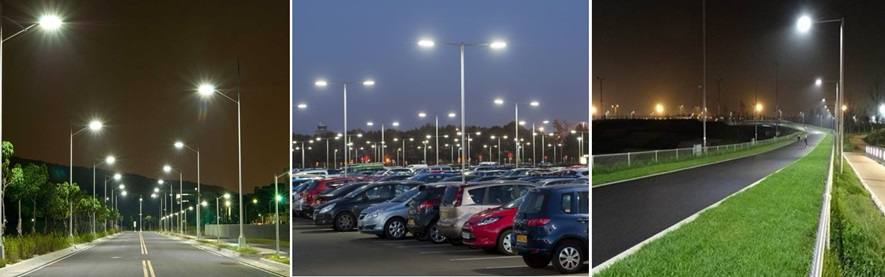

Product Item: Outdoor Intelligent Photocell Sensor LED Street Lights Car Park Lighting
Overview:
This range of sleek patent photocell sensor LED street lights is designed with high lux level and high degree of lighting uniformity. The energy-efficient LED roadway lighting luminaire is featuring a highly sensitive daylight sensor, which gives enhanced lighting coverage and diminished cost of energy expenditure.
As an ideal replacement for out dated high pressure sodium street lights and metal halide lamps, the intelligent LED street lamp with photo control automatically works based on the ambient environment lux level the photometric sensor detects. The elegant and wind-resistant heavy-duty aluminum heat sink ensures both good heat management for longer lifespan as well as higher working stability for the daylight sensor LED street lights under harsh environment.
Specifications:
|
Model
|
SR-STS-A30WS SR-STS-A50WS SR-STS-A100WS SR-STS-A100WS
|
Power
|
30W 50W 100W 150W
|
Lumen Output
|
3,600lm 6,000lm 12,000lm 18,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
140x60°/150x70°, etc.
|
Driver
|
MEAN WELL/MOSO/SOSEN, etc.
|
Input Voltage
|
AC100-305V
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
|
Working Temp
|
-40 to 50°C
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|
Dimension
|

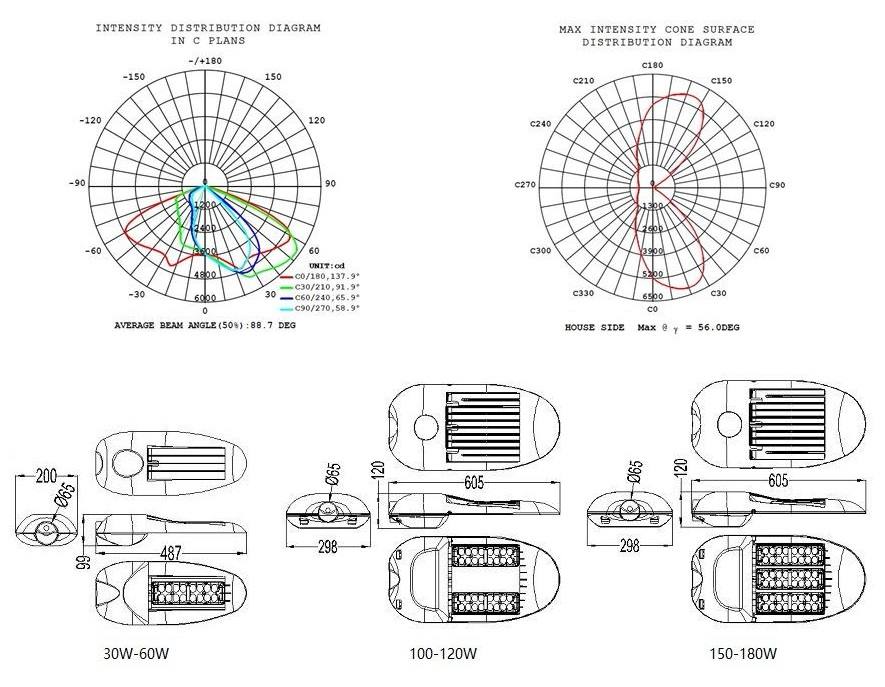

487x200x99mm 487x200x99mm 605x298x120mm 605x298x120mm
|
Weight
|
2.15KG 2.3KG 4.1KG 4.26KG
|
Warranty
|
5 years warranty
|
Features:
-
System power available in 30W, 50W, 60W, 100W, and 150W.
-
Optimized efficiency through photocell sensor to automatically switch on or off the street lamp, minimized light pollution and glare.
-
Intelligent light control switch street light senses ambient light levels, photocells automatically adjust to seasonal changes in the day/night cycle.
-

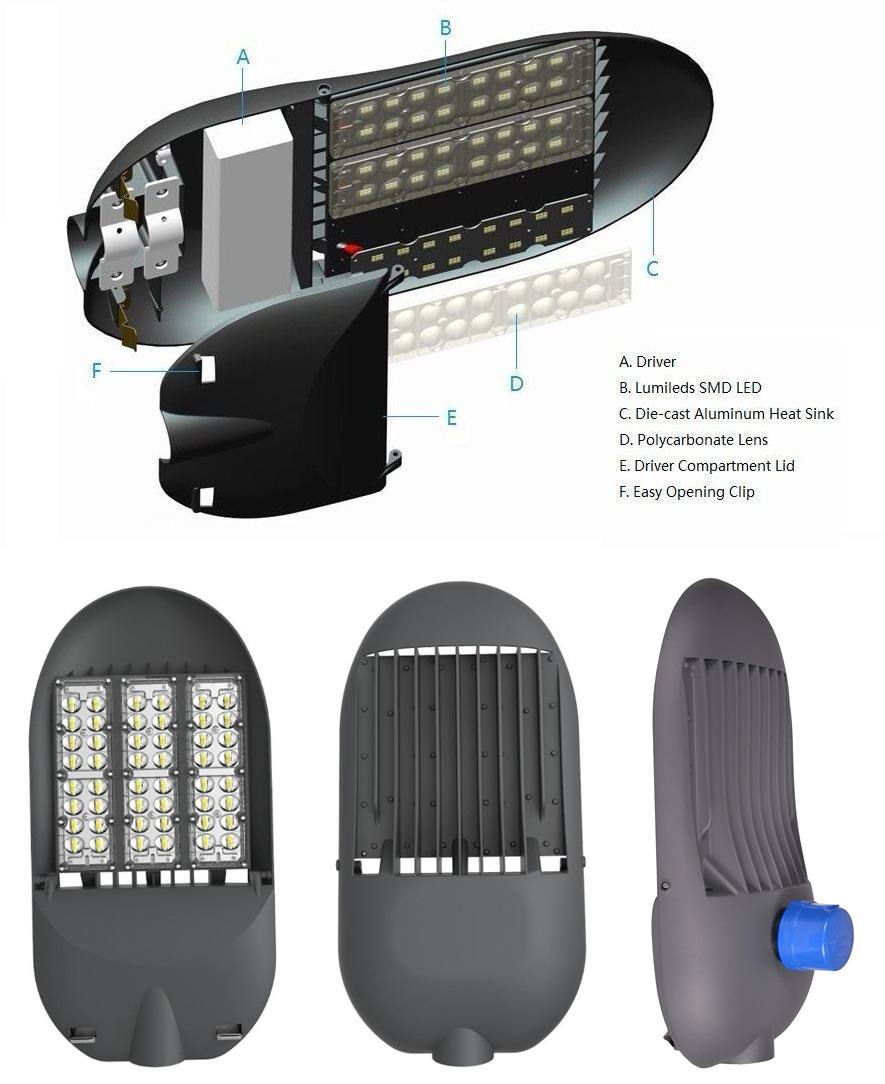

Original Philips Lumileds LED light source and durable Mean Well driver.
-
High lumen output, luminous efficacy up to 120lm/W(higher luminous efficacy also available with customized solution).
-
Unique distribution design provides a variety of optical distribution patterns, including Type II, and Type III configurations.
-
Optimal thermal convection effective draws air flow through the specially designed heat sink structure.
-
The daylight sensor street luminaire has a die-casting Aluminum heat sink with an attractive streamline design.
-
Well-designed driver compartment stainless clips with minimal tool entry for easy installation and maintenance.
-
Silicone gaskets and UV-stabilized acrylic lenses help ensure a long service life and consistent performance.
-
Anti-corrosion powder coated finish in grey or black finish, other colors available upon request.
-
Standard surge protector rated to 6KV(10KV additional surge protection device (SPD) available upon request).
-
Continuous waterproof anti-corrosion silicone gasket surrounds lens for IP65 weather tight seal.
-
Excellent heat management prolongs LED street life expectance.
-
Compatible with DALI or 1-10V dimmers to be made into dimmable LED street lamp according to customers' requirements.
|
|
|
|
|
|
|
|
