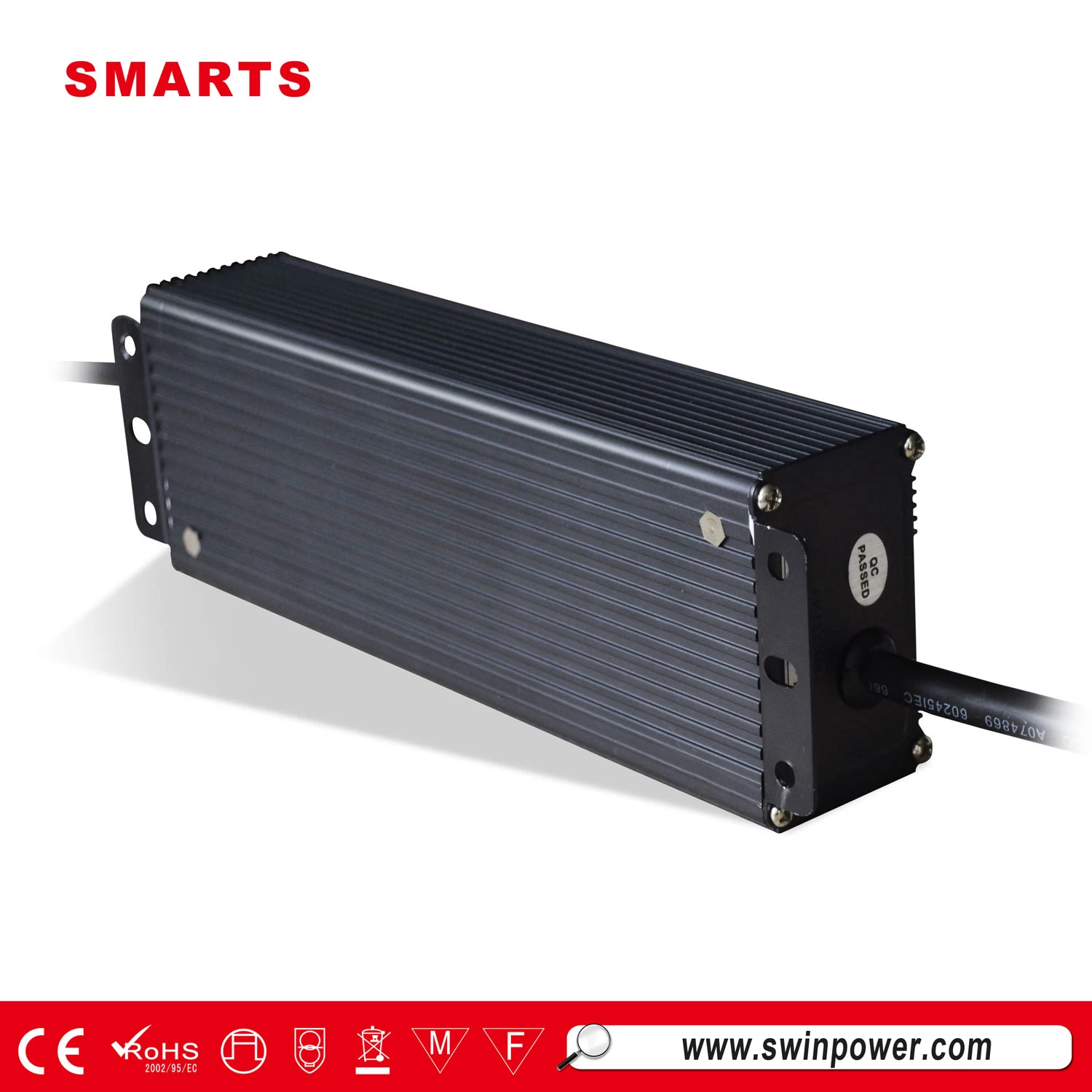

outdoor led driver 24v triac dimmable led power supply 5 amp

The input voltage of this outdoor led driver 24v is 180-265vac. This triac dimmable led power supply 5 amp has the certification of CE SAA FCC RoHs and 5 years warranty.


  • Input Voltage180-265V
  • Output Voltage24V
  • Output Current5A
  • Working ModeConstant Voltage
  • Dimming modeTriac dimmable
  • Size230*70*46mm
  • CertificationSAA

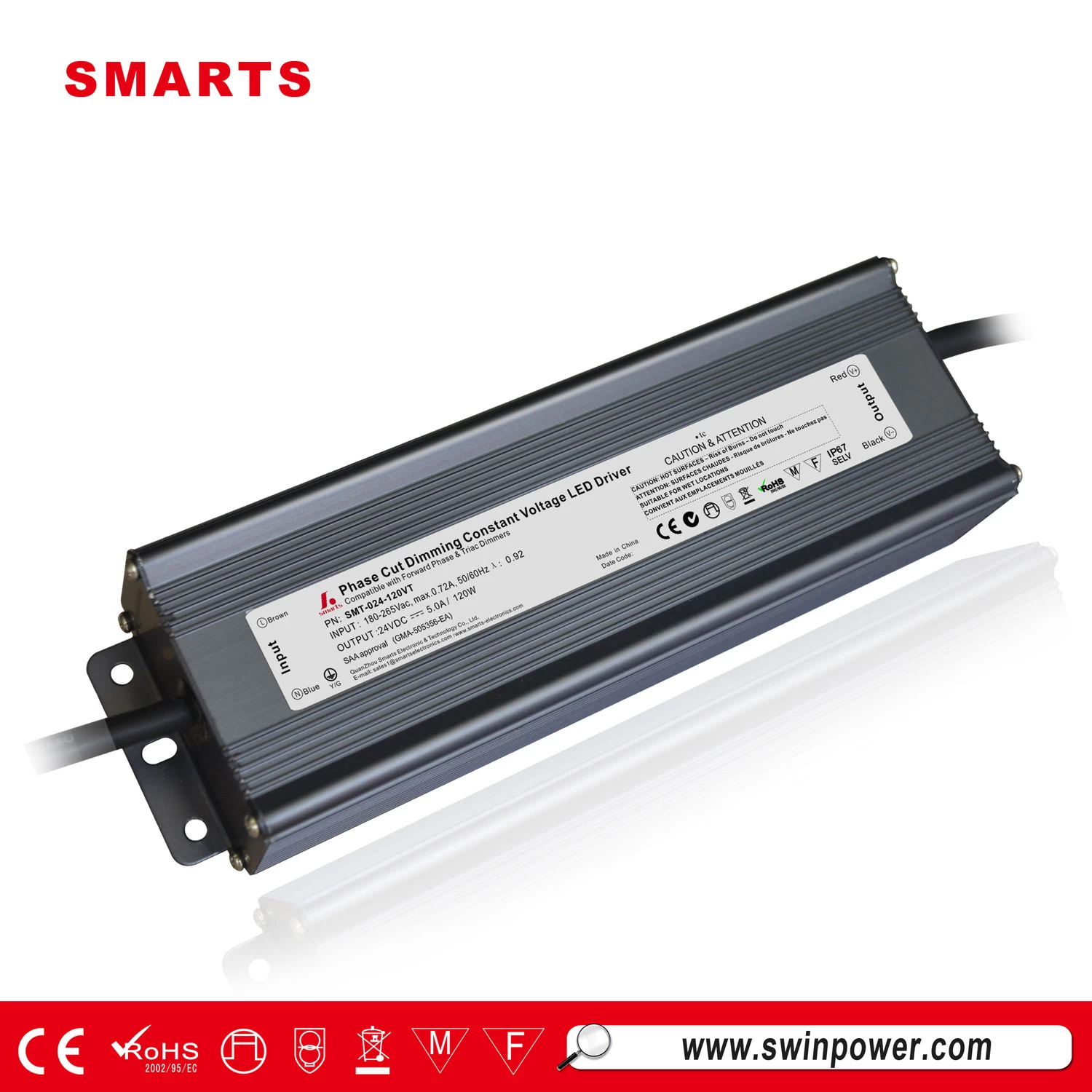

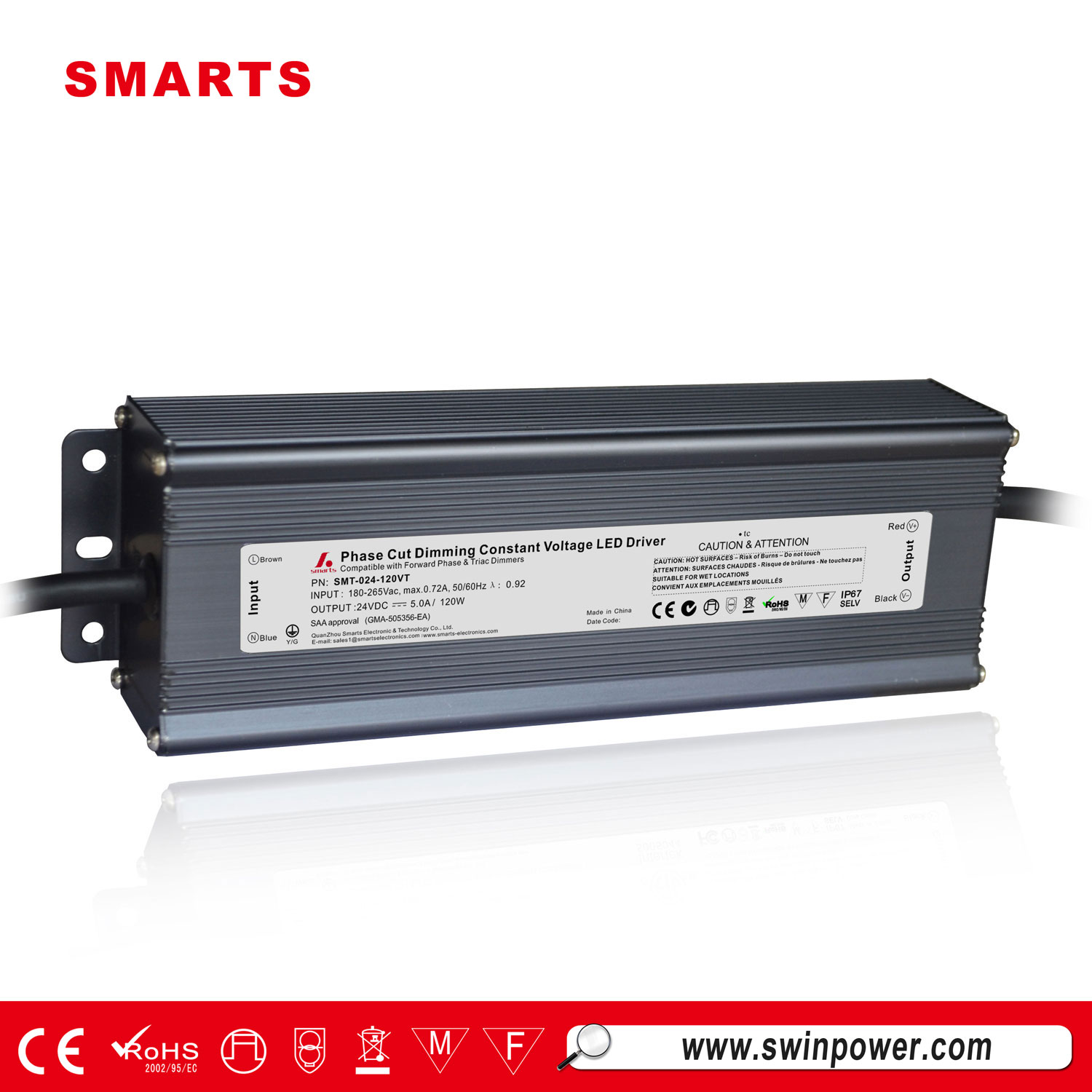

outdoor led driver  24v triac dimmable led power supply 5 amp

The input voltage of this outdoor led driver 24v is 180-265vac. This triac dimmable led power supply 5 amp has the certification of CE SAA FCC RoHs and 5 years warranty. In particular, it has a matching junction box.


Specifications:

  1. AC-DC Triac Dimmable LED Driver
  2. Dimming mode: triac dimmable 24VDC, power;120W
  3. working mode: constant voltage
  4. I/P:180~265V,  50-60Hz
  5. Ambient temp.: 20 degree~40 degree @ full load
  6. Efficiency > 83% PF:0.7
  7. size 230*70*46mm
  8. waterproof rate:  IP67
  9. packing: 10pcs/ctn, overload,over heat, over voltage, short circuit protection
  10. 5 years warranty
  11. CE, SAA, ROHS approval

Features:

  1. Case material: plastic case
  2. Cooling by free air convection
  3. 100% full load burn-in test
  4.  High reliability
  5. Universal AC input (180~ 265VAC)
  6. designing standard: Class 2 power unit
  7. Cooling by nature
  8. Suitable for dry location
  9. Follow the global lighting safety regulations

Safety:

  1. Withstand Voltage : I/P-O/P: 3000KVAC
  2. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Environment:

  1. Working temperature:-40 -80°C
  2. Store temperature:-40 -85°C
  3. Working humidity:10-90%
  4. Lifespan:(MTBF)50,000 hours
  5. Case machine specifications

         Model

Input voltage

     (vac)

Working Frequency
(Hz)

Output voltage
(vDC)

Output Current

power

(Watt)

Working Temp.

IP rate

SMT-012-120VT

180-265vAC

50~60Hz

12V

  10A

120W

-25~50°C

IP67

SMT-024-120VT

180-265vAC

50~60Hz

24V

   5A

120W

-25~50°C

IP67
