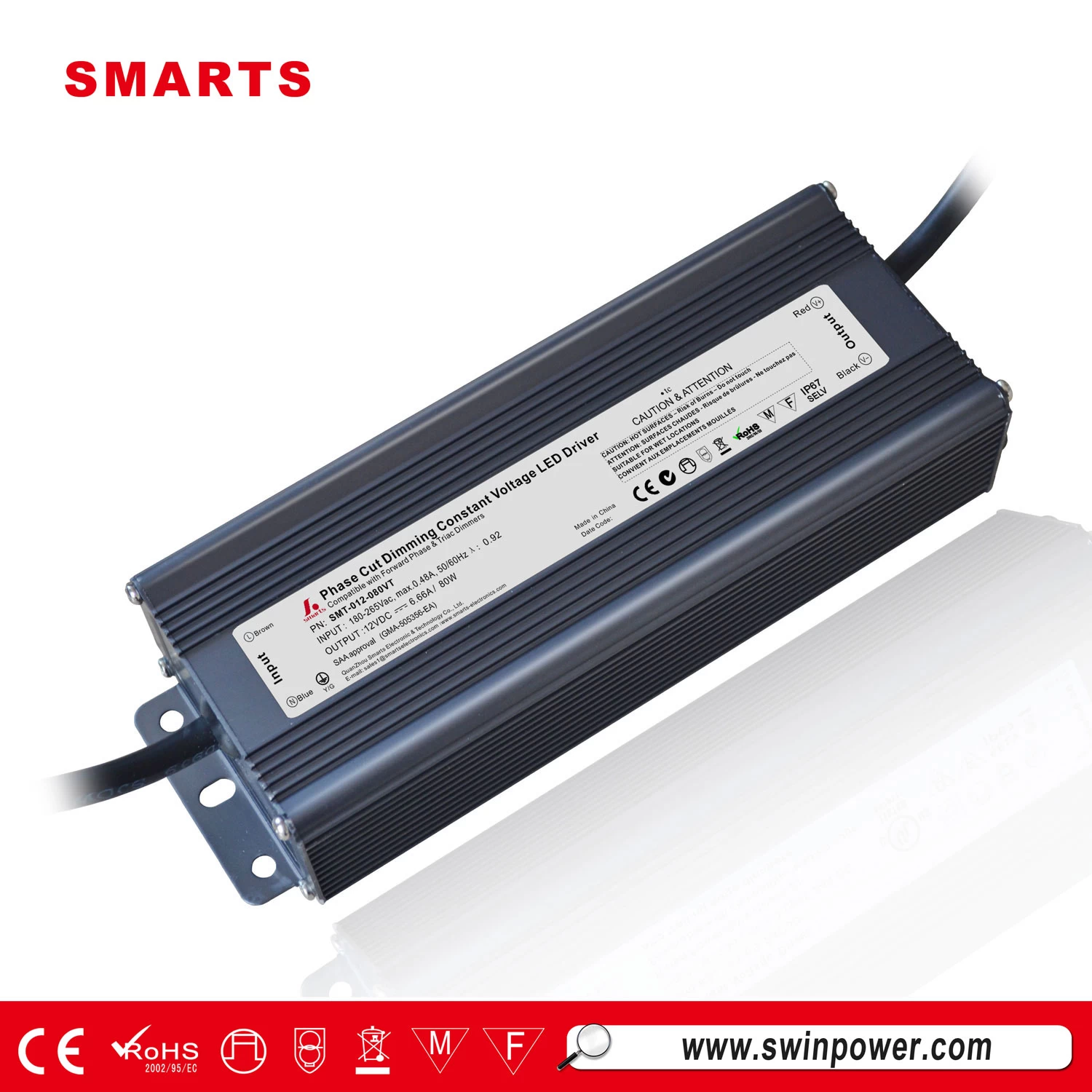

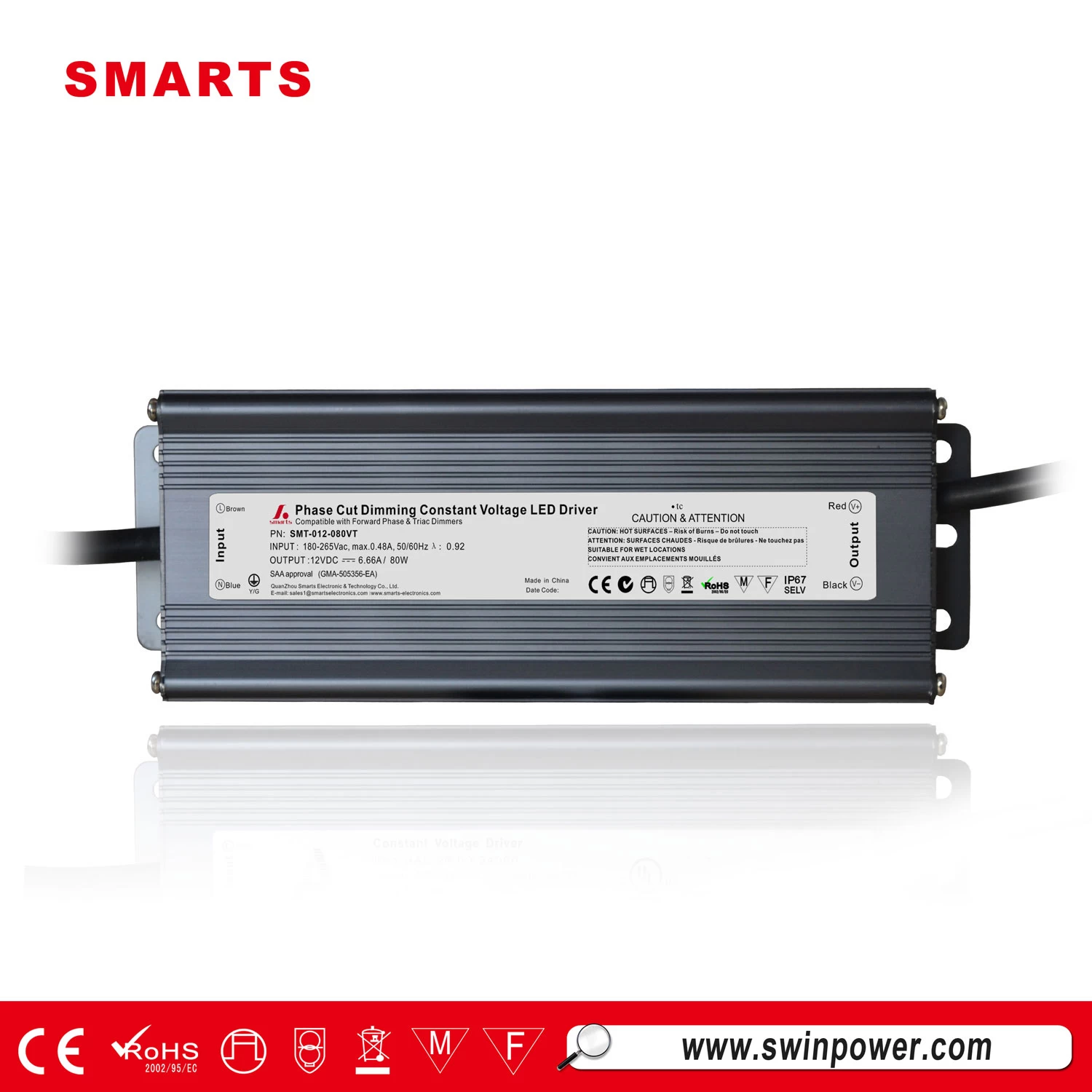

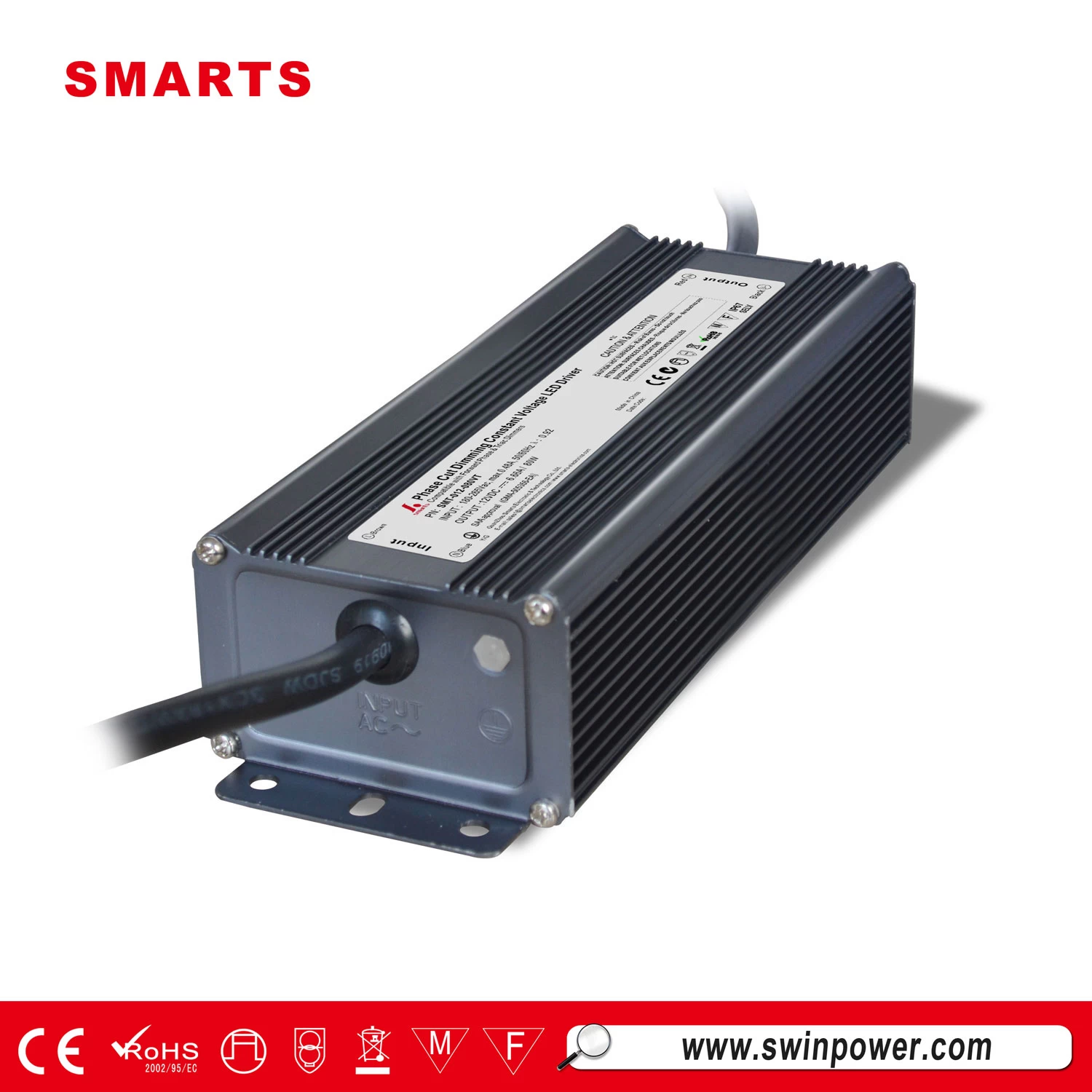

outdoor led driver dimmable single ac to dc 12v LED waterproof transformer

12v LED waterproof transformer is designed for a single direct current output voltage. This led power supply 12volt features an IP67 rated waterproof design, making it suitable for indoor or outdoor use.


  • Input Voltage180-265V
  • Output Voltage12V
  • Output Current6.66A
  • Working ModeConstant Voltage
  • Dimming modeTriac dimmable
  • Size210*68.5*43mm
  • CertificationSAA

outdoor led driver dimmable single ac to dc 12v LED waterproof transformer

12v LED waterproof transformer is designed for a single direct current output voltage. This led power supply 12volt features an IP67 rated waterproof design, making it suitable for indoor or outdoor use. In addition, they have the certification of CE SAA FCC RoHs and 5 years warranty.


Specifications

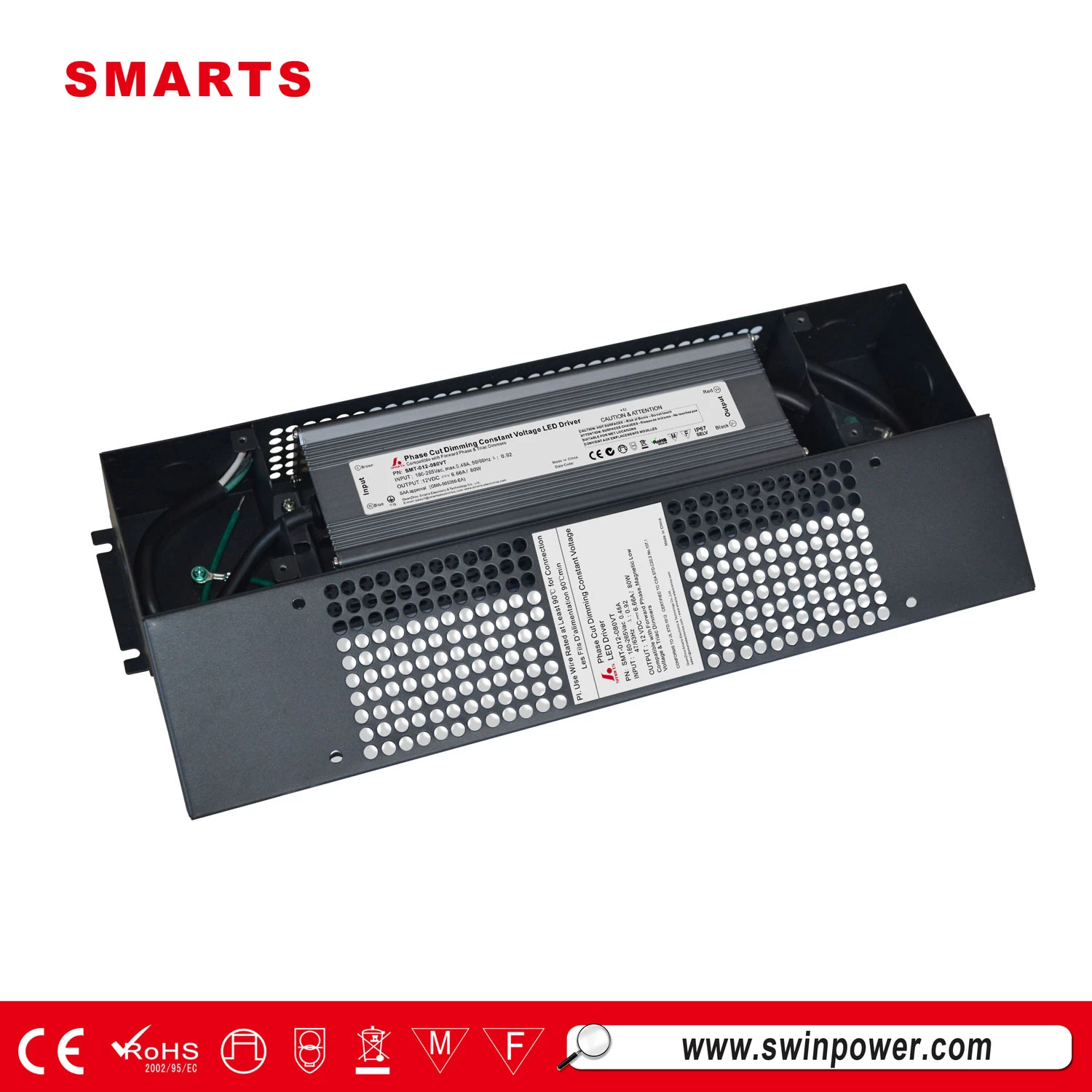

  • Paried with Jbox avlaibale
  • Part Number: SMT-012-080VT
    Input Voltage: 180-265V AC (50/60Hz)
    Output Voltage: 12V DC
    Max Load: 80 Watts
    Max Ambient Temp.: -40°F to 194°F (-40°C to 90°C)
  • Avg. Efficiency: 83%
  • Ratings:  SAA Listed, CE, RoHS, & IP67
  • Warranty: 7 Year Limited

Features

No load limitation

PWM out

0-100% dimming range

Case material:Aluminum
Working mode: constant voltage
Output type:single output
Dimming mode: triac /phase cut /leading edge dimming.

PF:0.7


Protections:Short circulit/Over load/over voltage/over temp.




12v LED waterproof transformer
