With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
* Die-casting aluminum, secure and nice in constitution.
* No fans, mute when operation.
* Dustproof, Waterproof,IP45.
* High refresh rate and high gray depth.
* Completely black LED with high contrast.
* Exactly connected and easy to install and dismount.
Package including

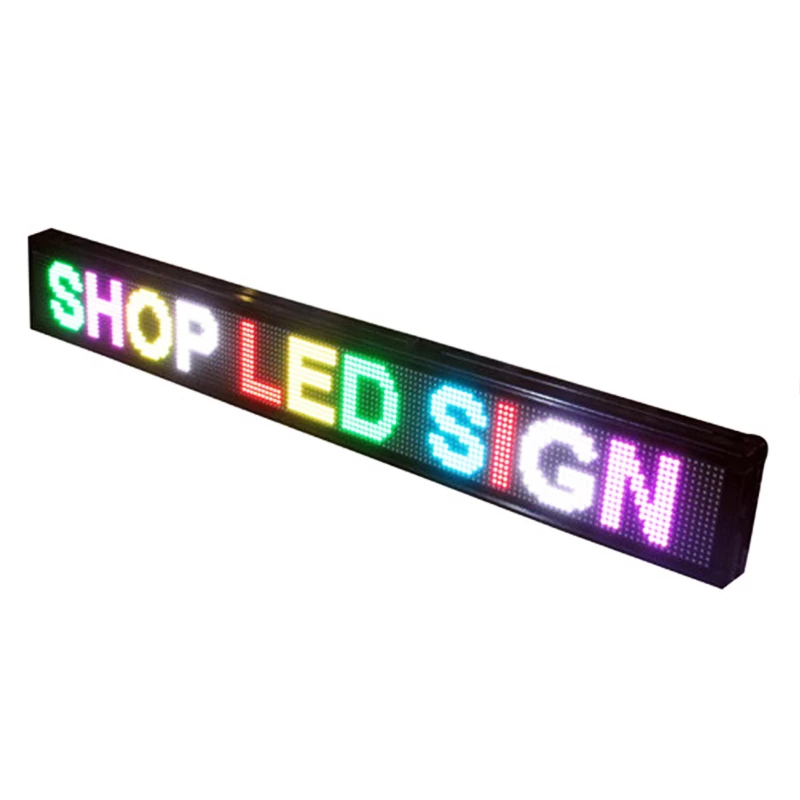

*LED sign 1 PCS (size 167x23cm / 66x 9 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
P10 LED Module model
|
Color
|
RGB
|
LED Type
|
SMD
|
Module Resolution
|
W32 X H16
|
Module Size(MM)
|
W320 x H160
|
Driving Method
|
1/4 scan
|
Led display parameter
|
Voltage
|
220V or 110V ±10%
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
Cabinet Size (mm)
|
W1670 x H230 MM (66x9 Inch)
|
Power Consumption Max (w/set)
|
100 Watt
|
Brightness(CD/㎡)
|
≥5500
|
Viewing Angle
|
120º/70º
|
Theoretic LED Working Life
|
More than 100000 hours
|
Control Method
|
USB control(network port,WIFI ,optional)
|
Display function
|
Date, Text, Picture, Logo
|
