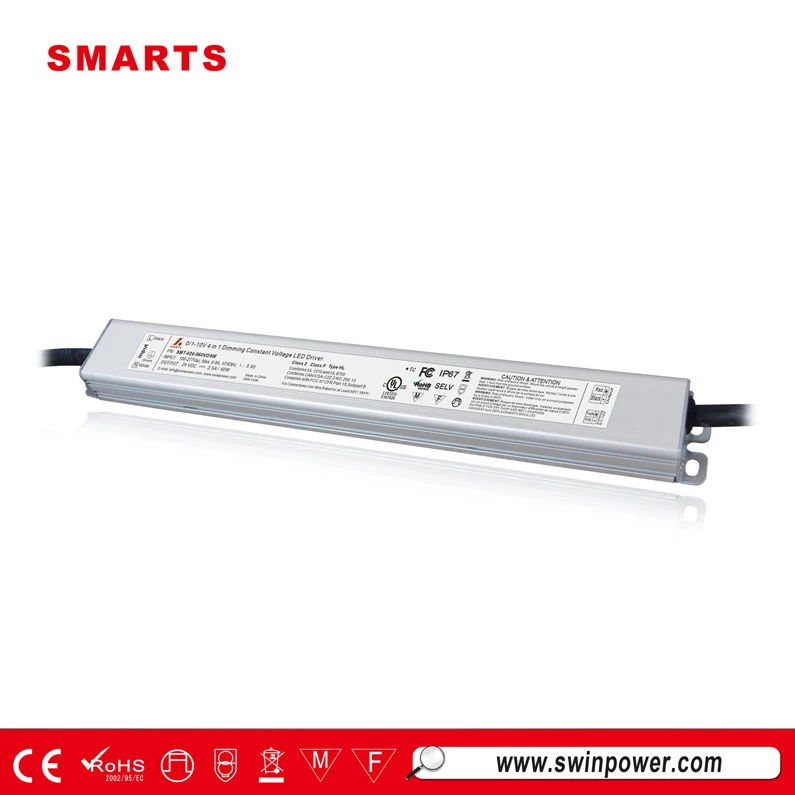

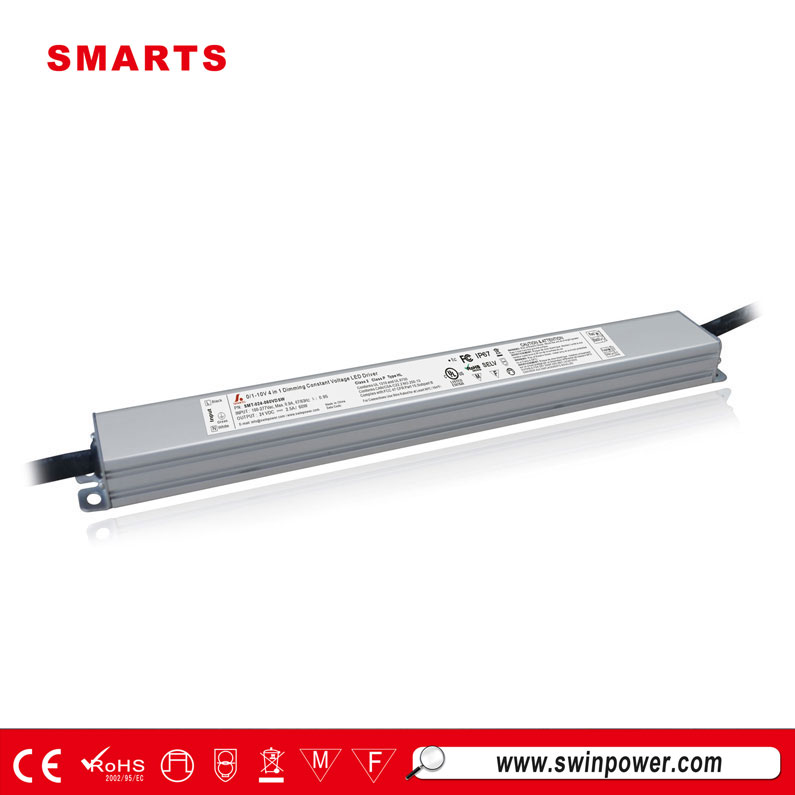

Outdoor led supply 24 volt led power supply 1a 2a 30w 60w dimmable led transformer with Class 2 UL certified
As a fact of that, developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system and LED illumination.power led supply can be controlled by many traditional intelligent dimming systems.
Feature
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P standard
·Built-in PFC function / Efficiency > 86% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry,wet or damp environment installations
·Cooling by free air convection
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications Class 2, Class P,Type HL standard
·Compliance to worldwide safety regulations for lighting 30W,36W,60W,96W,100W available
·7 years warranty
Specification
|
model
|
SMT-012-060VDSW
|
SMT-024-060VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Full Load Efficiency（Typ.）
|
84%@120VAC ,86%@277VAC
|
83%@120VAC ,85%@277VAC
|
|
AC Current（Typ.）
|
0.9A
|
|
Inrush Current（Typ.）
|
11A,50%,1ms@120VAC; 27A,50%,960us@277V
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
330*270*160mm/ 30pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
