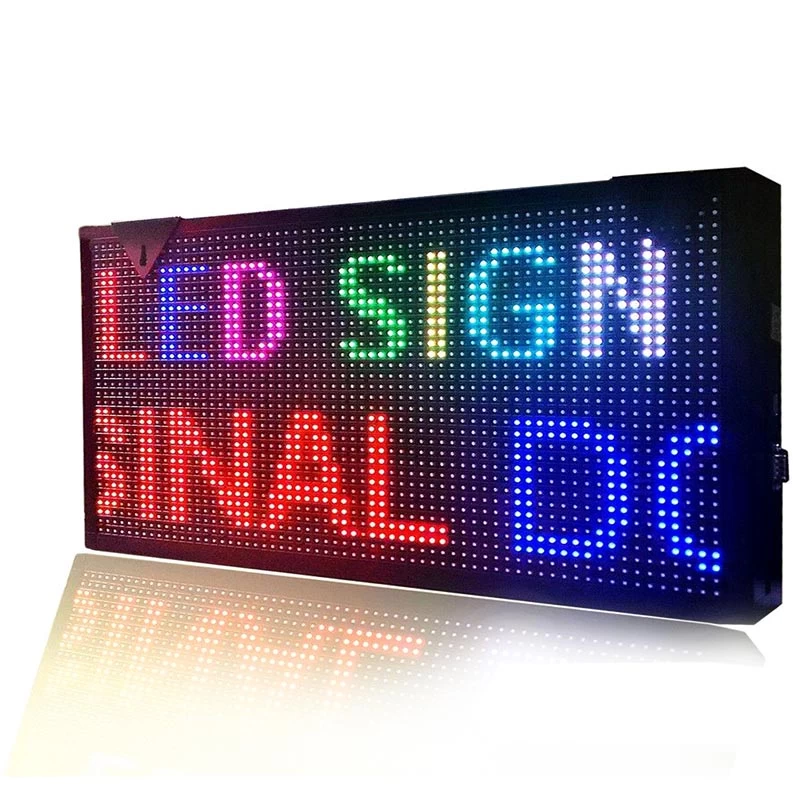

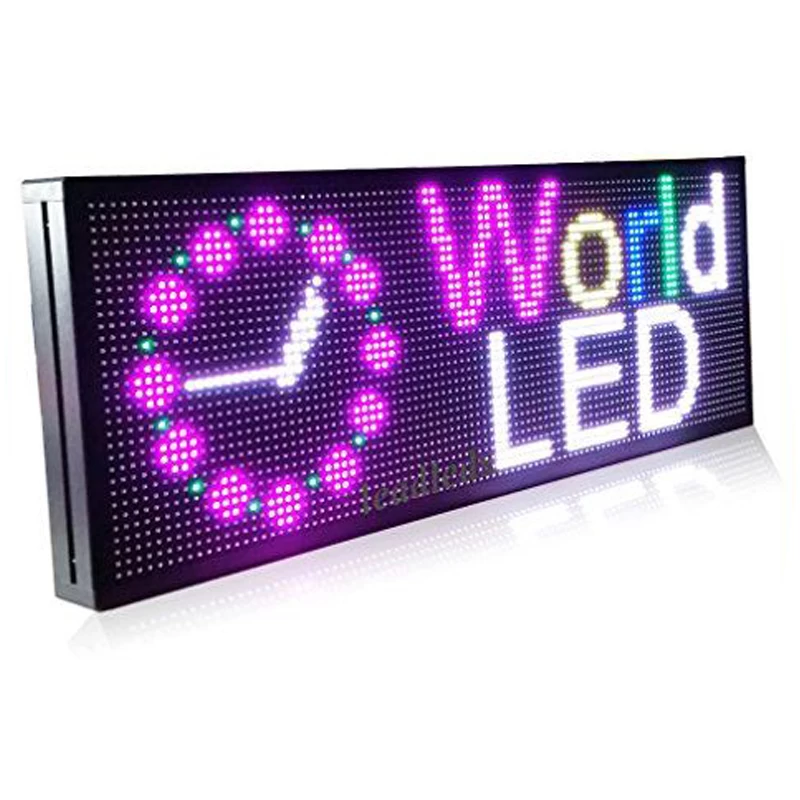

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications
* Can display graphics, international character, time, date, special font etc.
* A total of 15 kinds of fonts,A variety of fonts, font editing capabilities and support\
*Automatic message switching by time of day and/or day-of-the-week
*All functions can be edited by PC software.
* Firmware and the products can be upgraded, this makes users avoid some trouble
Package including
*LED sign 1 PCS (size 68x100cm /39x 27 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
P10 LED Module model
|
Color
|
RGB
|
LED Type
|
SMD
|
Module Resolution
|
W32 X H16
|
Module Size(MM)
|
W320 x H160
|
Driving Method
|
1/4 scan
|
Led display parameter
|
Voltage
|
220V or 110V ±10%
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
Cabinet Size (mm)
|
W1000 x H680 MM (39x27 Inch)
|
Power Consumption Max (w/set)
|
100 Watt
|
Brightness(CD/㎡)
|
≥5500
|
Viewing Angle
|
120º/70º
|
Theoretic LED Working Life
|
More than 100000 hours
|
Control Method
|
USB control(network port,WIFI ,optional)
|
Display function
|
Date, Text, Picture, Logo
|
