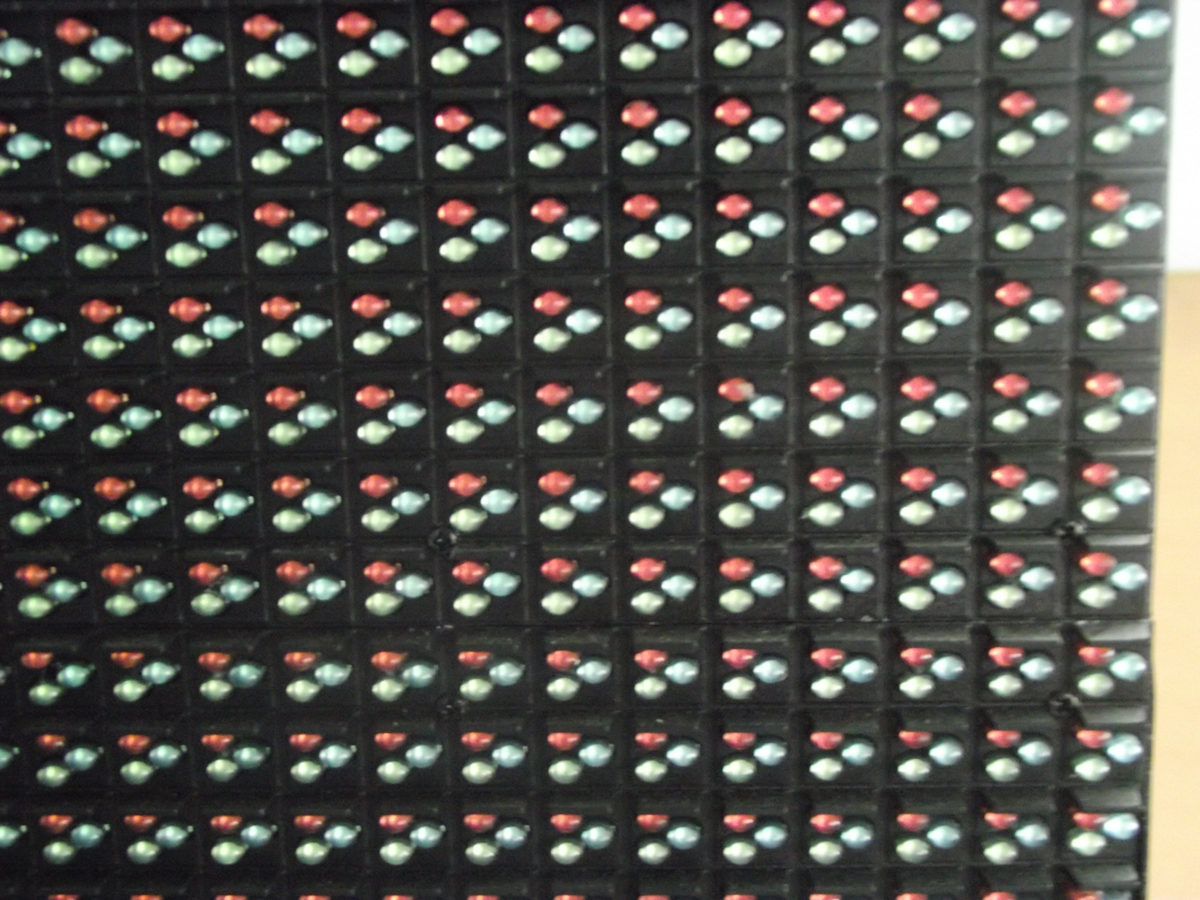

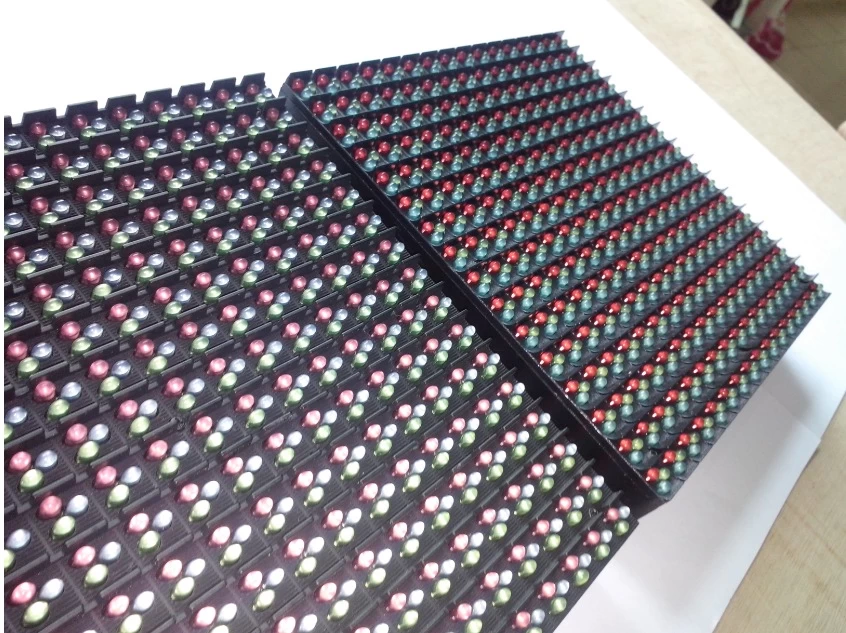

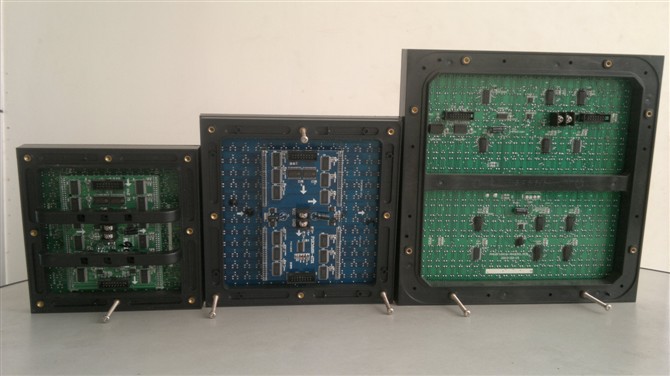

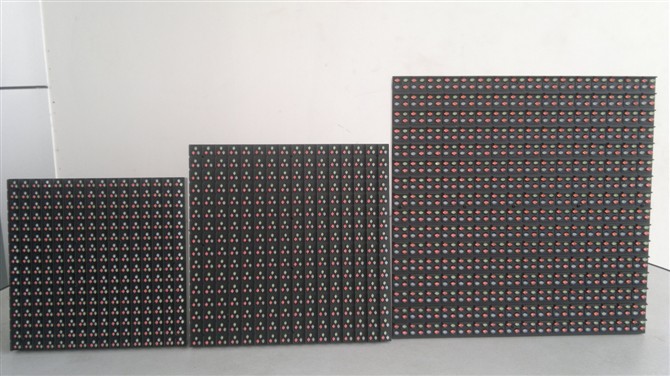

Ph10mm RGB led display module With High Brightness
LED DIP 1R1G1B Module Size: 160mmx160mm, Resolution: 16x16dots, Outdoor IP65-Waterproof including DATA and Power Cable, CREE NICHIA Epistar LED, 5 Years Warranty.
Compare to new-born SMD LED display series, main advantages of DIP series are as follows
P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice.
High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance.
Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions.
LED Chips Lamp Technical Specifications
CREE OSRAM NICHIA Kinglight Epistar Nationstar DIP SMD Gold Wire LED Chips
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
Red LED
|
300-500mcd
|
120º/60º
|
620-630nm
|
25℃,20mA
|
|
Green LED
|
1800-2200mcd
|
120º/60º
|
520-535nm
|
25℃,20mA
|
|
Blue LED
|
250-500mcd
|
120º/60º
|
465-475nm
|
25℃,20mA
|

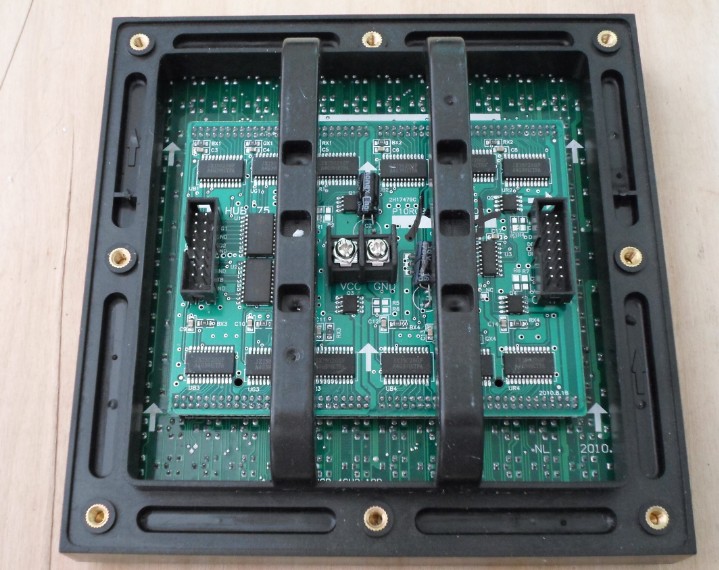

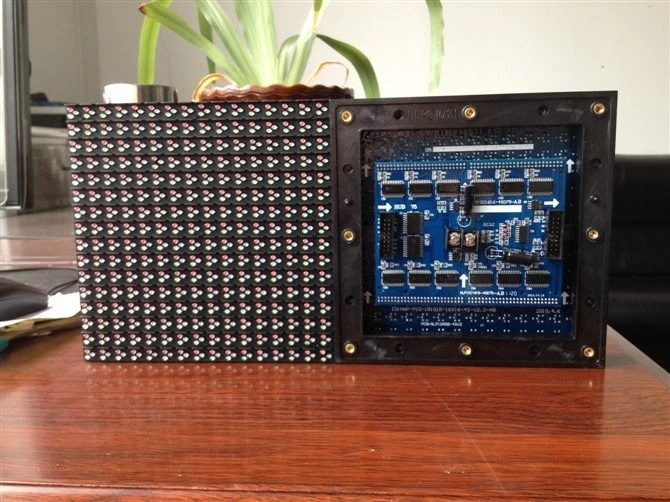

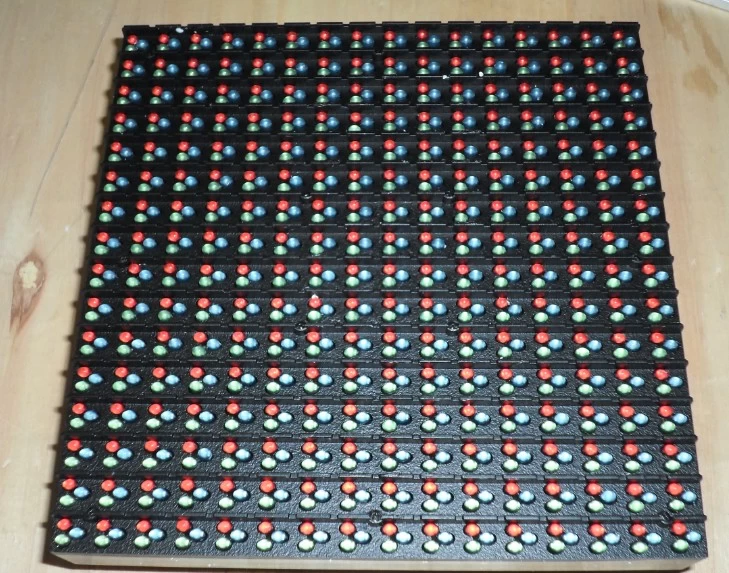

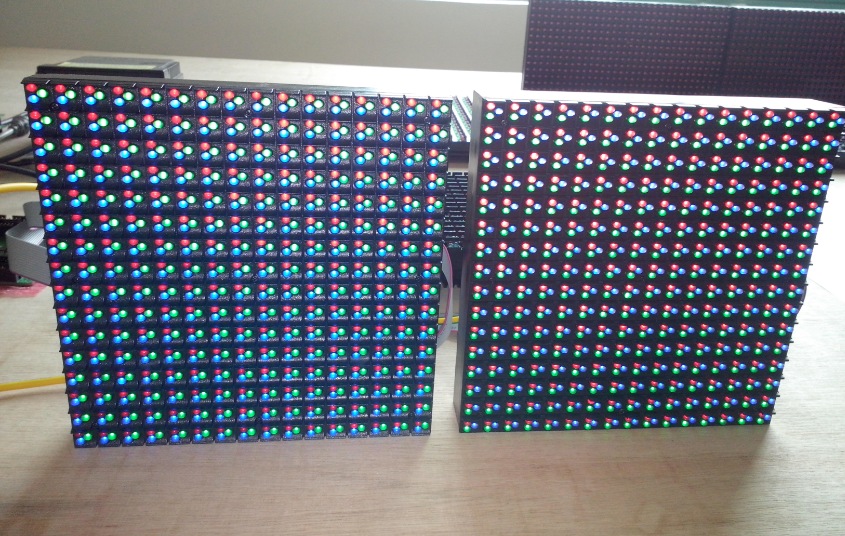

LED Panel Module Technical Specifications
|
Pixel Pitch
|
10mm
|
|
Pixel Configuration
|
1R1G1B
|
|
Module Resolution
|
16dots*16dots for real
|
|
Module Pixels
|
256 dots
|
|
Module Size
|
160mm*160mm
|
|
Module Weight
|
0.45KG
|
LED Display Aluminum Cabinet Technical Specifications
|
Cabinet Size(W*H*D)
|
960*960*160(mm)
|
|
Cabinet Resolution
|
96dot*96dot for FIXED
|
|
Module Quantity
|
36 pcs
|
|
Cabinet Pixels
|
9216 dots
|
|
Pixel Density
|
10000 dot/sqm
|
|
Avg. Power Consumption
|
250W/sqm
|
|
Max. Power Consumption
|
750W/sqm
|
|
Material
|
Iron or Aluminum
|
|
Cabinet Weight
|
40KG for iron cabinet;
30KG for aluminum cabinet
|
LED Video Screen Technical Specifications
|
Brightness
|
≥9000cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
Static
|
|
View Angle
|
Horizontal 120° Vertical 80°
|
|
Optimal Viewing Distance
|
10m to 100m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥1920Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤40kg/sqm for Iron cabinet /30kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP65
|
|
Temperature-operating
|
﹣40℃～60℃
|
|
Humidity-operating
|
10%~90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7/WIN8/WIN10
|
LED Screen Video Controller Card System Novastar Linsn Colorlight LEEMAN DISPLAYLED Software
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
LEEMAN DISPLAYLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
LEEMAN DISPLAYLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
LEEMAN DISPLAYLED PCB
|
4 Layer PCB Board
|
|
Packaging Materials
|
Flight Case Wooden box
|
