Outdoor P25x36 LED Media Facade Curtain Wall Display
Light weight and Ultra Slim
Light weight, easy to install and maintain, no need structure, save cost and increase effectiveness.
High Transparency
With transparency of 20% to 80% , making the glass wall screen into vivid video wall, audience could get perfect video effect through the screen.
IP67 Waterproof
Our products are first one to reach IP67 for whole screen, working time is increased a lot.
High Adaptability
Resistant to bad environment such as low temperature, high temperature and moist condition.
TUV and ETL certification
Meet the requirement of electromagnetic radiation and low voltage, reach the standard of electricity safety of electric products in whole north America
Low power consumption
Power consumption would reduce half compared with others due to bright LED light with high conversion rate ,and the PFC functional power supply.
Non-steel structure
50KGS lighter on structure per square meter since no steel needed when installing on the surface of building.
Optional maintenance in front or behind the screen
Increased a lot for adaptability to installation condition since maintenance in front or behind the screen optional.
High Gray Scale
Reduce light pollution by turn down brightness in night but affect the display effect due to high gray processing technology.
Groundbreaking cost-effective fan less self-cooling design renders O-2536E ultra-slim structure and amazing 72% transparency
With astonishing average weight at 10kg/sqm, LEEMAN DISPLAY LED Media Facade Curtain are designed for ease of installation and maintenance, eliminating huge heavy load supporting structure reinforcement cost

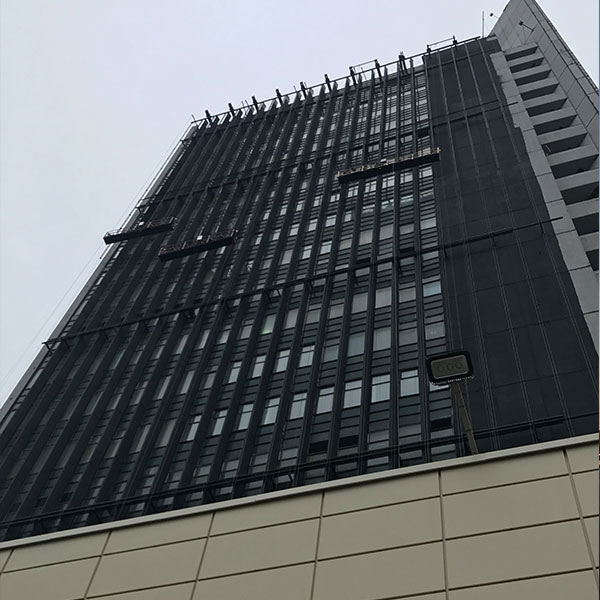

When installed in the building walls, without steel structure, can reduce the weight of about 50kg per square meter of steel
Can be installed front / back, greatly improve the adaptability of various on-site installation conditions
LEEMAN DISPLAY LED Curtain consumes less power, lasts longer and can be produced, delivered, installed and disposed of more efficiently and cost effectively.
Amazing front/rear IP67 rated, UV-resistant, rendering O-2536E a reliable solution for both indoor and outdoor environment.
LEEMAN DISPLAYLED ensures trouble-free opera on even in extreme temperatures of -30°C to 60°C. Fabulously aerodynamic wind-resistant design allows LEEMAN DISPLAY LED Display withstand harsh storms and typhoons.
LEEMAN DISPLAY LED Display Screen complies CE-EMC:EN55022, and relevant EMC legislations including CE-EMC, CELVD, FCC and CCC
LED Strip Screen Characteristic
Good quality VP-MEGA , green products with low consumption.
Constant currency, long lifespan. >> Anti-static, thunder proof.
Working environment：-30°C to 60°C
Standard IP67 protective design, meet requirements for severe circumstance.
LED media facade Curtain Material
Adopt good quality aluminum for the body，two times oxidation treatments.
Connector plated by gold, lowest electric resistance, high antioxidant ability.
High ability of water proof and air corrosion, the adaptability of high temperature is strong.
Fixed by stainless screw with beautiful appearance and, rust proof.
LED Strip Curtain Screen Parameters:
|
Unit size
|
1200mm*256mm
|
|
Pixel pitch
|
25*36mm
|
|
Light color
|
1R1G1B DIP
|
|
Density
|
1094Pix/ m2
|
|
Driving IC
|
MBI5124
|
|
Seal IC
|
Epistar / CREE
|
|
Control
|
Online real time display system
|
|
Weight
|
9.3kg/ m2
|
|
Unit area
|
0.72 m2
|
|
Max power
|
350W/ pcs
|
|
Brightness
|
≥7000cd
|
|
Resolution
|
576pix/ pcs
|
|
Unit pixel
|
64pix*7pix/unit
|
|
Driving mode
|
Static, constant currency
|
|
Frame rate
|
15 to 75Hz
|
|
Refresh rate
|
≥2000Hz
|
|
Grey Level
|
16bits*16bits*16bits
|
|
Color change
|
16777216
|
|
Lifespan
|
≥50,000h
|
|
Voltage
|
AC220V
|
|
Protective level
|
IP67
|
|
Humidity
|
≥20%-95%RH
|
|
Light transmission rate
|
≥79%
|
|
Working temperature
|
-20°C to +70°C
|
