Outdoor P4 LED Screen

LED Module pixel pitch 4mm module size 256*128mm module resolution 64*32 LED SMD2525 Scan 1/16scan Application outdoor Weight 0.5KG LED Cabinet Cabinet Size 1024*1024mm Cabinet resolution 256*256 dots module quantity 4*8pcs Material Iron

Facebook Twitter Pinterest LinkedIn 分享
LED Module

pixel pitch 4mm
module size 256*128mm
module resolution 64*32
LED SMD2525
Scan 1/16scan
Application outdoor
Weight 0.5KG

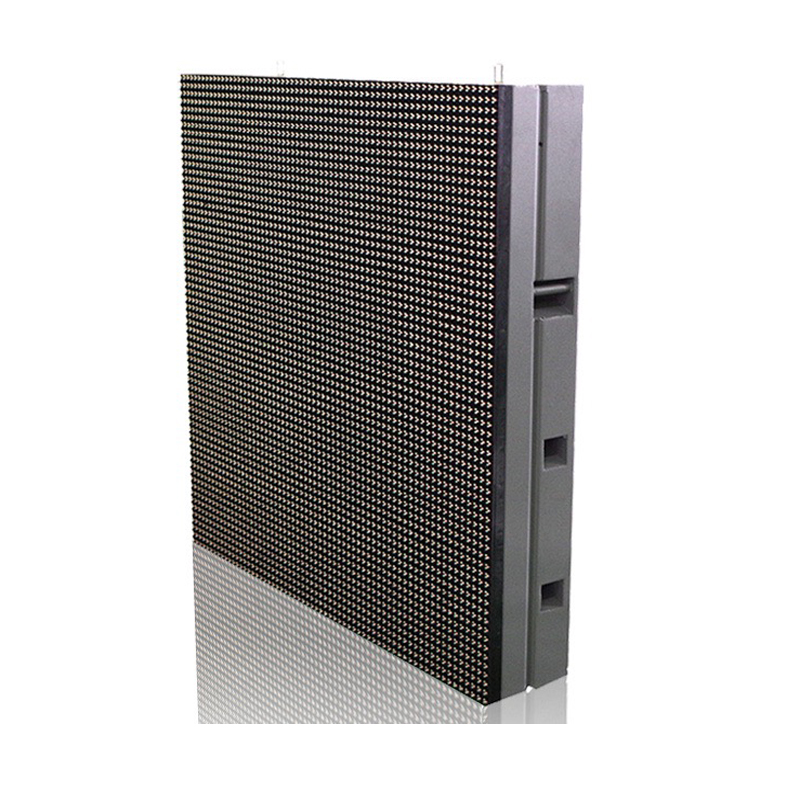

LED Cabinet

Cabinet Size 1024*1024mm
Cabinet resolution 256*256 dots
module quantity 4*8pcs
Material Iron cabinet



LED Screen

Pixel 62500dots/㎡ Continuous Working Hours >72 hours
Ave power consumption 230W/㎡ Using Life 100,000 hours
Max power consumption 580W/㎡ MTBF >10,000H
Optimum Viewing Distance(m) 4-50m Scatter OOC Point <0.01%
Brightness(cd/m2) >6000cd Continuous OOC Point None
Refresh Rate 300---2440 frame/s IP Grade IP65/IP54
LED Drive mode Constant Current Working Temperature -35C----+60C
Display color 17M——69G Working Humidity 10---90%
