512mm*512mm/ 768*768mm LED Cabinet Specification:
|
LED Module
|
Pixel Pitch
|
P4 / P8 mm
|
|
Pixel Configuration
|
SMD1921 / SMD3535
|
|
LED Lamp
|
King light /Nation Star
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|

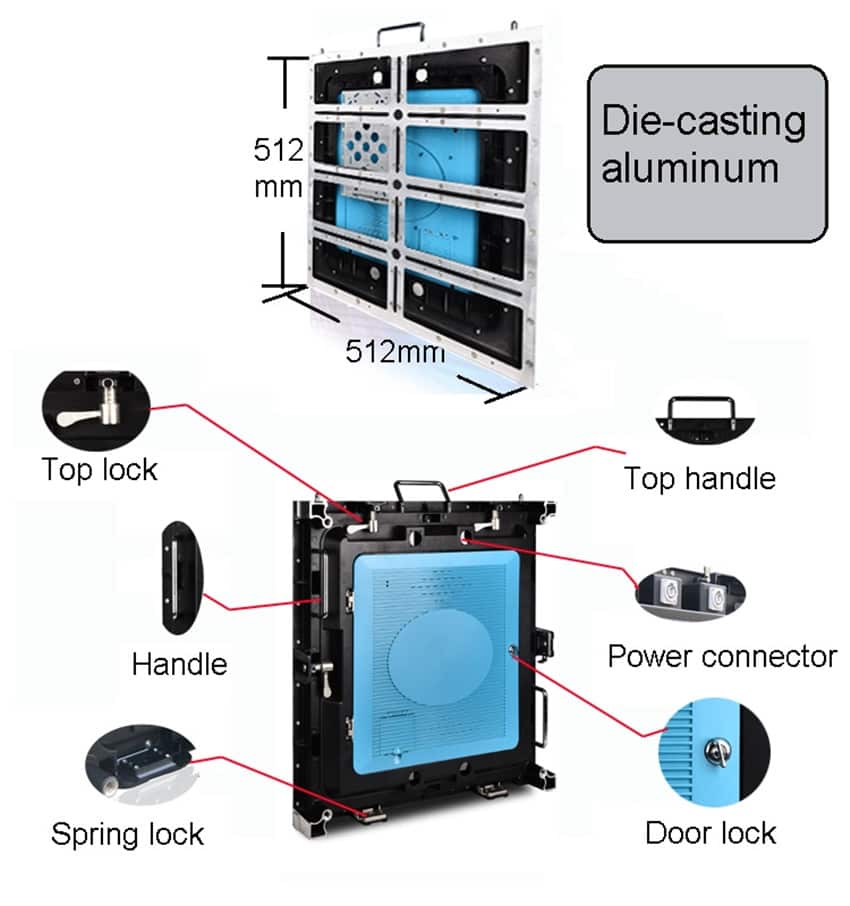

Cabinet size (W*H)
|
512MM*512MM /768MM*768MM
|
|
Cabinet material
|
Die-casting Aluminum
|
|
Cabinet weight (KG)
|
35 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
6500-7000 cd/m² (P4 ) 6000-6500 cd/m2 (P8 )
|
|
Best viewing distance
|
4-100 m
|
|
Viewing angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Front side /Back side
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Our outdoor video screens Product Features :
1.Products of outdoor led display screen are seriously examined before delivery with a Professional QC Team
2.Variety of customized stage led screen products to satisfy different requests
3.Highest cost-effective price of outdoor advertising screens for sale
4.With pure golden wire connection in large LED screen
5.The outdoor led display screen price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality
6.All inquiry about led display signs will be answered within 24 hours by a well-trained and experienced staffs
7.Top Quality & Reasonable Price & Responsible After Service
8.All private information will be well protected
Our P4 /P8 Outdoor Rental LED Video Wall Advantage :
1. New mask design makes LED electronic display light almost zero reflection, which ensures the screen sign board displaying effect
2. The cabinet of unit led display modules adopts to high-temperature spraying technology, the antitrust function is greatly improved
3. Outdoor display panel modules surface flatness ± 0.2mm, the entire large led screen has good flatness
4. High uniformity big screen display color; Led advertising screen main advantages: fishbone bus line greatly reduces the contact problem
5. For improving the service life of led advertising board, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation
6. Service efficiency of the advertising screen switch power supply is increased substantially, which reduces power failure rate
7. Using the fishbone bus line greatly reduces the rental led display contact problem
8. Ooutdoor led panel IP65 grade for high performance waterproof and dustproof capability
