Outdoor p8 led display

LED Cabinet  Size 1024*1024mm Cabinet resolution 128*128dots module quantity 4*8pcs Material Sealed

Facebook Twitter Pinterest LinkedIn 分享
pixel pitch 8mm
module size 256*128mm
module resolution 32*16
LED SMD3535
Scan 1/4scan
Application Outdoor
Weight 0.4KG

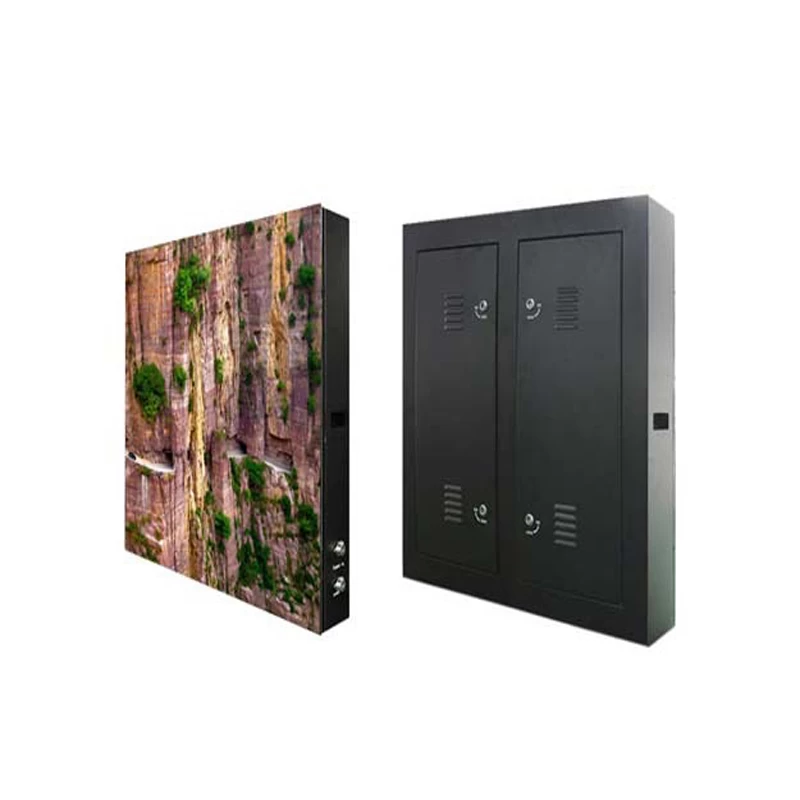

LED Cabinet
   Cabinet Size 1024*1024mm
Cabinet resolution 128*128dots
module quantity 4*8pcs
Material Sealed iron cabinet




LED Screen


  		                              Pixel 15625dots/㎡  Continuous Working Hours >72 hours
                       Ave power consumption                     300W/㎡                    Using Life 100,000 hours
Max power consumption 1000W/㎡                       MTBF >10,000H
Optimum Viewing Distance(m) 8-100m Scatter OOC Point <0.01%
                           Brightness(cd/m2)                >6000cd Continuous OOC Point None
                        Refresh Rate 300---2440 frame/s                     IP Grade IP65/IP54
                      LED Drive mode Constant Current Working Temperature -35C----+60C
Display color 17M——69G Working Humidity 10---90%
