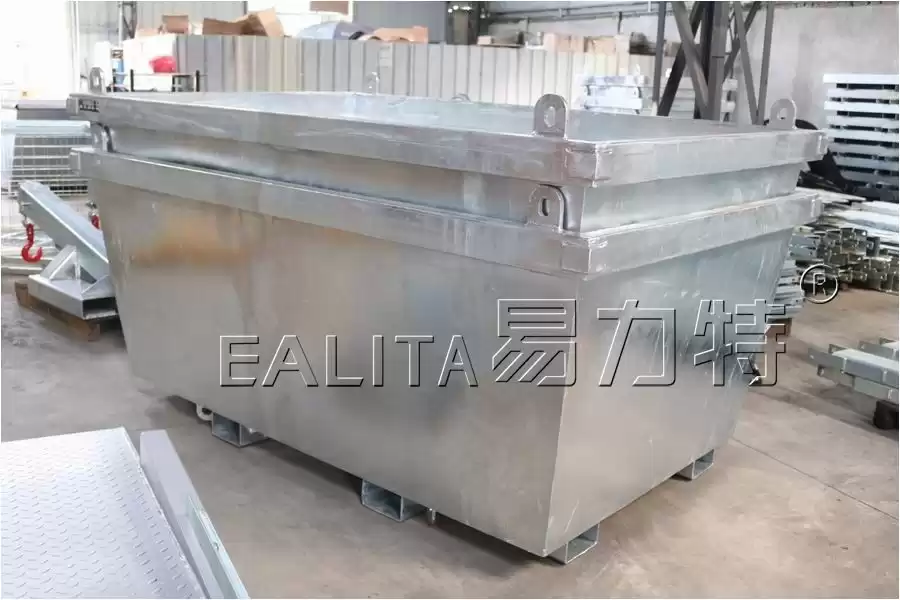

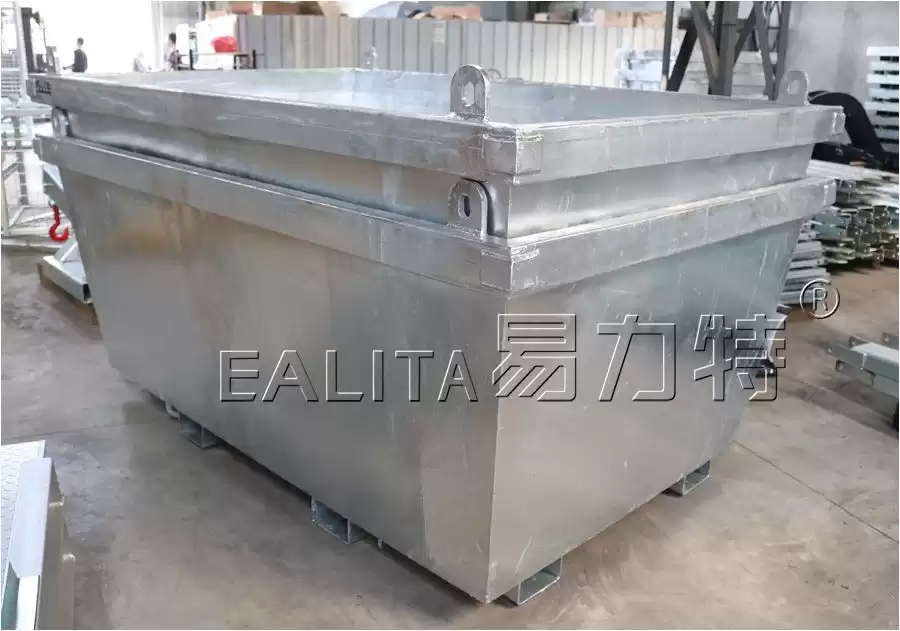

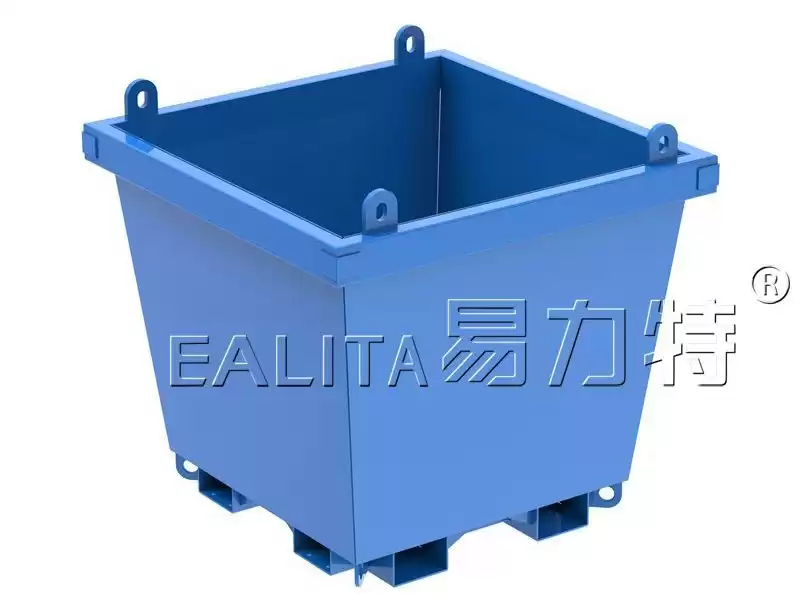

The type M-WCB Crane Bin has been designed with space saving contours to allow the bins to interlock for transport and storage and is suitable for all waste products.
- All bins are fitted with 4-way entry fork pockets allowing emptying by rotating Forklift from all sides, or positive handling on uneven ground.

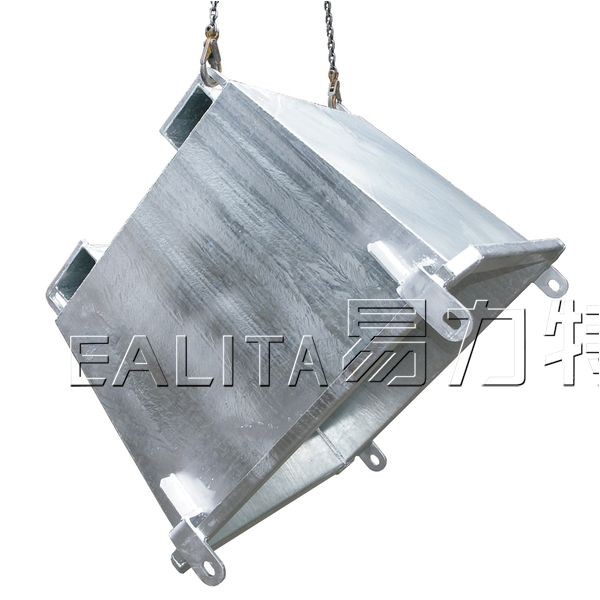

- Four Crane Lugs are fitted along with upending lugs for Crane emptying.
- All type WCB Bins have a Working Load Limit of 2000kg manufactured from 3mm steel plate.
- Two sizes are available with 0.85 and 2.5 cubic metre capacities.
- The standard finish on the type WCB Bins is Hot Dip Galvanised.
Specifications
- Unit Weight - refer Table
- Volume Capacity - refer Table
- Pocket Sizes: 160 x 95 & 160 x 75mm
- Pocket Centres - refer Table
|
Type
|
Volume
|
SWL
|
WxDxH
|
Weight
|
|
M-WCB9x11
|
0.85cu.m
|
2000kg
|
1156x1156x1100mm
|
162kg
|
|
M-WCB9x23
|
2.50cu.m
|
2000kg
|
2316x1516x1100mm
|
335kg
|
