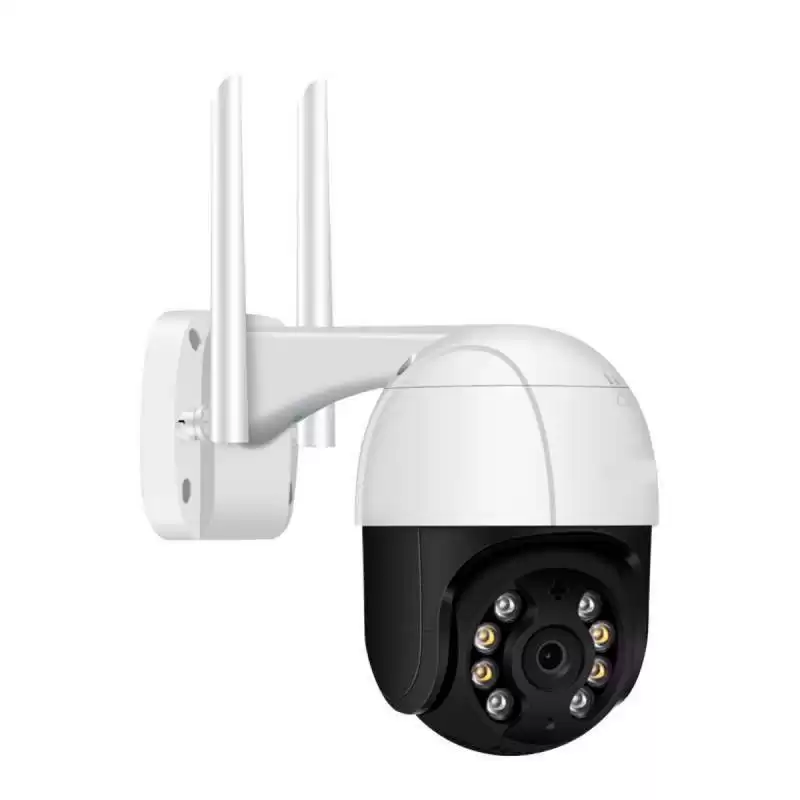

Product Name:HD 1080P Pan/Tilt AI Humanoid Detection Cloud Storage Waterproof WiFi IP Smart Camera
Feature
●HD 1080P Pan/Tilt AI Humanoid detection cloud storage Wi-Fi IP camera.
●Ordinary,color,intelligent smart dual light modes,with 4Pcs white LED and 4Pcs IR LED.
●H.265X Compression,ensured us more clear image quality but less bit rate,saved much transmit and storage cost.
●Smart AI humanoid detection function,support mixing line,area,two-way flow detection,easy setting in APP.
●HD 1080P 1920*1080 High definition image quality,resolution up to 2.0 megapixel.
●Pan 355°+Tilt 90°Sliding screen manually enables remote control of the rotation of camera and real-time monitoring.
●Two way talk,build in microphone and high quality,audio speaker with loud volume(4w high power).
●With wireless access point,camera can be connected to phone directly without router.
●Without cabling work,via Wi-Fi,it can be easily connected with your mobile for remote surveillance.
●Support free 30-day cloud storage and Max 128G SD card Record,data security is more stable.
●Muti-platform,support Android/IOS mobile,tablets,and computers.
●Support ONVIF protocol,can be connected to a third-party NVR centralized management camera.
Specification
|
Model
|
ANSDEN YAC-QF218
|
|
Camera
|
|
Sensor
|
1/2.7” 2 Megapixel progressive can CMOS
|
|
Minimum illuminance
|
Color 0.2Lux@F1.2;Night vision0.05Lux@F1.2
|
|
Focal Length
|
3.6mm
|
|
Viewing angle
|
75.7°
|
|
P\T
|
P 330° \ T 90°
|
|
Functions
|
|
Day/night switch
|
4PCS IR LED and 4PCS White LED ,IR distance 20m
|
|
White Balance
|
Auto white balance
|
|
Digital noise reduction
|
Support 3D noise reduction
|
|
Motion detection
|
Support AI humanoid detection
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Video
|
|
Compression
|
H.265X
|
|
Resolution
|
Mainstream:1080P(1920*1080)
|
|
Substream:(704x480)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)
|
|
Video adjustment
|
brightness, saturation, chroma, sharpness and contrast adjustment
|
|
Audio
|
|
Input
|
Built-in microphone
|
|
Output
|
Built-in speaker
|
|
Compression
|
G.726/G.711
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
Wi-Fi 802.11b/g/n,Only support 2.4G;AP Mode
|
|
IP Type
|
Dynamic IP&Static IP
|
|
Network Protocol
|
HTTP,TCP/IP,UPNP, RTSP,SMTP,NTP,DHCP,DNS, DDNS,FTP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user
|
5
|
|
Client
|
iPhone, iPad, Android，Windows PC
|
|
Storage
|
|
Micro SD card
|
Support max to 128G Micro SD card
|
|
Cloud Storage
|
Support(Free 30-day cloud storage)
|
|
General
|
|
Power Supply
|
DC12V2A
|
|
Power Consumption
|
2.5W(IR Led Off )/7.2W(IR Led On)
|
|
Working Environment
|
-20°C~+50°C, 10%~80%
|
|
Waterproof
|
IP66
|
|

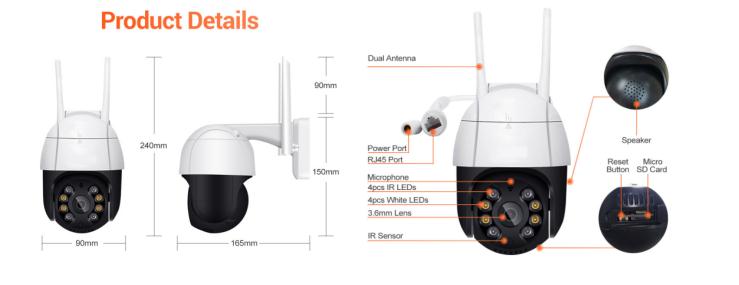

Product Size
|
165*150*190mm
|
|
Product Weight
|
0.4kg
|
|
Package Dimension
|
193*163*93mm
|
|
Package Weight
|
0.65kg
|
|
Accessories
|
Camera*1，Power adapter*1，Waterproof hat*1，Screw bag*1, Instruction*1
|
Dimension
Ordinary,color,intelligent smart dual light modes,with 4Pcs white LED and 4Pcs IR LED.
Application
Without cabling work,via Wi-Fi,it can be easily connected with your mobile for remote surveillance.
