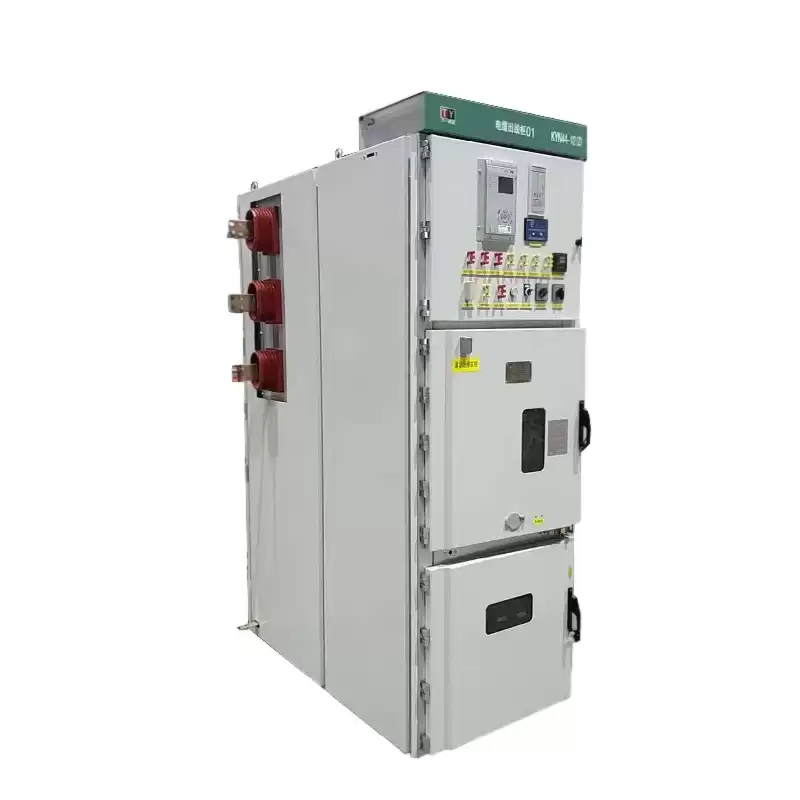

KYN44-12 switchgear is the first manufacturer in China that has passed the internal arc test with a duration of 1s, a rated breaking current of 40kA, and the switchgear does not have an external arc pressure relief channel, and has 2 invention patents, 12 utility model patents.
Our KYN44-12 switchgear comply with the international standard IEC62271-200, Chinese National Standard GB3906 and Electric Power Industry standard DL/T404 and other relevant standards.
KYN44-12
type switchgear has unique temperature rise performance
program
|
NO.
|
Item
|
Unit
|
Data
|
|
1
|
Rated voltage
|
kV
|
12
|
|
2
|
Rated frequency
|
Hz
|
50/60
|
|
3
|
Rated current of Main bus
|
A
|
630、800、1250、1600、2000、2500、3150、4000
|
|
4
|
Rated current of branch bus
|
A
|
630、800、1250、1600、2000、2500、3150、4000
|
|
5
|
Rated insulation level
|
1min Power frequency withstand voltage
|
Phase to earth and to phase
|
kV
|
42
|
|
Isolating distance
|
48
|
|
Lightning impulse withstand voltage
|
Phase to earth and to phase
|
75
|
|
Isolating distance
|
85
|
|
6
|
Rated short-circuit breaking current
|
kA
|
16、20、25、31.5、40、50
|
|
7
|
Rated short-circuit making current
|
40、50、63、80、100、125
|
|
8
|
Rated short-time withstand current（thermal stability current）*
|
16、20、25、31.5、40、50
|
|
9
|
Rated peak withstand current（dynamic current）*
|
40、50、63、80、100、125
|
|
10
|
Rated short circuit duration (thermal
stability time)*
|
S
|
4
|
|
11
|
IP grade
|
|
outer shell IP4X，
circuit breaker door opened IP2X
|
1. Normal use of environmental conditions:
Surrounding air temperature: upper limit +40℃, lower limit 15℃
Surrounding relative humidity: daily average is no more than 95%, monthly average is no more than 90%.
Saturated vapor pressure: daily average is no more than 2.2x103Mpa, and monthly average is no more than 1.8x103Mpa. When temperature drops sharply during periods of high humidity，it may cause Condensation
Altitude: not more than 1000m.
Earthquake intensity: no more than 8 degrees
Without fire, explosion, serious contamination, chemical corrosion and frequent violent vibration.
2. Special use environmental conditions:
When the product is installed at an altitude more than 1000m, must consult with manufacturer to take necessary measures to strengthen insulation when ordering.
When the maximum Surrounding temperature exceeds + 40℃, the rated current carrying capacity of the product will be reduced, must confirm with the manufacturer when ordering.
When the product is running in high humidity and/or in a climate with large temperature variations, consult with the manufacturer to take necessary measures to prevent condensation when ordering.
