Outdoor Waterproof IP68 P10mm Front Service LED Displays Module 320mmx320mm for Outdoor Front Accessed open
1. General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.
2. Ultra high brightness (6000 Nits) with low power consumption (average 180W/sqm).
3. High refresh rate with software adjustable, suitable for videos, picture and filming.
4. High gray scale (16 bits) with perfect real visual performance and effects.
5. High Contrast ratio (2000:1) with self-developed black mask and black coating technique.
6. Wide viewing angle (greater than 110° in horizontal); IP65 protection rating.
7. Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).
8. High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and color correction bring greater uniformity.
LED Chips Lamp Technical Specifications
CREE OSRAM NICHIA Epistar Nationstar DIP SMD Gold Wire LED Chips
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
Red LED
|
800-900mcd
|
160º/120º
|
620-630nm
|
25℃,20mA
|
|
Green LED
|
1600-1900mcd
|
160º/120º
|
520-535nm
|
25℃,20mA
|
|
Blue LED
|
350-500mcd
|
160º/120º
|
465-475nm
|
25℃,20mA
|
LED Display Module Technical Specifications
|
Pixel Pitch
|
10mm
|
|
Pixel Configuration
|
SMD3535
|
|
Module Resolution
|
32dots*32dots for real
|
|
Module Pixels
|
1024 dots
|
|
Module Size
|
320mm*320mm
|
|
Module Weight
|
1.70KG
|

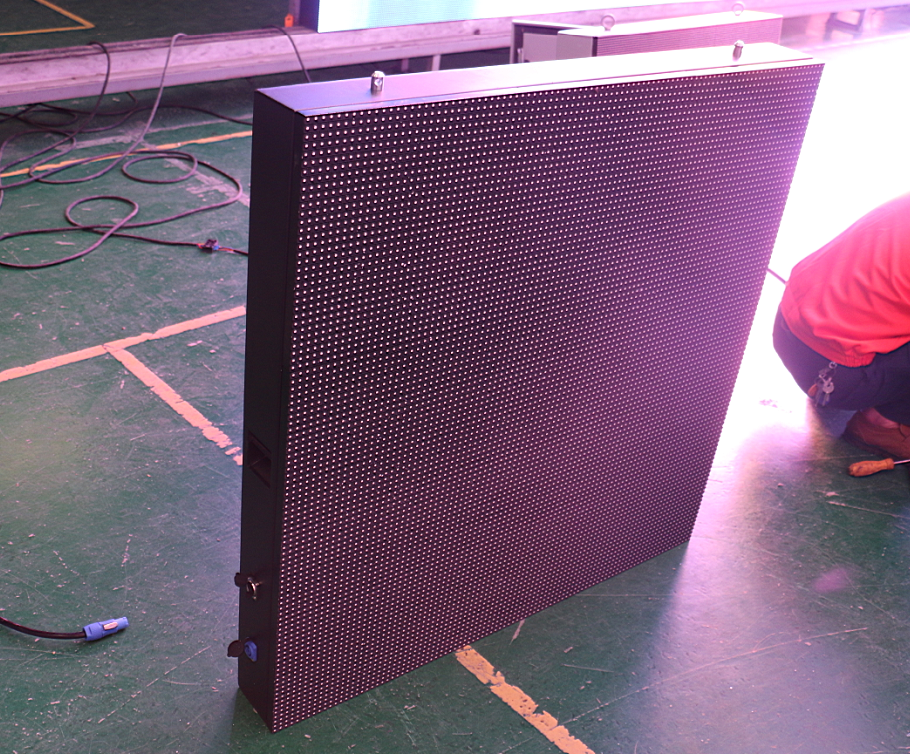

LED Display Aluminum Cabinet Technical Specifications
|
Cabinet Size(W*H*D)
|

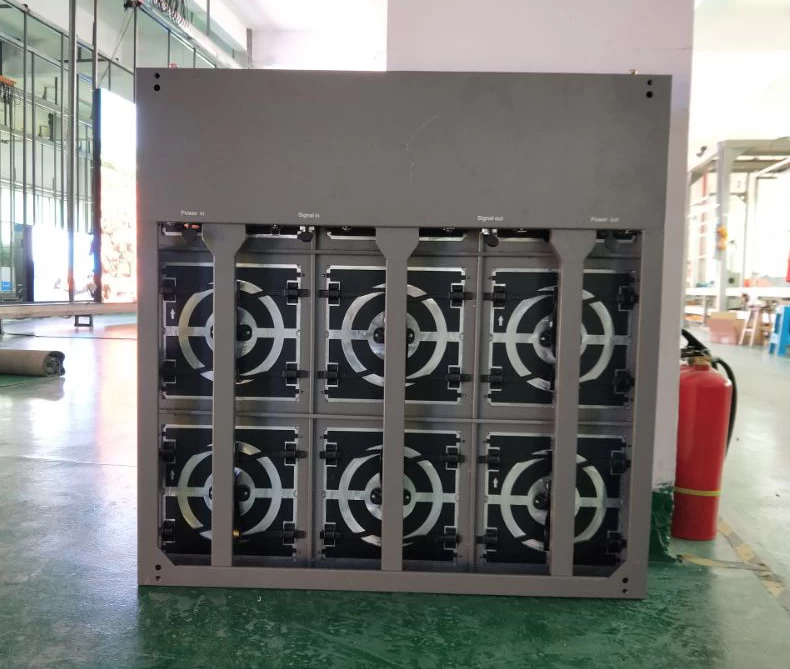

960*960*76(mm)
|
|
Cabinet Resolution
|
96dot*96dot for real
|
|
Module Quantity
|
9 pcs
|
|
Cabinet Pixels
|
9216 dots
|
|
Pixel Density
|
10000 dot/sqm
|
|
Avg. Power Consumption
|
300W/sqm
|
|
Max. Power Consumption
|
600W/sqm
|
|
Material
|
Aluminum / Steel
|
|
Cabinet Weight
|
30KG for iron cabinet;
20KG for aluminum cabinet
|
LED Display Screen Technical Specifications
|
Brightness
|
≥7500cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
Real & 1/4 scan
|
|
View Angle
|
Horizontal 160° Vertical 120°
|
|
Optimal Viewing Distance
|
30m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥2880Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤35kg/sqm for Iron cabinet /20kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP68
|
|
Temperature-operating
|
-40°C to 60°C
|
|
Humidity-operating
|
10% to 90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7/win8/win10
|
LED Display Video Controller Card System Novastar Linsn Colorlight BARCOLED Software
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
BARCOLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
SMD LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP LED Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
BARCOLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
BarcoLED PCB
|
4 Layer PCB Board
|
|
BarcoLED PCB Board
|
1.6mm Thickness
|
|
Packaging Materials
|
Flight Case Wooden Box Carton Box
|

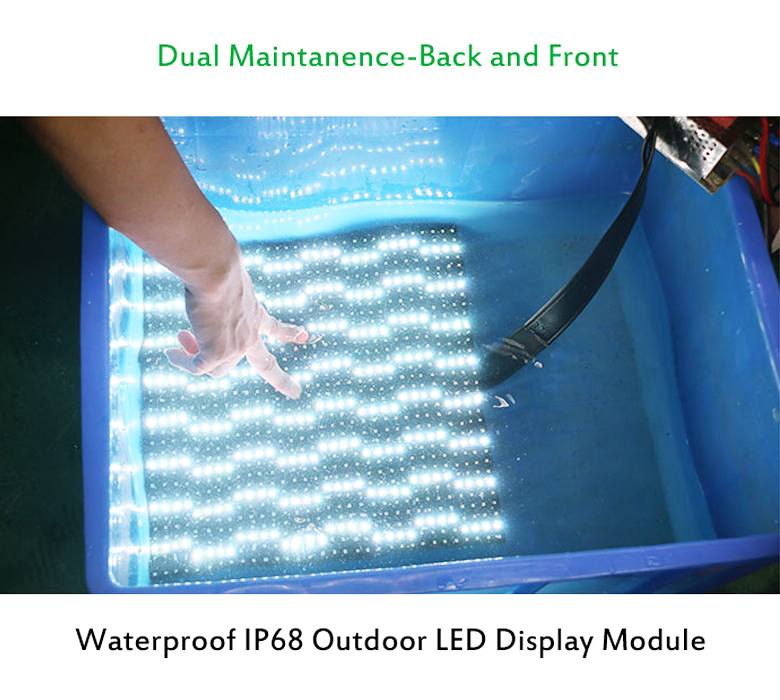

Barco Dual Maintanence led display modules can work in the water directly. Barco LED use the MBI5124 driving IC with high refresh rate 2880hz with best color uniformity and grey level
To achieve the best visual performance of IP67 and IP68 Waterproof LED Display Module, we use the best Driving IC such as MBI5124, MB5153, ICN2153S with high refresh rate, high grey level with latest technology.
IP68 LED Display Module with good design for weather protection.high reliability and contrast, wide view angle and good consistency which meet the need of high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

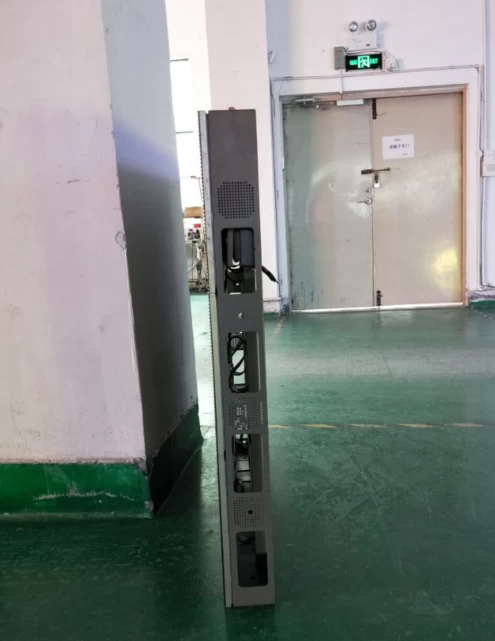

LED Display Cabinet with best design for easy connnection and easy assembling, aslo the Monitoring Function to check the working status of LED Display Parts. Customer Logo is avaliable for Your Brand Building.

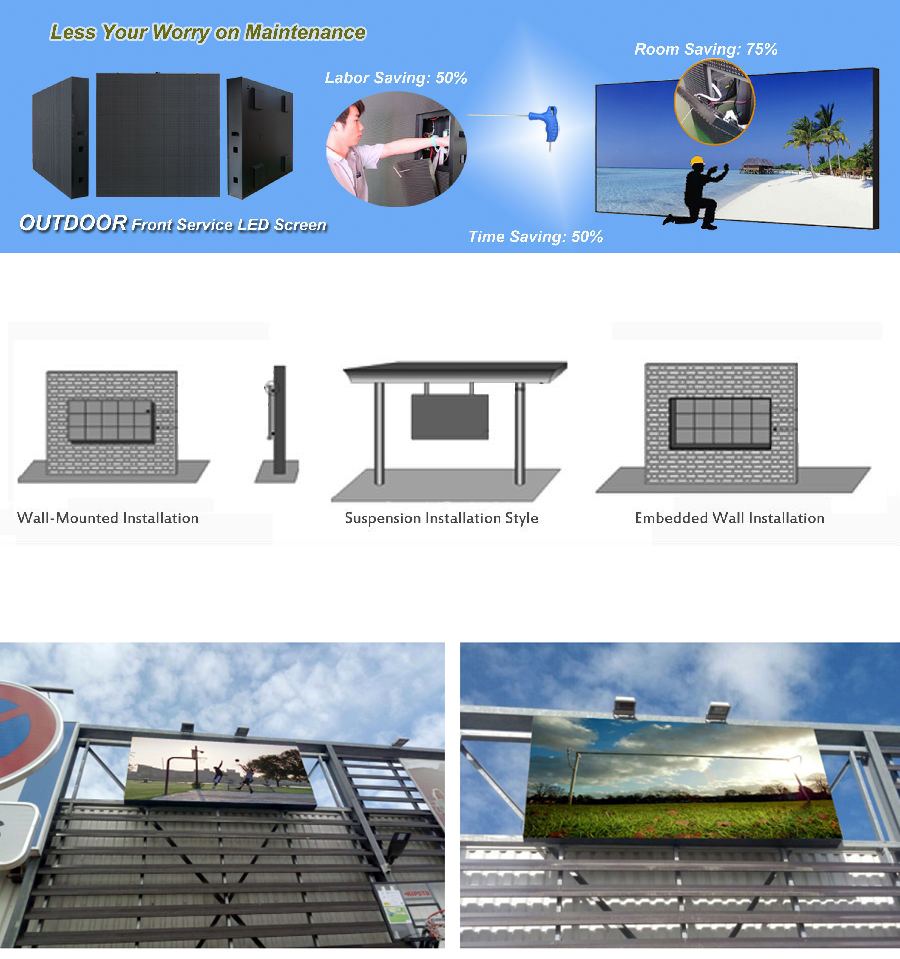

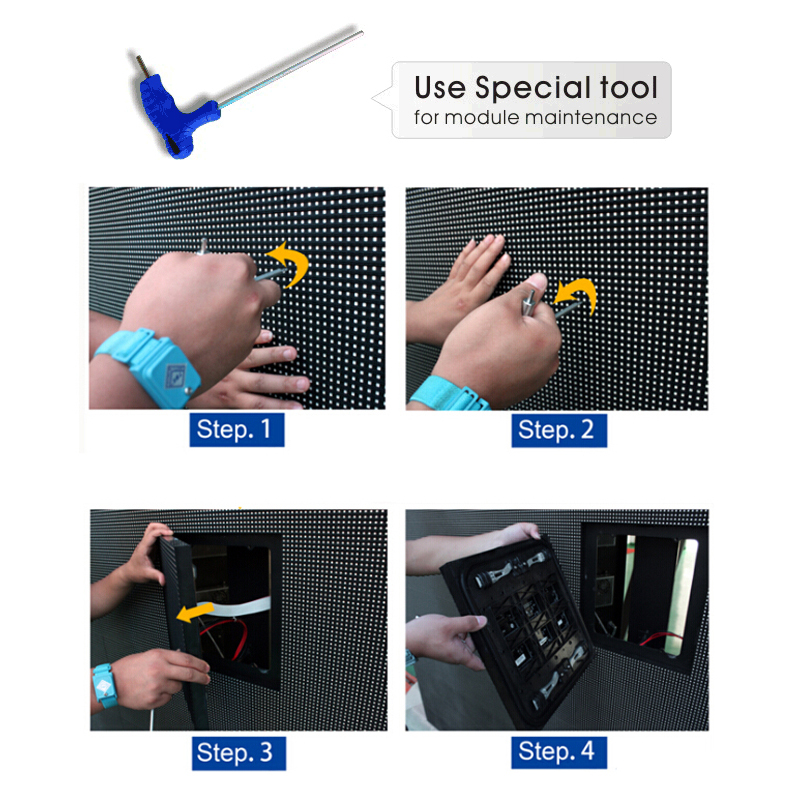

Where there is no space behind of led screen, you can choose our waterproof ip67 front service led module, the cabinet is still with back doors, but that is only for easy assembly in BARCO LED factory. when the ip67 led display installed, it is no longer necessary to open the back doors, becasuse you can take out the ip68 led display module from the front side.
