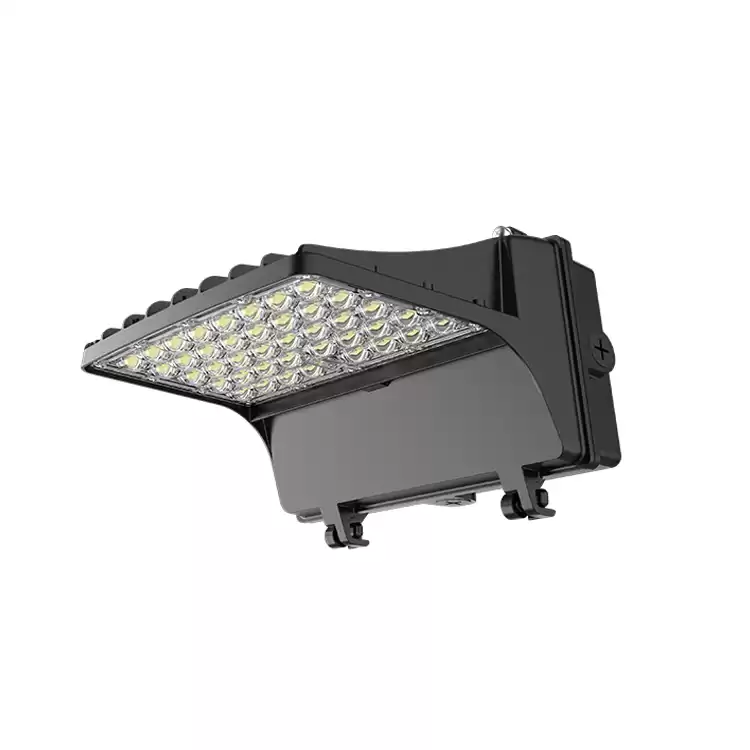

Outdoor Waterproof with Motion Sensor LED Wall Pack Light
Morstar's LED Full Cut-Off Wall Pack is designed at an angle to provide illumination that is more easily directed to a specific area compared to broader applications. With the help of the IP66 enclosed waterproof structure design of the LED wall light, you can directly get lighting where you need it to achieve more concentrated light output. They are great for a range of commercial applications including doorways, walkways, and any other outdoor areas in need of adequate lighting.
FEATURES:
• Easy installation
• ETL/cETL/DLC premium certificate
• Wet location rated IP65
• Emergency power 4W & operating time 1.5 hours
• Photocell and motion sensor options
• Type III distribution optics standard/Other optics available by request
|
SPECIFICATION
|
EWP901B
|
EWP902B
|
EWP903B
|
EWP904B
|
EWP905B
|
EWP906B
|
EWP907
|
|
Power Consumption
|
30W
|
40W
|
50W
|
60W
|
80W
|
100W
|
120W
|
|
Equivalent Wattage
|
100W MH
|
150W MH
|
150W MH
|
200W MH
|
250W MH
|
250W MH
|
400W MH
|
|
Lumens Delivered
|
3,900 lm
|
5,200 lm
|
6,500 lm
|
7,800 lm
|
10,400 lm
|
13,000 lm
|
15,600 lm
|
|
Efficacy
|
130 lm/W
|
|
CRI
|
>75
|
|
Color Temperature
|
4000K / 5000K /5700K
adjustable
|
|
Input Voltage
|
120-277VAC / 120-347VAC
|
CONSTRUCTION:
• UV-resistant polycarbonate refractor lens
• Durable die-cast aluminum housing
• Light weight, and low transportation cost
RECOMMENDED USE:
• Building facade, commercial applications
• Industrial applications, retails
• Hospitality buildings
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 113°F.

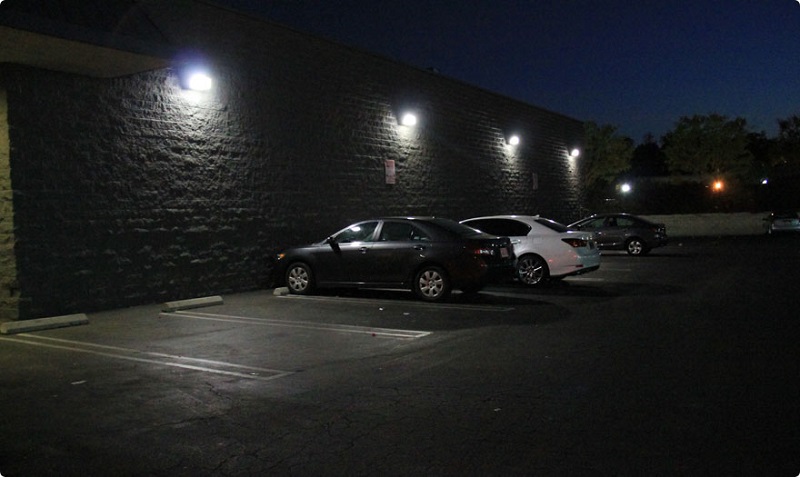

APPLICATION:
