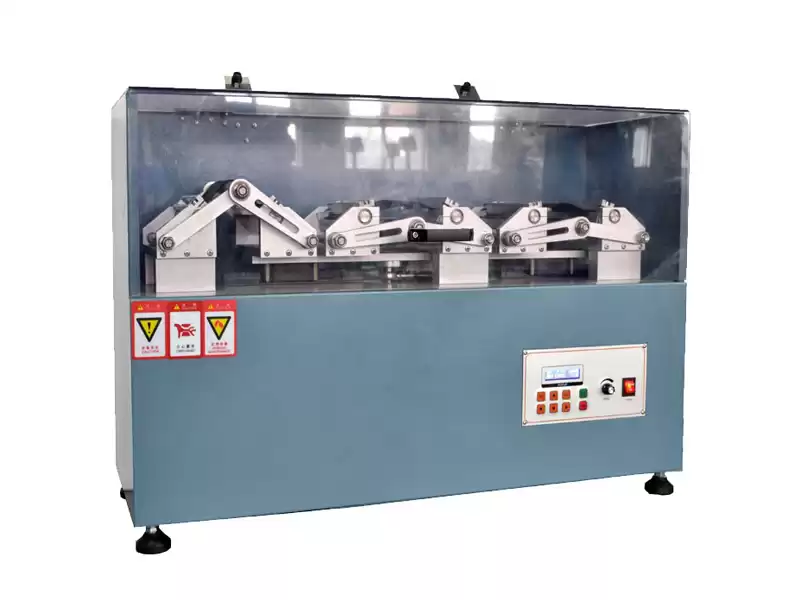

Outsole Flexing Tester

Outsole Flexing Tester

Outsole Flexing Tester is intended to determine the resistance of outsole to continuous flexing at 90° angle at a constant bending rate.

Test Standards

ISO 17707, ISO20344-8.4.2, ISO20347-5.8.4, SATRA TM161, etc.

Parameters

Model AT-F3003
Test station 3pcs
Bending angle 90°
Mandrel diameter ￠30mm
Bending speed 125~150cycles/min (adjustable)
Clamp apart 110mm
Moving fixture stroke 41.5mm
Width of grips 144mm
Counter LCD display, 0~999,999
Dimension 100X53X30cm
Net Weight 93 kg   G.W 105KG
Power 1phase, AC220V, 3A
