Overhead transmission line post composite insulator FZSW

1).Silicon Rubber for sheds/housing

2).Glass-fiber reinforced epoxy resin rod(ECR type)for core

3).Hop dip galvanized cast steel for metal fittings

4).IEC standard.

5).ISO9001 and ISO14001 manufacturer.

Overhead transmission line post composite insulator FZSW

Feature:

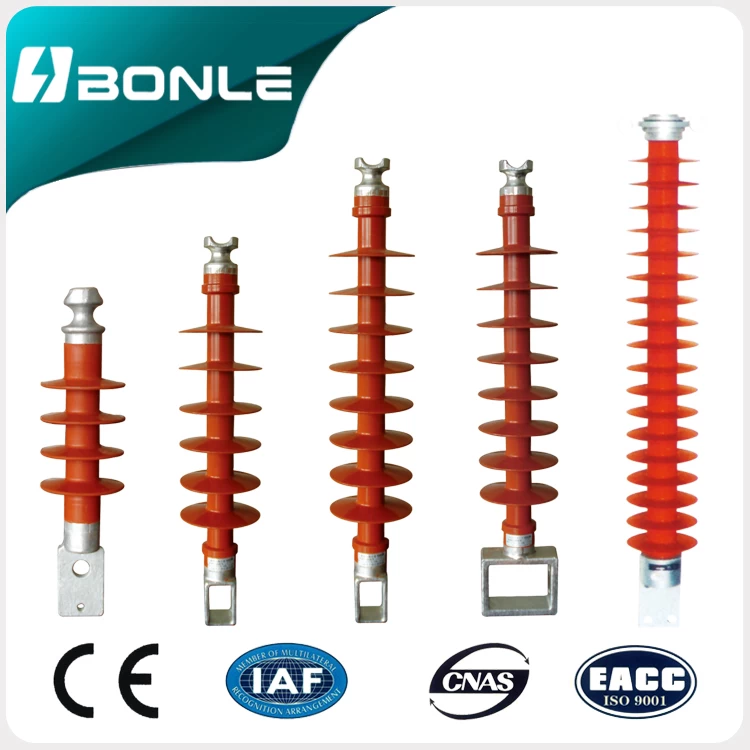

1.The Composite insulators are made of glassfiber epoxy core rod,silicone rubber shed and metal fitting.

2.The silicone rubber shed adopt the whole packing pressure technique.

3.Small volume,light weight,corrosion prevention and reliable structure.

4.Sheath thickness is more than 5mm and in accordance with IEC international standard.

Product Description

Product Name	Top Quality Cost-Effective Promotional Silicone Insulators
Product No.	FXBW
Type	suspension
Material	composite polymer & silicon
Color	red or grey
Weight(kgs)	16
Application	high voltage
Standard	IEC
Packaging Details	Carton
Delivery Detail	25 DAYs
Payment	L.C,T/T, WU, MG, PayPal
Carton Size(cm)	41x40x17.5
