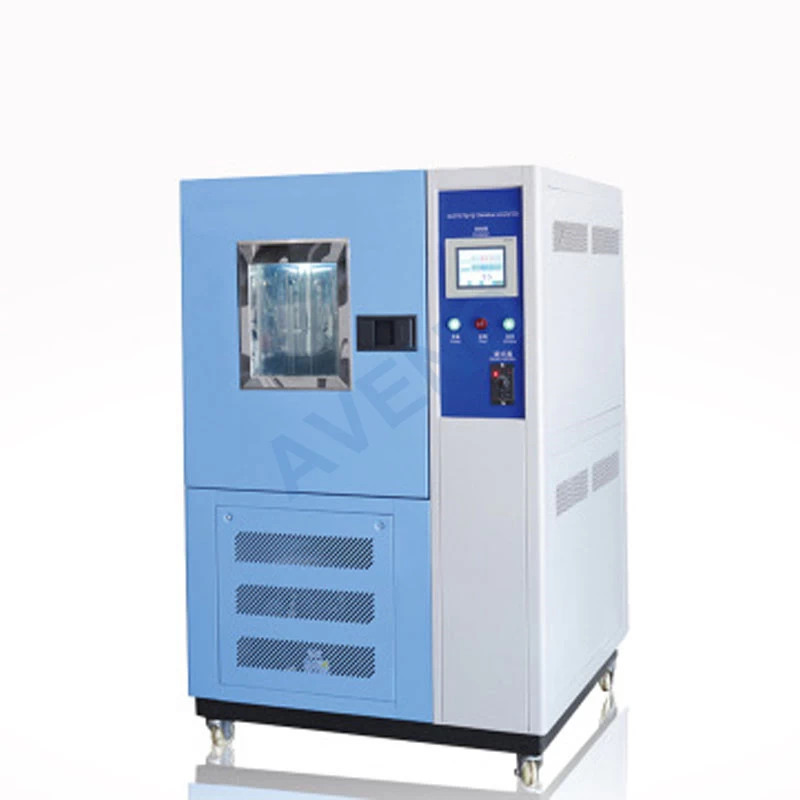

Ozone Test Chamber AC22
Ozone Test Chamber simulate and enhancement of ozone conditions in the atmosphere, used to rapid identification and Evaluation of the anti-ozone aging performance of samples and the protective effect of anti-ozone agent. Suitable for testing ozone aging resistance of vulcanized rubber products, organic materials and non-metallic materials and aging cracking tensile test.
AC22-Ozone Test Chamber
Application Of Ozone Test Chamber
Ozone Test Chamber simulate and enhancement of ozone conditions in the atmosphere, used to rapid identification and Evaluation of the anti-ozone aging performance of samples and the protective effect of anti-ozone agent. Suitable for testing ozone aging resistance of vulcanized rubber products, organic materials and non-metallic materials and aging cracking tensile test.
Feature Of Ozone Test Chamber
- Whole chamber inside and gripers made up of stainless steel, anti-corrosion.
- Outside of the chamber is baking finish (can choose SUS 304 stainless steel)
- Whole machine equipped with a safety protection system, the end of the test automatically stops
- Use low-noise, multi-wing centrifugal fan to supply air circulation to avoid any dead angle, which can evenly distribute temperature and humidity and ozone in the test area.
- The test door and body are sealed with double layer ozone resistant high tensile silica gel to ensure the sealing of the test area
- With a transparent window, chamber inner with a lamp, used to observe changes of samples.
Test space option Of Ozone Test Chamber
|
Capacity |
80L |
150L |
225L |
408L |
800L |
1000L |
|
Inside dimension (W×H×D, cm) |
40×50×40 |
50×60×50 |
50×75×60 |
60×85×80 |
100×100×800 |
100×100×100 |
|
Outside dimension (W×H×D, cm) |
95×136×94 |
100×146×104 |
100×161×117 |
110×171×137 |
150×186×137 |
150×186×157 |
Key Specification Of Ozone Test Chamber
|
Model |
AC22 Ozone Test Chamber |
|
Ozone concentration |
0～1000 PPHM |
|
Ozone concentration deviation |
≤10％ |
|
Chamber temperature |
+10～+100℃, can be set |
|
Chamber humidity |
20%~98%, can be set |
|
Specimen frame rotation velocity |
0～50mm/s |
|
Chamber gas-flow rate |
8-16mm/s |
|
Material of inner surface |
SUS304 mirror finished stainless steel |
|
Material of outside surface |
baking finish surface or SUS304 stainless steel, option |
