About product:
|

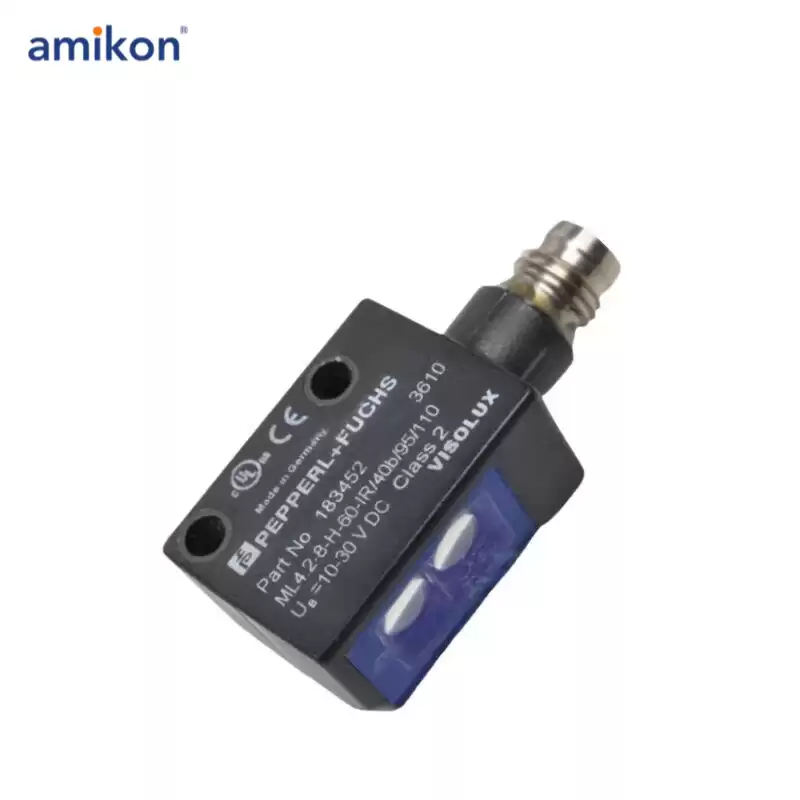

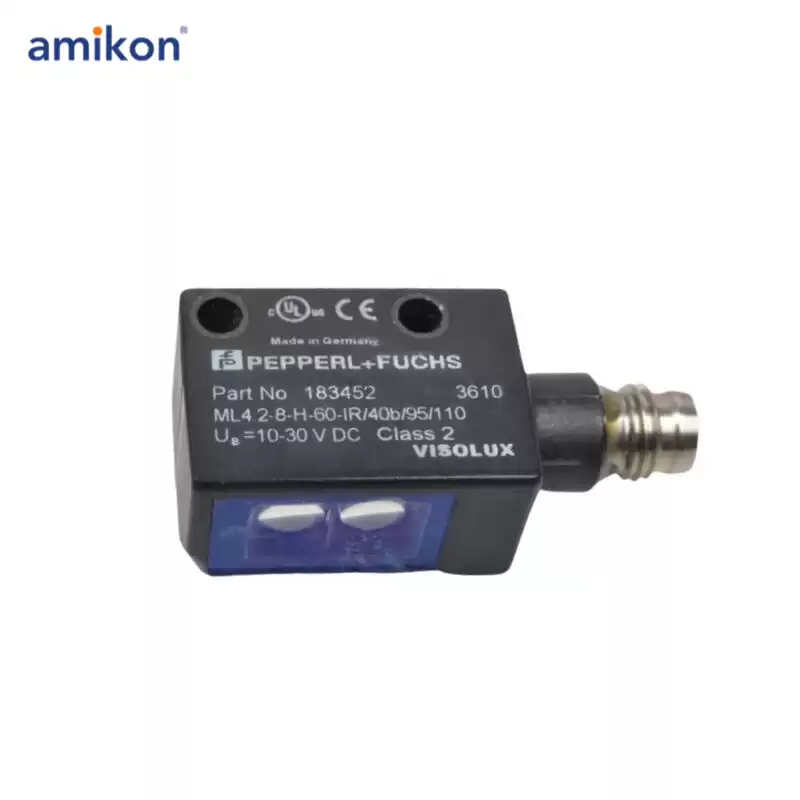

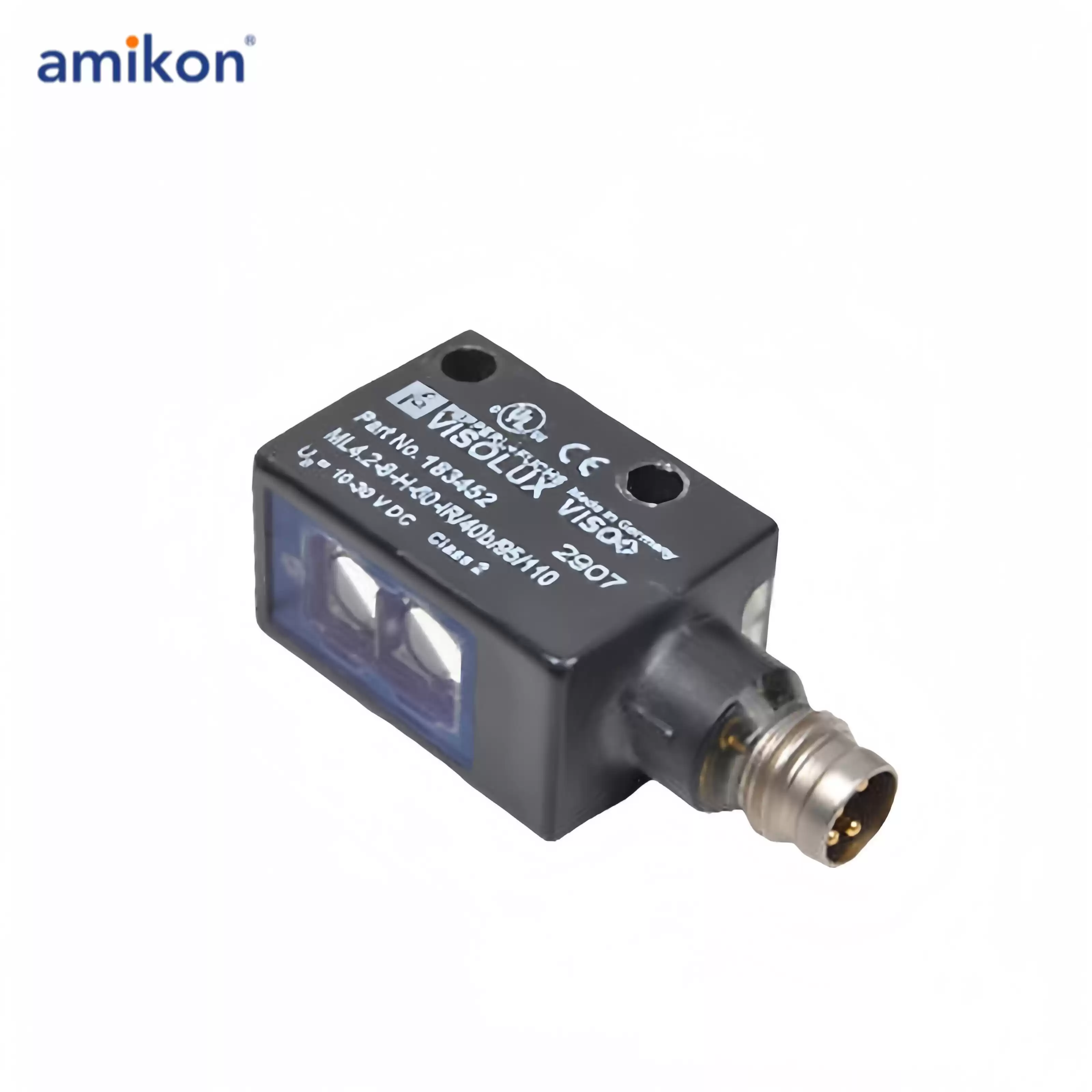

P+F Sensor Photoelectric ML4.2-8-H-20-IR/40B/95/110
|
|
The ML4.2 series is known for its robust, powerful, and standardized design housed in a compact casing. This sensor features an IP67/IP69K protection rating, ensuring it is resistant to dust and water ingress. The lens is both scratch-resistant and chemically resistant, complemented by highly visible LEDs and durable all-metal bushings for secure mounting.
These adjustable and tamper-proof sensors come equipped with a universal push-pull output and an electrical light ON/dark ON switch. They boast a high ambient light limit, effectively suppressing reflections from backgrounds. The uniquely small and sharp light spot, along with a quick response time, ensures maximum switching precision at object edges. Available in both red and infrared light sources, the ML4.2 series also includes a high-performance fixed focus background suppressor, making it ideal for precise object detection in a wide range of applications.
|
|
Technical Data
|
Specifications
|
|
Detection Range
|
7 ... 20 mm
|
|
Max Detection Range
|
5 ... 25 mm
|
|
Background Suppression Starts
|
From 25 mm
|
|
Light Source
|
Infrared Emitting Diode (IRED)
|
|
Light Type
|
Modulated infrared light, 880 nm
|
|
Black/White Difference (6 %/90 %)
|
Approximately 1 mm
|
|
Diameter of Light Spot
|
Approximately 1.5 mm at 20 mm
|
|
Angle of Divergence
|
Approximately 5 °
|
|
Ambient Light Limit
|
|
- Continuous Light
|
40,000 Lux
|
|
- Modulated Light
|
5,000 Lux
|
Features：
-Precise background suppression
-Very small black-white difference
-Small, sharp light spot
-Highly visible LEDs for Power-On,switching status,short-circuit, and undervoltage
-Metal-reinforced fastening holes
-Tamper-proof version with no adjustments
-Push-pull output
