P 8.928 LED floor tile screen super PC cover load-bearing design up to 1.5 tons
Abstract
1.HOW TO USE THE PRODUCT：
● This Technical Specification Is Only Applicable To YoSe Display P 8.928 Floor Tile Screen
2. Product summary:
● The special effect of the floor tile screen in the stage performance has been fully applied.
● Creating an immersive audio-visual feast with a magnificent and modern scene.
● P 8.928 LED floor tile module light bulbs SMD 3535 three-in-one design,
The LED floor tile screen has a good light effect indoors or outdoors.

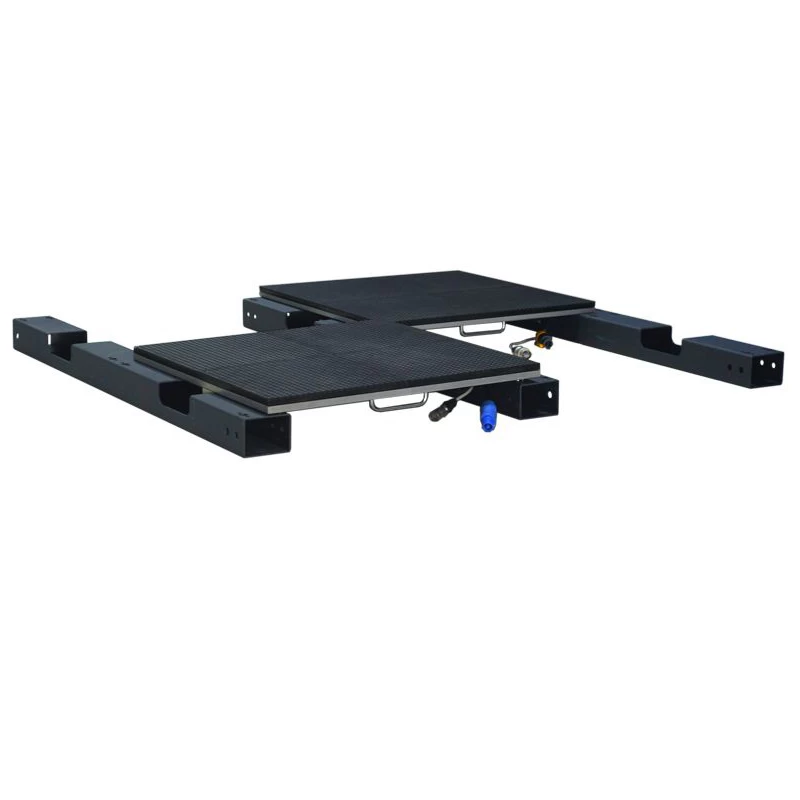

● P 8.928 LED floor tile screen adopts super PC cover load-bearing design up to 1.5 tons.
● LED floor tile screen uses constant current driver chip and input buffer chip, link LED control
● The system can display video animations, image text information and other features.
3. Product Features Introduced:
●Super bright LED lamp bead wire package and Class A raw material plastic kit.
●Waterproof silicone for high-end LED display.
●PCB is designed with exclusive circuitry.
●The signal line and power line are designed in a unified manner.
●LED lamp holder with pure copper bracket, red light 12 MIL, blue green 13 MIL.
●The PC cover is non-slip-proof and has a load-bearing height of 2 T or more.
●Realize human-computer interaction experience technology (referred to as: interactive effect)
4.Product Technical Specification
|
Number
|
Parts
|
Program
|
8.928 Floor Tile Technical Indicators
|
|
1
|
Pixel Composition
|
Arrangement
|
Vertical row
|
|
2
|
Pixel tube spacing
|
8.928 mm
|
|
3
|
Pixel composition
|
1R 1G 1B（Triple）
|
|
4
|
Lamp type
|
SMD 3535（Chip ratio 3：6：1）
|
|
5
|
Physical density
|
12580 DOTS/㎡
|
|
6
|
Module / cabinet size
|
Module size
|
250 Width×250 Height (mm)
|
|
7
|
Module resolution
|
28 width×28 height (point)
|
|
8
|

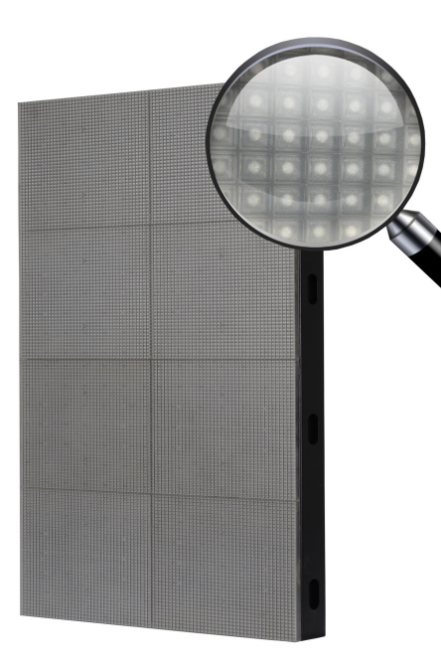

Box size
|
500 (width)×1000 (height) mm
|
|
9
|
Box weight
|
18.5 KG/piece
|
|
10
|
Box thickness
|
8.5 cm (including module thickness)）
|
|
11
|
whole screen
parameter
|
Out of control point
|
≤3/100000
|
|
12
|
Unit module stitching
|
Unit plate gap joint seam size is consistent, and≤2 mm
|
|
13
|
Optimum distance
|
8-60 m
|
|
14
|
Perspective
|
140°horizontal and 140°vertical
|
|
15
|
Surface roughness
|
Maximum error≤2 mm
|
|
16
|
Screen surface ink color
|
Uniform ink, no reflection
|
|
17
|
Uniformity
|
Module brightness is uniform, uniformity 1:1
|
|
18
|
powered by
|
Use the environment
|
Indoor and outdoor
|
|
19
|
Operating humidity range
|
10% to 90% RH
|
|
20
|
range of working temperature
|
-20 to 65℃
|
|
21
|
Maximum power
|
600 W/㎡
|
|
22
|
Average power
|
300 W/㎡
|
|
23
|
Control System
|
Control host operating system
|
XP Computer + control software hardware + playback software and hardware
|
|
24
|
control method
|
Synchronize with computer VGA (display sync)
|
|
25
|
Control System
|
DVI graphics card + full color control card + fiber transmission
|
|
26
|
Input
|
Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI, etc.
|
|
27
|
Screen function
technical parameters
|
LED driver
|
Constant current drive (4 sweeps）
|
|
28
|
Computer display
|
640×480,800×600,1024×768
|
|
29
|
Refresh rate
|
³2000 hz
|
|
30
|
Gray scale/color
|
8192 level
|
|
31
|
Full screen brightness
|
³ 3500 cd/㎡
|
|
32
|
Life long
|
Above 10000 hours
|
|
33
|
Display content
|
Video DVD, VCD, TV, images, text, animation, and more
|
|
34
|
Continuous trouble-free working time
|
≥10000 hours
|
|
25
|
Interface
|
Standard Ethemer network interface, communication using RS-422
|
|
36
|
Communication medium
|
Multi mode fiber <500 m, single mode fiber transmission < 30 km, Category 5 line< 100 m
|
|
37
|
Protection technology
|
Moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, with over current, short circuit, over voltage, under voltage protection
|
|
38
|
software
|
Universal LED video playback software
|
|
39
|
LED lamp bead
optical characteristics
|
Red light chip
|
|
|
40
|
Red light chip size
|
10 mil reverse polarity
|
|
41
|
Green light chip
|
|
|
42
|
Green light chip size
|
9 * 11 mil
|
|
43
|
Blue light chip
|
|
|
44
|
Blue light chip
|
9 * 11 mil
|
