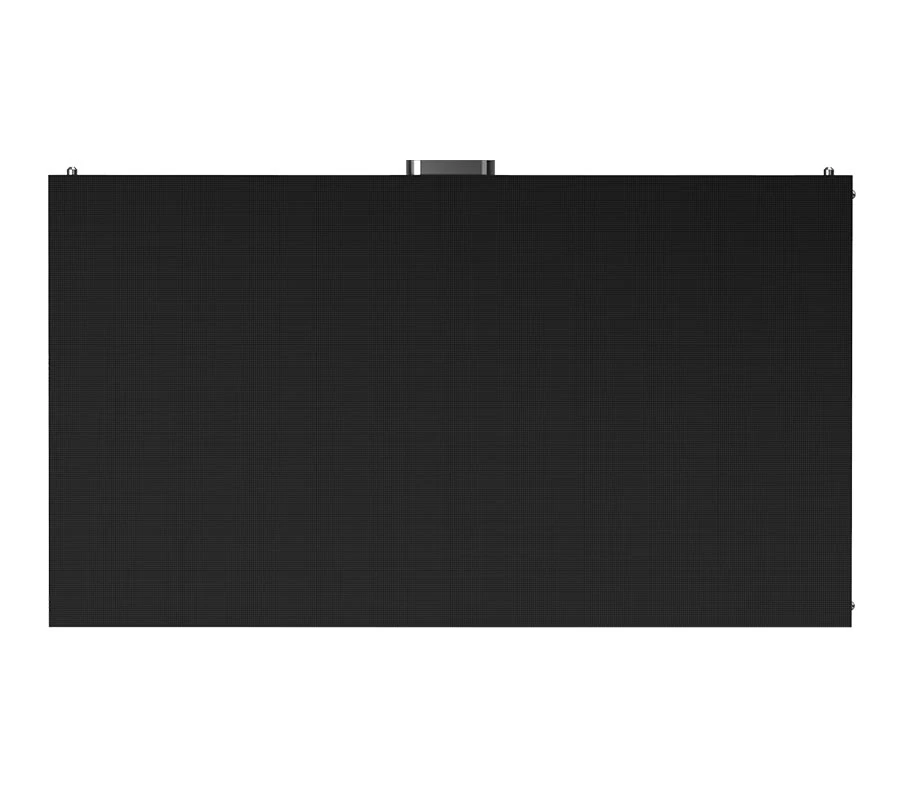

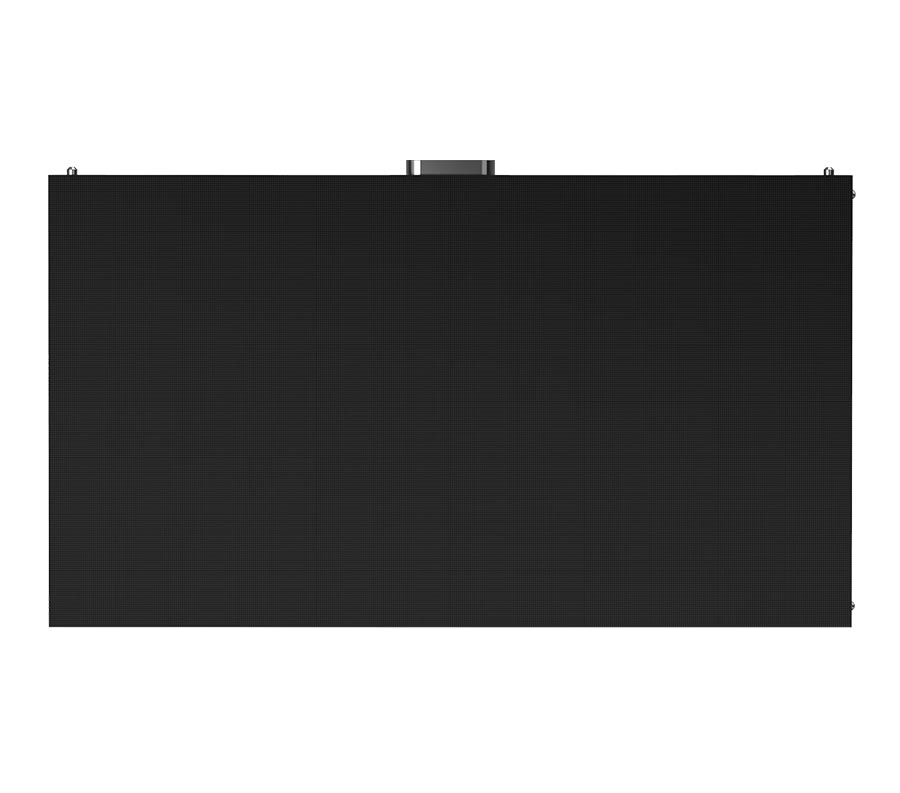

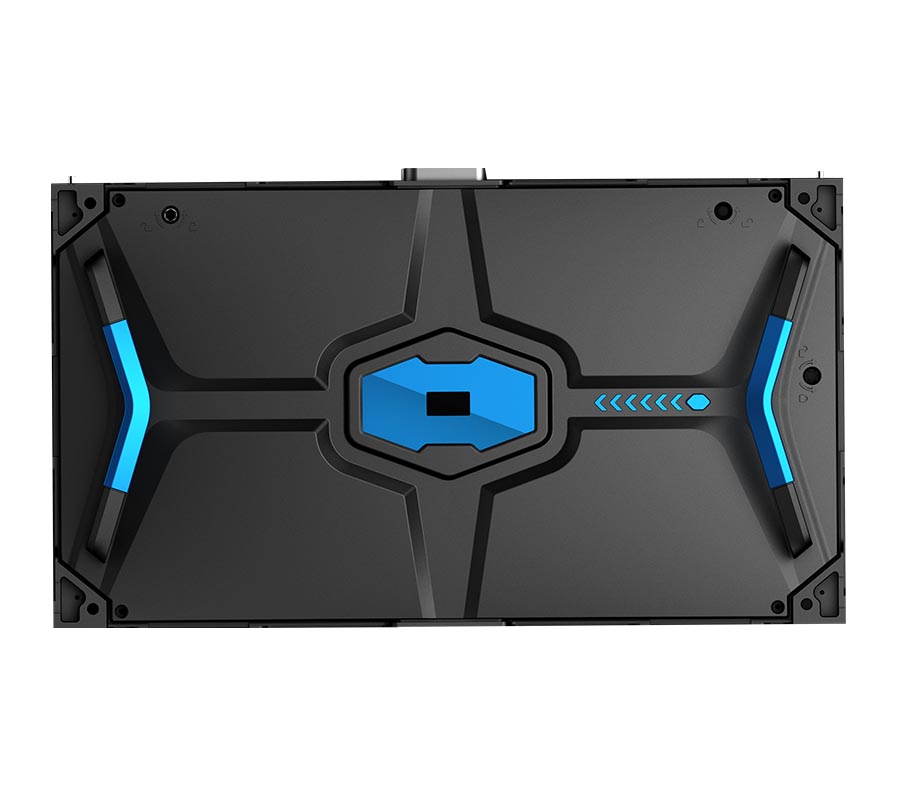

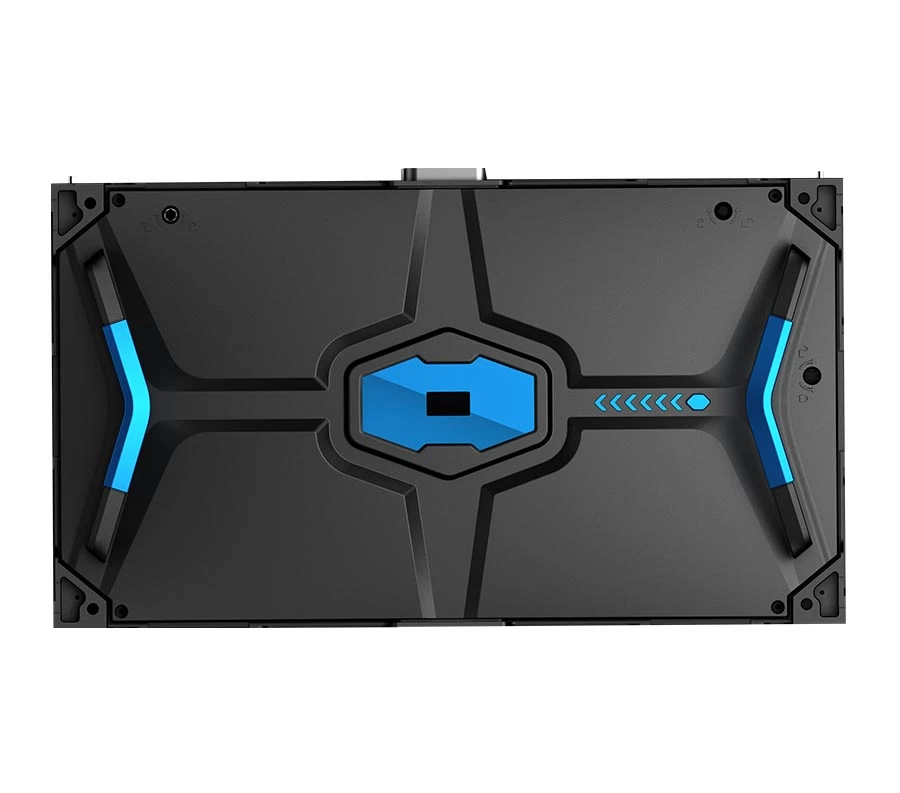

Small Pixel Pitch LED Display TV P0.9375 P1.25 P1.33 P1.44 P1.56 P1.875
Brightness: 600-800 adjustable
Refresh rate: 1920/2880/3840 Hz
Panel dimension: 600×337.5×76 mm
Light weight less than 8kg for each panel.
Standard 16:9 panel can also precisely achieve HD/FHD/UHD/SHV resolution just right,and with a 27" diagonal panel size it can become a perfect substitute for any existing 54" or 108" LCD screen
Technology Datasheet:
|
Pixel Structure
|
Nationstar Mini
|
|
LED Model
|
0.9375
|
|
Pixel Density （dots /m2 ）
|
1137800
|
|
Module Resolution （ W×H ）
|
160×180
|
|
Module Size （ mm ）
|
150 （ W ） ×168.75 （ H ）
|
|
Module Maximum Power Consumption （W ）
|
20
|
|
Module of Cabinet （ W×H ）
|
4×2
|
|
Cabinet Resolution （ W×H ）
|
640×360
|
|
Cabinet Size （ mm ）
|
600 （ W ） ×337.5 （ H ） ×80 （ D ）
|
|
Cabinet Area （ m2 ）
|
0.2025
|
|
Cabinet Weight （ kg ）
|
9.9
|
|
Cabinet Flatness （ mm ）
|
≤0.2
|
|
Maintain Style
|
Pre maintenance
|
|
Cabinet Flatness(mm)
|
≤0.1mm
|
|
Cabinet Material
|
die-cast aluminum
|
|
singel pix brightness corretion
|
have
|
|
singel pix chroma corretion
|
have
|
|
white balance brightness （ nits ）
|
200 ～ 600 Adjustable
|
|
Color Temperature （ K ）
|
3200 ～ 9300 Adjustable
|
|
viewing angle (HorizontalVerticla)
|
160/160
|
|
Light Pixel Centerline Spacing Difference
|
<3%
|
|
Brightness/Color Uniformity
|
≥97%
|
|
Contrast Ratio
|
5000:1
|
|
Max Power consumption （ W/m2 ）
|
600
|
|
Avg Power Consumption （ W/m2 ）
|
250
|
|
Power supply requirement
|
AC90 ～ 264V ， frequency 47 ～ 63 （ Hz ）
|
|
Frame Frequenc y （ Hz ）
|
50&60
|
|
Driving Mode
|
Constant current drive ， 1/30 scanning
|
|
Grey Scale
|
65536
|
|
Refresh Rate （ Hz ）
|
Maximum 3840 to 5760
|
|
Color Processing Level
|
16bit
|
|
Video Effect
|
2KHD 、 4K/8K Ultra Picture
|
|
Working Temperature/Humidity （ ℃/RH ）
|
-20 ～ 60 / 10% ～ 85%RH （ No moisture condensation ）
|
|
Storage Temperature/Humidity （ ℃/RH ）
|
-20 ～ 60 / 10% ～ 85%RH （ No moisture condensation ）
|
|
Certificate Standard
|
CCC ， TUV-CE, UL
|
16:9 New Generation Small Pitch Screen

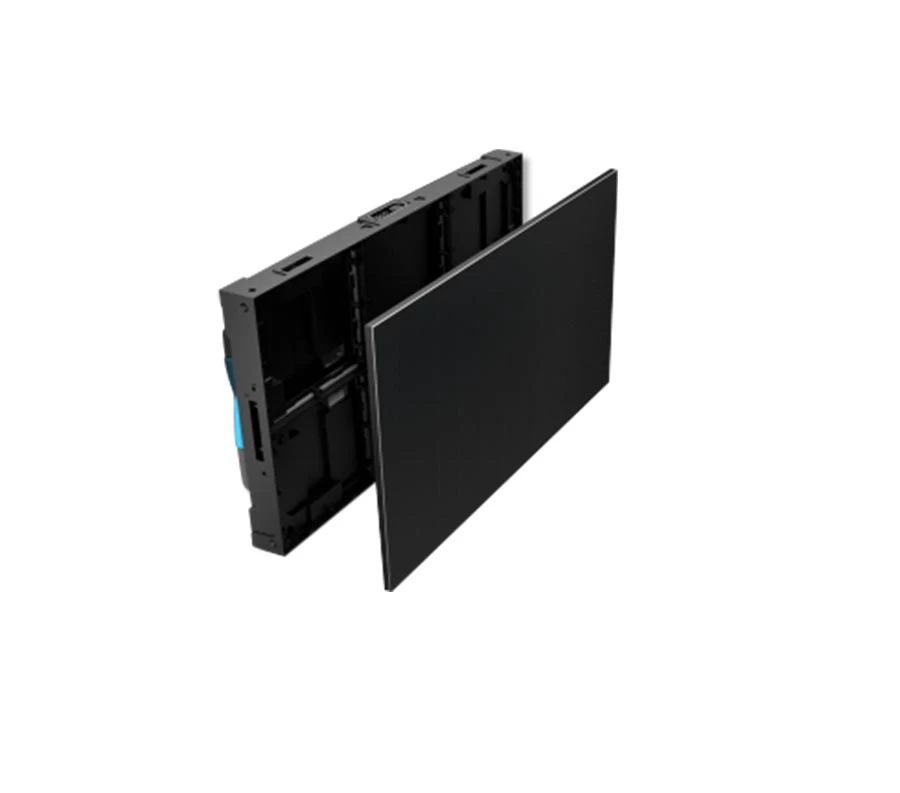

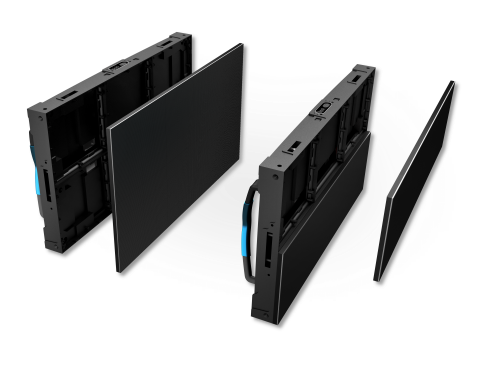

Front maintenance design
There is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.
16:9 golden ratio
Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.

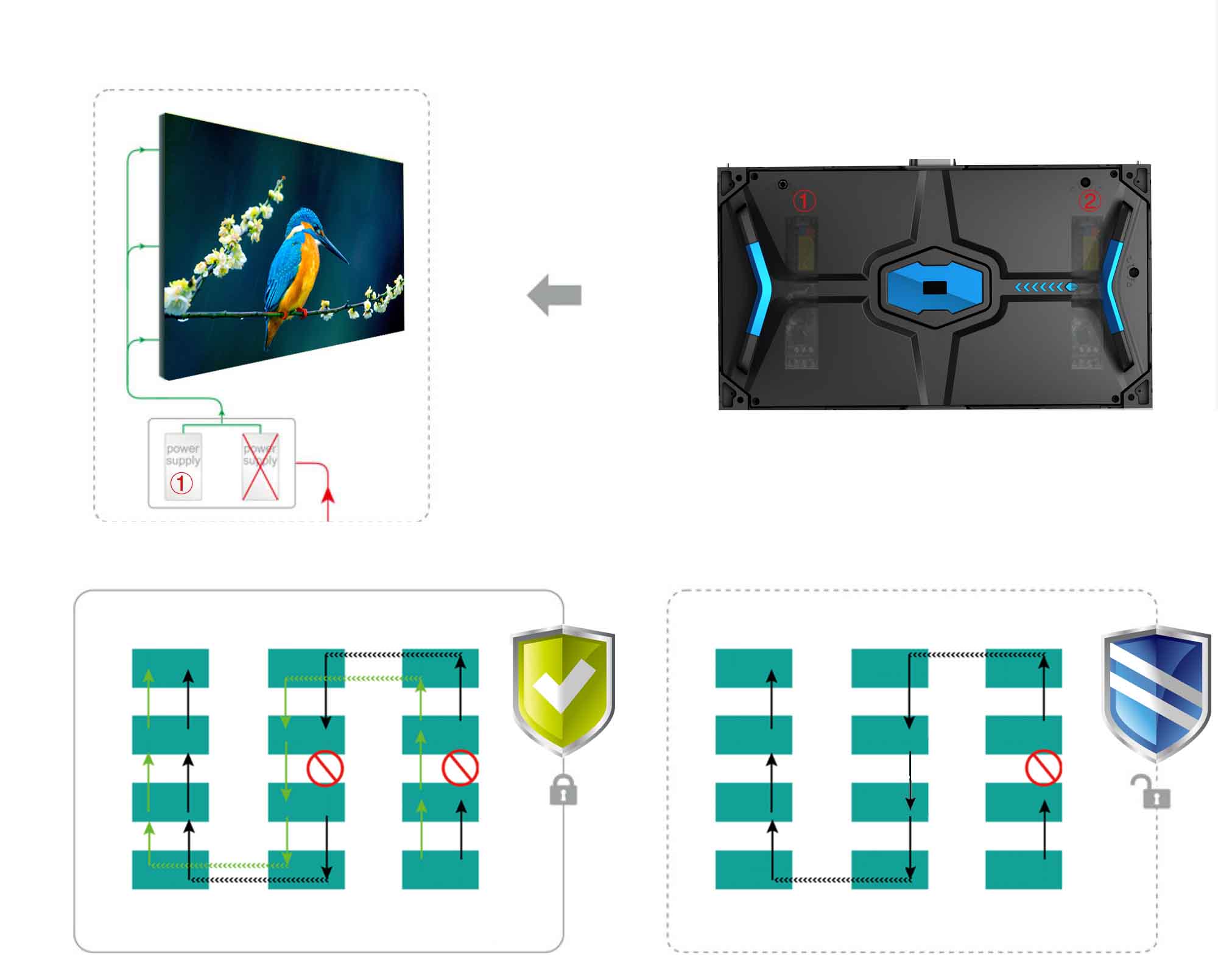

Double backup
Supporting Dual Control System, Automatically Switch the Picture in an Led Screen when it occurs any problems to make sure a stable and reliable image.
Vivid color
Ultra thin and ultra light
