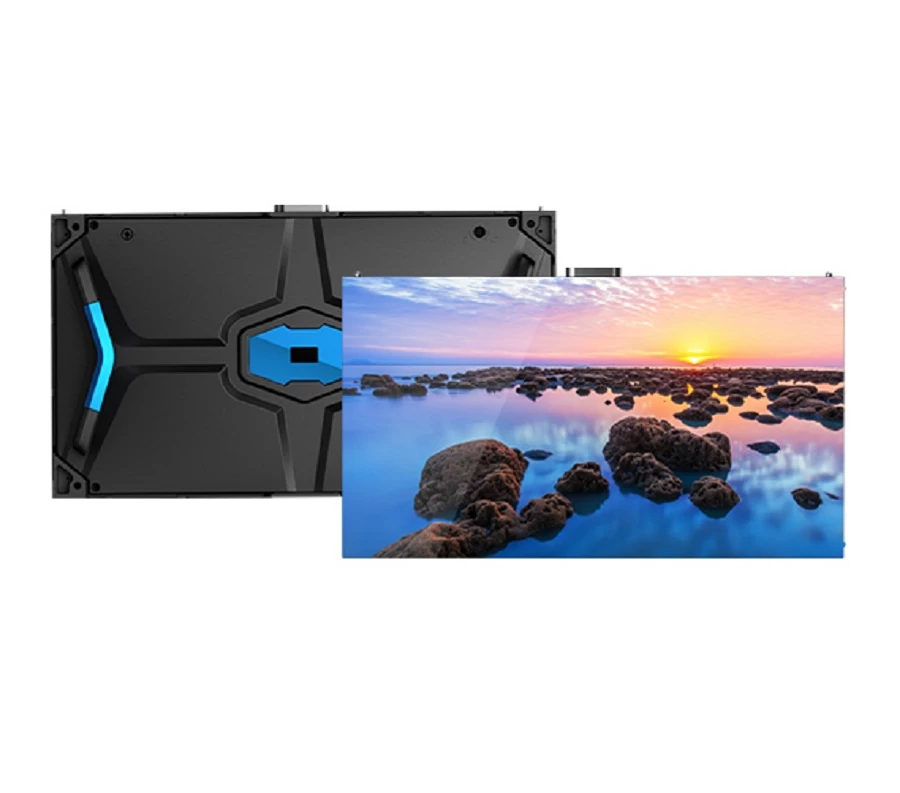

P1.875 high resolution led display screen indoor
Front maintenance design
There is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.
16:9 golden ratio
Cabinet size is 16:9 golden ratio.Video pixel to LED pixel achieve full 2K/4K/8K displaying. No gap between unit is a revolution of visual enjoyment.
Low Cost of Splicing
Standard 16:9 panel can also precisely achieve HD/FHD/UHD/SHV resolution just right,and with a 27" diagonal panel size it can become a perfect substitute for any existing 54" or 108" LCD screen.
Specifications:
|
Pixel Structure
|
SMD1010
|
|
LED Model
|
1.875
|
|
Pixel Density（DOTS/m2）
|
284444
|
|
Module Resolution（W×H）
|
160×90
|
|
Module Size（mm）
|
300（W）×168.75（H）
|
|
Module Maximum Power Consumption（W）
|
40
|
|
Module of Cabinet （W×H）
|
2×2
|
|
Cabinet Resolution（W×H）
|
320×180
|
|
Cabinet Size（mm）
|
600（W）×337.5（H）×80（D）
|
|
Cabinet Area（m2）
|
0.2025
|
|
Cabinet Weight（kg）
|
9.9
|
|
Cabinet Flatness（mm）
|
≤0.2
|
|
Maintain Style
|
Pre maintenance
|
|
Cabinet Flatness(mm)
|
≤0.1mm
|
|
Cabinet Material
|
die-cast aluminum
|
|
singel pix brightness corretion
|
have
|
|
singel pix chroma corretion
|
have
|
|
white balance brightness（nits）
|
200～600Adjustable
|
|
Color Temperature（K）
|
3200～9300Adjustable
|
Small pitch LED display is also called narrow pixel pitch led display.
It refers to an LED display with a pixel pitch of less than 2.5mm. The
current trend is that 1.56mm, 1.2mm, 0.9mm are ready, and will
definitely move towards lower pixel pitches soon. Therefore, choosing a
narrow pixel pitch led display is a very discerning decision.
