Parameter
|
P10 Outdoor LED Die-casting Cabinet
|
|
Module
|
Pixel Configuration
|
SMD3535
|
|
Pixel Pitch
|
10.0mm
|
|
Module Resolution(W×H)
|
32×16
|
|
Module Size(mm)
|
320×160
|
Weight Per Module
|
0.52kg
|
|
Max Power Consumption
|
30W
|
|
Cabinet(Panel)
|
Modue Qty Per Cabinet(W×H)
|
2×6
|
|
Cabinet Resolution(W×H)
|
80×120
|
|
Area per Cabinet(㎡)
|
0.6144
|
|
Weight of One Cabinet(Kg)
|
22.6kgs
|
|
Pixel Density(pixel/㎡)
|
10000
|
|
Cabinet Flatness(mm)
|
≤0.2
|
|
Cabinet Material
|
iron Cabinet
|
|
Optical Parameters
|
Brightness Calibration by Per Dot
|
Yes
|
|
White Balance Brightness(nits)
|
≥4000
|
|
Color Temperature
|
3200--9300 deg. K (adjustable)
|
|
View Angle
|
Horizontal 110°；Vertical 80°
|
|
Brightness Uniformity
|
≥97%
|
|
Max.Contrast
|
4000:1
|
|
Electrical Parameters
|
Max Power Consumption(㎡)
|
360W/㎡
|
|
Average Power Consumption(㎡)
|
280W/㎡
|
|
Input Voltage(VAC)
|
110 ± 20% or to 220 ± 20%
|
|
Processing Performance
|
Driving Mode
|
1/4 scan
|
|
Frame Rate(Hz)
|
50 to 60
|
|
Refresh Frequency(Hz)
|
≥800
|
|
Using Parameters
|
Best Viewing Distance(m)
|
3-60m
|
|
Lifetime(Hours)
|
≥100,000
|
|
Working Temperature(℃)
|
-20 ~ + 45
|
|
Stored Temperature(℃)
|
-30 ~ + 60
|
|
Working Humidity(RH)
|
10 — 90%(no dew formation)
|
|
Stored Humidity(RH)
|
10 — 95%(no dew formation)
|
|
Waterproof
|
Yes
|
|
Protection Grade
|
IP65
|

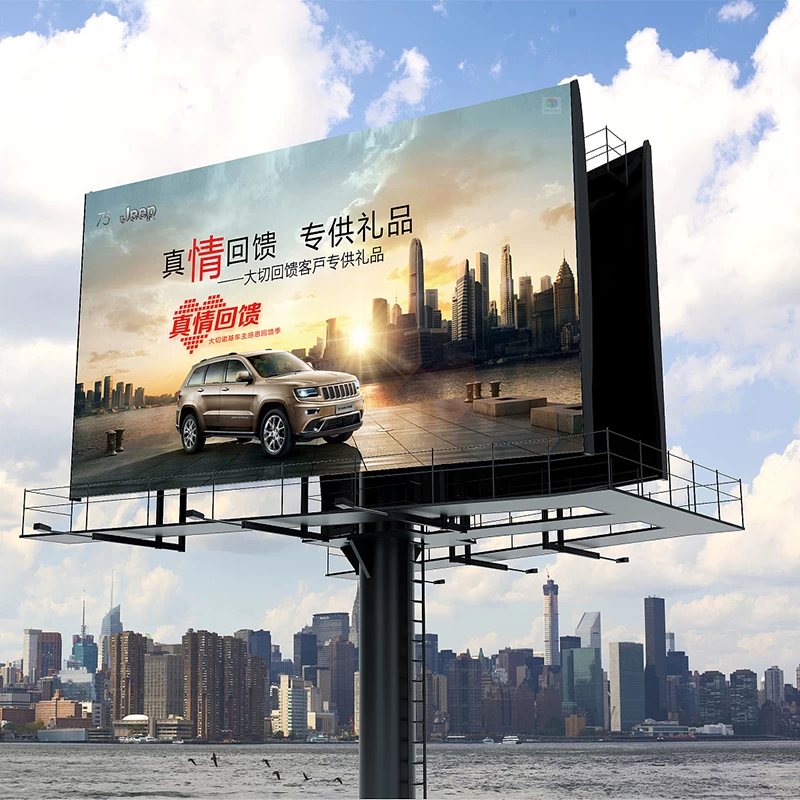

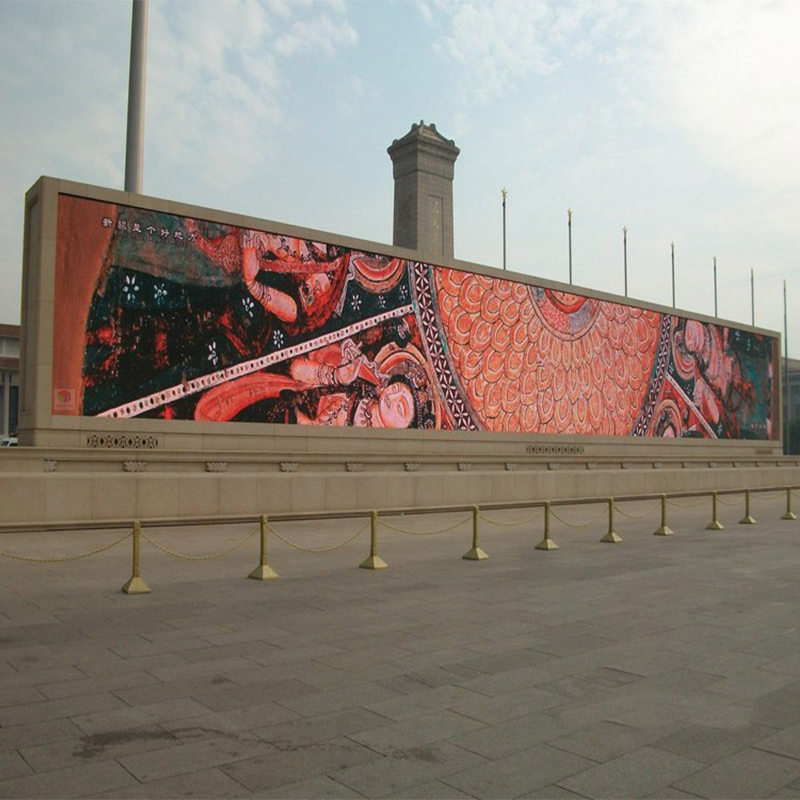

P10 outdoor full colorl ed display,size is 2.88x1.92m. In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.
<Super brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%
<High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
<Refresh rate is up to 4,200Hz, completely flickering-free for live video
<Proprietary image processing produces sharp, brilliant images unmatched by industry competition
<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away
<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use
