Quick Detail:
1. MBI5024 drive IC;
2. All EPISTAR LED;
3. Not less than 7,500 nits;
4. 150 mm thickness of cabinet;
5. Plywood case packed.
Detail Description:
5V 40A power source, 1 pc supports 7pcs P10 outdoor LED module;
Spare parts provided based on quantity;
Each cabinet uses 1 pc receiving card to make sure high refresh rate.
Application:

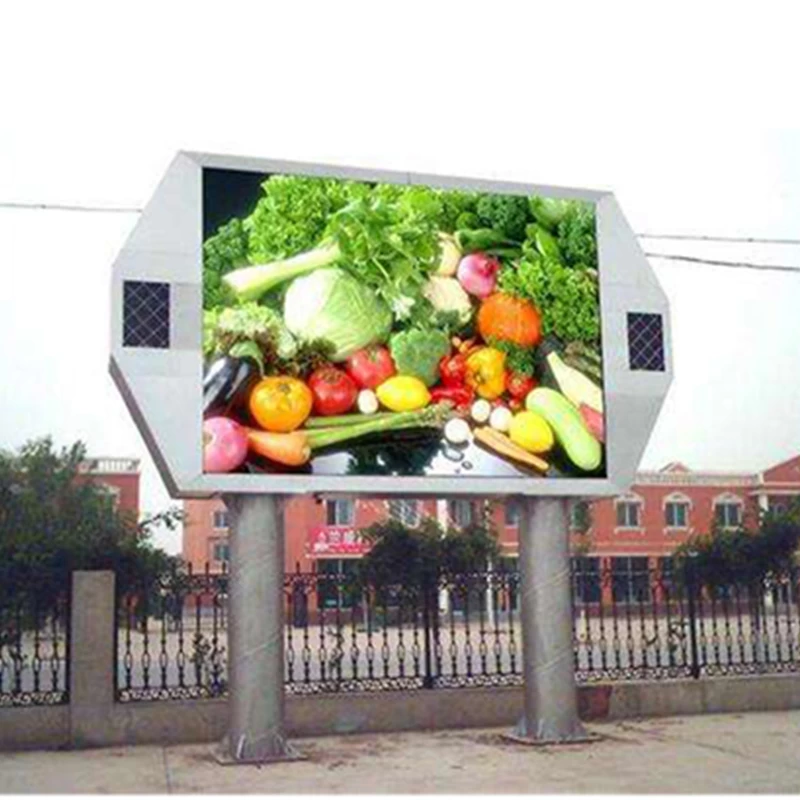

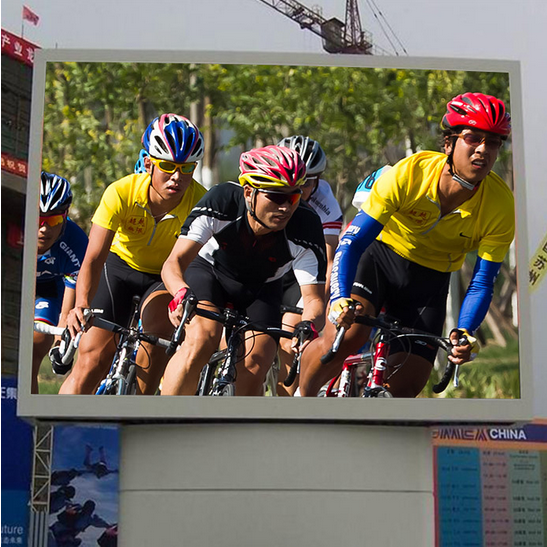

Outdoor LED billboard is used for highway advertising.
Feature & Function
Model : CX-PH10 RGB09B
|
|
|
|
LED Module model
|
color
|
1R1G1B
|
LED Type
|
SMD3535
|
Module Resolution
|
W 32 x H 16
|
Module Size (mm)
|
W 320 x H 160
|
Driving Method
|
1/2 scan
|
LED display parameter
|
voltage
|
220V or 110V ± 10%
|
Material
|
outdoor iron waterproof ( IP 65 )
|
Cabinet Size (mm)
|
W 960 x H 960 MM (38X38 Inch)
|
Cabinet Resolution (pixel)
|
W96 x H 96
|
power Consumption Max (w/set)
|
1000 Watt
|
Brightness ( CD/㎡)
|
≥6500
|
Net Weight (kg)
|
45 kg
|
Viewing Angle
|
120° / 70°
|
Theoretic LED Working Life
|
More than 100000 hours
|
control method
|
network port control ( WIFI ,USB optional)
|
display function
|
Date,Text, picture, logo , video.
|
