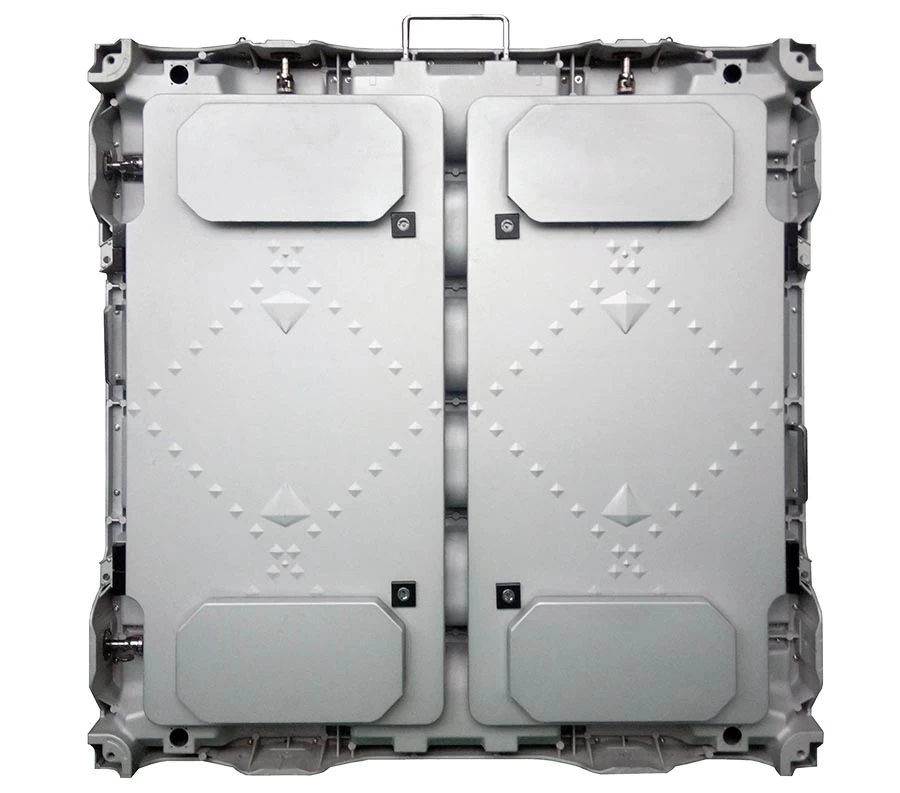

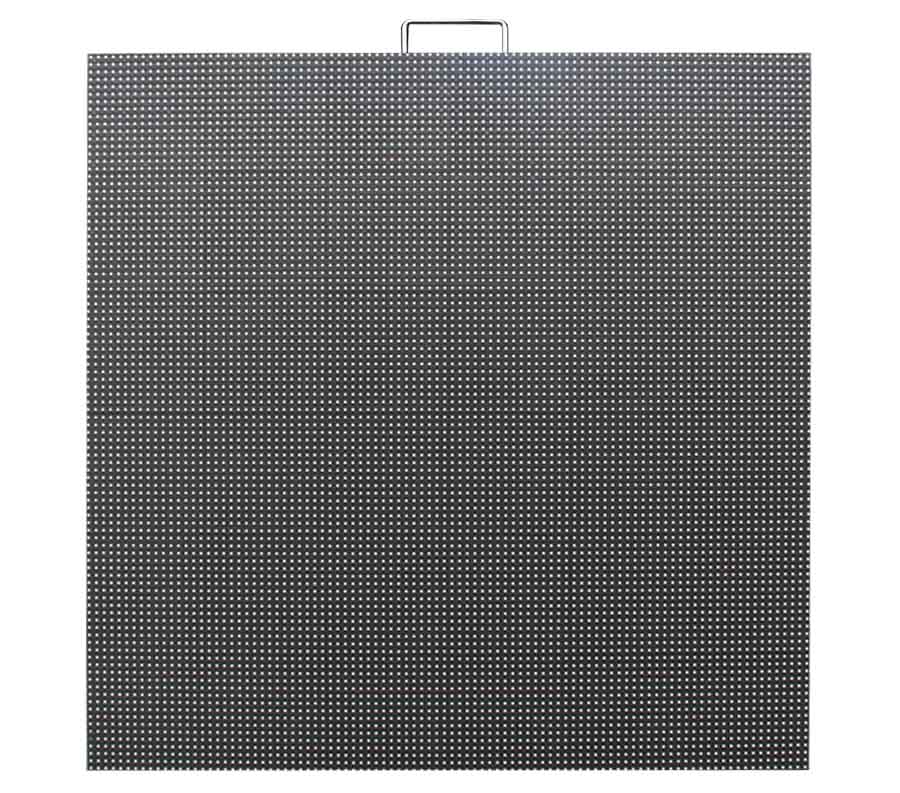

P10 Outdoor SMD3535 LED Display aluminum die-csting cabinet 960 x 960
Ultra-light---lighter 40% than aluminum die-csting cabinet.
High precision---seamless splicing though CNC machining.

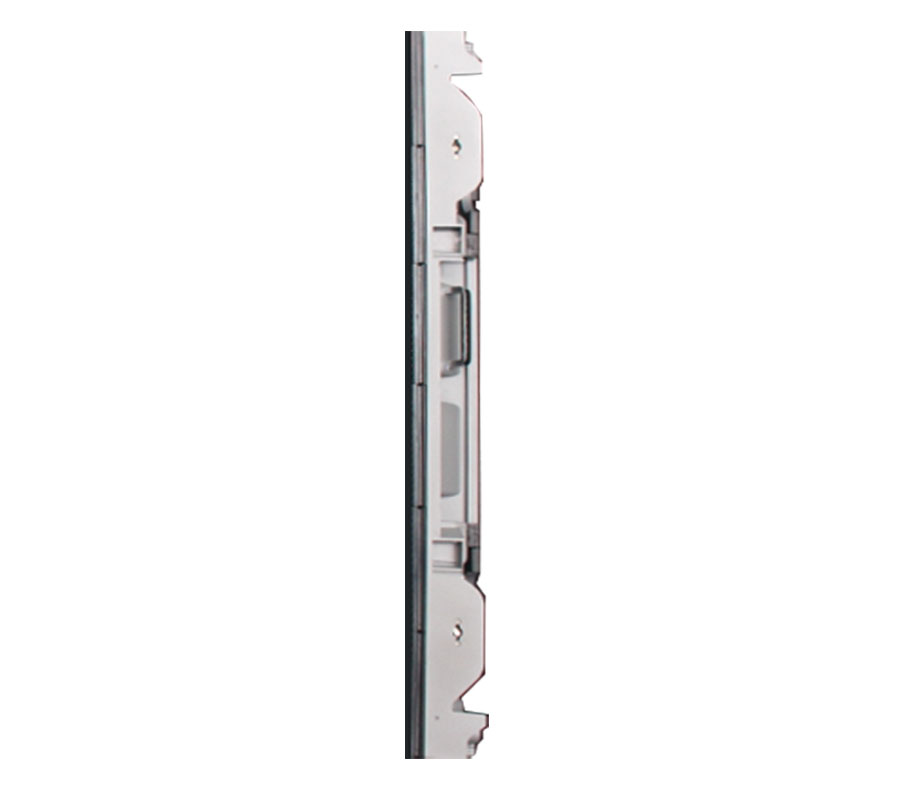

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%.
Easy installation---installed by quick lock for 20s only.
Waterproof P10 full color video Nationstar LED chip SMD3535 Display cabinet Magnesium alloy（960X960）

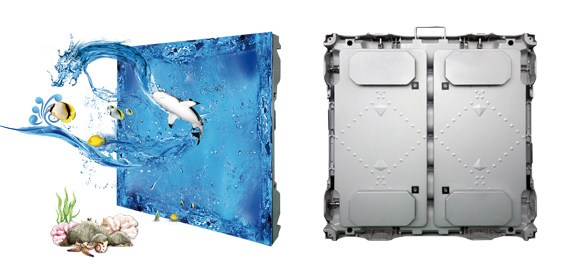

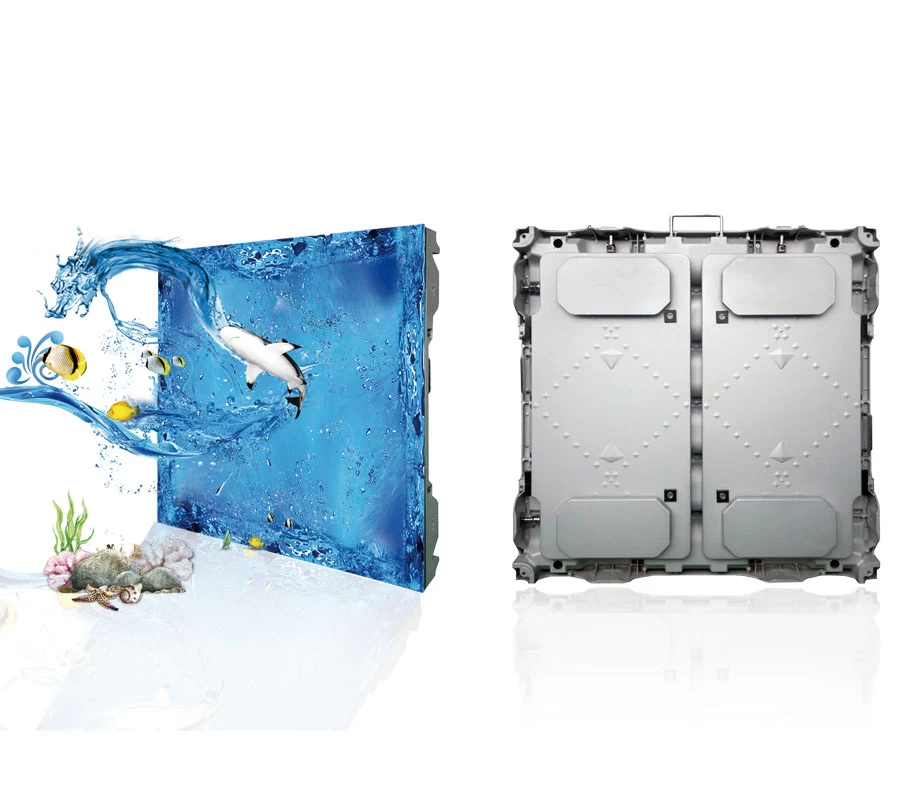

IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.
Dual channel heat dissipation
Low power consumption and fast heat dissipation/ energy saving and environment protection.
Super wide angle
Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.
Specifications:
|
Pixel Configuration
|
SMD3535
|
|
Pixel Pitch（mm）
|
10
|
|
Pixel Density（dot/m2）
|
10000
|
|
Module Pixel Matrix （W×H）
|
32×16
|
|
Module Size（mm）
|
320（W）×160（H）
|
|
Module Weight（kg）
|
0.8
|
|
Module Power Consumption Max.（W）
|
40
|
|
Module/Panel（W×H）
|
3x6
|
|
Panel Resolution（W×H）
|
96×96
|
|
Panel Size（mm）
|
960（W）×960（H）×160（D）
|
|
Panel Weight（kg）
|
35
|
|
Maitainence Mode
|
Rear Maitainence
|
|
Panel type
|
Steel cabinet
|
|
Brightness（nits）
|
≥7500
|
|
Color Temperature（K）
|
3200—9300
|
|
Viewing Angle（Hor/Vert°）
|
140/120
|
|
Power Consumption Max（W/m2）
|
1000
|
|
Power Consumption Avg（W/m2）
|
200-300
|
|
Operating Power Source
|
AC90~264V,Frequency 47-63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Drice Mode
|
Constant Driving，1/2S
|
|
Gray Scale
|
65536
|
|
Refresh Rate（Hz）
|
≥1920 -3840
|
|
Gray Scale per Color Level
|
16bit
|
|
Working Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
|
Storage Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
