P10 Outdoor SMD3535 LED Display aluminum die-csting cabinet

IP65 front Waterproof

Ultra thin and ultra light


  • Warranty TimeGuarantee Period 5 Years
  • CertificationUL CE ROHS FCC EMC ISO TUV ETL SGS SAA BIS SASO UV PVOC KC BQB FCC-ID FDA LVD MON C-TICK
  • Packaging DetailsWooden Box Flight Case Carton Box

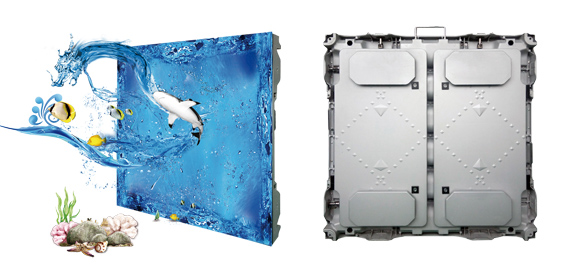

P10 Outdoor SMD3535 LED Display aluminum die-csting cabinet 960 x 960


Ultra-light---lighter 40% than aluminum die-csting cabinet.

High precision---seamless splicing though CNC machining.

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%.

Easy installation---installed by quick lock for 20s only.


Waterproof P10 full color video Nationstar LED chip SMD3535 Display cabinet Magnesium alloy(960X960)


IP65 front Water proof

High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.


Dual channel heat dissipation

Low power consumption and fast heat dissipation/ energy saving and environment protection.


Super wide angle

Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.


Specifications:


Pixel Configuration

SMD3535

Pixel Pitchmm

10

Pixel Densitydot/m2

10000

Module Pixel Matrix (W×H

32×16

Module Size(mm

320(W×160(H

Module Weight(kg

0.8

Module Power Consumption Max.(W

40

Module/Panel(W×H

3x6

Panel Resolution(W×H

96×96

Panel Size(mm

960(W×960(H×160(D

Panel Weight(kg

35

Maitainence Mode

Rear Maitainence

Panel type

Steel cabinet

Brightness(nits

7500

Color Temperature(K

3200—9300

Viewing AngleHor/Vert°

140/120

Power Consumption Max(W/m2

1000

Power Consumption Avg(W/m2

200-300

Operating Power Source

AC90~264V,Frequency 47-63Hz

Frame Frequency(Hz

50&60

Drice Mode

Constant Driving,1/2S

Gray Scale

65536

Refresh Rate(Hz

1920 -3840

Gray Scale per Color Level

16bit

Working Temperature/Humidity(℃/RH

-20 – 60  / 10%-85%RH

Storage Temperature/Humidity(℃/RH

-20 – 60  / 10%-85%RH


P10 VIDEO LED SCREEN


P10 VIDEO LED BOARD 960X960

P10 LED DISPLAY CABINET 960X960
