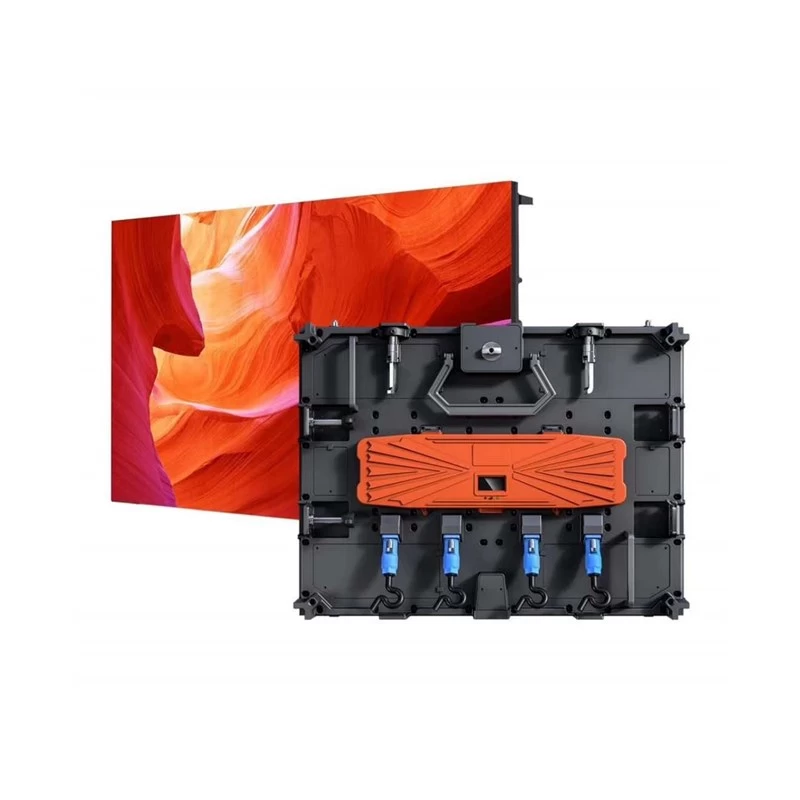

Features of small fine pitch led panel rental P2.5 :
1.Fast installation and dismantle with vertical and horizontal locks for the screen.
2.High contrast ratio 1:3000, refresh rate reaches to 3840Hz/s, high gray scale could provide stunning visual effect.

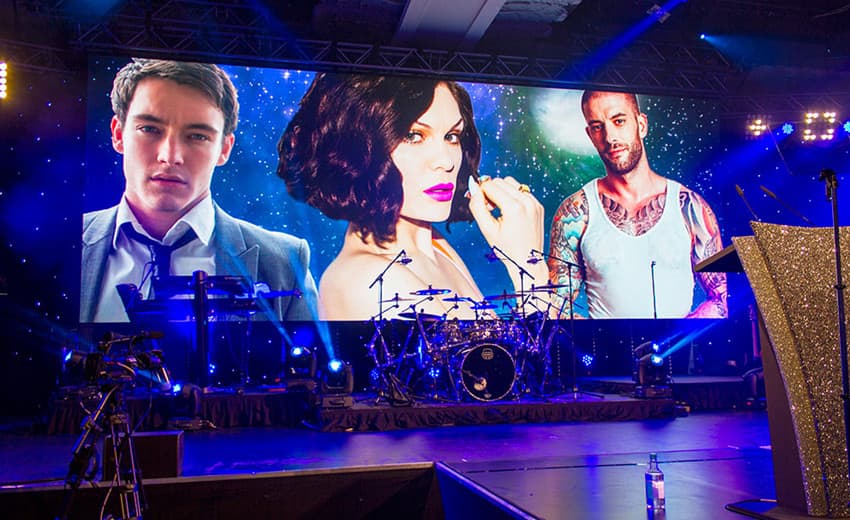

3.Ultra thin cabinet design, light weight, convenient to carrying on the stage rental event.
4.Uniformity display with precision metal structure, to achieve high-quality seamless effect.
|
Pixel
|
Dot Pitch
|
2.5 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
160,000 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2121
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
128 Pixel * 64 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/32 Scanning
|
|
Module Dimension
|
320mm(Width)x160 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|

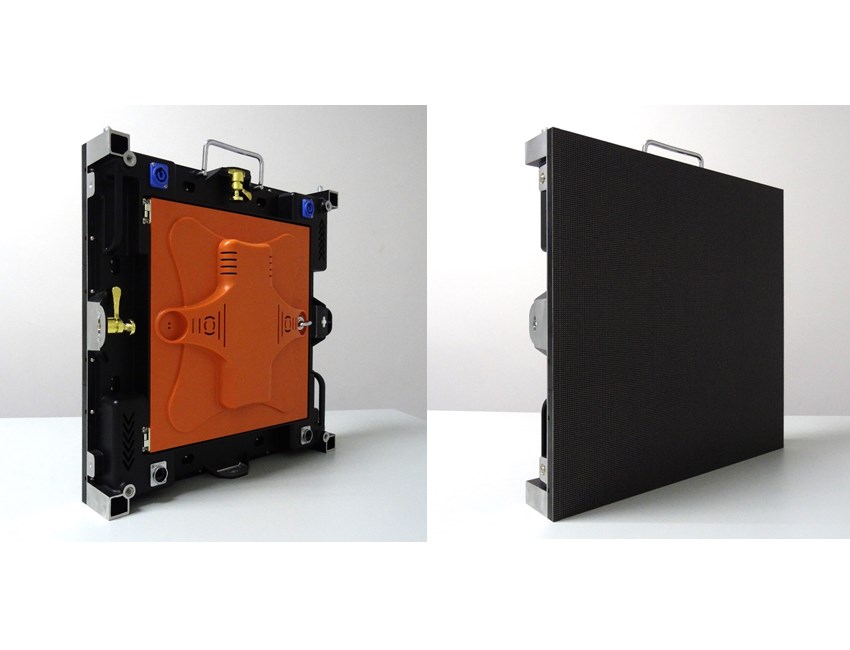

Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
640mm*640 mm
|
|
Module QTY
|
2(Width)X4 (Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1500cd/m²
|
|
Best Viewing Distance
|
3~30m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Screen Weight
|
10 kg/cabinet
|

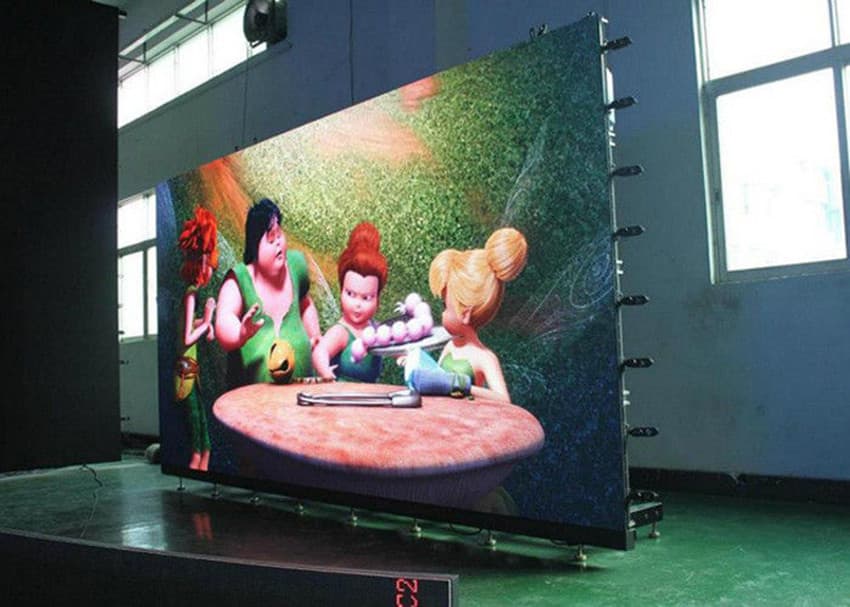

P2.5 Indoor LED Video Wall Advantages:
1.High efficiency service-more convenient
> Complete front & rear service for LED module and modular control box. Barrier free and quick service when customer do front service, easy operation.
2.Calibration data saving
> Intelligent LED module with calibration data saving function. Saving time and labor cost from the 2nd time calibration after LED module replacement. Could put same LED module to different site with same effect, decrease the cost of after sales service.
3.Visible control box
> The first transparent control box design for fxed installation LED display all over the world. Subvert the traditional model, bring customer more novel appearance.
4.Serialization design
> Compatible with a variety of pixel:2.5mm, 5mm pixel pitch. Customer could use different pixel pitch LED module base on same cabinet frame. Saving cost, Saving time, Saving labor.
5.Standardization design
> Standard cabinet size: 640x640mm, Standard LED module: 320x160mm.
