HD P2 Indoor High Quality High Gray Scale High Contrast Ratio Full Color LED Module
Features:
1) High density,high definition,good uniformity confirm HD led video wall
2) SMD led encapsulation with wide view angle and close view distance
3) Black led lamp body ensure high contrast ratio and high gray scale
4) Dot to dot maintain, easy and quick maintenance, save maintenance cost
5) Soft mask keep the lamps from impact
6) Can be assembled with cabinets or on iron frame with magnets,for fixed install and rental use
Indoor P2
LED Display Module Specification
|
Pixel
|
Pixel Pitch
|
2 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
250,000 Pixel/m²
|
|
LED Lamp
|
LED Type
|
SMD 1515
|
|
LED Lamp
|
Nation Star /King light
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;174-230mcd
Green:520-525nm;680-900mcd
Blue:470-475nm;130-160mcd
|
|
Module
|

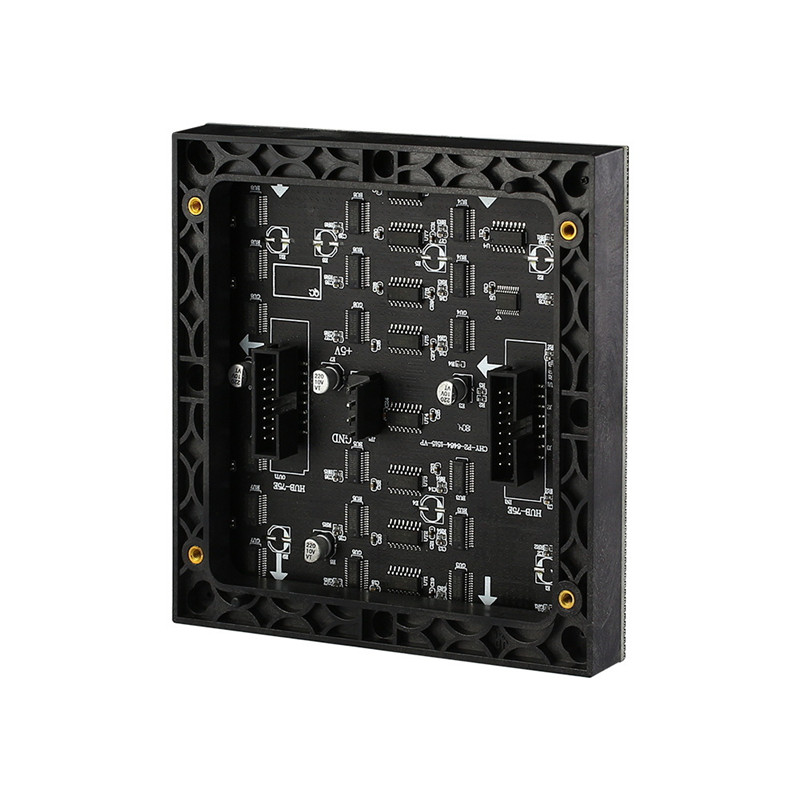

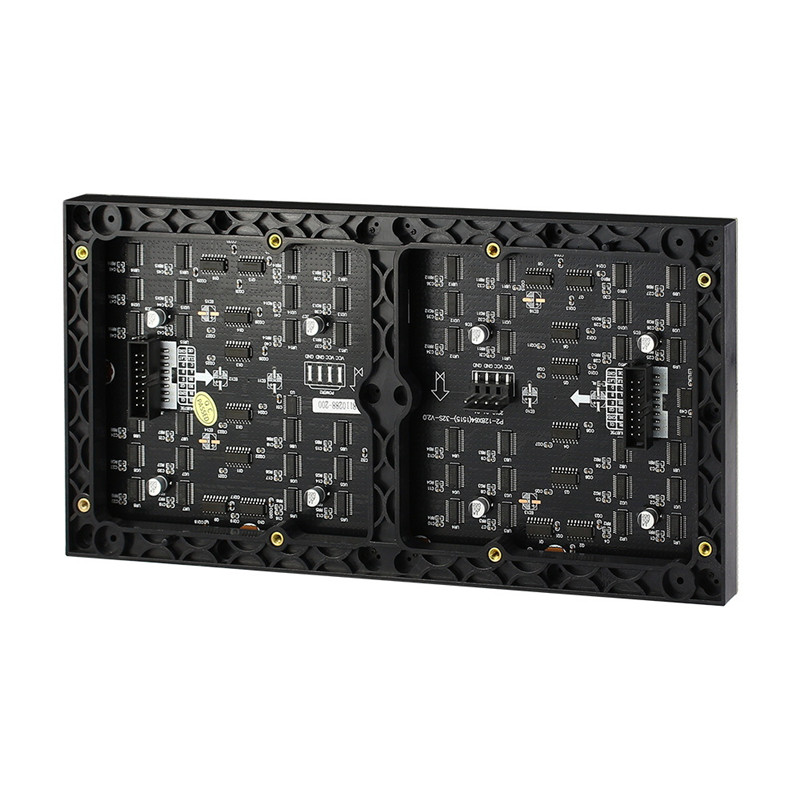

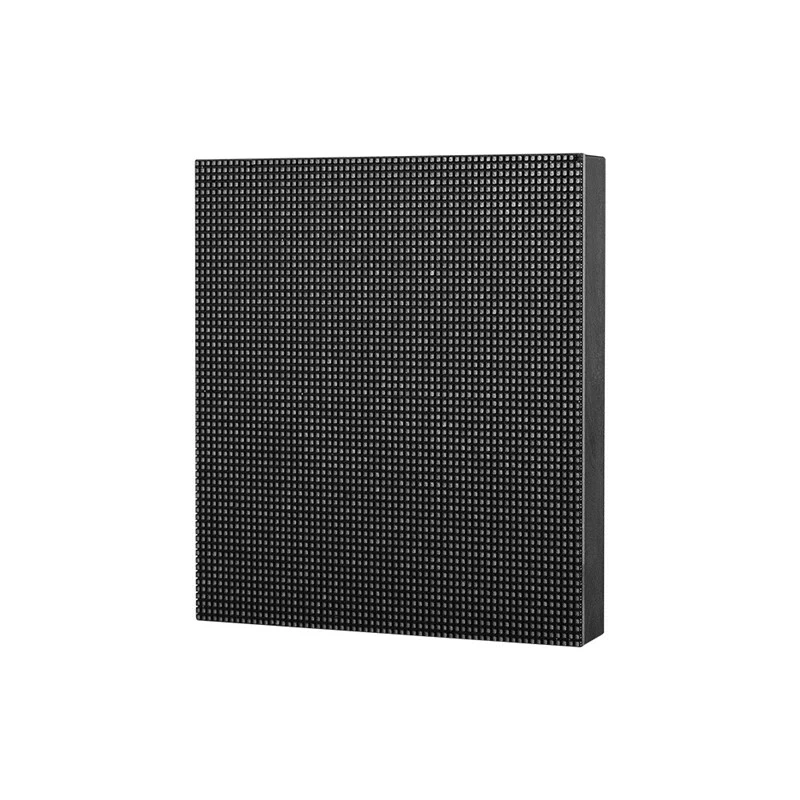

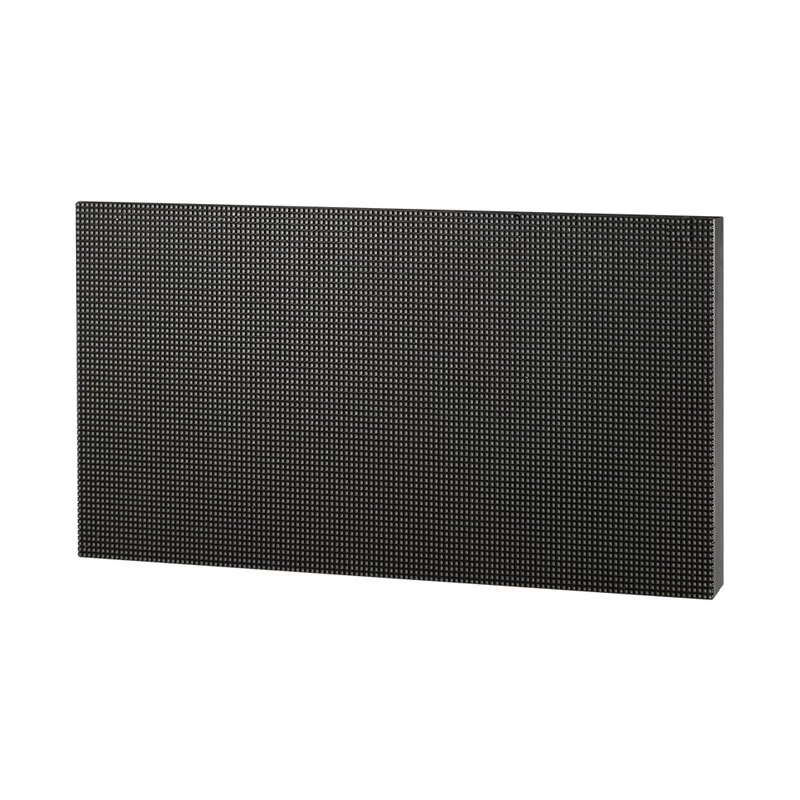

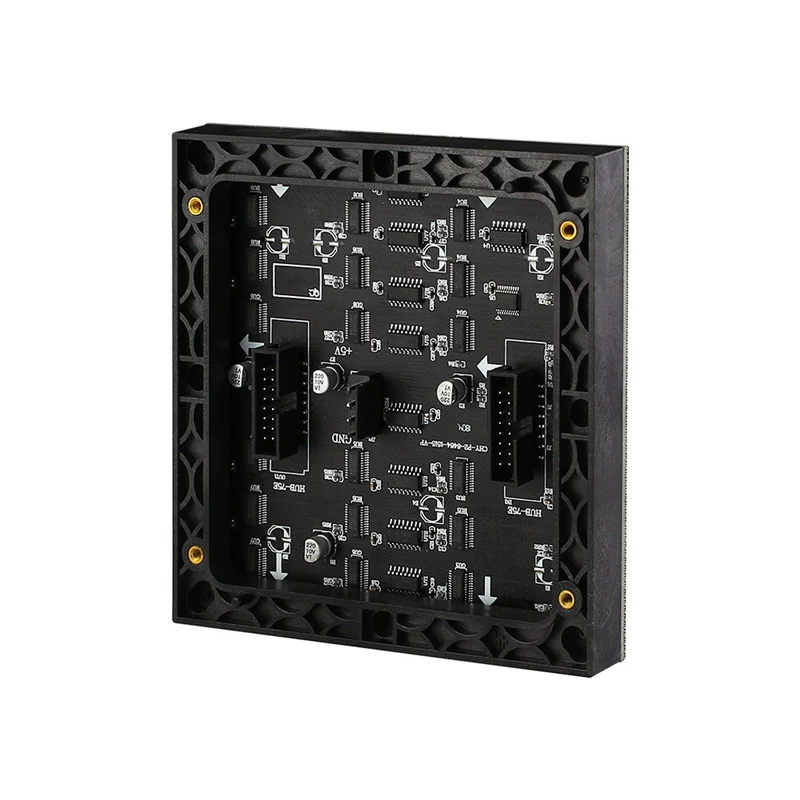

Module Dimension
|
128 mm(W)x128 mm(H) or 256 mm(W)x128
mm(H)
|
|
Module Resolution
|
64 Pixel * 64 Pixel or 128 Pixel * 64 Pixel
|
|
Scanning Method
|
1/32 S
|
|
Drive IC
|
5020 /5124 /5153 / 2037 /2038
/2038S/2053
|
|
Refresh Rate
|
>1920HZ
|
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1300 cd/m²
|
|
Best Viewing Distance
|
2-50 m
|
|
LED Life
|
100,000 Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Module Weight
|
0.25 kg/piece
|
