P3.9 P7.8 Transparent LED Display Screen For Shop Window Glass Video Wall
Pixel Pitch available: P3.91-P7.81 / P7.82-P10.42
Brightness: 6500CD
Product introduction:
1. High Transparency: the transparency can reach 80% or more and brightness can reach 5000nits or more, which can assure that the transparent screen wouldnt block out any daylight while you can see the contents displaying on the screen clearly even under sunshine.
2.Remarkable Visual Performance(Outstanding Image Quality: Selecting ultra high refresh rate IC and high quality Led Chip, high-contrast, huge viewing angle, wide color gamut, anti-glowing, replay the remarkable visual performance
3. Customized: the size is not fixed, and you can customized according to your project requirement
4. Easy to do the maintenance (back and front maintenance), only need to change the led strip.
5. Energy saving&environmental protection
LEEMAN DISPLAYLED transparent LED display with 80% transparent see-through, it is convenient for people inside and outside to look-through. The integrated LED lamps are very tiny and almost invisible from outside of the building. It makes no difference on the appearance of the building.
Ultra-transparency/High brightness
Ultra-transparency: 85% transparency
High brightness: 6500cd/sqm
Stable CREE / NATIONSTAR LED
Inlaying SMD 3535 lamp into PCB with wide viewing angle,
neat appearance,high transparency and easy to
installation or maintenance without professional tools.
Compact design and Light weight
The weight is just 8kg/㎡,light and thin design leads to
a compact product that saves on shipping and storage costs.

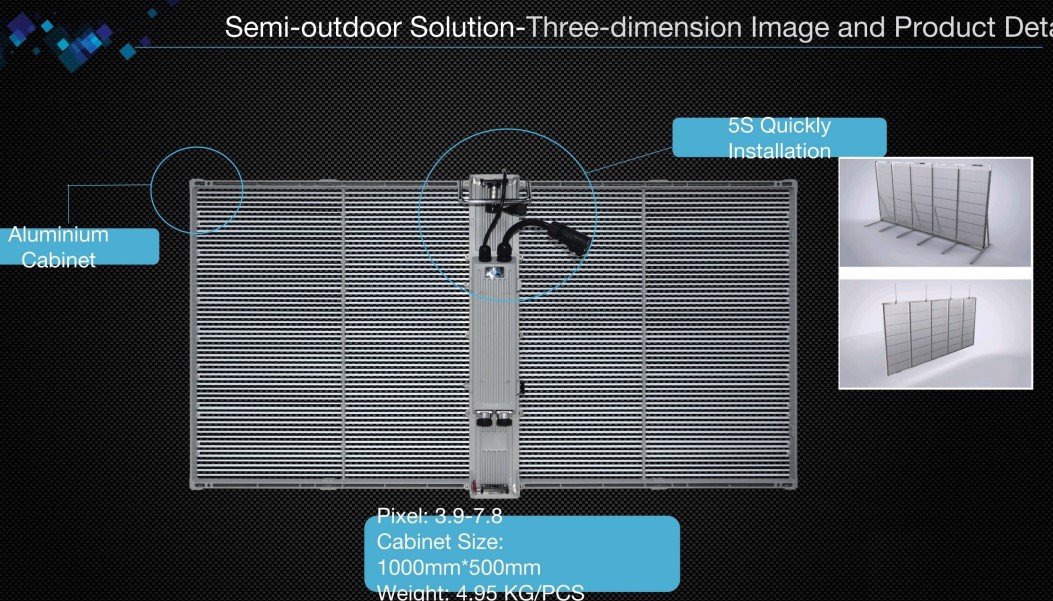

Fast Installation and Maintenance
Using fast lock to fix the cabinet quickly
Saving installation time and cost
Transparent LED displays—solutions for every need
Custom and out-of-the-box transparent LED solutions
Whether you need to create a custom transparent LED display or you need portable poster units, ClearLED has a display solution for your installation. LEEMAN DISPLAYLED displays offer options for indoor and outdoor use and are available as flat, curved, or cylinder transparent LED units. Uniquely versatile, our systems can be be integrated to create stunning, cost-effective displays to deliver powerful messaging to your customers.
LEEMAN DISPLAYLED Poster Display
The all-in-one Poster is a transparent digital indoor poster designed with convenience in mind. These portable lightweight transparent LED displays can be purchased ready-to-go (42", 55", 63") and installed in no time—everything you need is included in the box. The Poster series has a track record of boosting sales and delivers a return on investment that’s hard to beat.
LEEMAN DISPLAYLED Video Wall
The Wall series transparent LED display is perfect for building high-impact indoor displays that command attention. Ideal for permanent and semi-permanent displays, including storefronts, concerts, entertainment venues, national landmarks, and trade shows, they are modular in design, with high brightness and high resolution, the LEEMAN DISPLAYLED Wall series creates a best-in-class transparent video wall that viewers will not forget—and can be customized to fit your indoor architecture.
LEEMAN DISPLAYLED Curved Screen
The Curved series is highly transparent and fully customizable to form a convex or concave curve. Curved panels are pre-designed and manufacturing to meet the exact degree of curve you need for your display, and shipped pre-formed. Highly transparent, exceedingly bright, offering pixel pitch up to 7.81x7.81mm, LEEMAN DISPLAYLED Curved is lightweight and can either stand-alone or can be combined with LEEMAN DISPLAYLED Wall or Cylinder displays to make your brand stand out from the crowd.
LEEMAN DISPLAYLED Cylinder
The Cylinder series is a superior transparent LED display that can be custom designed to form a unique cylinder shaped display to add pizzazz to your exhibit. Each cylinder is formed by four lightweight quarter curves and is custom built to any diameter or height, delivers high transparency, and unbeatable brightness. LEEMAN DISPLAYLED Cylinder provides an excellent lightweight centerpiece exhibit.
Simultaneously transparent and bright
Uniquely transparent, LEEMAN DISPLAYLED transparent LED displays allow up to 93% light to filter through them into the interior of your location, creating a pleasing indoor atmosphere for your customers. Not only that, the unique transparency of your LEEMAN DISPLAYLED unit will allow passers-by to see through your display into the interior of your space, while delivering astoundingly bright and clear content—up to 6500nit.

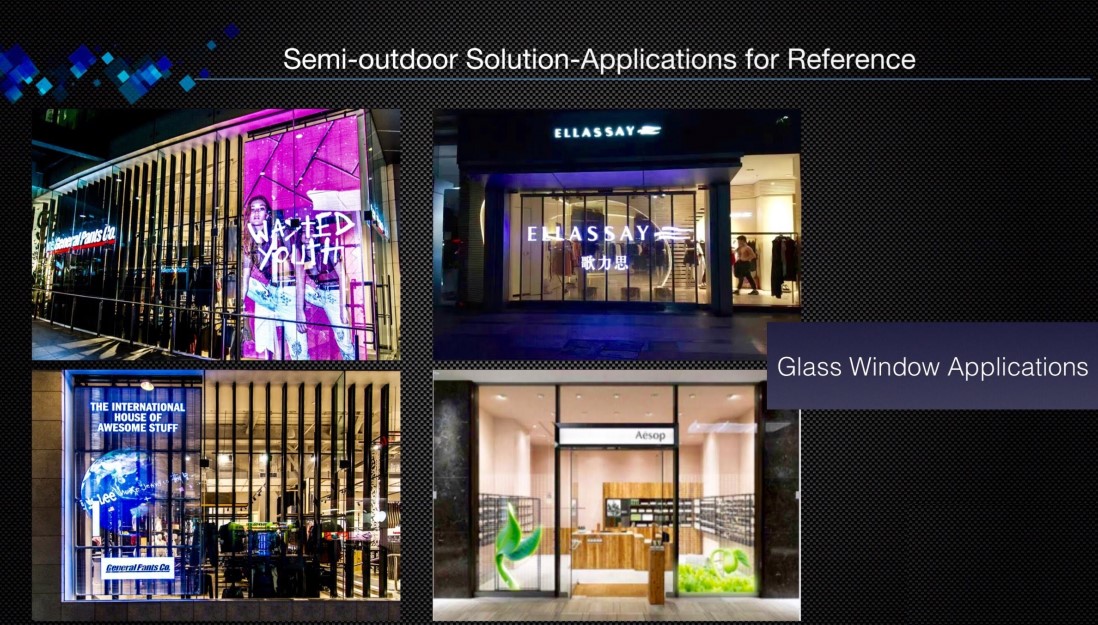

Perfect for retail, special events, showpieces, and more!
LEEMAN DISPLAYLED’s high transparency and high-resolution features make them highly suitable for in store advertising by delivering eye-catching visual effects while enhancing the brand image and maintaining the stylish design of the store. But that’s not all. Designers love to use LEEMAN DISPLAYLED at events, such as trade shows and conferences, on stage sets to create impactful and memorable stage displays, and as centerpieces in hotels, airports, restaurants, national landmarks, shopping malls, financial institutions, museums, and many other public venues.
Advertise, promote, inform, and raise brand awareness
Proven to deliver ~360% increase in sales when used by McDonald’s, LEEMAN DISPLAYLED is a powerful medium for getting attention. Whatever your message, static or video, LEEMAN DISPLAYLED can be counted on to call your customers to action and leave them with a positive and lasting impression of your brand.
Leading edge transparent LED technology
LEEMAN DISPLAYLED displays are carefully designed and manufactured by our design engineers to the highest of standards, and as pioneers in transparent LED technology, we are dedicated to continuous research and development. The company holds over 20 patents on its transparent display technology and its current LEEMAN DISPLAYLED series is trusted by leading brands around the globe.
Transparent OLED displays SPECIFICATON DESCRIPTION
Product Name
|
LEEMAN DISPLAYLED-p3.91
|
LEEMAN DISPLAYLED-P7.81
|
Pixel Pitch
|
3.91-7.81mm
|
7.81
|
SMD
|
SMD1921(Anti-UV)
|
SMD3535(Anti-UV)
|
Scan Mode
|
16S
|
8S
|
Module Resolution
|
128*32dots
|
96*48dots
|
Module Pixel
|
8192dots
|
4608dots
|
Cabinet Size(WXH)
|
1000*500mm
|
1000*500mm
|
Cabinet Resolution
|
256*64dots
|
192*96dots
|
Transparency Rate
|
≥85%
|
≥90%
|
Module Quantity
|
4pcs
|
4pcs
|
Pixel Density
|
32768 dots/㎡
|
16384 dots/㎡
|
Cabinet Material
|
section aluminum
|
section aluminum
|
Cabinet Weight
|
7KG
|
7KG
|
Brightness
|
5500cd/㎡
|
6500cd/㎡
|
View Angle
|
H140°,V140°
|
H140°,V140°
|
View Distance
|
≥4m
|
≥8m
|
Grey Level
|
16bit
|
16bit
|
Refresh Rate
|
>1920HZ
|
>1920HZ
|
Frame Frequency
|
60fps
|
60fps
|
Input Voltage
|
AC 86-264V/60Hz
|
AC 86-264V/60Hz
|
Power consumption(Max/Avg)
|
393/157W/㎡
|
393/157W/㎡
|
Screen Weight
|
9.5kg/㎡
|
9.5kg/㎡
|
MTBF
|
>10,000 hours
|
>10,000 hours
|
IP Grade
|
IP43
|
IP43
|
Operating Temperature
|
﹣20℃~+60℃or﹣40℃~+60℃
|
﹣20℃~+60℃or﹣40℃~+60℃
|
Operationg humidity
|
10%-85%RH
|
10%-85%RH
|
Control System
|
Linsn, NovaStar
|
Linsn, NovaStar
|
