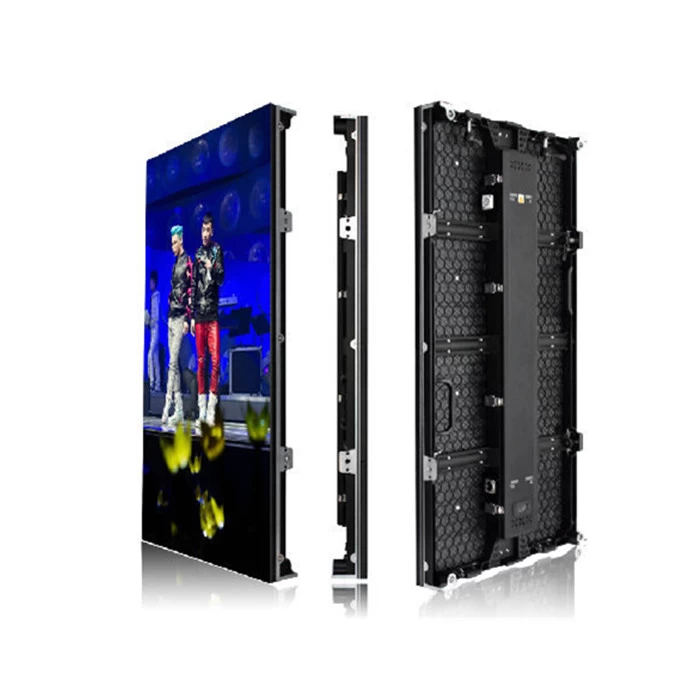

P3.91mm LED Display 500mmx500mm Indoor Rental Magnesium Alloy Cabinet
Light weight: Large unit and light weight. The cabinet can be as light as 5KG.
Ultra thin: The thinnest point of the cabinet is only 55mm, making it easily to be fitted in small room.
Seamless connection: The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, Low current can save energy over 35%, which in other words is to save money.

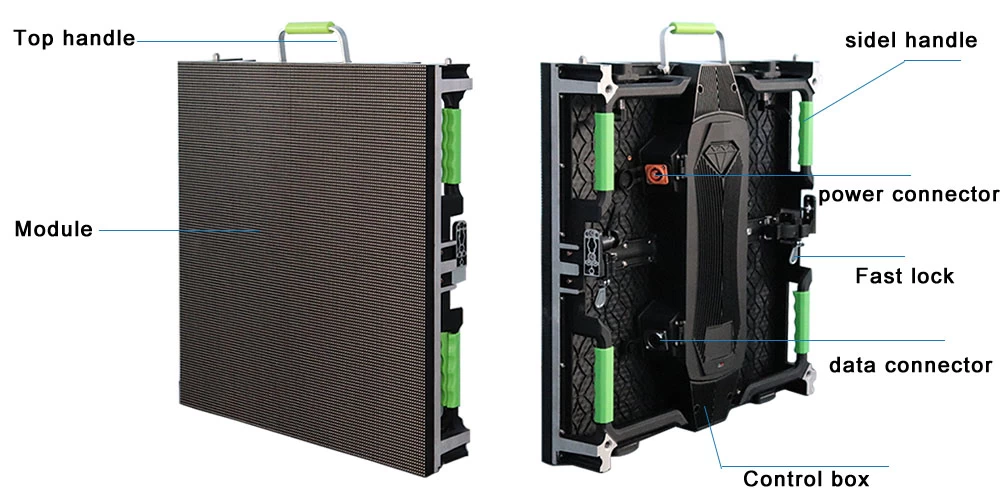

Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detach individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
High refresh rate: Over 3840Hz refresh rate to ensure the picture wrinkle-less, line-less and stable.
Low brightness and High gray scale: 14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Main LED Screen Datasheet Specifications:
|
Model
|
BARCOLED-P3.91-500X500
|
|
LED
|
SMD 3in1
|
|
Pixel
|
3.91mm
|
|
Module size
|
250*250mm
|
|
Module resolution
|
64*64dots
|
|
Density
|
65536 pixels/sqm
|
|
LED Cabinet Size
|
500*500*75(mm)
|
|
Cabinet Weight
|
5.5kg/pc
|
|
Material
|
Die Casting Aluminum Magnesium Alloy
|
|
Brightness
|
2200 cd/m2 (Nits)
|
|
Average power consumption
|
400w/2
|
|
Maximum power consumption
|
800w/2
|
|
Optimal Viewing Distance
|
3.9m to 39m
|
|
Grey Level
|
16 bits
|
|
Fresh frequency
|
3840HZ
|
|
Humidity-operating
|
10% ~ 95%
|
|
Temperature-operating
|
-30℃~+50℃
|
|
Screen life
|
≥100000 hours
|
|
Controlling mode
|
Synchronization or Asynchronous
|
|
Controlling system
|
Novastar/Linsn/Huidu/Colorlight
|
|
Protective grade
|
IP54
|
|
Certificates
|
CE,RoHs,FCC,UL,ISO,EMC
|
|
Warranty
|
5 Years
|
1. High Quality LEDs Lamp
The Indoor LEDs Chip we choose Epistar LED, Nationstar LED that have the high reliability and contrast, wide view angle and good consistency which meet the need of high brightness, high refresh rate, high gray scale and keep natural color at one time with best color uniformity.
2. Driving IC
To achieve the best visual performance of our indoor and outdoor led display, we use the Best Driving IC, such as MBI5124, SUM16136 MBI5153 ICN2038S ICN2153 with high refresh rate, high grey level with latest technology. And config the best Brightness Efficiency by the led screen Software.
3. Less Cabinet Weight Only 5..5Kg compare to Die Casting Aluminum 7.5kg

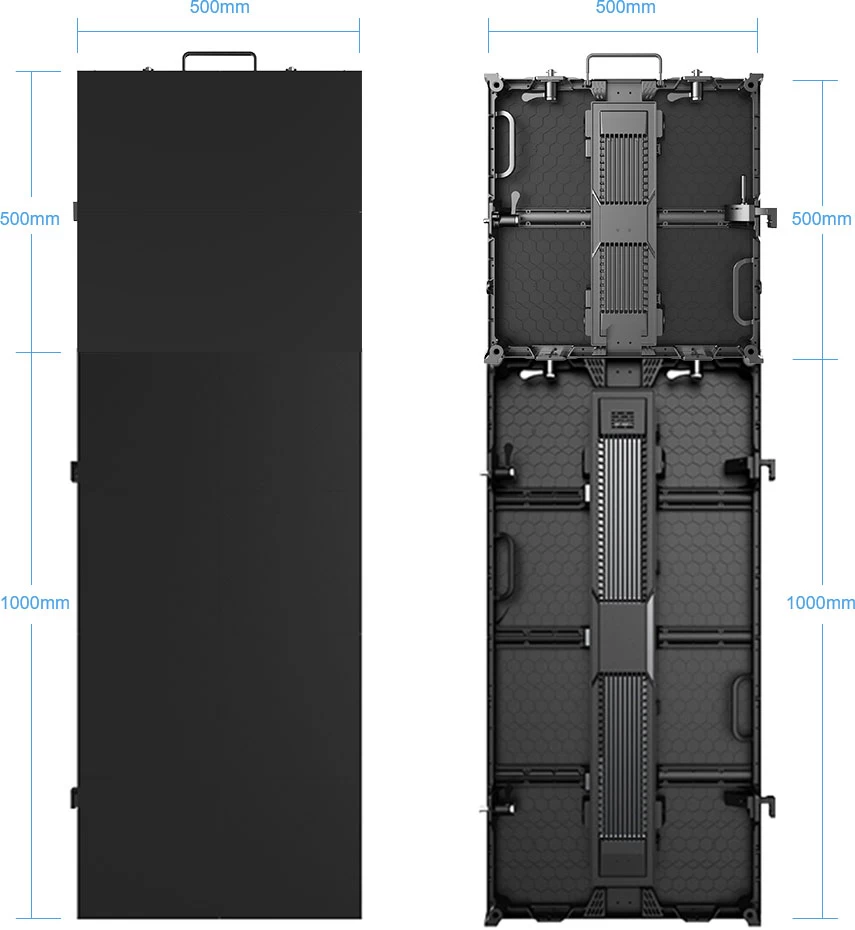

4. Mixed Installation of 500mmx500mm and 500mmx1000mm

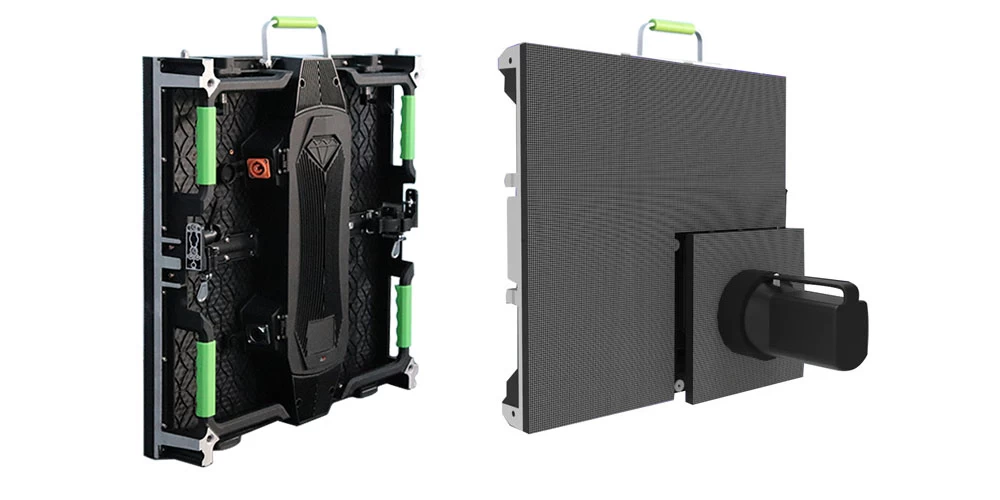

5. Double Maintanence Service,Easy Installation
Latest Die Casting Aluminum Cabinet Design,it can be used for indoor 2.604mm 2.98mm 3.91mm 4.81mm and outdoor 3.91mm 4.81mm. It can be rear service or frontal maintanence for easy installation.
6. Curved LED Cabinet Design for creative led display Screen
The Cabinet is curved design for 35 degree adjustment. You can use it for Creative LED Display such as Around LED Screen,Curved LED Display For Any Sharp
7. HDMI,SDI,S-Video,DVI WIFI Wireless singal input
led video processor can receive different signals like HDMI SDI VGA from DVD or other video player, to show the best video effects for your led display applications.
8. Carton Packing,Wooden Box Packing,Flight Case Packing
Normally, Rental LED Display Cabinet packed by Flight Case Packing, For some special purpose Barco led provide Carton Packing and Wooden Box Packing to save your cost.
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
BARCOLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
BARCOLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
BARCOLED PCB
|
4 Layer PCB Board
|
|
Packaging Materials
|
Flight Case Wooden box
|
