Outdoor Rental led video screen with pixel pitch 3.91mm 4.81mm LED Display Cabinet

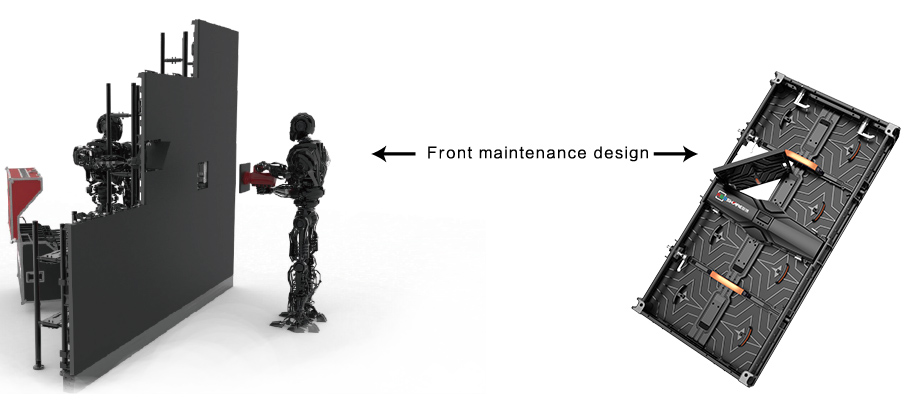

Front maintain cabinet/ Convenient to assemble and disassemble
Use of Special heat dissipation structure make excellent heat dissipation.
Ultra-wide viewing angle give you the largest screen viewing area
Die-cast aluminum cabinet design light and easy to transport.

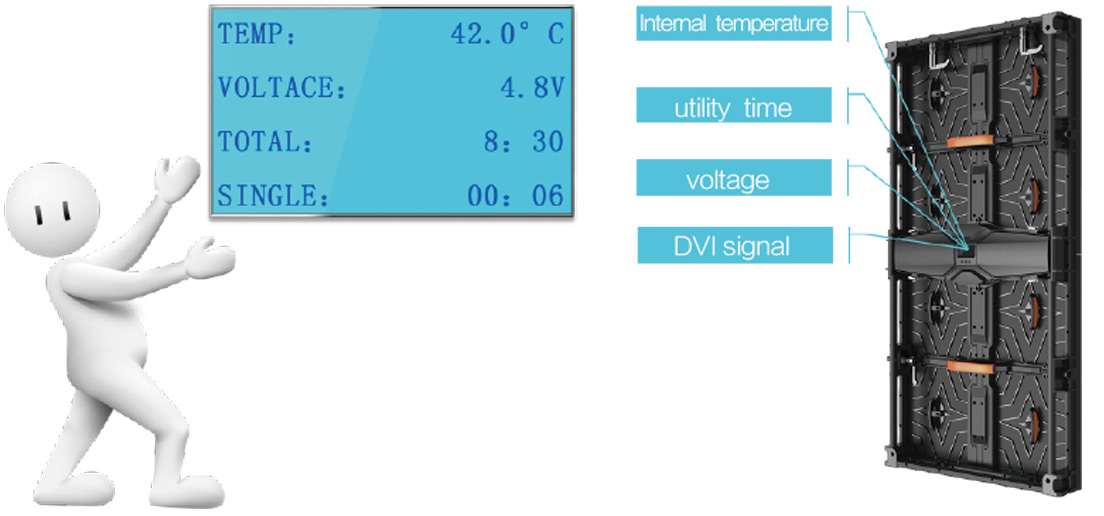

Intelligent monitoring module
Intelligent cabinet with intelligent monitoring (LCD display) shows the working status, smart monitoring the signal and record the span life.
Perfect design of maintenance
BARCOLED’s new generation rental series supports both front and rear maintenance (both module and power supply), saving time and space for customers.

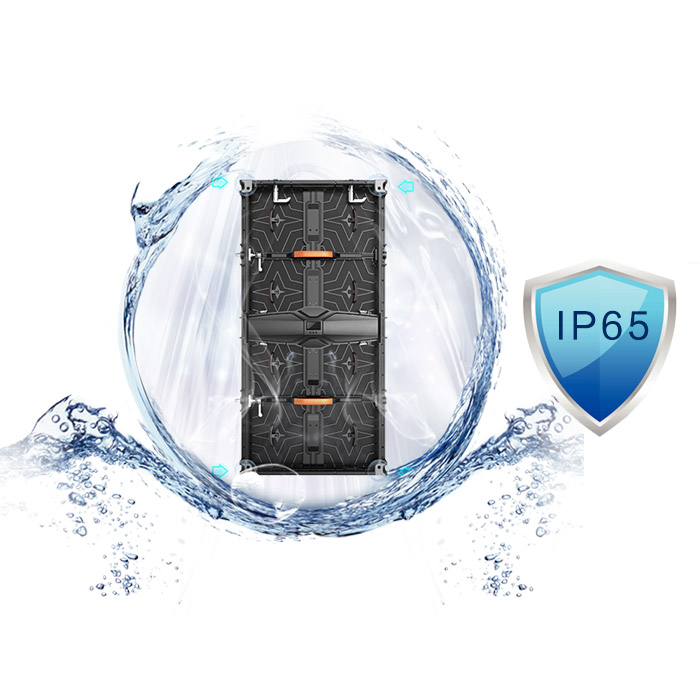

Cabinet is multi-waterproof design
Protection grade IP65,mature signal transmission, safer and more reliable.

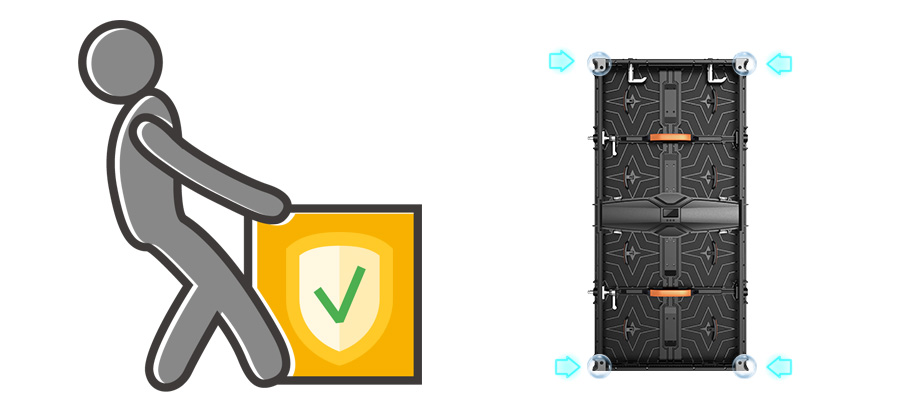

Protection design
To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.
Ultra thin and ultra light
Specifications:
|
Pixel Configuration
|
SMD1921
|
|
Pixel Pitch（mm）
|
3.91
|
|
Pixel Density（dot/m2）
|
65536
|
|
Module Pixel Matrix （W×H）
|
64×64
|
|
Module Size（mm）
|
250（W）×250（H）
|
|
Module Weight（kg）
|
0.6
|
|
Module Power Consumption Max.（W）
|
45
|
|
Module/Panel（W×H）
|
2×4
|
|
Panel Resolution（W×H）
|
128×256
|
|

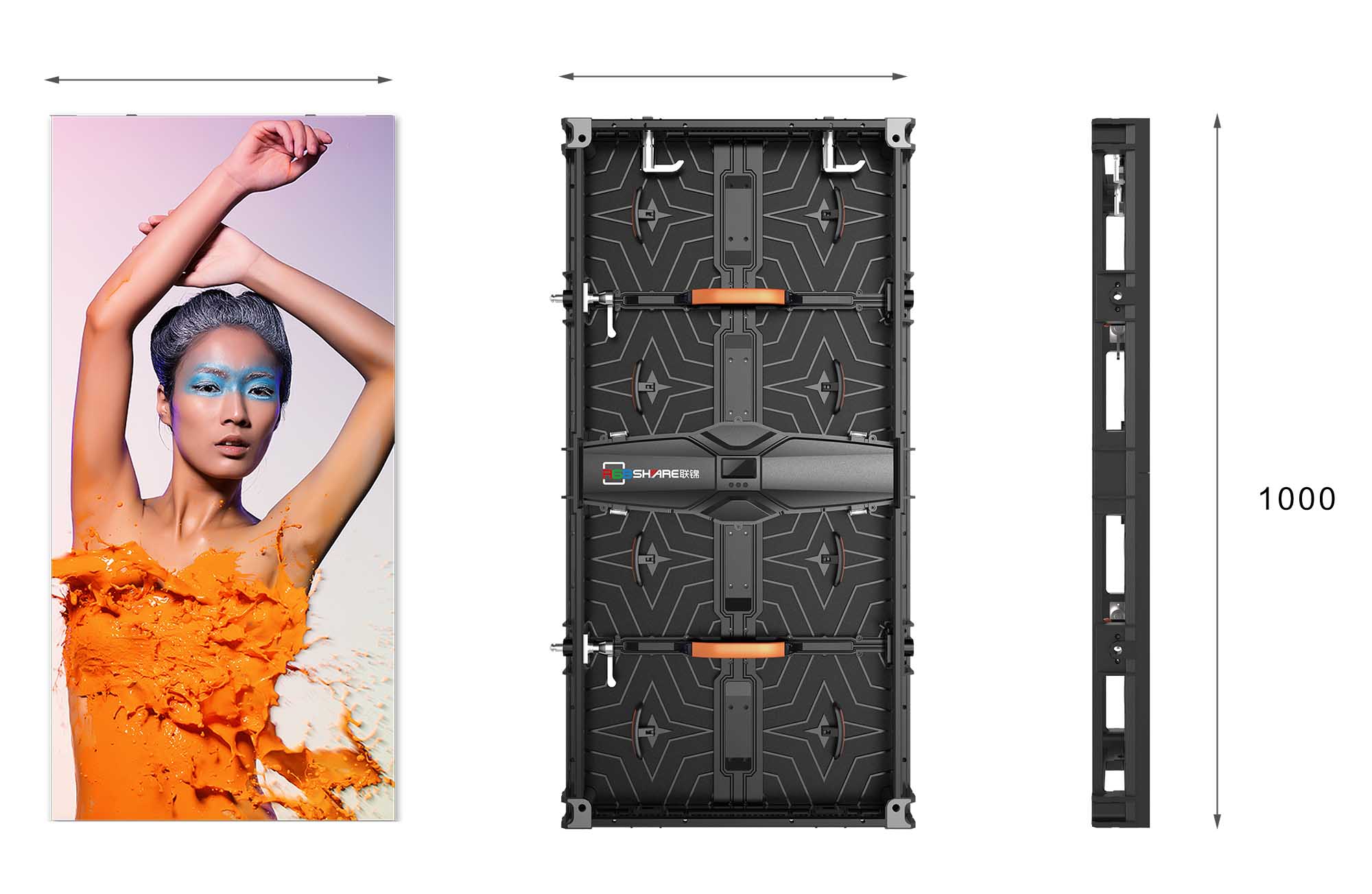

Panel Size（mm）
|
500（W）×1000（H）
|
|
Panel Weight（kg）
|
15
|
|
Maitainence Mode
|
Rear Maitainence
|
|
Panel type
|
Die-case Aluminum
|
|
Brightness（nits）
|
≥6500(color temperature 6500k)
|
|
Color Temperature（K）
|
3200—9300
|
|
Viewing Angle（Hor/Vert°）
|
140/120
|
|
Power Consumption Max（W/m2）
|
800
|
|
Power Consumption Avg（W/m2）
|
200-300
|
|
Operating Power Source
|
AC90~264V，Frequency 47-63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Drive Mode
|
Constant Driving，1/16S
|
|
Gray Scale
|
65536
|
|
Refresh Rate（Hz）
|
3840
|
|
Gray Scale per Color Level
|
16bit
|
|
Working Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
|
Storage Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
Outdoor Rental led video screen with pixel pitch 4.81mm LED Display Cabinet
Product Features:
|
Pixel Configuration
|
SMD2727
|
|
Pixel Pitch（mm）
|
4.81
|
|
Pixel Density（dot/m2）
|
43264
|
|
Module Pixel Matrix （W×H）
|
52×52
|
|
Module Size（mm）
|
250（W）×250（H）
|
|
Module Weight（kg）
|
0.6
|
|
Module Power Consumption Max.（W）
|
45
|
|
Module/Panel（W×H）
|
2×4
|
|
Panel Resolution（W×H）
|
104×208
|
|
Panel Size（mm）
|
500（W）×1000（H）
|
|
Panel Weight（kg）
|
15
|
|
Maitainence Mode
|
Rear Maitainence
|
|
Panel type
|
Die-case Aluminum
|
|
Brightness（nits）
|
≥6500(color temperature 6500k)
|
|
Color Temperature（K）
|
3200—9300
|
|
Viewing Angle（Hor/Vert°）
|
140/120
|
|
Power Consumption Max（W/m2）
|
800
|
|
Power Consumption Avg（W/m2）
|
200-300
|
|
Operating Power Source
|
AC90~264V，Frequency 47-63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Drive Mode
|
Constant Driving，1/13S
|
|
Gray Scale
|
65536
|
|
Refresh Rate（Hz）
|
3840
|
|
Gray Scale per Color Level
|
16bit
|
|
Working Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
|
Storage Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
