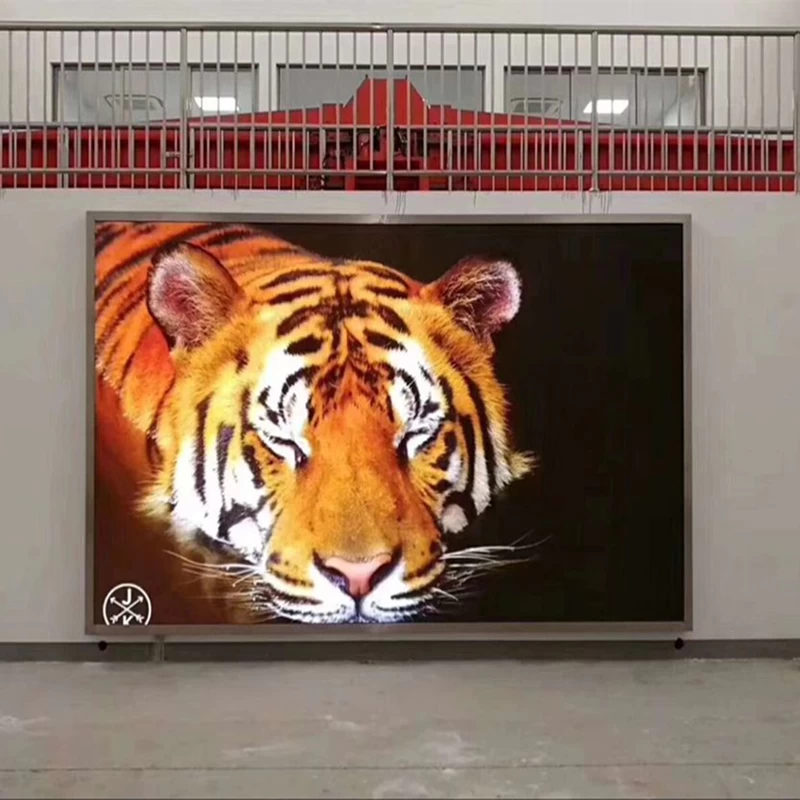

1). For indoor display, super brightness, supports any format of video
2). Easy and simple installation interface and user friendly software to ensure the easy operation the LED display system.
3). Our LED displays are widely used in commercial advertising, indoor led video wall, entertainment industry, stage events, concerts, financial industry, communications, power sector, traffic, stadium, plaza, school, airport ect., for advertising and displaying messages.
2.Product Features:
1). Adopting the brightness and hue adjustment technologies, eliminate the bright and dark patches and plagues, realized the color and brightness uniform of the whole display; Taking the HDTV standards as color correction reference, restore nature vivid colors for the whole display.
2). Meticulous design of modules reduce the plane difference to less than 0.2 mm, effectively eliminate the mosaic phenomenon and ensure the excellent flatness and contrast of the whole display.
3). Modular ultra light cabinet with fast lock and dowel pin on it make it quite easy for installation, disassemble and maintain. It can realized lifting or piling installation on site.
4). Cabinet made of good quality pressure-casting aluminum can bear load strength and reduce deformation; it's suitable for large entertainment.
|
Configure
|
Specification
|
Parameter
|
|
Pixel
|
Dot Pitch
|
3mm
|
|
Pixel Configure
|
1R1G1B
|
|
Pixel/SQM
|
111111 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2020
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-622.5nm;>220mcdGreen:520-522.5nm;>480mcd
Blue:465-467.5nm;>70mcd
|
|
Module
|
Module Resolution
|
64Pixel * 64Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/16 Scanning
|
|
Module Dimension
|
192mm(Width)x192mm(Height)
|
|
Drive IC
|
MBI5024(Or other Similar IC)
|
|
LED & Drive Composition
|
Light-Drive Separation
|
|
Refresh Rate
|
>1000HZ
|
|
Cabinet
|
Cabinet Thickness
|
100mm
|
|
Cabinet Construction
|
Simple Cabinet
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Black
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Back Maintenance
|
|
Cabinet Material
|
Spcc1.5
|
|
Cabinet Dimension
|
576X576X100mm
|
|
Power Supply
|
China Power Supply
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 120 ° Vertical: 120 °
|
|
Brightness
|
>4500cd/m²
|
|
Best Viewing Distance
|
3~15m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
2000w/m²
|
|
Average Power
|
700w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 30
|
|
LED Screen Weight
|
35kg/m2
|
Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Delivery Time:
1.Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
Installation Structure
Outside framework should be steel structure to make sure having enough installation intensity. According to onsite circumstance and user`s requirement, normally aluminum panel with plastic coat be used for the decoration. Their advantages listed below
· The color for aluminum panel with plastic coat is abundant and versatile, could be selected as per different request.
· The surface of the aluminum panel with plastic coat is high quality and smooth.
· It could realize glue and connect in case of gaps and meet with the nice looking demand
