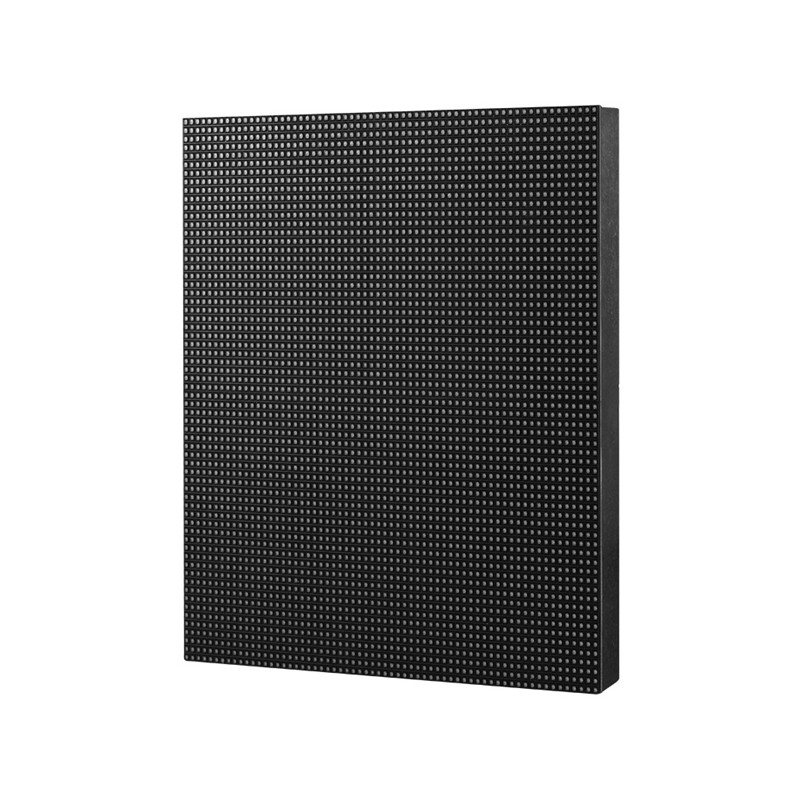

HD P3 Indoor Full Color LED Advertising Board
Product Features:
1. SMD 3in1 led encapsulation ensure the wide view angle
2. Combined driving PCB Board confirm the slim module,low power consumption
3. Black body led lamps confirm the high brightness,high contrast rate
4. Die-cast Aluminum material,keep strong configuration and good heat dissipation
5. Small panel size of 576*576 mm and with thickness of 80mm only, light weight, can be taken by hands
6. Packaged by flight case,easy to collect and can move to anywhere
7. With fast locks and aviation plugs,easy to install and dismantle,better for rental
8. Seamless spliced, good uniformity, perfect display performance
Indoor P3

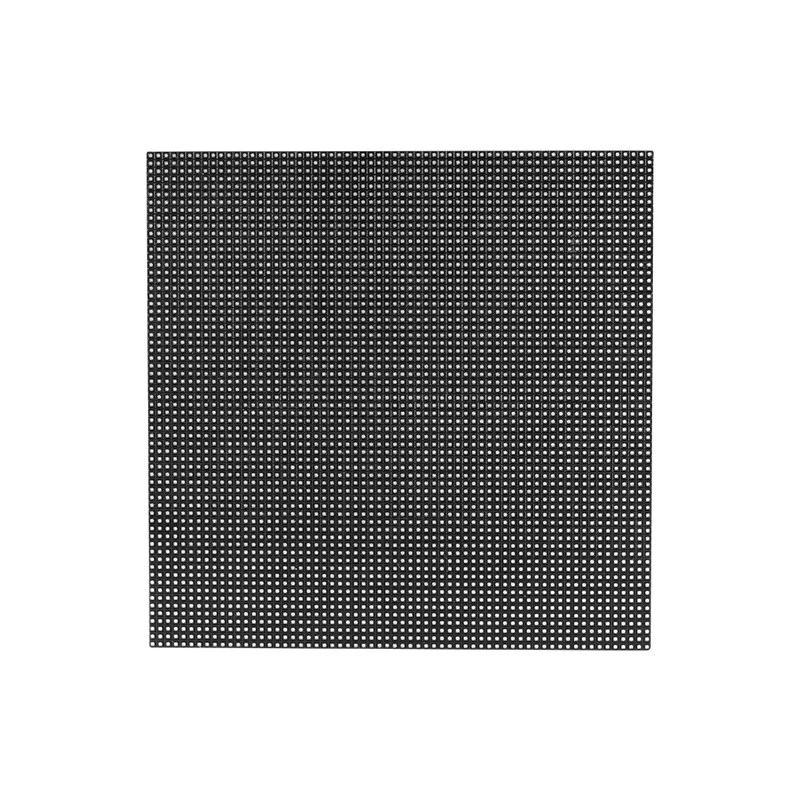

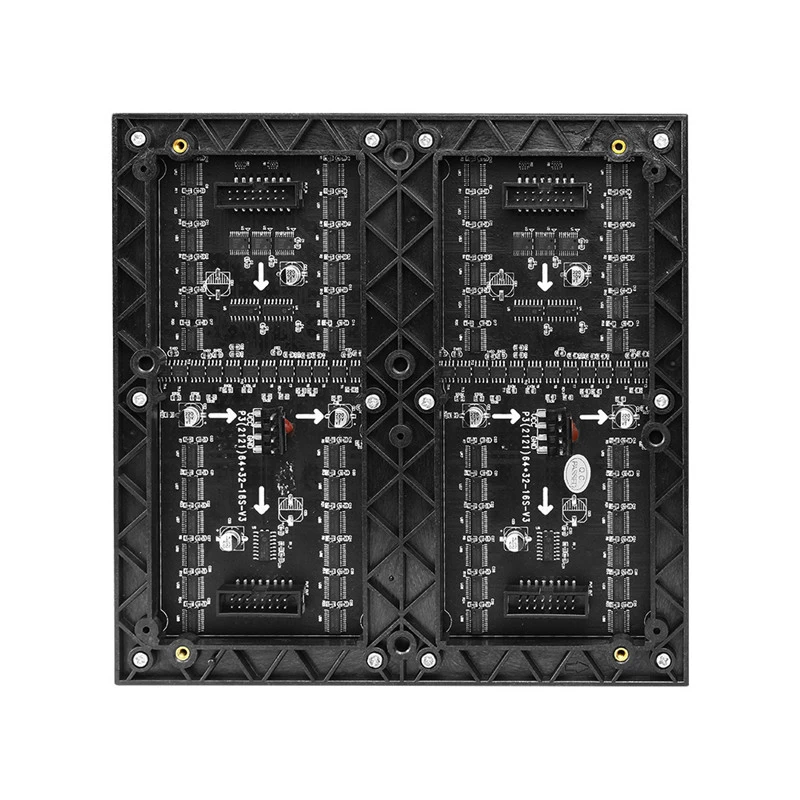

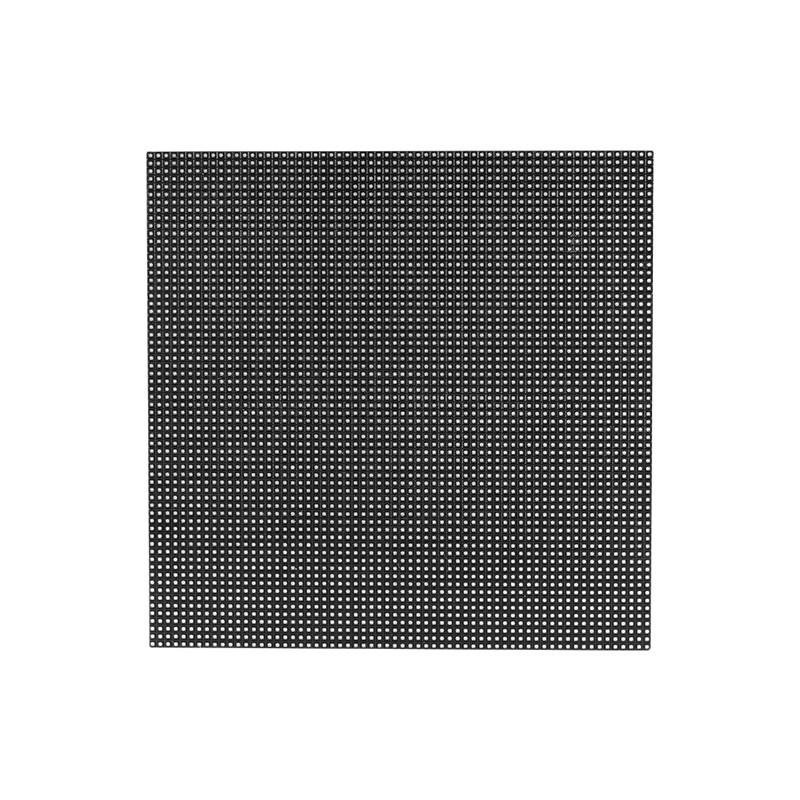

LED Display Module Specification
|
Pixel
|
Pixel Pitch
|
3 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
111,111 Pixel/m²
|
|
LED Lamp
|
LED Type
|
SMD 2121
|
|
LED Lamp
|
Nation Star /King light
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;174-230mcd
Green:520-525nm;680-900mcd
Blue:470-475nm;130-160mcd
|
|
Module
|
Module Dimension
|
192 mm(W)x192 mm(H)
|
|
Module Resolution
|
64 Pixel * 64 Pixel
|
|
Scanning Method
|
1/32 S
|
|
Drive IC
|
5020 /5124 /5153 / 2037 /2038
/2038S/2053
|
|
Refresh Rate
|
>1920HZ
|
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1300 cd/m²
|
|
Best Viewing Distance
|
3-50 m
|
|
LED Life
|
100,000 Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Module Weight
|
0.25 kg/piece
|
