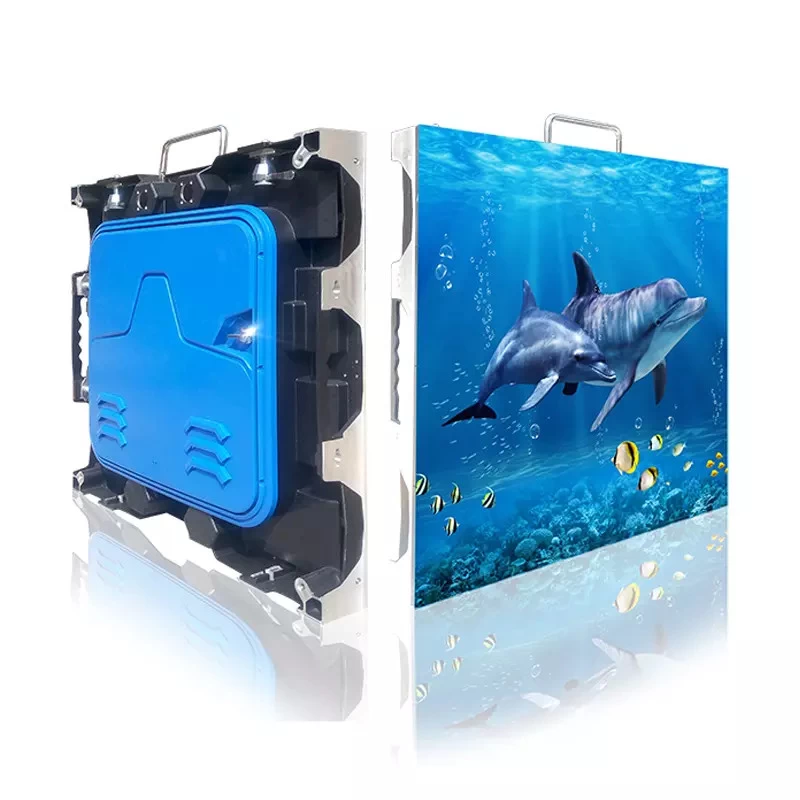

P3 Indoor Full Color Large SMD Stage Commercial LED Display Panel Screen :
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8. Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device
9. Life time >11 years
|
Pixel
|
Dot Pitch
|
3 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
111,111 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2020 / 2121
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
64 Pixel * 64 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/16 Scanning
|
|
Module Dimension
|
192 mm(Width)x192 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|

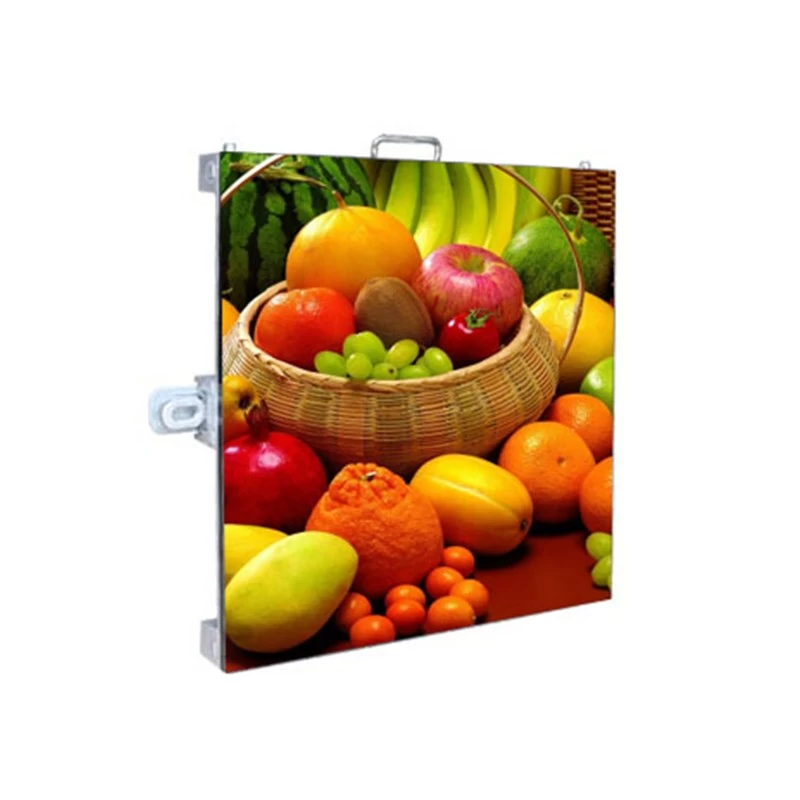

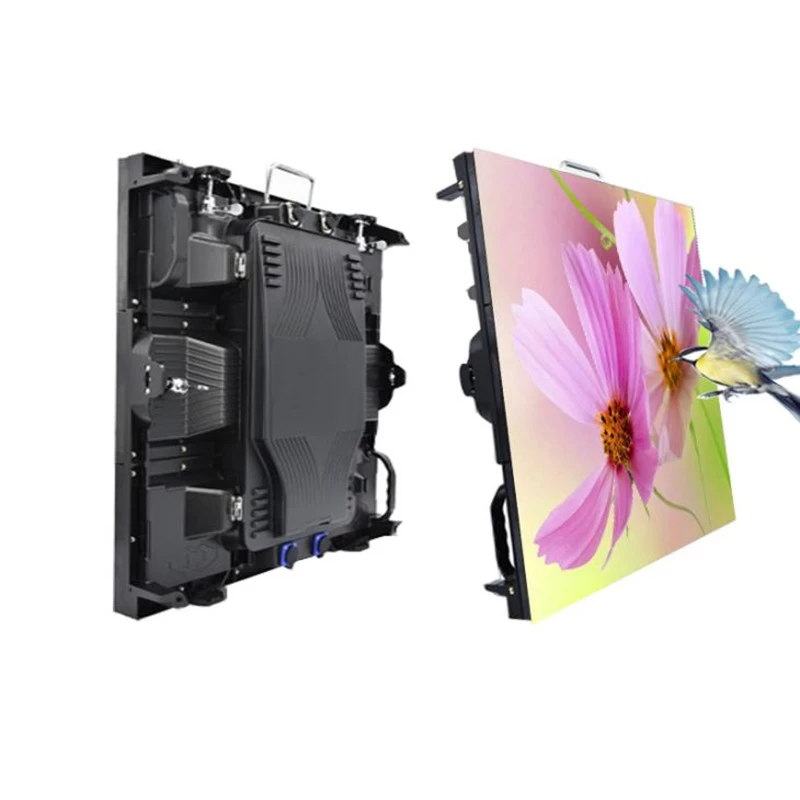

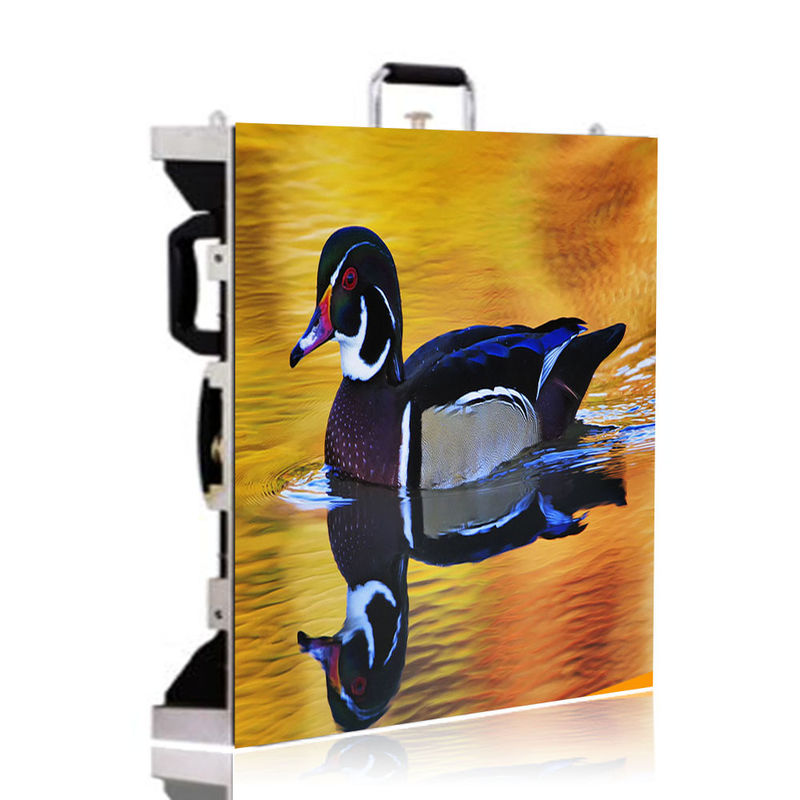

Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
576mm*576 mm
|
|
Module QTY
|
3(Width)X3 (Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1500cd/m²
|
|
Best Viewing Distance
|
3~30m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Screen Weight
|
10 kg/cabinet
|
Outstanding Features :
1. Application :
Dispatching Center, Control Command Center, Monitoring Center, Conference Video Center, Information Center,Demonstration Center, Studio Center,etc.
2. Thin and Light Cabinet:
Simple , ultra thin and light design ,easy to install and transport
Fanless, zero noise, low power consumption, automatic heat dissipation
3. High Definition and Exquisite Image:
Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image
Supporting point-to-point correction, to ensure the color and brightness consistency
Exquisite color, clear and natural image with excellent RGB gray scale processing
4. Seamless and precise Connection:
Seamless connection with high flatness and soft image

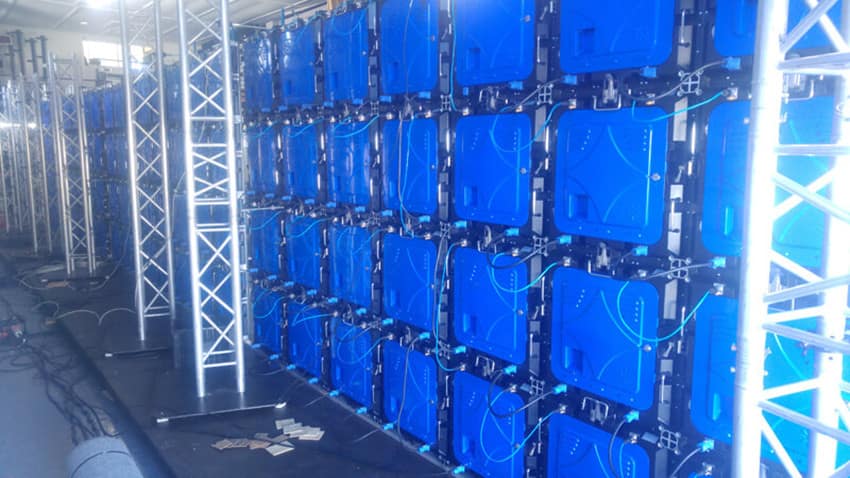

Accurate and flexible installation, Buckle design for the sides to realize quick installation and disassembling
Professional and standard aviation plug with high quality guarantee
5. Low Consumption Energy Saving:
4.2 V voltage design, low power consumption, energy saving ,green and environmental protection.
