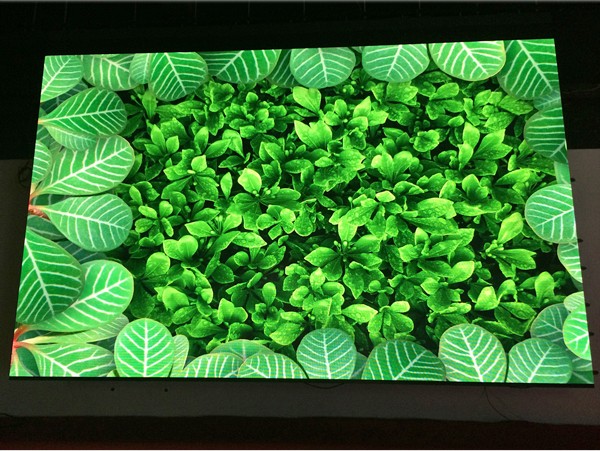

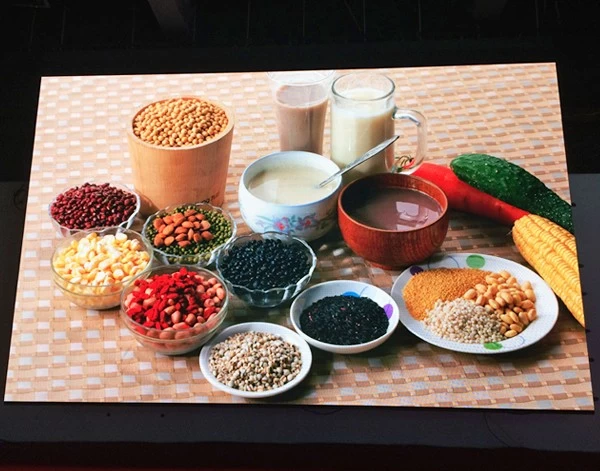

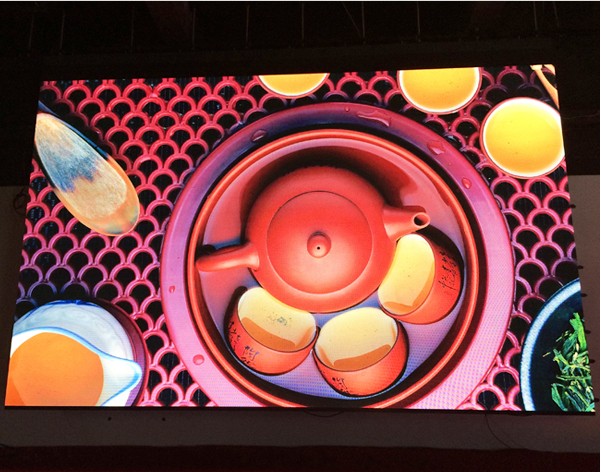

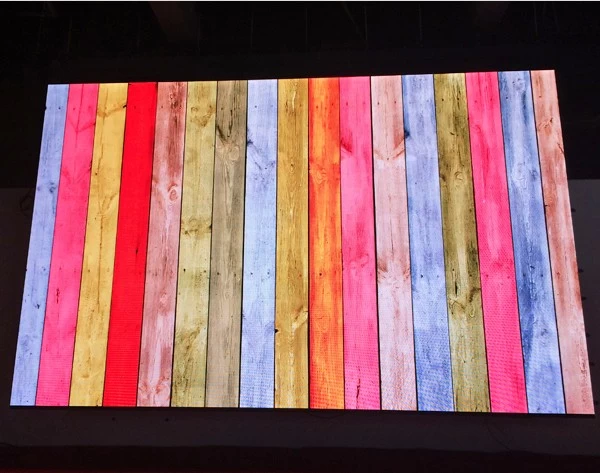

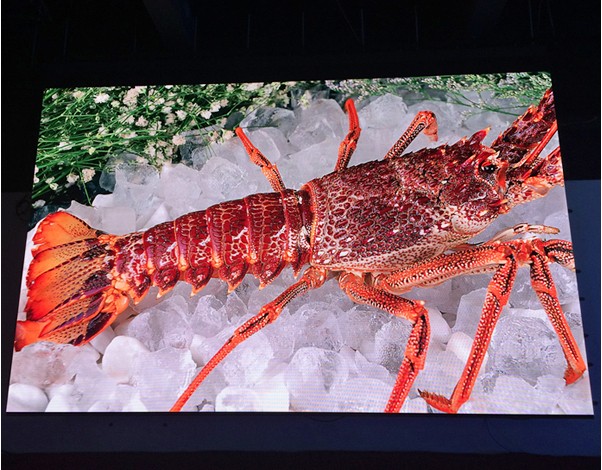

P3mm Indoor Rental LED Display Screen 576mmx576mm
This LED Display Screen Function advantages
1. High definition and could be adjusted, so it can meet the request of the customers according the application environments.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
To picture, video and character, have clear, exquisite and real display effects.
3. Big viewing angle to 160 degree at horizontal line, 140 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion.
4. Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.
High Refresh 3840hz, Rental Die Casting Aluminum Cabinet, High Grey Grade, Low Consumption. Including linsn led sending card novastar receiving card software system

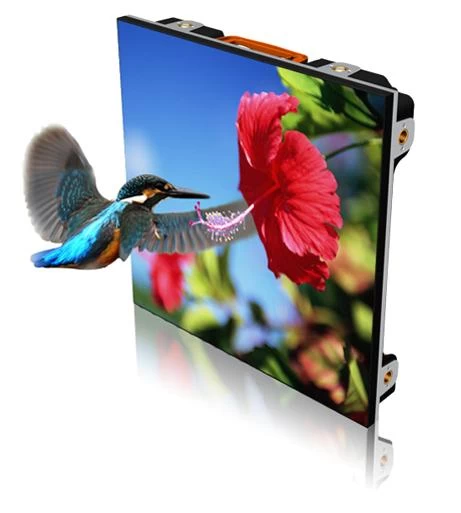

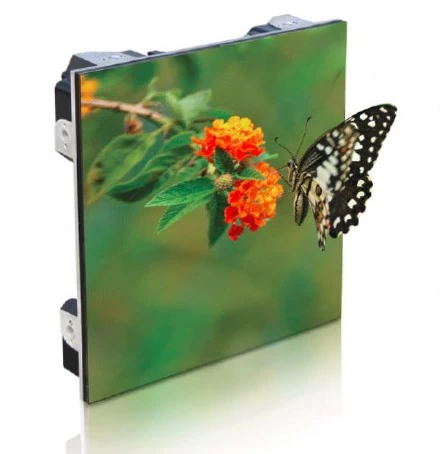

Products features of HD Ph3mm Rental led video wall die-cast aluminum cabinet
1) Lightweight: Cabinet size of 576*576mm or 960mm*960mm and light weight of only 12.5 kg enable one-person installation easier and simpler, save installation time. But traditional HD stage led screen is over 20 Kg with the same size.
2) Supper Thin: Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditional cabinet is 160mm.
3) Quick Connection: Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
4) Easy Installation: Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
5) Compatible: New structure design, can satisfy hoisting, over stow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor led module such like P2.5, P4, P5.33,P6.4,P8,P10.66,P12.8,P16 are compatible.
6) Low Power: Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
LED Chips Lamp Technical Specifications
|
Item
|
Luminous Intensity
|
Viewing Angle(H/V)
|
Wavelength
|
Test Condition
|
|
Red LED
|
150-200mcd
|
160º/140º
|
620-650nm
|
25℃,20mA
|
|
Green LED
|
260-330mcd
|
160º/140º
|
520-555nm
|
25℃,20mA
|
|
Blue LED
|
55-65mcd
|
160º/140º
|
465-485nm
|
25℃,20mA
|
LED Display Module Technical Specifications
|
Pixel Pitch
|
3mm
|
|
Pixel Configuration
|
1R1G1B SMD2020 3in1
|
|
Module Resolution
|
64dots*64dots for real
|
|
Module Pixels
|
4096 dots
|
|
Module Size
|
192mm*192mm
|
|
Module Weight
|
0.2KG
|
LED Display Aluminum Cabinet Technical Specifications
|
Cabinet Size(W*H*D)
|
576*576*65(mm) or 960*960*65mm
|
|
Cabinet Resolution
|
256dot*256dot for real
|
|
Module Quantity
|
9 pcs or 25pcs
|
|
Cabinet Pixels
|
36864 dots
|
|
Pixel Density
|
111111 dot/sqm
|
|
Avg. Power Consumption
|
250W/sqm
|
|
Max. Power Consumption
|
700W/sqm
|
|
Material
|
Die-casting Aluminum
|
|
Cabinet Weight
|
5KG for aluminum cabinet 18KG for iron cabinet
|
LED Display Screen Technical Specifications
|
Brightness
|
≥2200cd/sqm
|
|
Contrasts (Max. /Min.)
|
1.1:1
|
|
Driving Method
|
1/16 scan constant current
|
|
View Angle
|
Horizontal 160° Vertical 140°
|
|
Optimal Viewing Distance
|
3m to 50m
|
|
Brightness Control
|
Red, Green and Blue 256 Grade/Each
|
|
Fresh Frequency
|
≥3840Hz
|
|
Frame Frequency
|
50 - 60Hz
|
|
Input Voltage
|
AC220V/50Hz or AC110V/60Hz
|
|
Defects Rate
|
≤0.00001
|
|
Screen Weight
|
≤20kg/sqm for Iron cabinet /18kg/sqm for Aluminum cabinet
|
|
MTBF
|
>10,000 hours
|
|
Life Span
|
≥100,000 hours
|
|
Brightness Uniformity
|
<3%
|
|
Earth Leakage Current
|
<3mA
|
|
Protective Grade
|
IP45
|
|
Temperature-operating
|
﹣40°C to 60°C
|
|
Humidity-operating
|
10% to 90%
|
|
Operating System
|
Windows98/me/2000/NT/XP/win7/win8/win10
|
LED Display Video Controller Card System Novastar Linsn Colorlight LEEMAN DISPLAYLED Software
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
LEEMAN DISPLAYLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
LEEMAN DISPLAYLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
LEEMAN DISPLAYLED PCB
|
4 Layer PCB Board
|
|
Packaging Materials
|
Flight Case Wooden box
|
